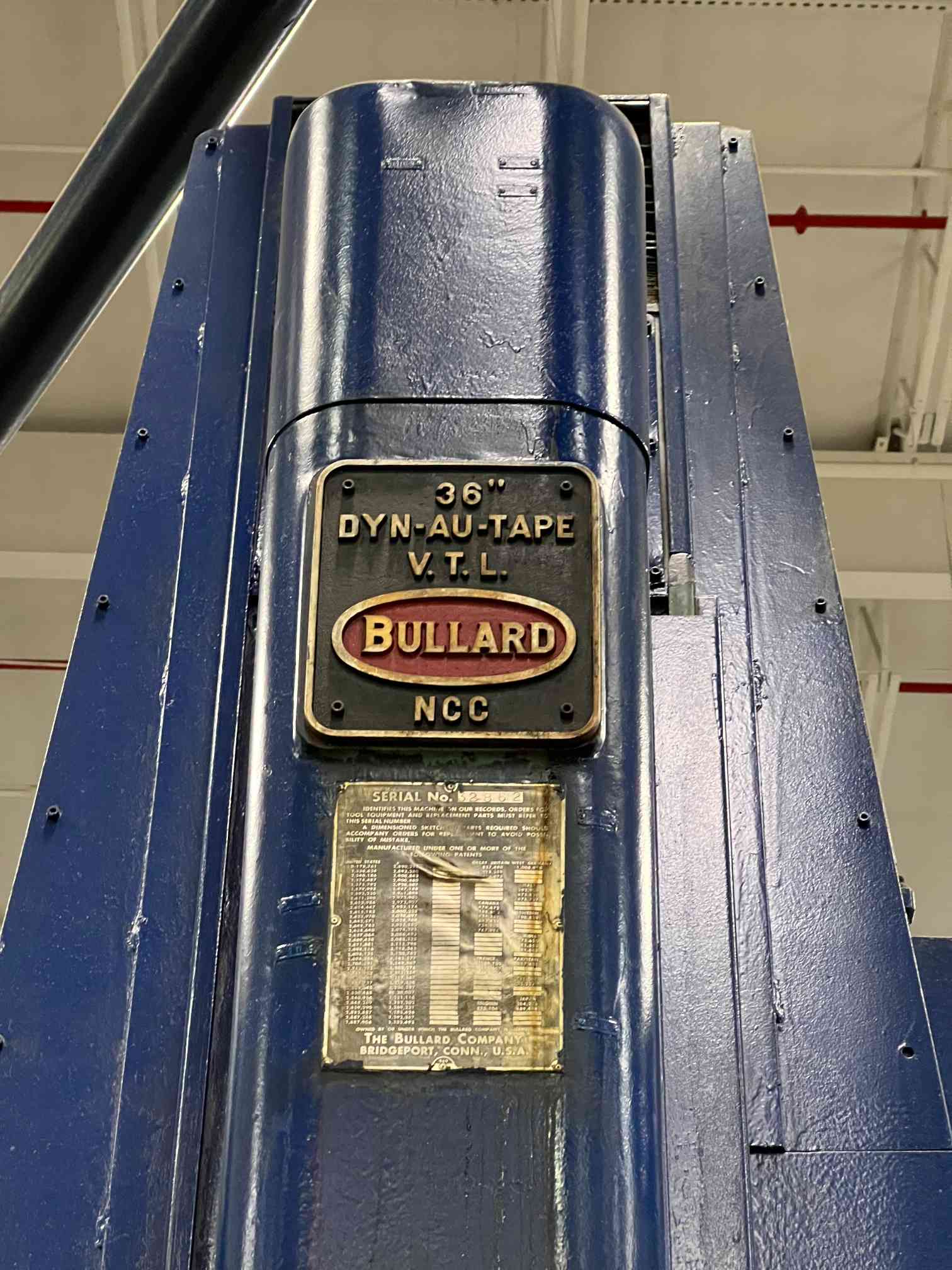

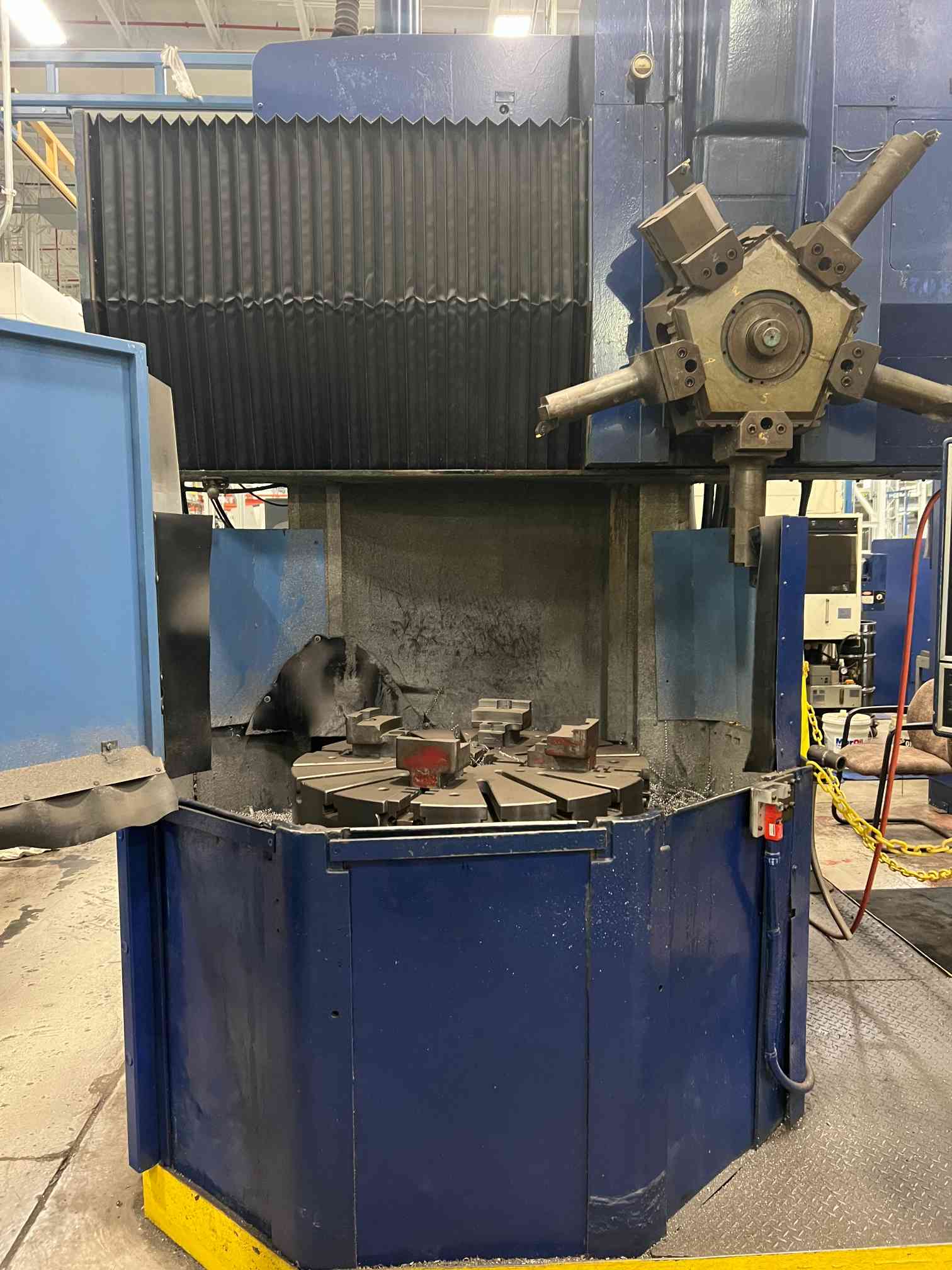

36″ Bullard Dyn-au-tape CNC Vertical Turret Lathe – Allen Bradley Control

$24,900.00

This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

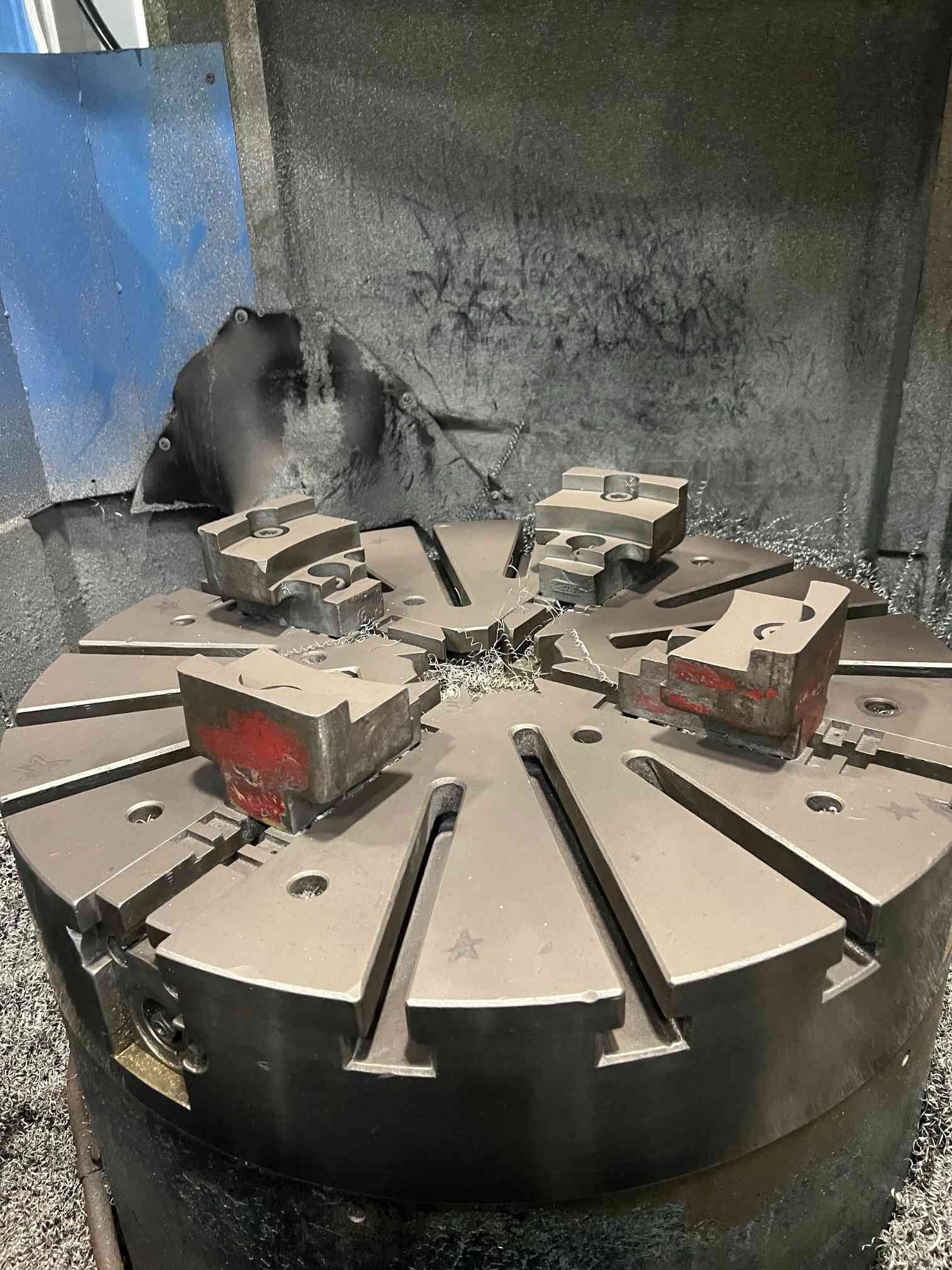

Table Size: 36″ – 4 Jaw Chuck
Swing – with Side Head in Working Position: 40”
Swing – with Side Head Below Table: 48”
Distance Under Rail: 50” Maximum
Rail Adjustment – Vertical: 37 3/4”
Table Speeds (20): 6 to 225 RPM
Feeds (16): .001” to .250”

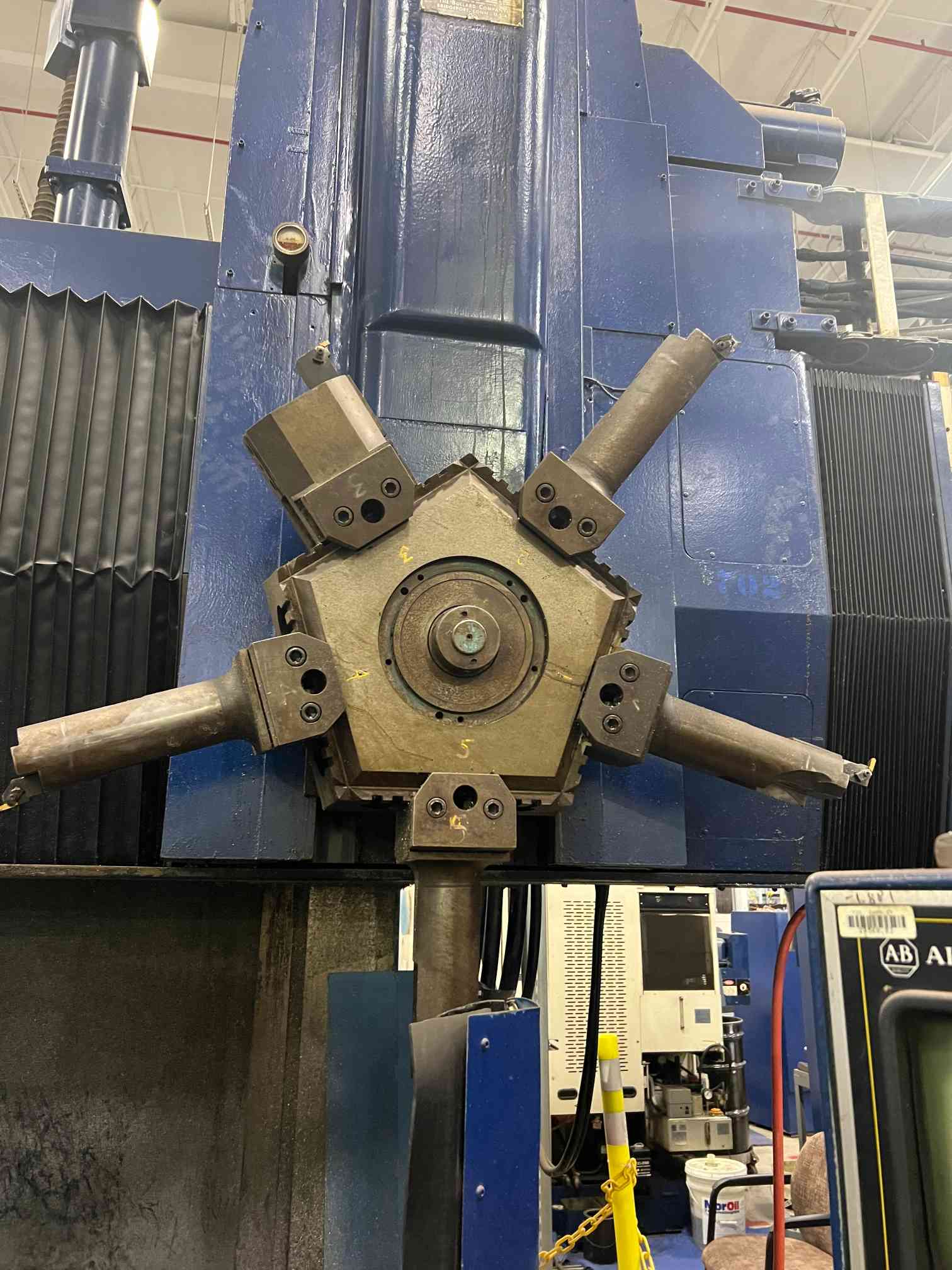

Turret Head: 5 Position with 2” Holes
Turret Head Adjustment: 30 Degrees – Left or Right
Turret Head Stroke: 26”
Turret Head Horizontal Adjustment on Rail: 46”
Maximum Distance – Turret Face to Table:
Side Head: 4 Position – 24” Stroke
Side Head Vertical Travel: 39 1/2”
Side Head Horizontal Travel: 24″

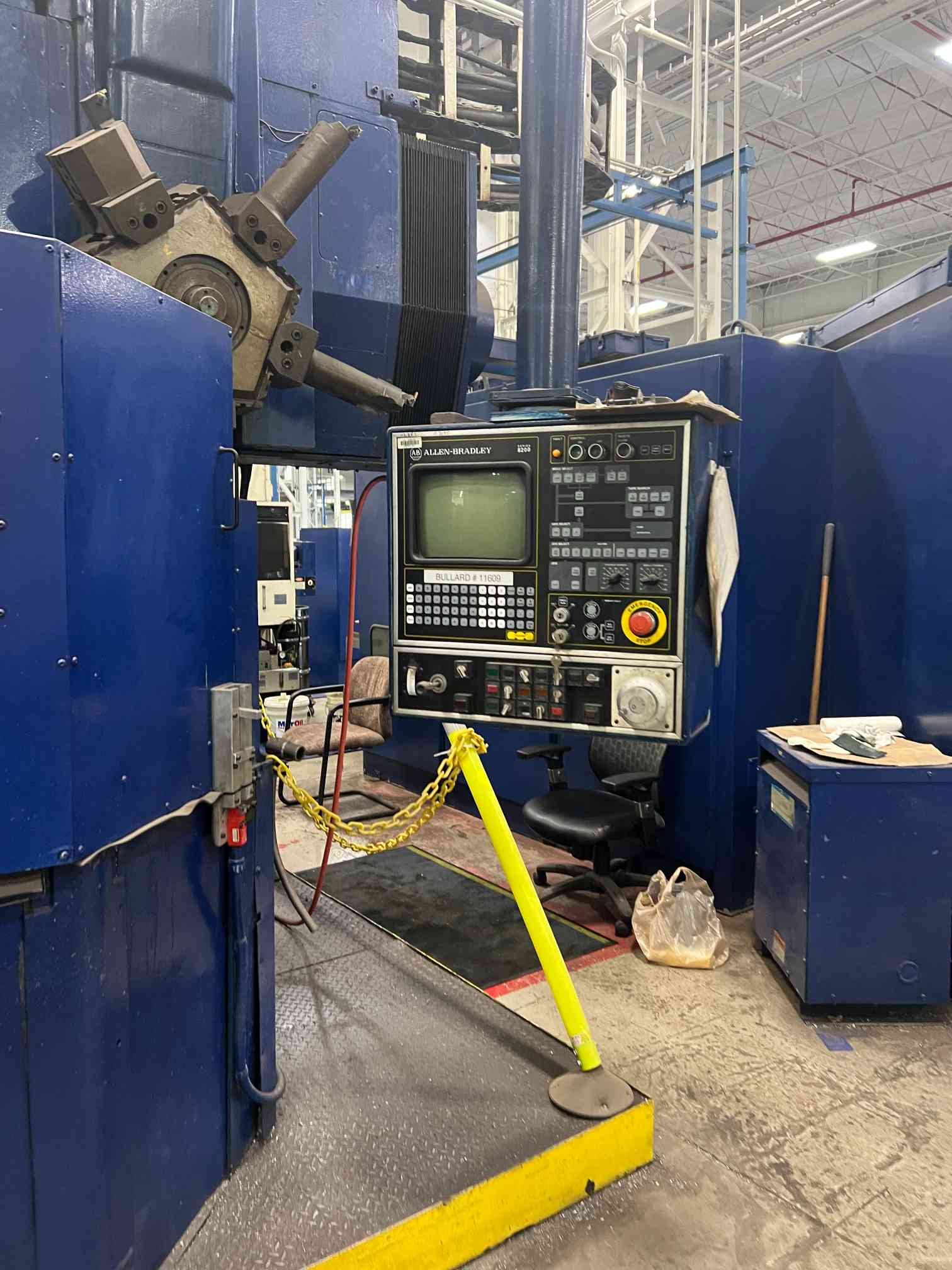

Allen Bradley Control
