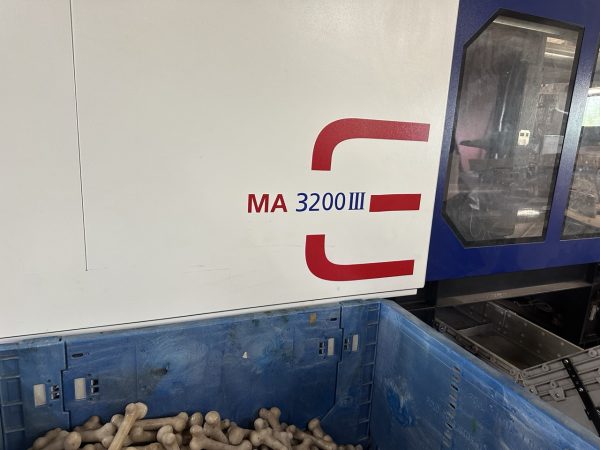

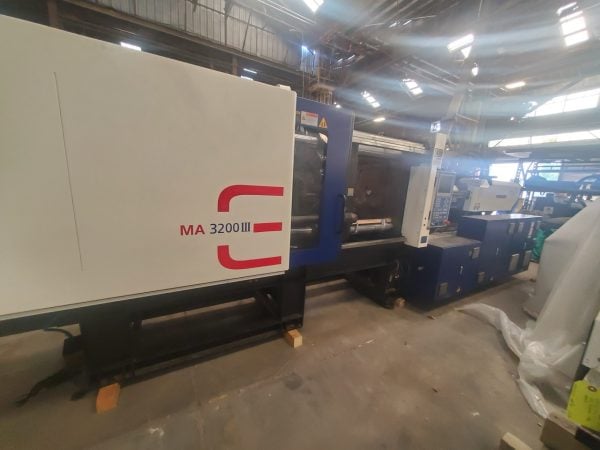

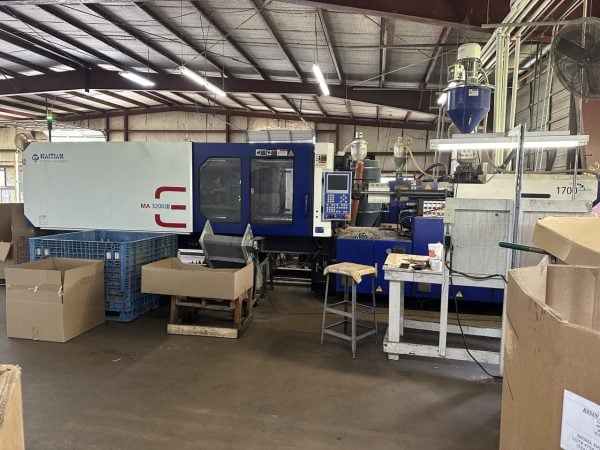

360 Ton 34.6 oz Shot Size Haitian MARS MA III 3200/1700e Injection Molding Machine, 2021
$59,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Clamping Force – 360 tons
Clamp Stroke – 25.2 in
Space Between Tie Bars – 26.77 x 26.77
Max Mold Height – 26.77 in
Min Mold Height- 9.84 in
Ejector Stoke – 6.3 in
Ejector Force – 6.97 tons
Mold Platen Dimensions – 38.98 x 38.98
Total Clamp Open Daylight – 51.97 in
Max Mold Weight on MP – 4630 lbs
Max Mold Weight on Full Set – 7716 lbs
Screw Diameter – 2.76 in
Screw L/D Ration – 18.6
Shot Size – 34.6 oz
Injection Rate – 14.22 oz/sec
Injection Pressure – 22,771 psi
Machine Dimensions – 279x71x94
Weight – 29,762 lbs
