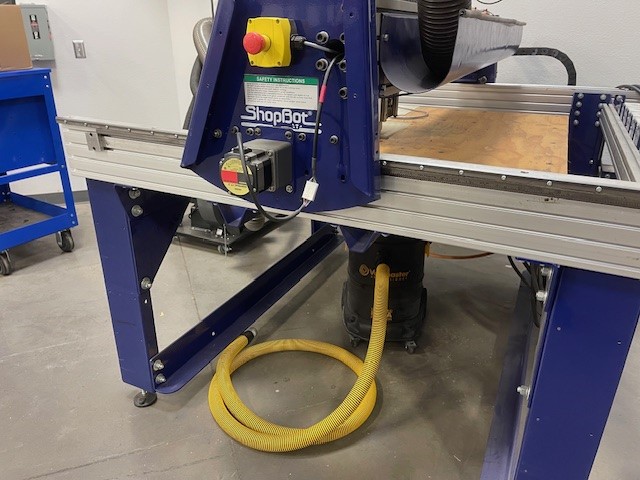

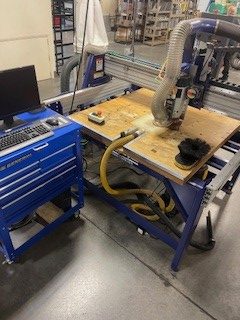

4′ x 4′ ShopBot PRS5 Gantry Alpha 48-48-8 CNC Router, 2020 – Auto Tool Changer, Vacuum System

$22,500.00

4' x 4' ShopBot PRS5 Gantry Alpha 48-48-8 CNC Router, 2020 - Auto Tool Changer, Vacuum System
4' x 4' ShopBot PRS5 Gantry Alpha 48-48-8 CNC Router, 2020 - Auto Tool Changer, Vacuum System - Image 2
4' x 4' ShopBot PRS5 Gantry Alpha 48-48-8 CNC Router, 2020 - Auto Tool Changer, Vacuum System - Image 3
4' x 4' ShopBot PRS5 Gantry Alpha 48-48-8 CNC Router, 2020 - Auto Tool Changer, Vacuum System - Image 4

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Routers
Make: ShopBot
Model: PRS5 Gantry Alpha 48-48-8
Year: 2020
Machine Location: Arizona
Stock #: 129854

X-Axis Travels: 48″
Y-Axis Travels: 48″
Z-Axis Travels: 8″
Spindle Motor: 5 HP
Spindle Speed: 18,000 RPM
Positional Resolution: 0.0004″
Repeatability: +/- 0.002″
Max Cutting Speed: 600 IPM
Max Rapid Speed: 1,800 IPM
Side Force: 150lbs

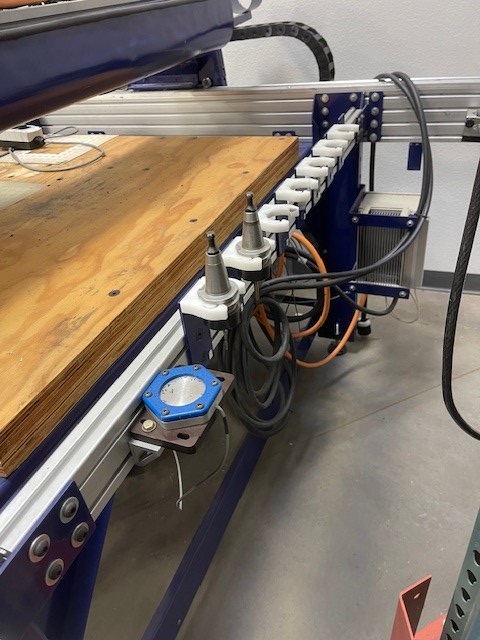

ATC: 8

Approximate Machine Dimensions: 72″ x 79″ x 67″
Approximate Machine Weight: 1500lbs
Electrical: 230V, 3-Phase

Equipped With
ShopBot SB3 Control Software

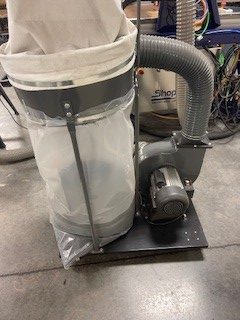

Dust Collector

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
