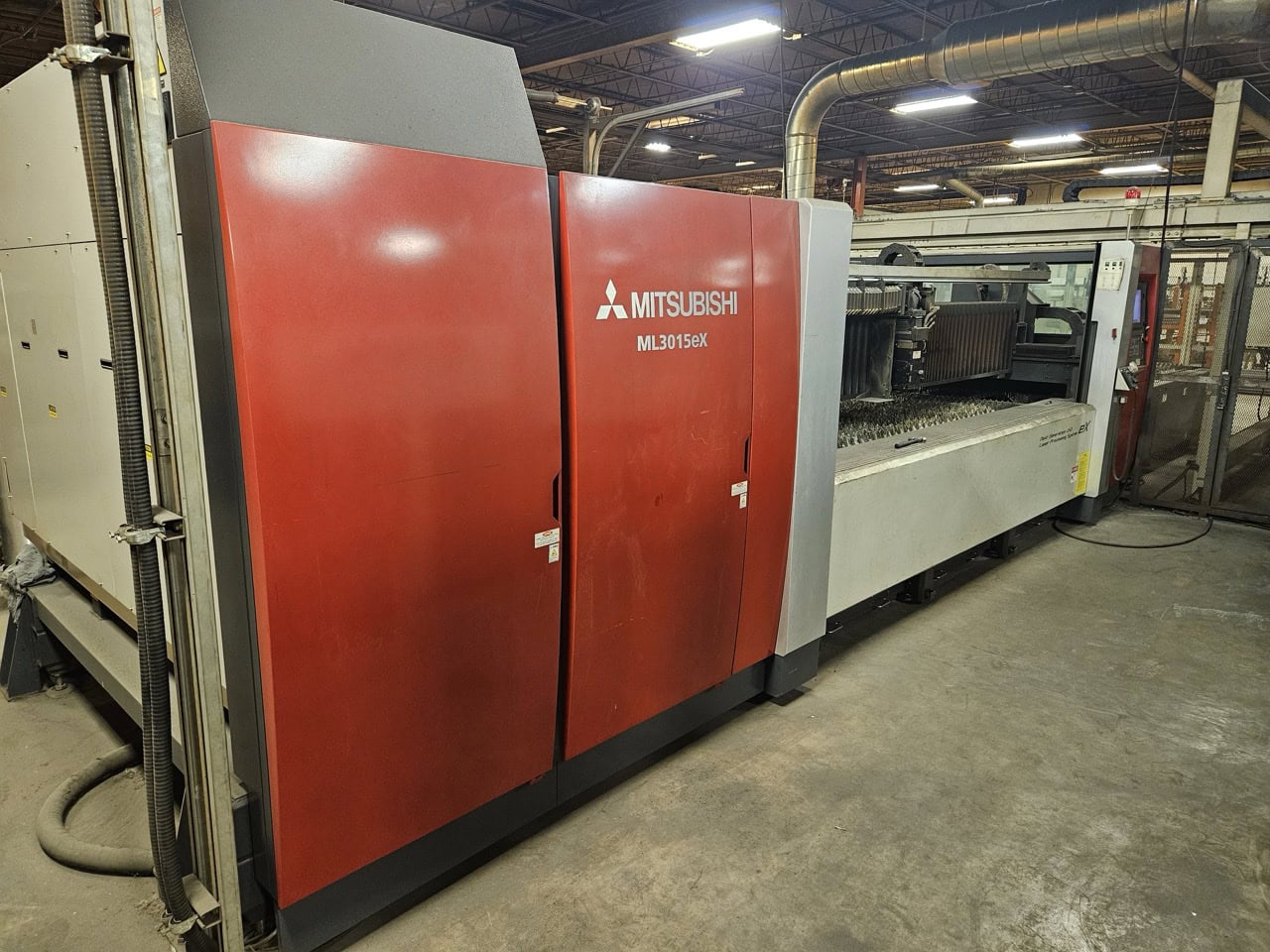

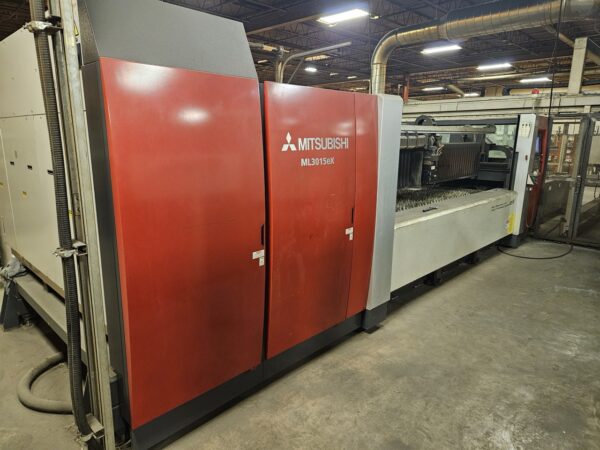

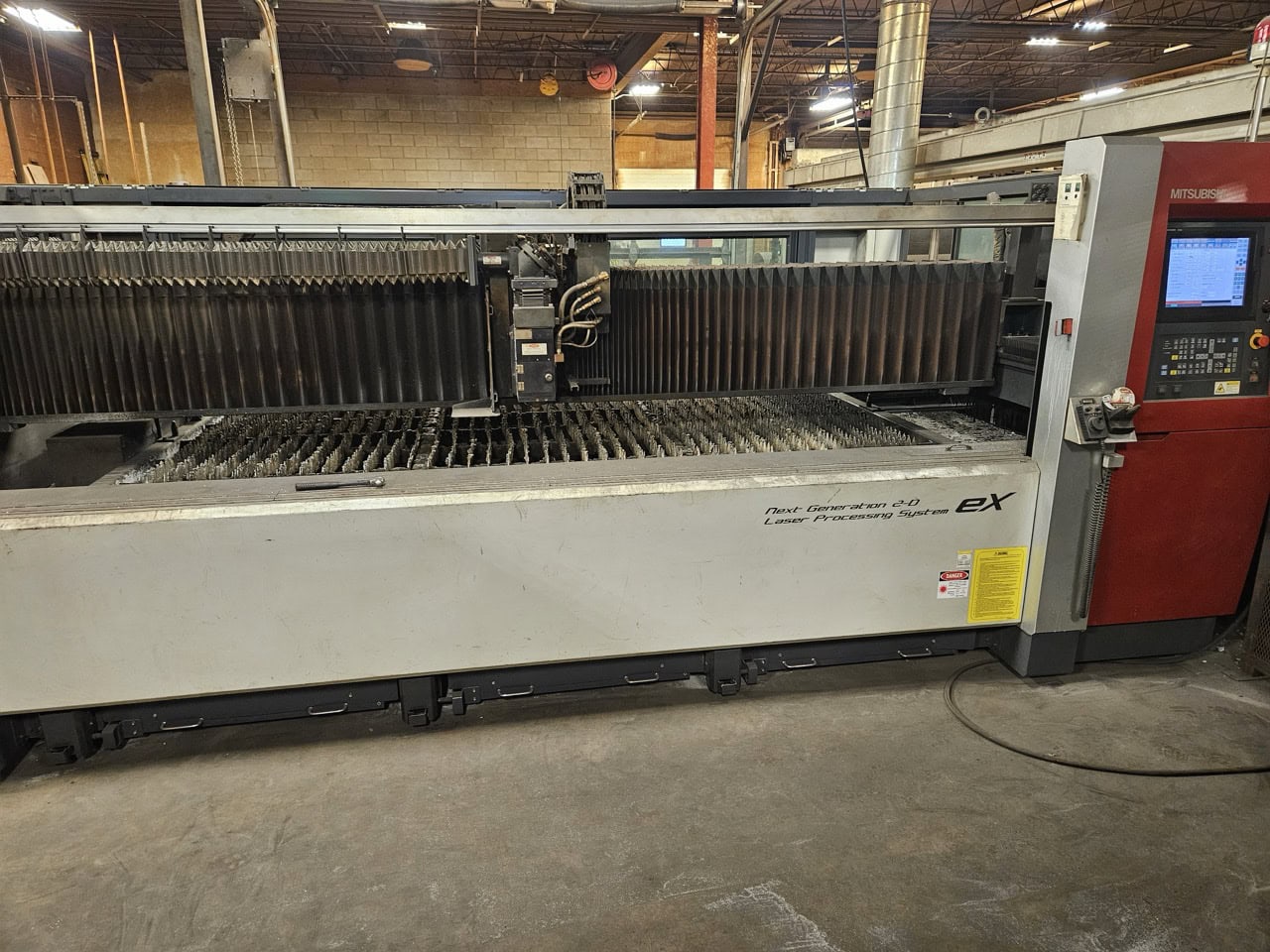

4500 Watt Mitsubishi ML3015 EX CO2 Laser, 2012 – 5′ x 10′ Table – Dual Pallet, Chiller

Name: 4500 Watt Mitsubishi ML3015 EX CO2 Laser, 2012 - 5' x 10' Table - Dual Pallet, Chiller
SKU: 34072566371

$39,900.00

4500 Watt Mitsubishi ML3015 EX CO2 Laser, 2012 - 5' x 10' Table - Dual Pallet, Chiller - Image 2

4500 Watt Mitsubishi ML3015 EX CO2 Laser, 2012 - 5' x 10' Table - Dual Pallet, Chiller - Image 3

4500 Watt Mitsubishi ML3015 EX CO2 Laser, 2012 - 5' x 10' Table - Dual Pallet, Chiller - Image 4

This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

Resonator Wattage: 4500 Watts
Maximum Workpiece Size: 60″ X 120″
Motion Drive System: Helical Rack & Pinion
Proc. Lens Focal Dist: 5.0″/7.5″/10.0″
No. Of Controled Axes: 3
Table Pass Height: 34.6″
Rapid Travel Speed (X-Y) Single Axis: 3940″
Rapid Travel Speed (X-Y) Simultaneous: 5550″
Max. Proc. Feedrate: 1970″
Pos. Precision (X-Y): 0.0019″/20″
Pos. Precision Z: 0.0039″/4″
Rep. Accuracy (X-Y): +/-0.00039″
Foot Print: 566.9″ X 344.4″
Max. Workpiece Weight: 2050 Lbs

Equipped With:

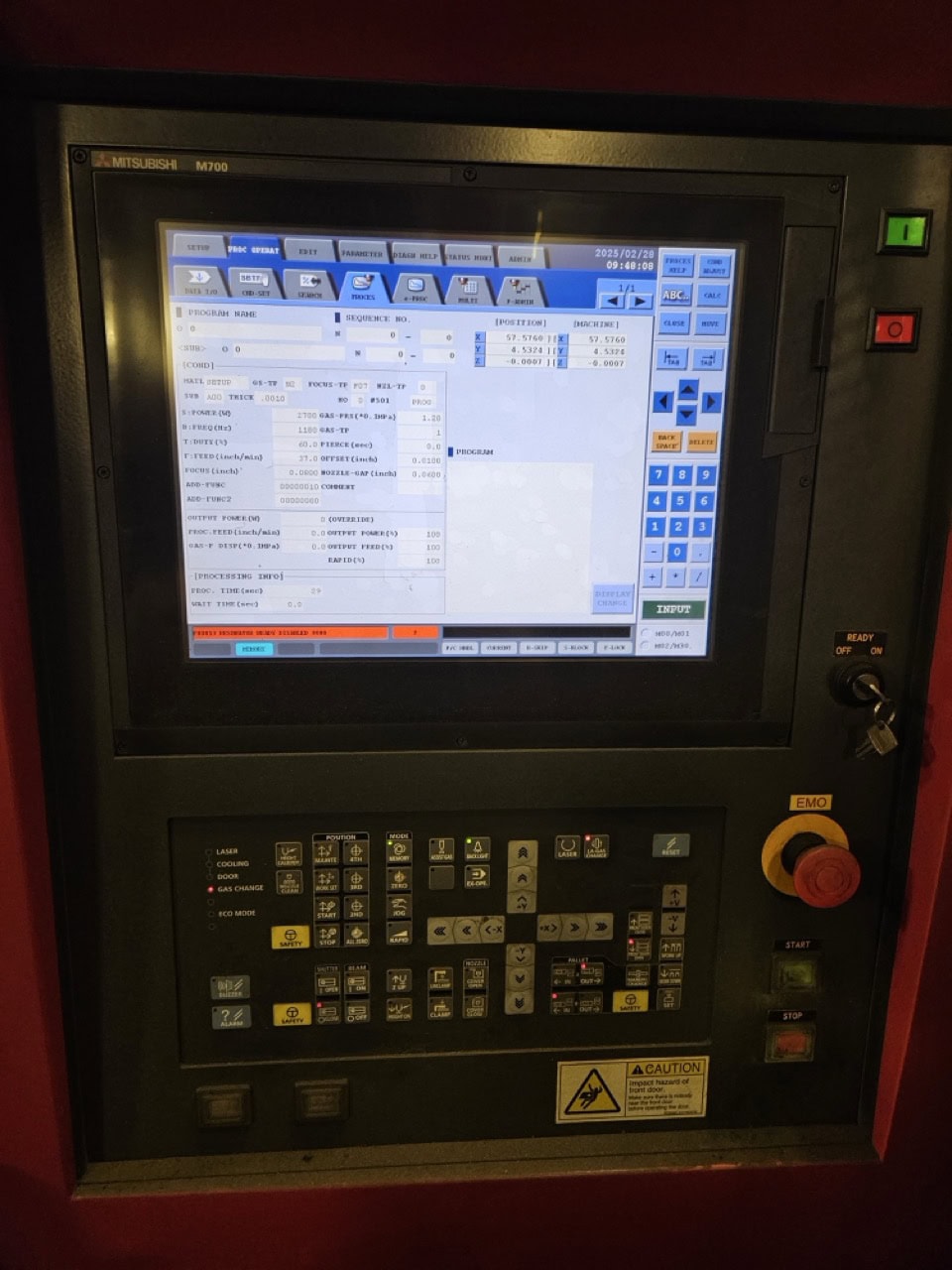

Mitsubishi CNC Control
Dual Pallet System
Chiller
