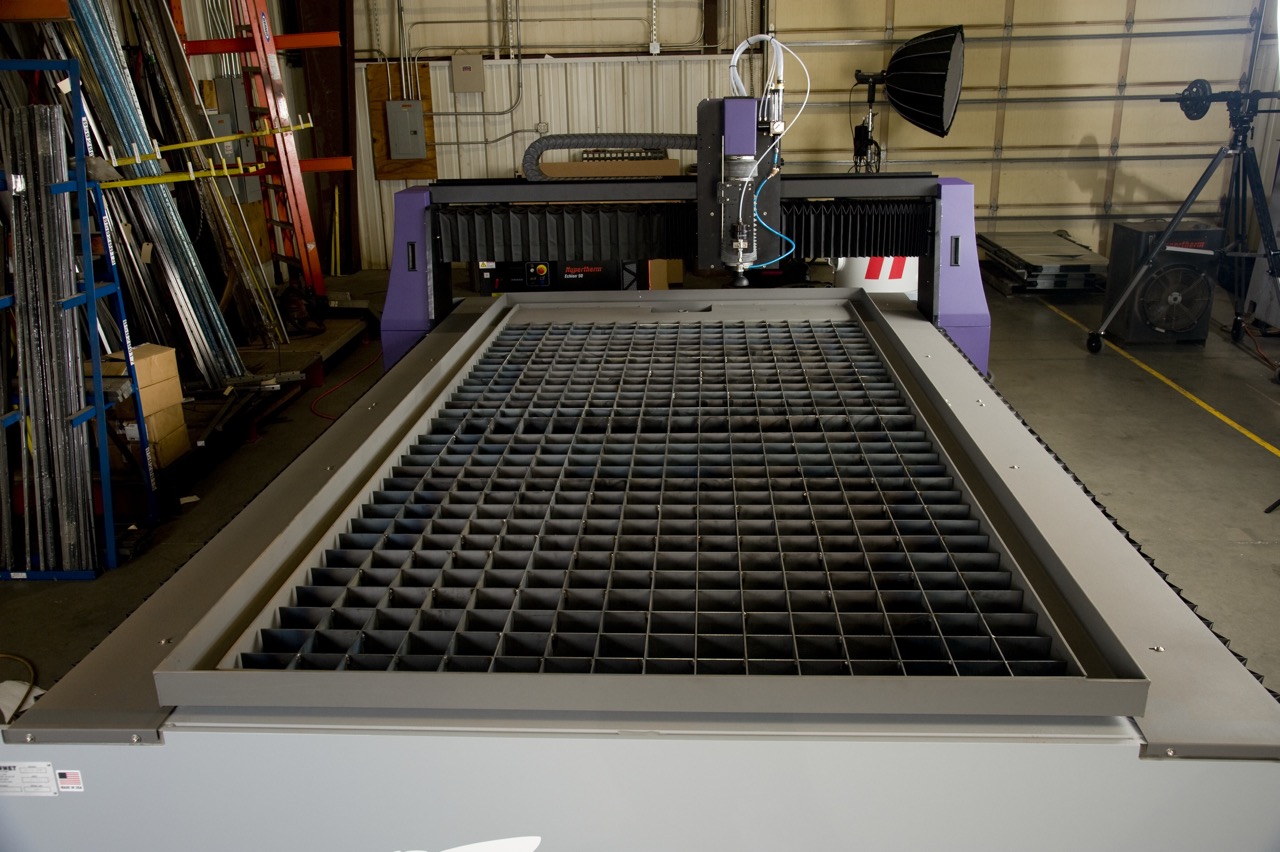

5’ X 10' Aqua Hornet LT Waterjet, 2022 - 60,000 PSI, Under 20 Hours Usage, Like New

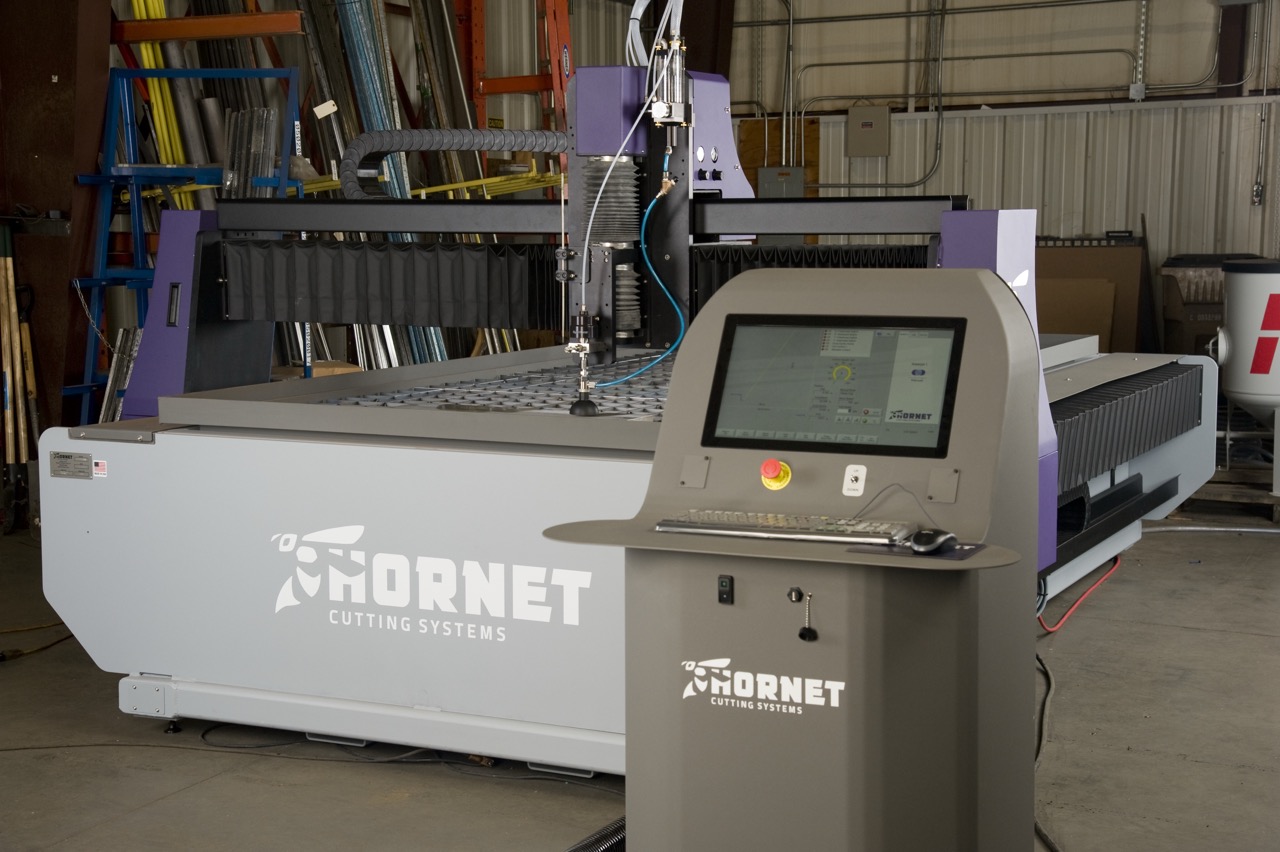

5’ X 10' Aqua Hornet LT Waterjet, 2022 - 60,000 PSI, Under 20 Hours Usage, Like New - Image 2

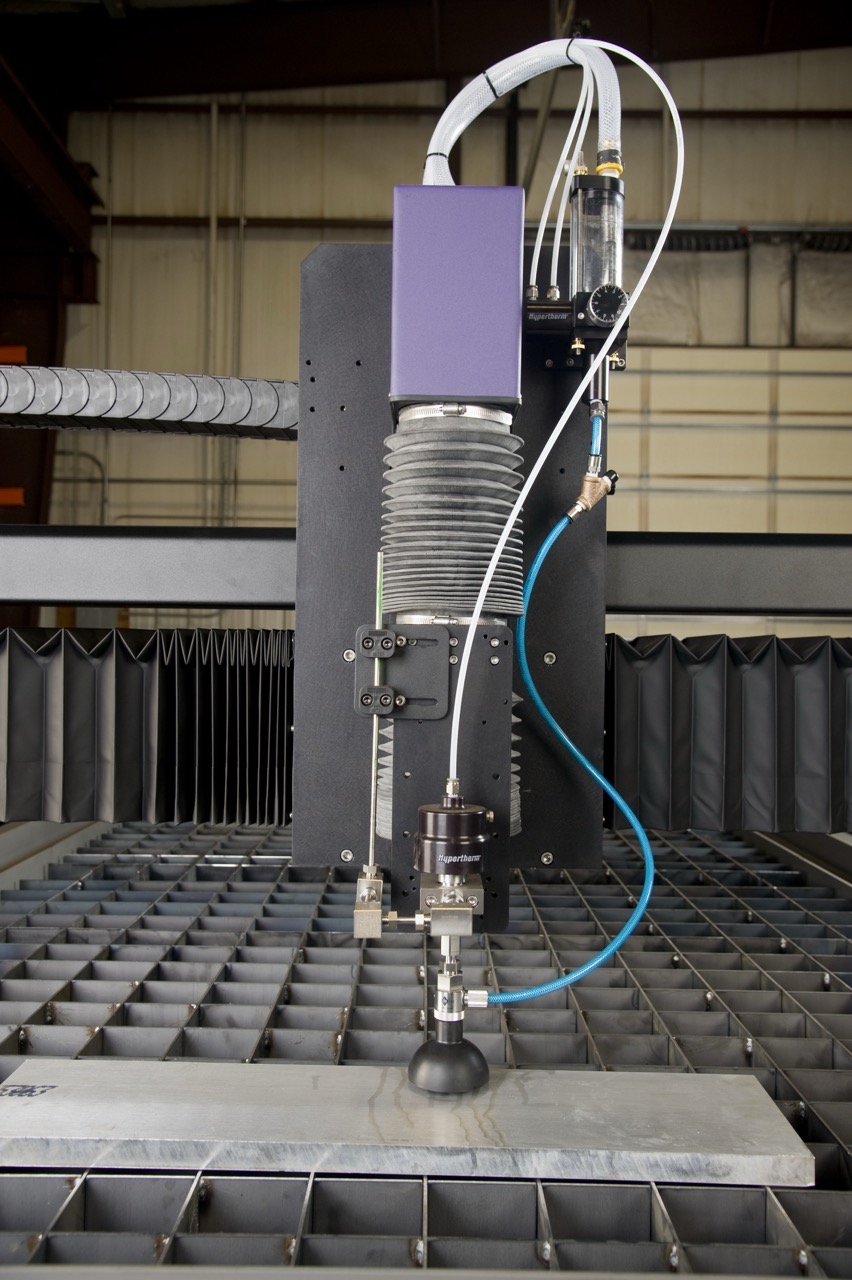

5’ X 10' Aqua Hornet LT Waterjet, 2022 - 60,000 PSI, Under 20 Hours Usage, Like New - Image 3
ML
35106475952

5’ X 10′ Aqua Hornet LT Waterjet, 2022 – 60,000 PSI, Under 20 Hours Usage, Like New

$125,000.00

5’ X 10' Aqua Hornet LT Waterjet, 2022 - 60,000 PSI, Under 20 Hours Usage, Like New
5’ X 10' Aqua Hornet LT Waterjet, 2022 - 60,000 PSI, Under 20 Hours Usage, Like New - Image 2
5’ X 10' Aqua Hornet LT Waterjet, 2022 - 60,000 PSI, Under 20 Hours Usage, Like New - Image 3

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Waterjets
Make: Hornet
Model: LT
Year: 2022
Capacity: 5‘ x 10‘
Machine Location: Upon Request
Stock #: 475952

Power Requirements: 240/480 VAC 3 PH 50/60 Hz
Digital AC Servo Motors & Drive Amplifiers: 600 Watt (0.8 HP)
60,000 psi max pressure
Rapid Traverse Speed: 1,200 ipm
Linear Guides on Cross Axis Gantry Bridge: 0.79″
Linear Guides on both Rail Axes: 0.79″
Positioning accuracy: +/- 0.005” when measured over 5’ length
Repeatability: +/- 0.001” when measured over 5’ length
Clearance Under Gantry Beam: 8″
Cutting Envelope: 5 ‘x 10′
Table Slat Height: 40″
Maximum Table Load Weight: 16,000 lbs.
Overall Dimensions: 9.75′ x 14’
Machine Weight: 20,791 lbs

Equipped With
Hypertherm EDGE® Connect CNC controller with Phoenix motion control software
EtherCAT Communication Interface
Echion 50 (50 HP / 37.3 KW) Intensifier
Movable control console with 21” touchscreen interface
Abrasive hopper and abrasive feeder system.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
