5′ x 10′ DMS F70-5-10-12-QLV/X CNC Router, 2022 – C-axis, 10 Station Tool Changer

Name: 5' x 10' DMS F70-5-10-12-QLV/X CNC Router, 2022 - C-axis, 10 Station Tool Changer
SKU: 35387549820

$74,900.00

5' x 10' DMS F70-5-10-12-QLV/X CNC Router, 2022 - C-axis, 10 Station Tool Changer - Image 2

5' x 10' DMS F70-5-10-12-QLV/X CNC Router, 2022 - C-axis, 10 Station Tool Changer - Image 3

5' x 10' DMS F70-5-10-12-QLV/X CNC Router, 2022 - C-axis, 10 Station Tool Changer - Image 4

5' x 10' DMS F70-5-10-12-QLV/X CNC Router, 2022 - C-axis, 10 Station Tool Changer - Image 5

5' x 10' DMS F70-5-10-12-QLV/X CNC Router, 2022 - C-axis, 10 Station Tool Changer - Image 6

5' x 10' DMS F70-5-10-12-QLV/X CNC Router, 2022 - C-axis, 10 Station Tool Changer - Image 7

5' x 10' DMS F70-5-10-12-QLV/X CNC Router, 2022 - C-axis, 10 Station Tool Changer - Image 8

5' x 10' DMS F70-5-10-12-QLV/X CNC Router, 2022 - C-axis, 10 Station Tool Changer - Image 9

5' x 10' DMS F70-5-10-12-QLV/X CNC Router, 2022 - C-axis, 10 Station Tool Changer - Image 10

5' x 10' DMS F70-5-10-12-QLV/X CNC Router, 2022 - C-axis, 10 Station Tool Changer - Image 11

5' x 10' DMS F70-5-10-12-QLV/X CNC Router, 2022 - C-axis, 10 Station Tool Changer - Image 12

5' x 10' DMS F70-5-10-12-QLV/X CNC Router, 2022 - C-axis, 10 Station Tool Changer - Image 13

This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

Table Size: 5′ x 10′
X Axis Travel: 60″
Y Axis Travel: 120″
Z Axis Travel: 12″
Rapid Feed Rate: 1400 IPM
Spindle Speed: 24,000 RPM
Spindle Taper: ISO 30
Spindle Motor: 10.5 / 12.5 HP
ATC: 10

Equipped With:

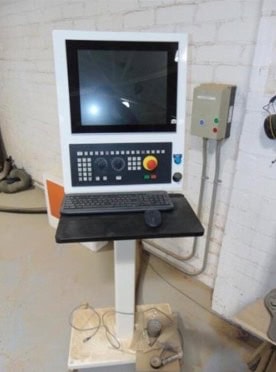

Fagor CNC Control
C Axis
X & Y Axes are Laser Calibrated
Table Mounted Chuck and Motor
Pneumatic Pop-up Pins
Vacuum Pump
10 Tool Auto Changer
Automatic Tool Height Sensor
Laser Spoil Board Measure System
