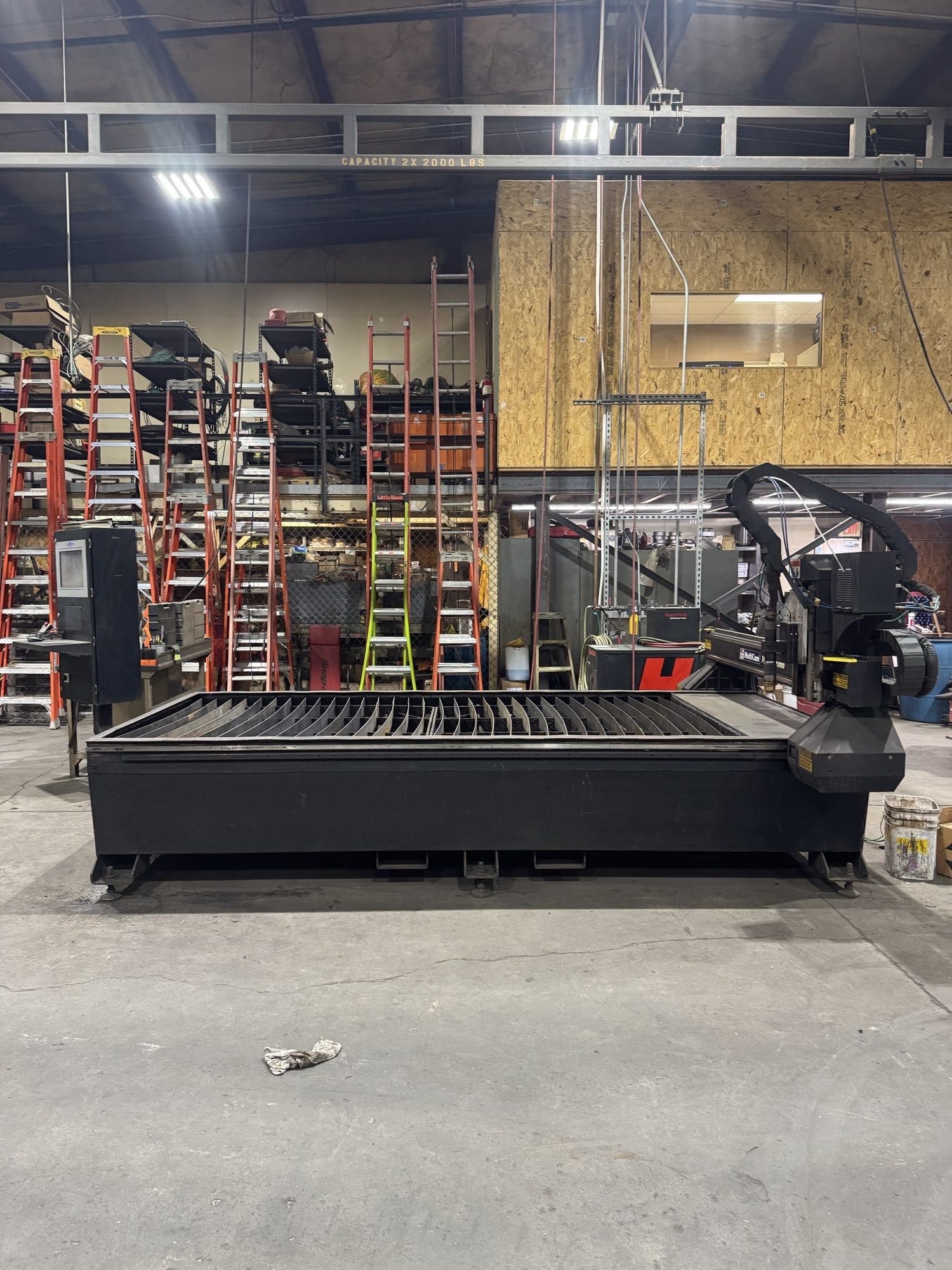

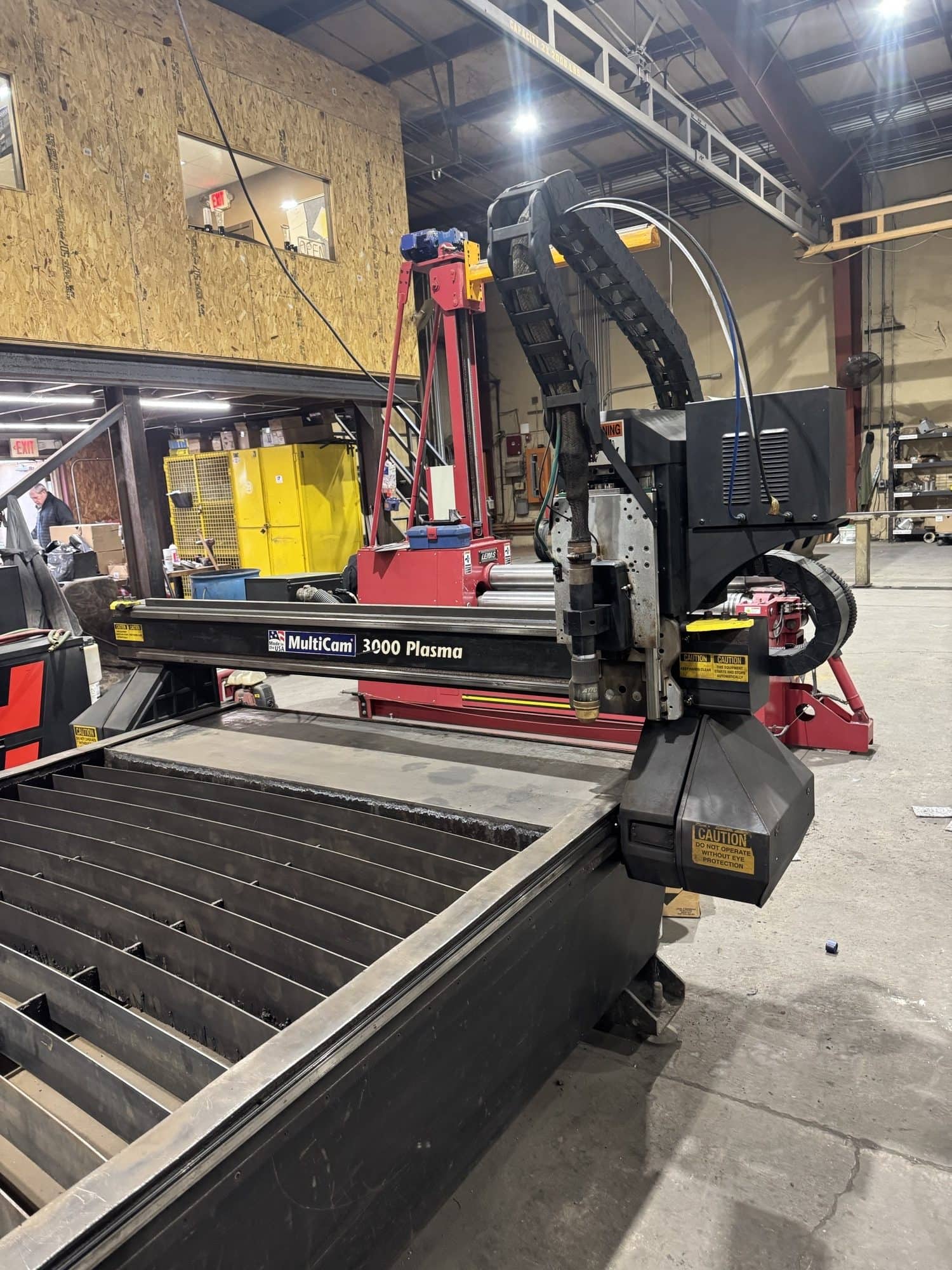

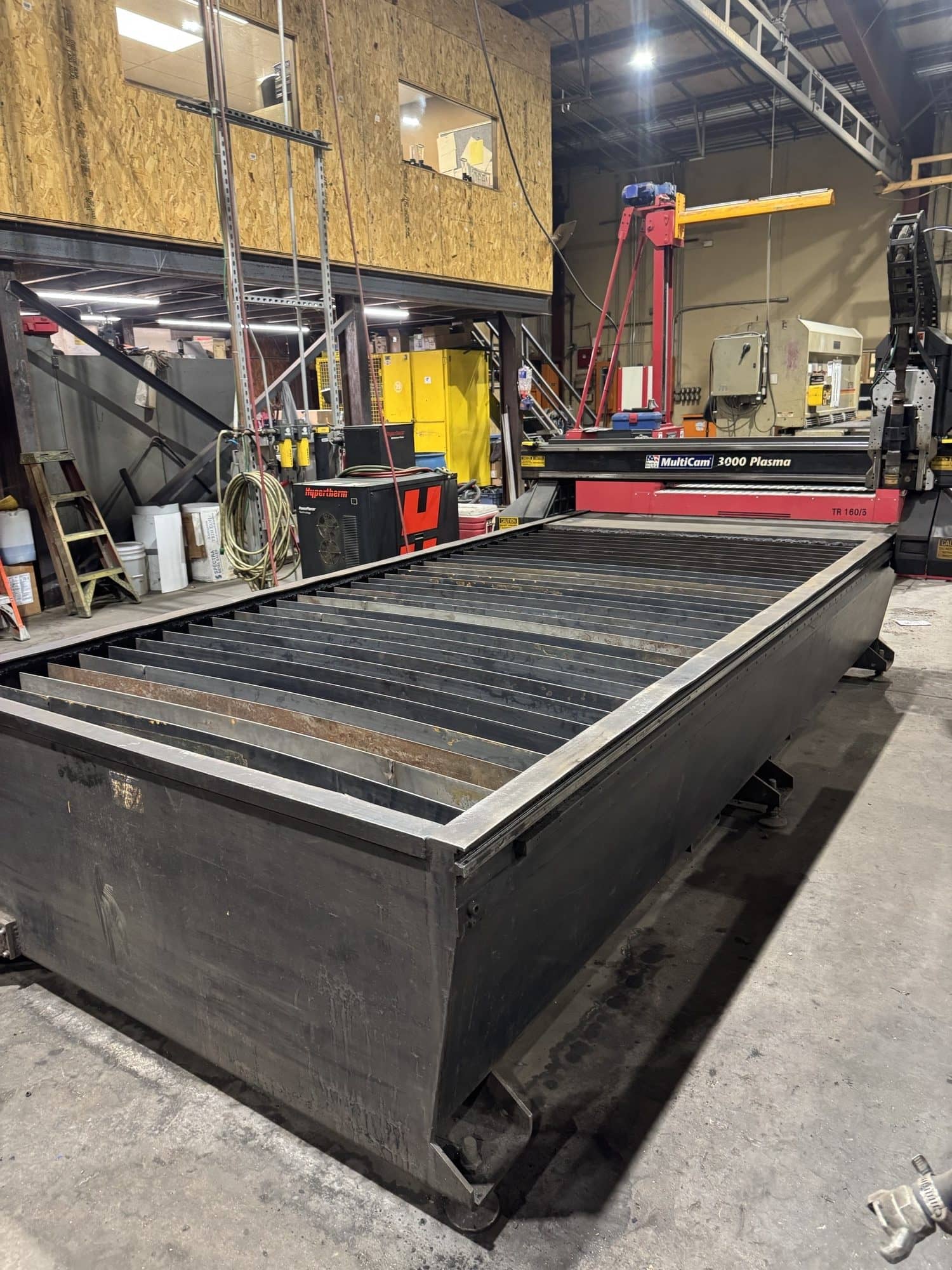

5 x 10 Multicam 3000 Plasma Table, 2016 – Hypertherm HPR130xd

Table Size (L x W): 120″ x 60″
X Axis: 120″
Y Axis: 60″
Z Axis: 6″
Z Axis Clearance: 4″
Cut Speed: 400 – 1000 IPM
Rapid Traverse: 1800 – 2300 IPM
Repeatability: ±0.001″
Drive System (X & Y): Rack & Pinion
Drive System (Z): Lead Screw
Weight: ~9000 Lbs
Electrical: 460V 3 Phase

Max Cut Thickness (Mild Steel):
Production Pierce: ~1‑1/4″
Maximum Cutting Capacity: ~1‑1/2″

Max Cut Thickness (Stainless Steel):
Production Pierce: ~3/4″
Maximum Cutting Capacity: ~1″

Max Cut Thickness (Aluminum):
Production Pierce: ~3/4″
Maximum Cutting Capacity: ~1″

Equipped With

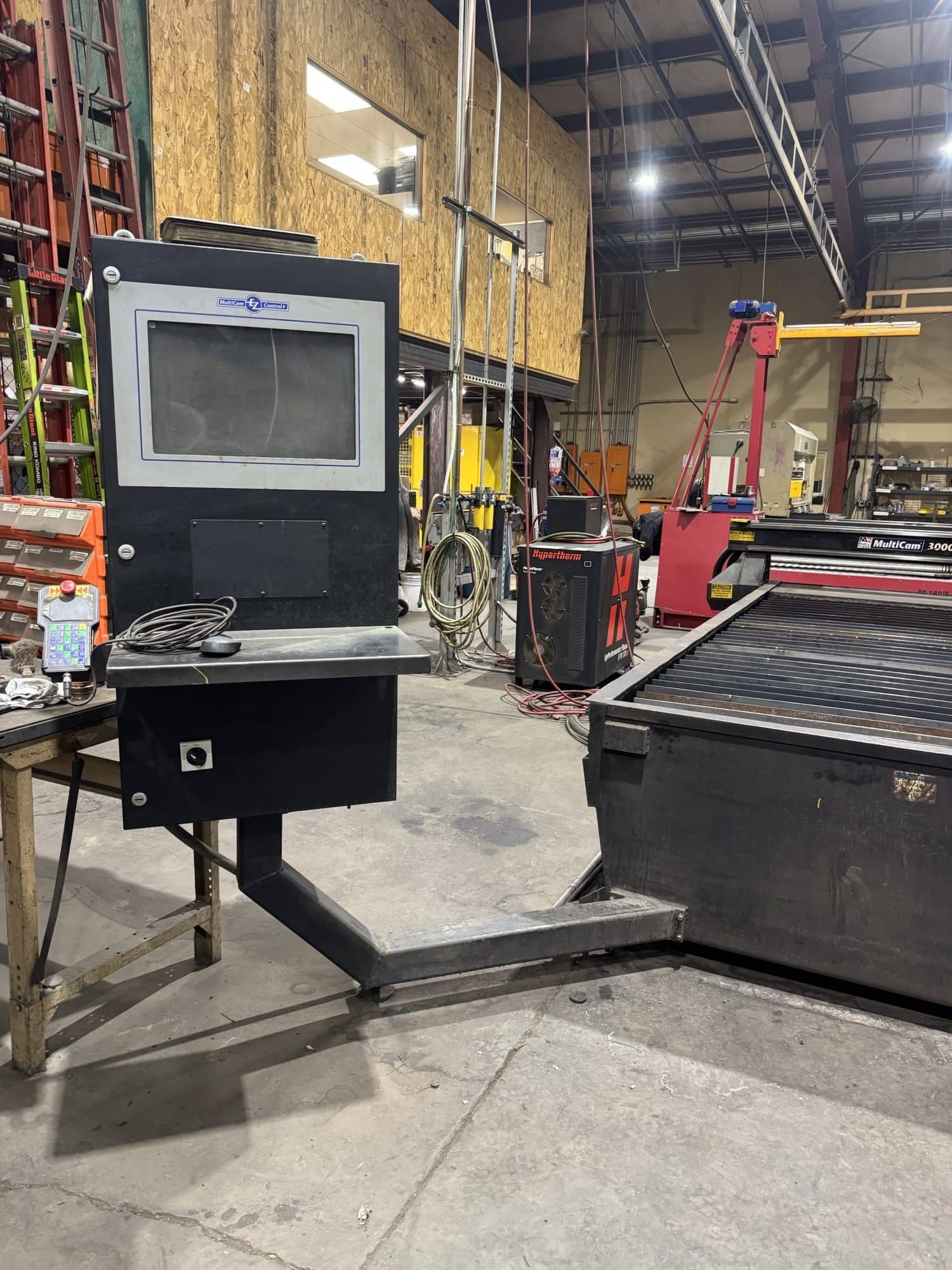

MultiCam EZ Control

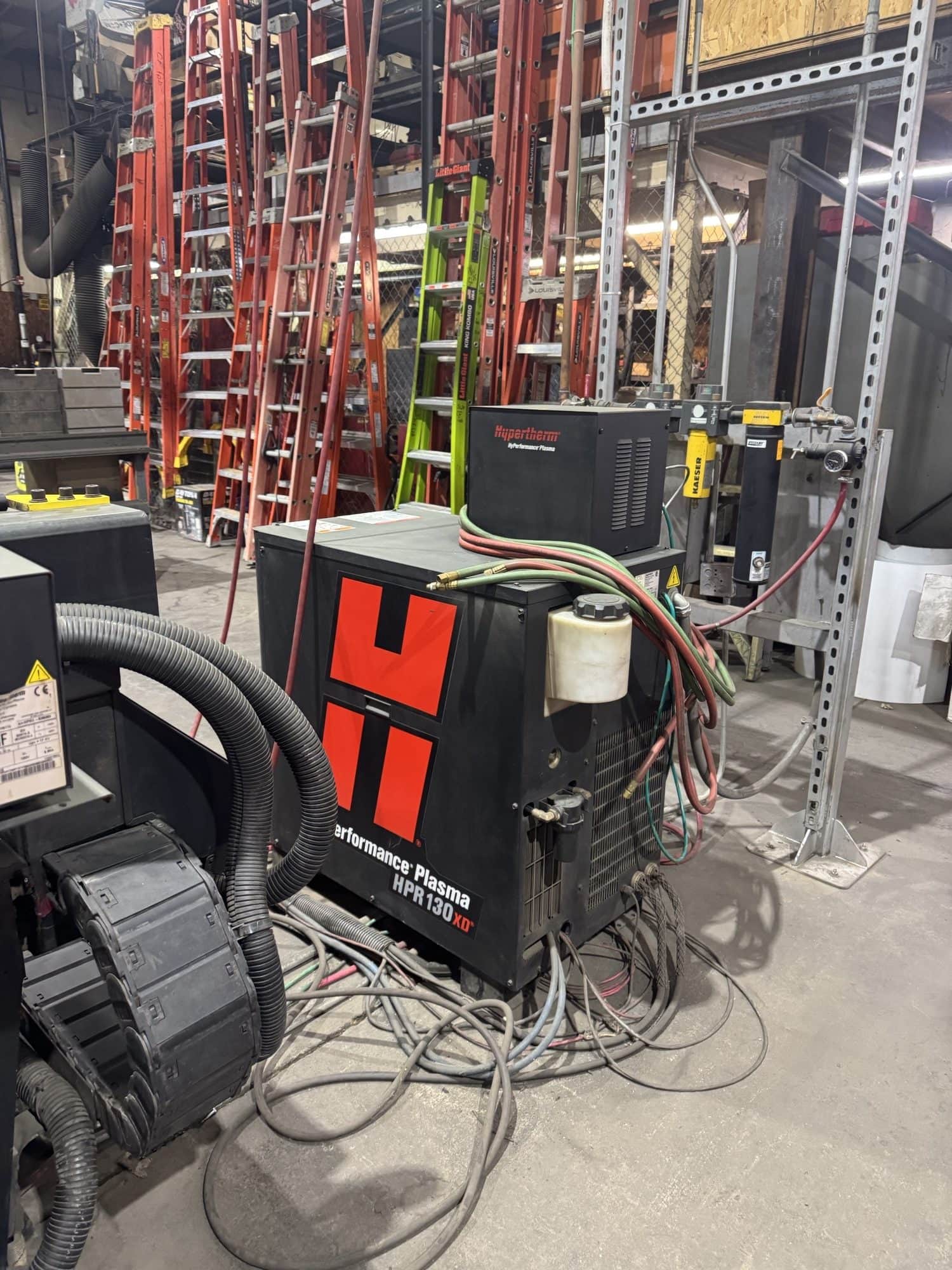

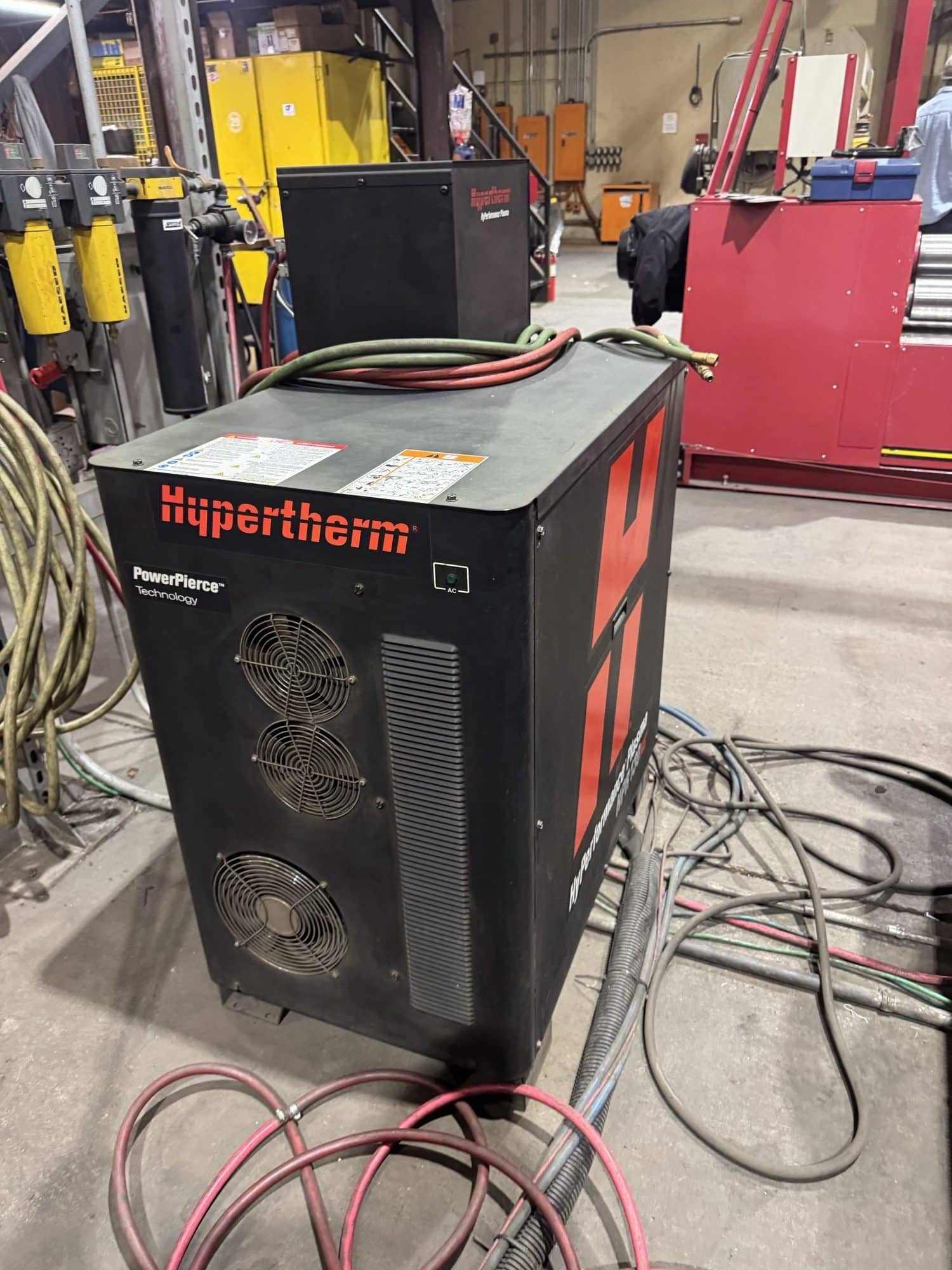

Hypertherm HPR130XD Plasma Power Supply
Brushless AC Servo Drives
Automatic Torch Height Control (ATHC)
All Available Manuals
