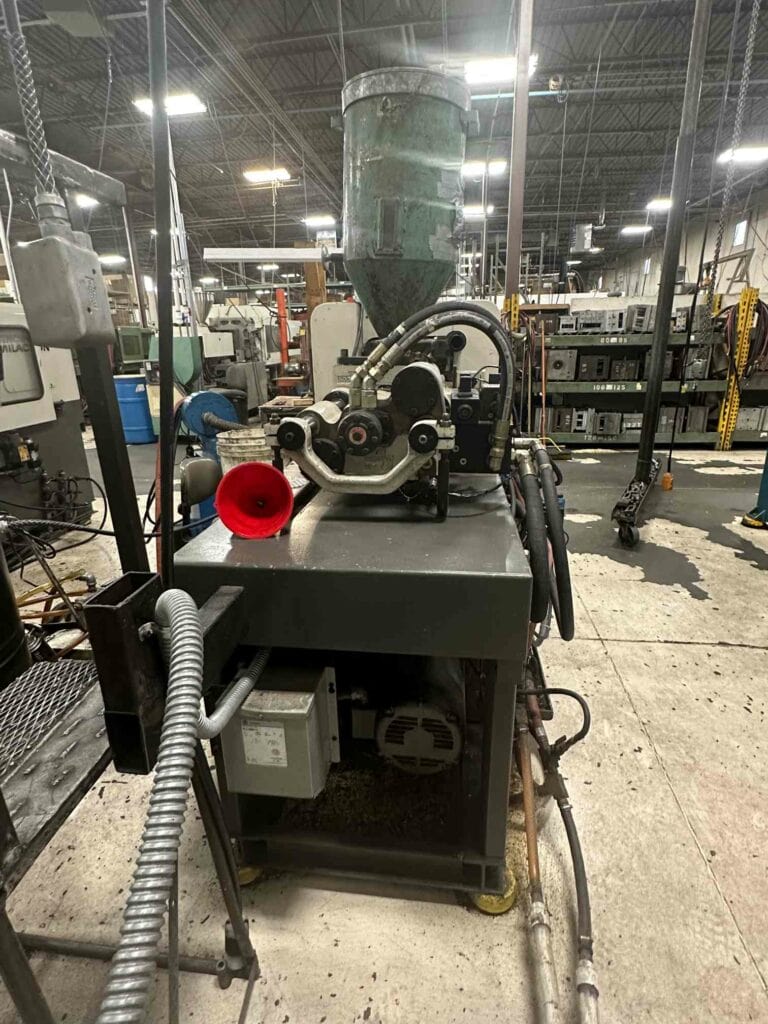

55 Ton, 2.97oz, Cincinnati Injection Moulding Machine, 12.8″ x 12.2″

$22,875.00

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Plastics Machinery
Make: Cincinnati Milacron
Model: VST 33 - 1.08 OZ
Year: 1996
Machine Location: Colorado
Stock #: 319204

55 Ton, 2.97oz, Cincinnati Injection Moulding Machine:
– Maximum mold: 12.8″ height x 12.2″ width
– Supply volts: 460V
– Control volts: 24-VDC
– Short circuit interrupting capacity 14000 RMS AMPS at 480 Volts
– Soak timer
– Up to 5 programmable speeds for Injection High and Screw RPM
– Up to 11 programmable injection pressures
– Adaptive shot control
– Closed loop control of injection velocities and pressures
– Cold screw start-up protection
– P.I.D. loop control of barrel temperatures
– High/Low temperature alarms
– Digital setup of injection speed, extruder speed, and screw position set points
– Digital readout of extruder speed, injection pressure, and screw position
– Transfer from injection igh to injection pack byscrew position, hydraulic pressure, or time
– Process monitoring
– Alarm and fault messages
– Auto shutdown on End of Run and Alarms
– Semi-Auto Purge

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
