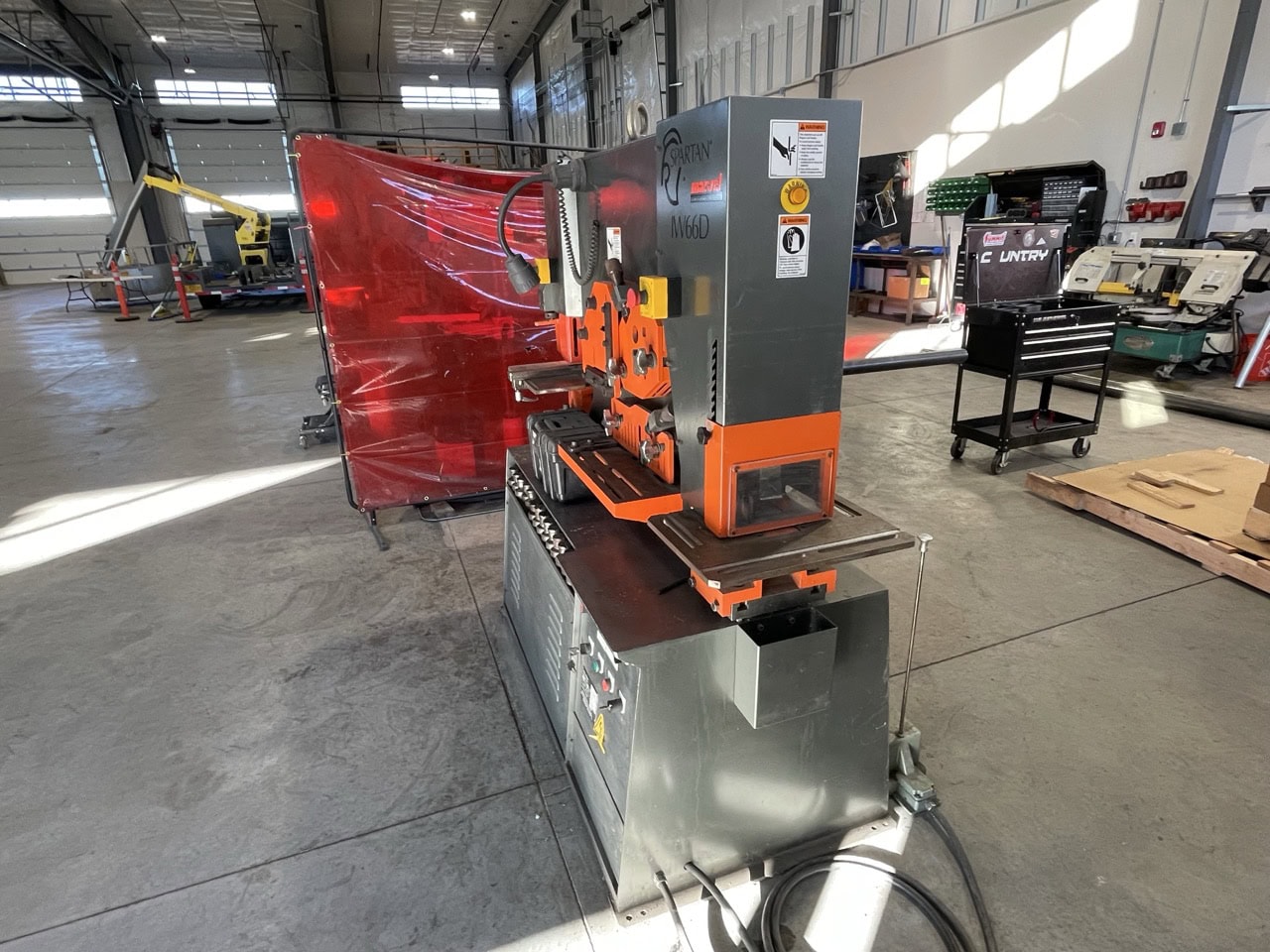

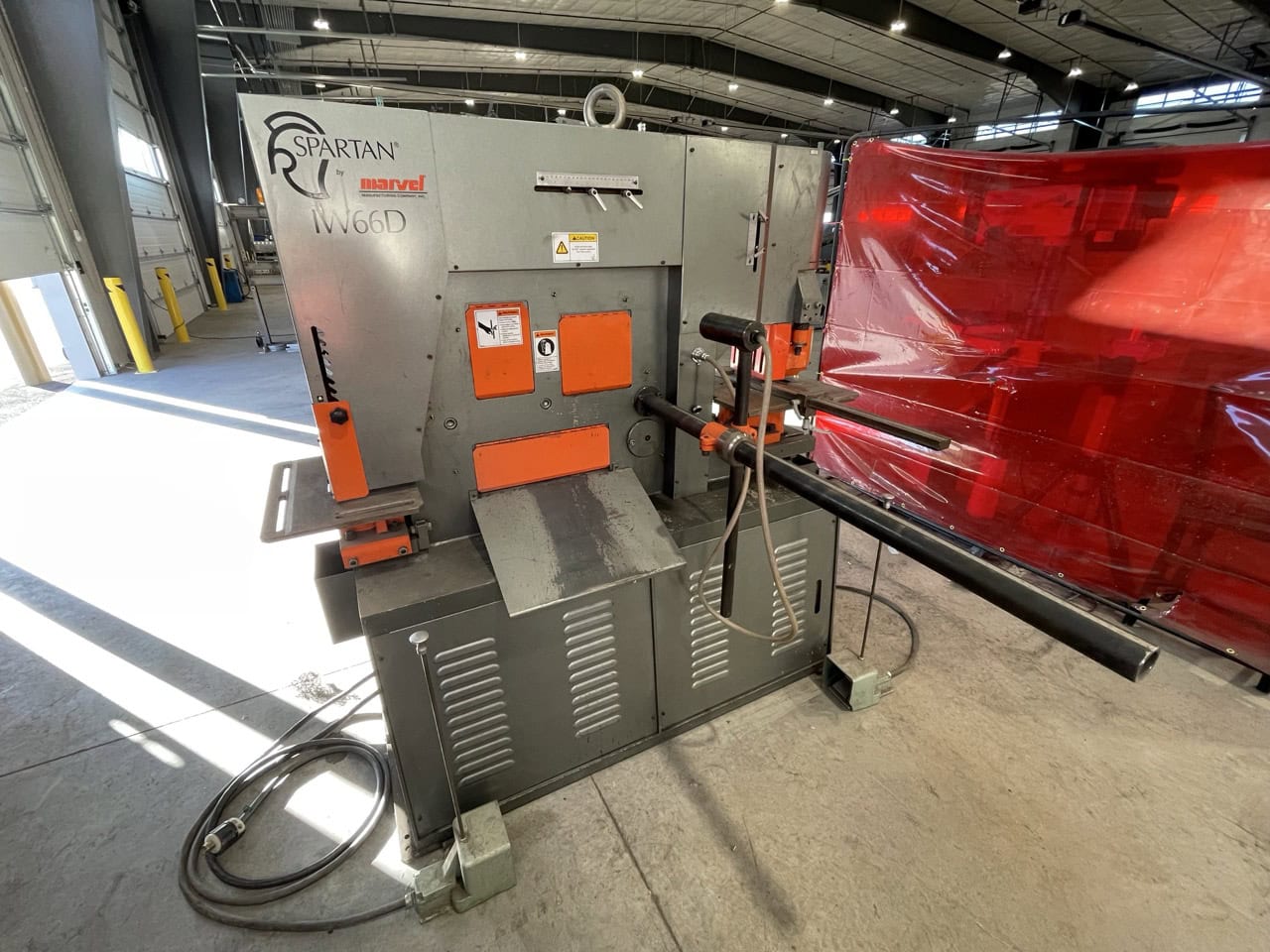

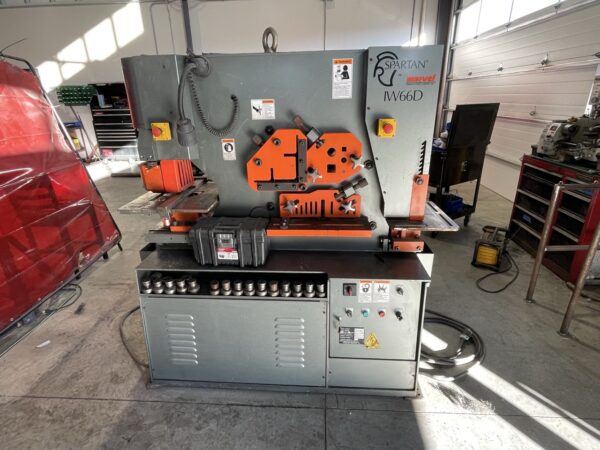

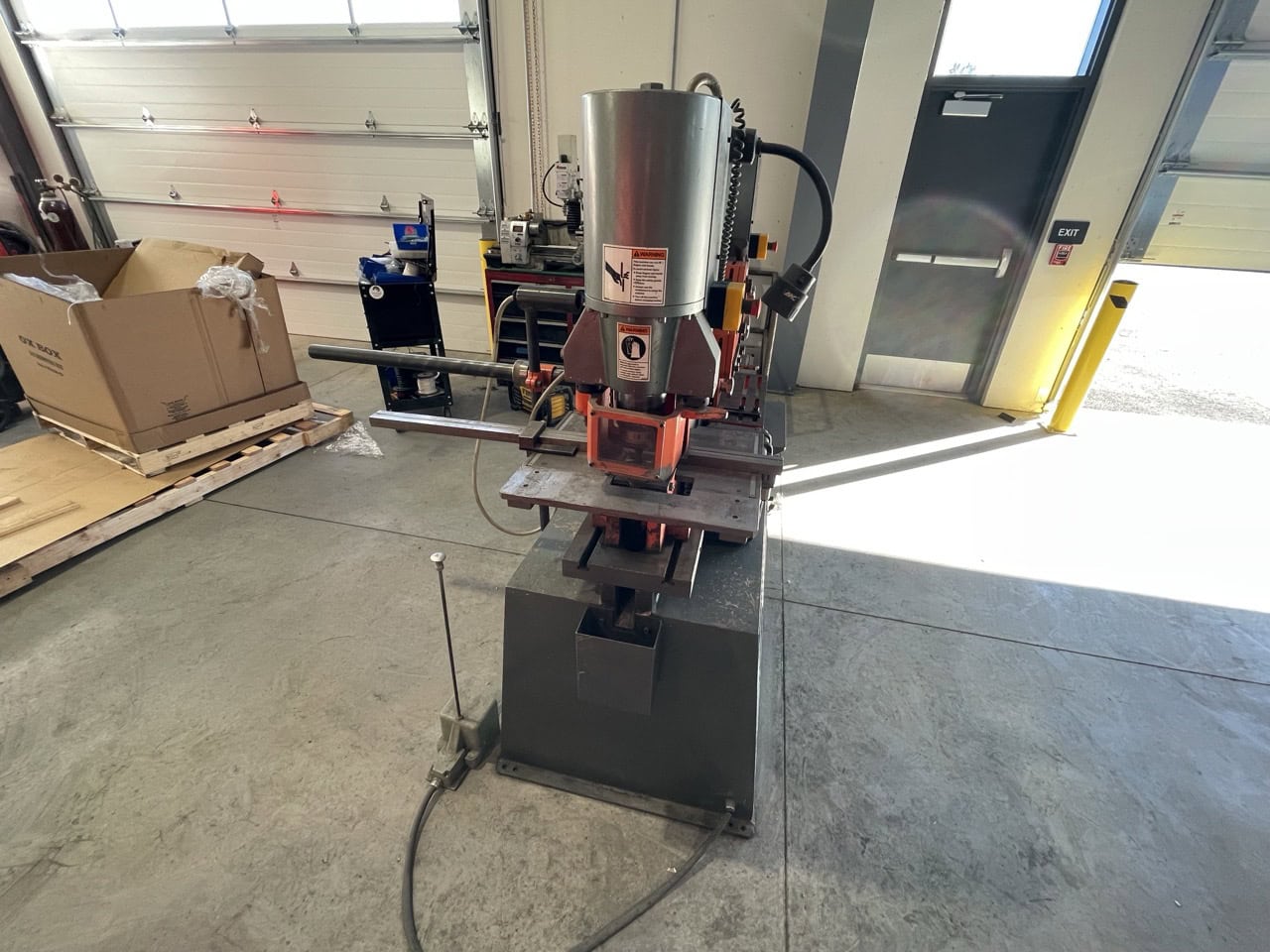

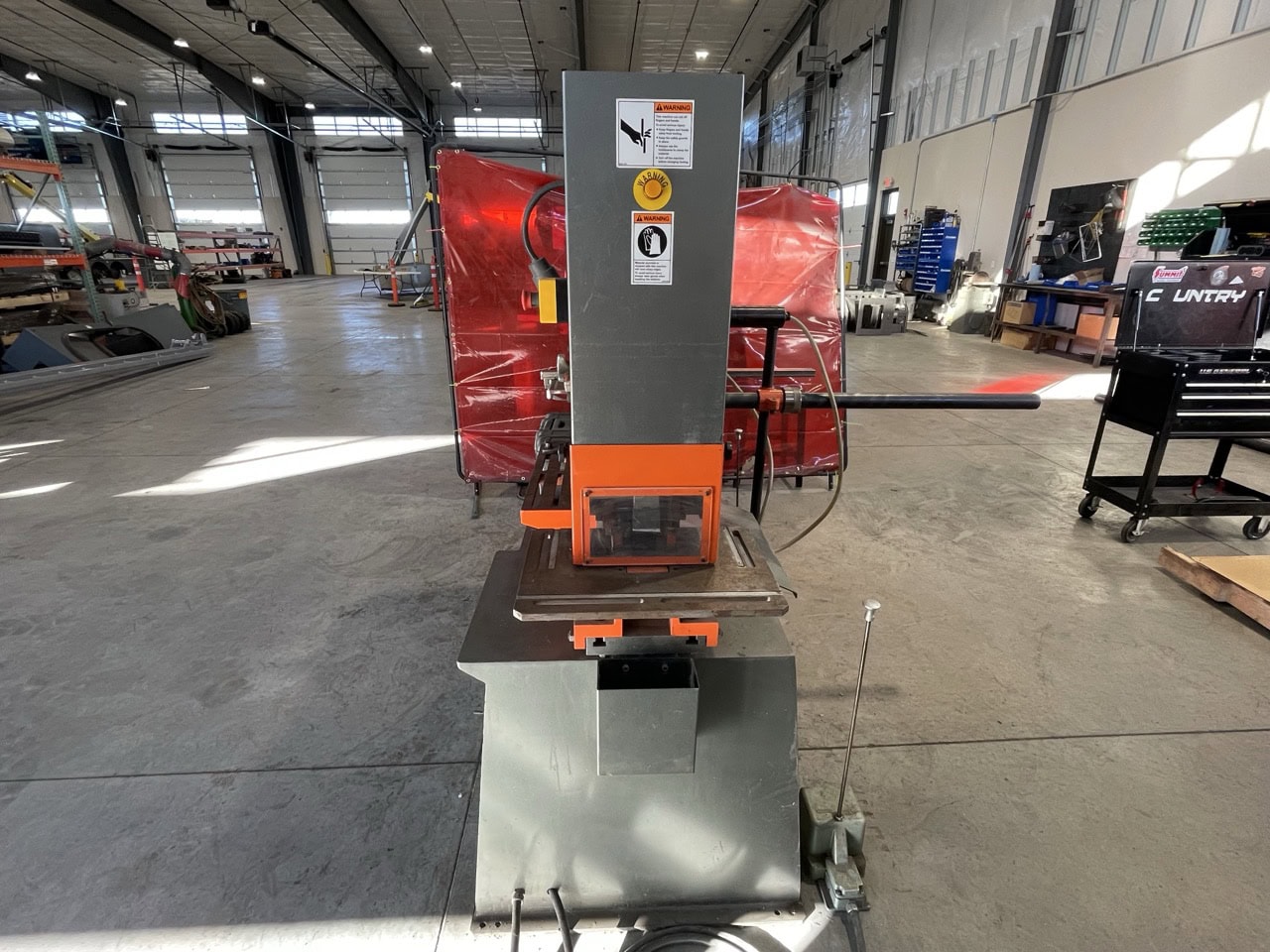

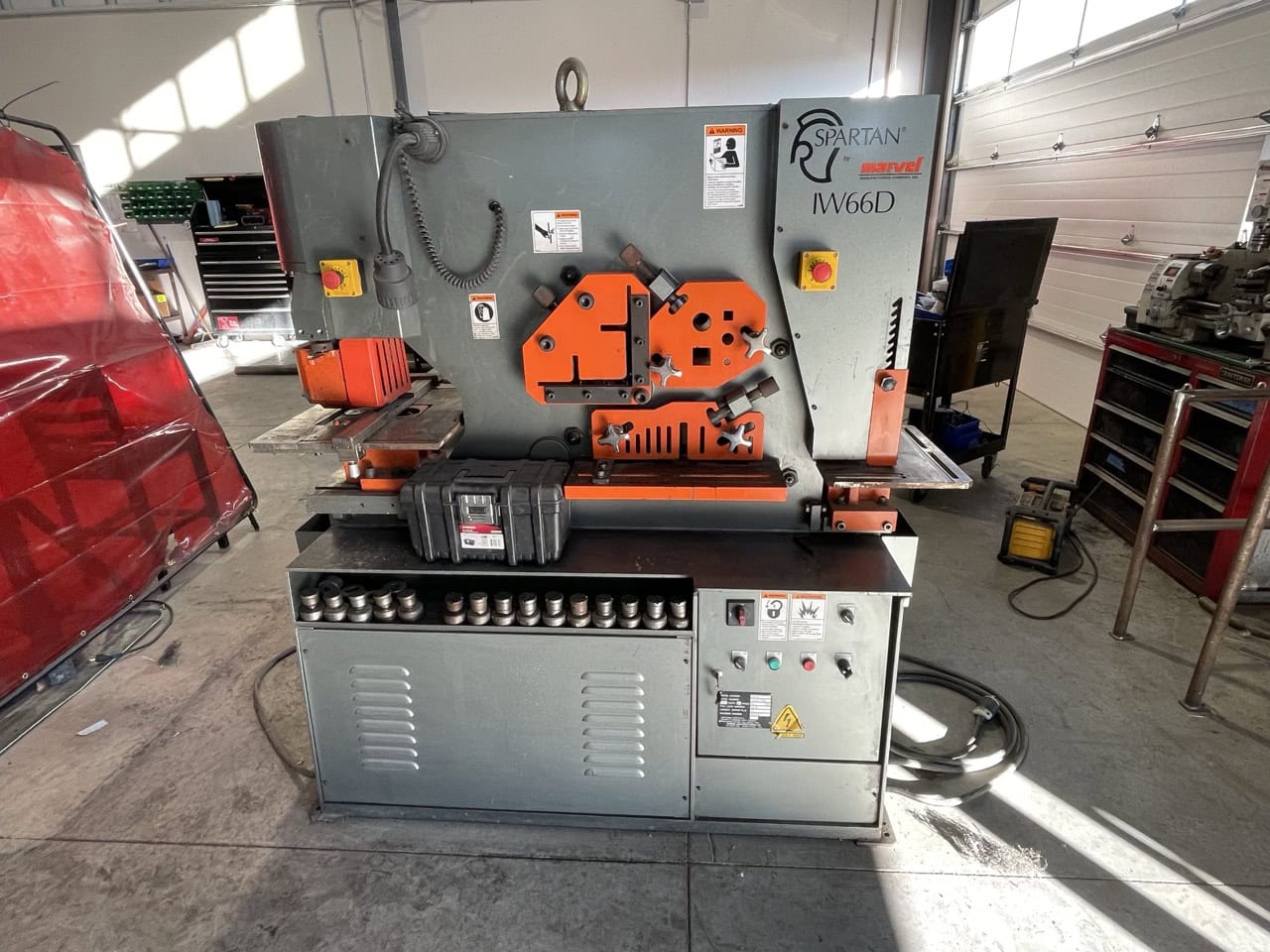

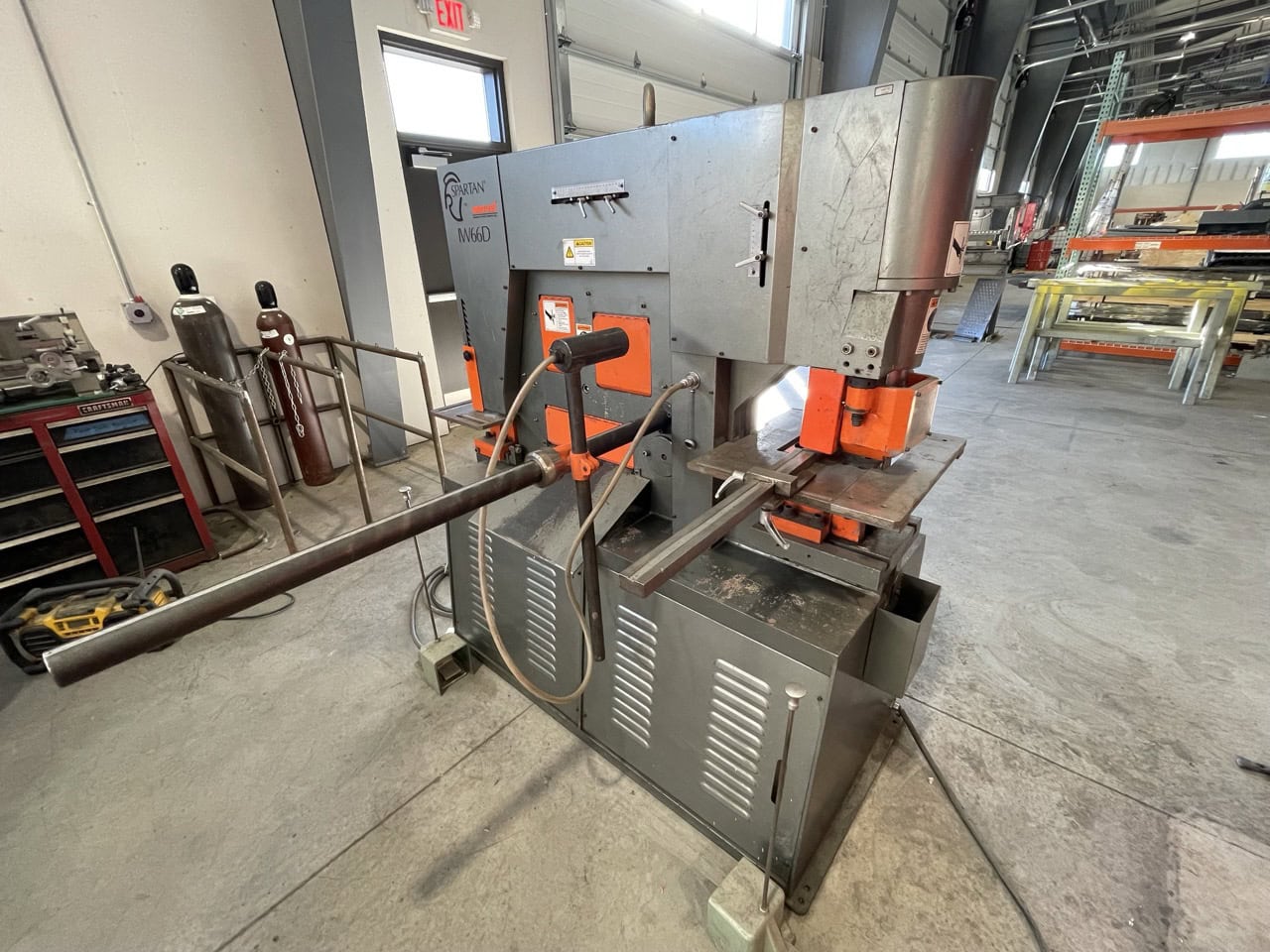

66 Ton Marvel Spartan IW66D Ironworker, 2014 – Dies Included
$14,400.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Nominal Tonnage: 66
Punch Diameter x Plate thickness: 1-1/16″ x 3/4″
with Special Tooling 6″ in 1/8″ material
Depth of Throat: 12″
Strokes/min: (0.60 in) 30
Stroke Depth adjustable. Adjustable Back Stop
Two Piece Gauging Table.
FLAT BAR SHEARING CAPACITY: Length of Blade 14โ
”
Flat Bar Shear: 14″ in 9/16″, or 12″ in 3/4″
Angle Flange Trim: 4″
ANGLE SHEARING:
90ยฐ 5″ x 5″ x 1/2″
45ยฐ 2ยฝ” x 2ยฝ” x 5/162″
ROUND and SQUARE BAR SHEAR:
Round thru 1ยฝ”
Squares thru 1ยฝ” x 1ยฝ”
Channels and H-Beams 5″

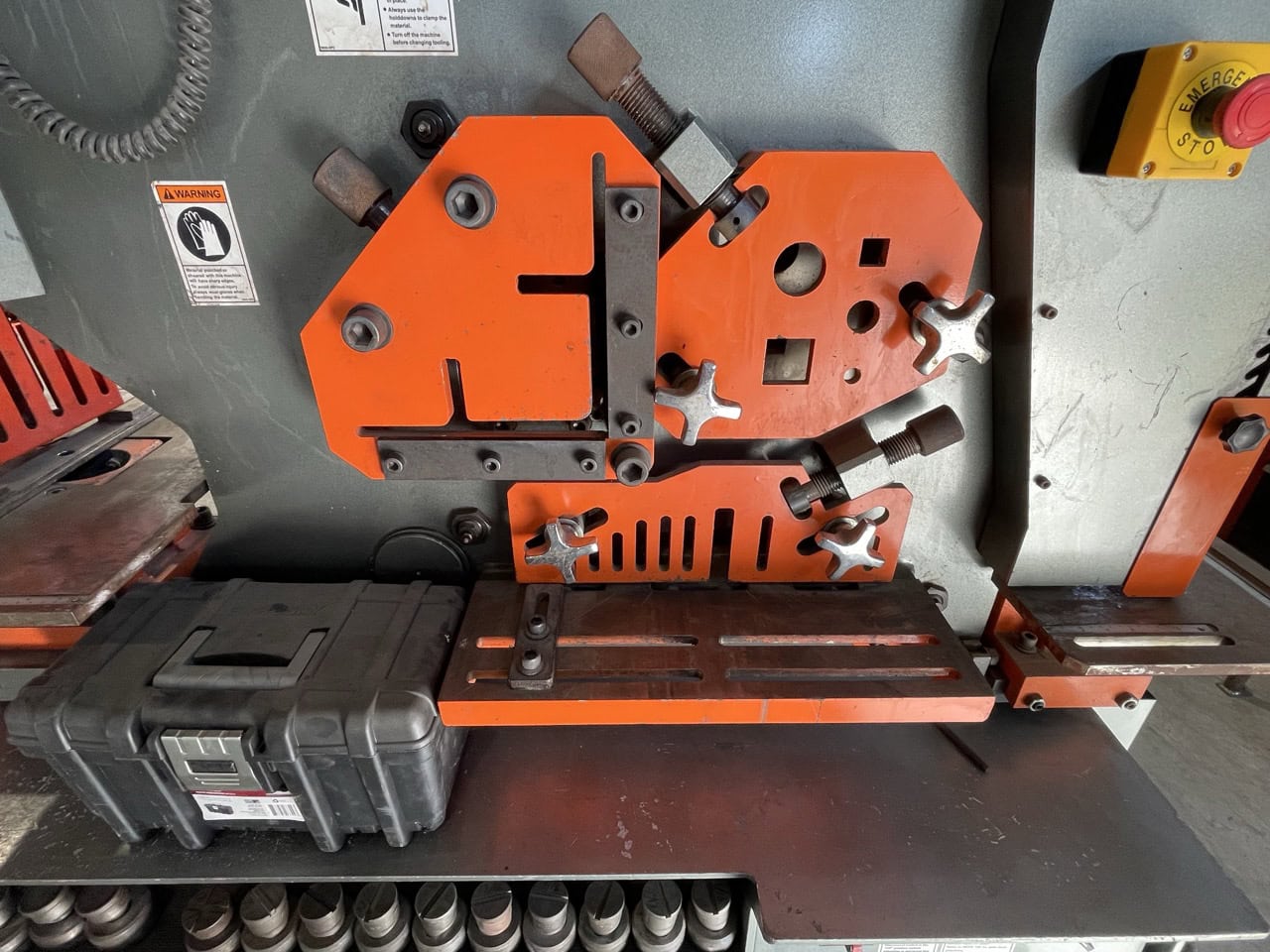

RECTANGLE NOTCHING 2″ x 3ยฝ” x 3/8″
90 degree Notcher 3ยฝ” x 3ยฝ” x 3/8″
Pipe Notcher 1ยฝ” โ 40
V-Notcher, Capacity Only 5ยพ” x 5ยพ” in 5/16″
Squaring Guides
MOTOR DRIVE: Wired 440 volts, 3-phase
To Hydraulic Pump 7ยฝ hp. 22/0440 volts
Machine Weight: 4,000 LBS
Equipped With:
Foot Pedals
3โ Back Gauge with Electronic Stop for Angle and Rod Shearing.
1-Magnetic Base Work Light
COMPLETE FACTORY SAFETY GUARDS

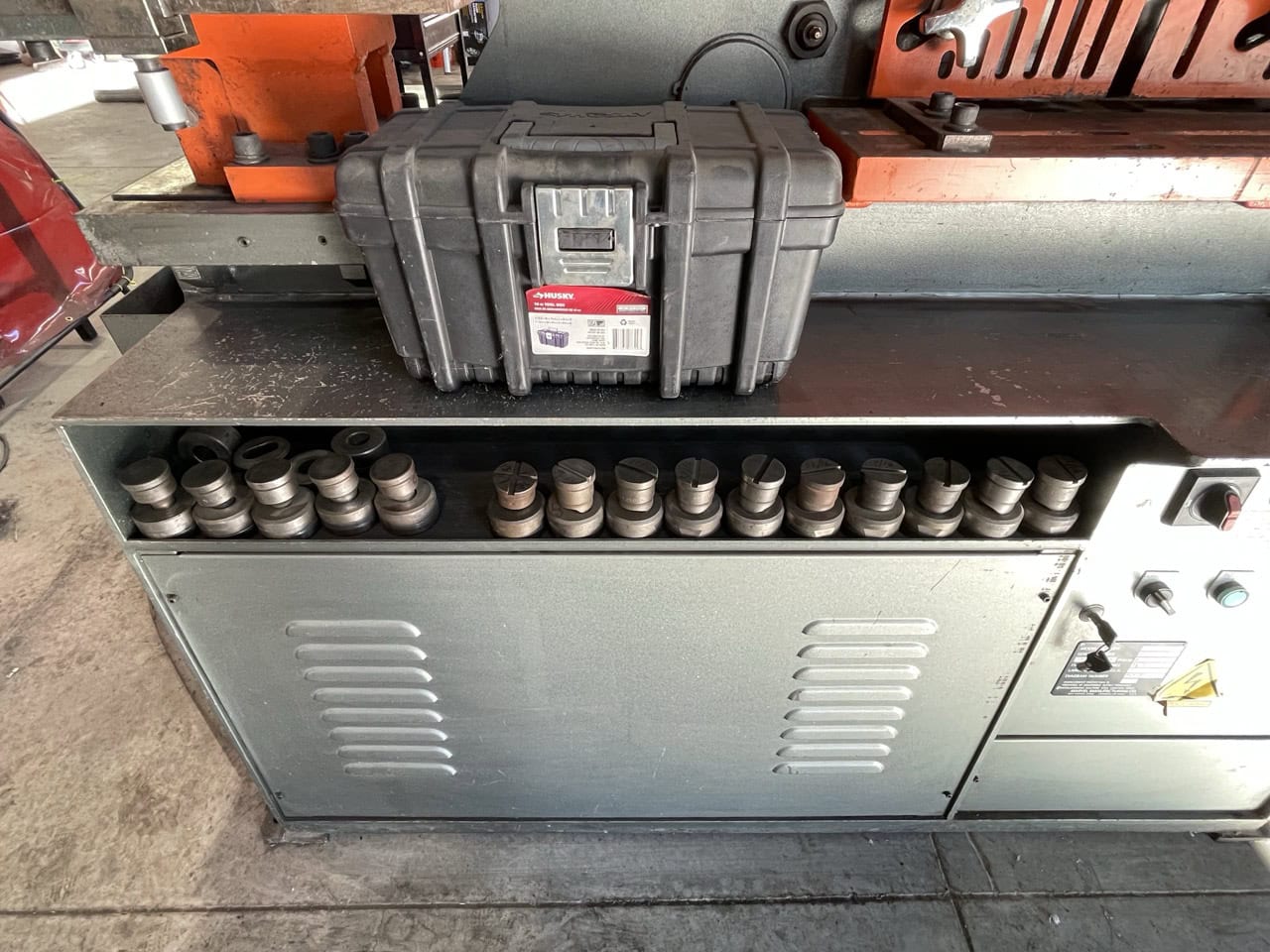

Assortment of dies
