Bend-Tech Dragon A400 CNC Tube & Plasma Cutting System, 2023 – Hypertherm Powermax 45
$38,500.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Round Tubing: 0.75″ to 6″ diameter
Square/Rectangular Tubing: 1″ to 4″
Angle & Channel: 1″ to 4″
Maximum Hypotenuse: 6.375″ (e.g., 6″ x 2″ or 5″ x 3″)
Material Thickness: 1/32″ to 5/8″
Maximum Material Length: 24 feet
Maximum Material Weight: 400 lbs
Bend-Tech
Cutting Tolerance: ยฑ0.010″
Bend-Tech
Cutting Speed:
Plasma Cutting: Up to 120 inches per minute
Rapid Travel: Up to 1,100 inches per minute (X-axis), 30 RPM (Y-axis)
Equipped with:
Hypertherm Powermax45
Plasma Torch: For cutting profiles and holes
Marker: For bend locations, part numbers, and text
Engraver: For detailed markings and identification
Laser Pointer: For accurate job alignment
Surefire CNC by Weldclass
Material Handling:

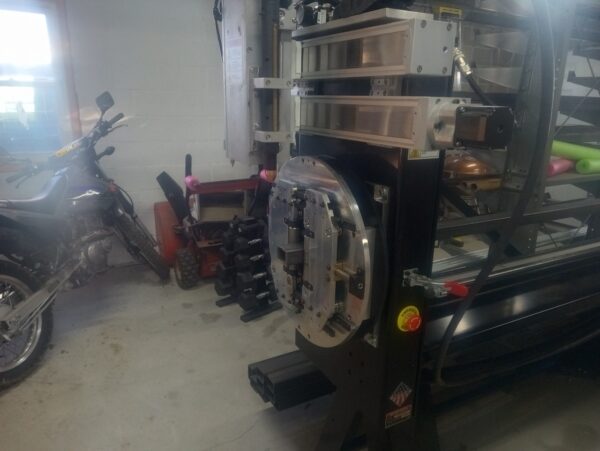

Self-centering 4-jaw chuck
Adjustable front gate with vice-like jaws
Automated material support lift for maintaining level cuts
Software:
Bend-Tech Dragon Software Suite
Design Capabilities: Import STEP and IGES files from CAD programs like SolidWorks, AutoCAD, and Tekla
CAM Processing: Converts designs into CNC-ready files
Machine Control: Full control over machine axes, speed, and job execution
G-Code Viewer: Visualize each action in detail
System Requirements:
Operating System: Windows 7, 8, 8.1, 10, or 11
Processor: 1 GHz Dual-Core or higher
RAM: 4 GB
Graphics: OpenGL 1.3 compatible
.NET Framework: 3.5 SP1
Internet Connection: Required for activation and periodic update
Machine Footprint:
Shipping Dimensions: 10′ (L) x 5.5′ (W) x 7′ (H)
