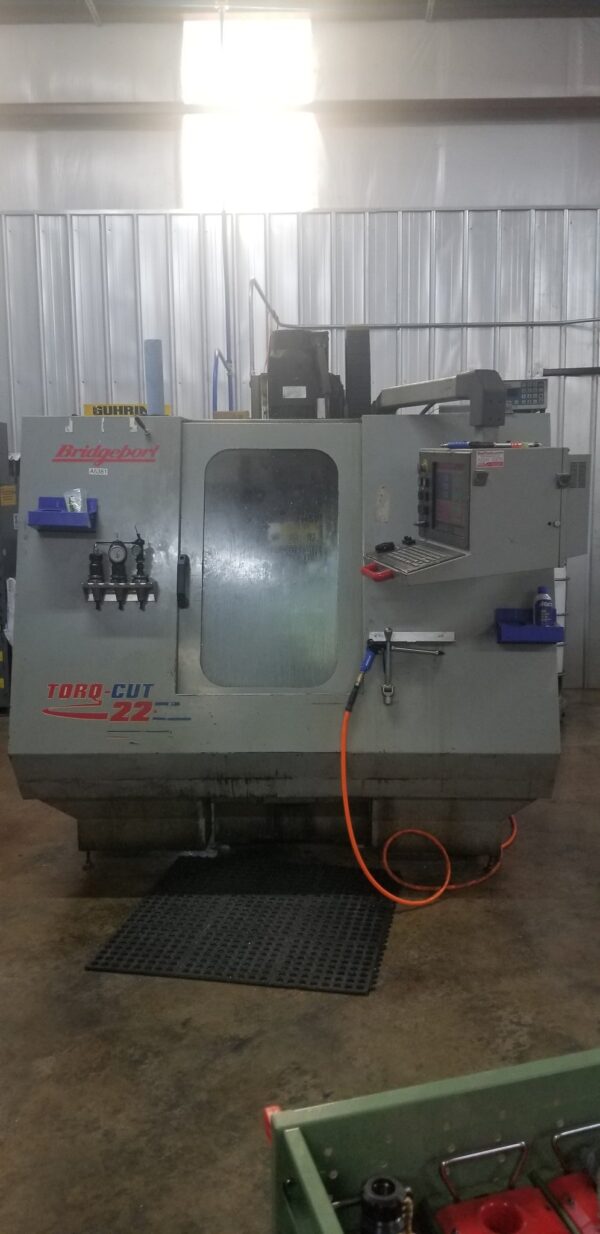

Bridgeport Torq Cut 22 CNC Vertical Machining Center, 1995
$7,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Approx. Shipping Weight: 6,500 Lbs.
Approx. Shipping Dimensions: 79โณ x 79โณ x 96โณH
Table Size: 45โณ x 16โณ
X Travel: 22โณ
Y Travel: 16โณ
Z Travel: 20โณ
Feed Rate: .1 to 472 IPM on all Axisโ
Table Height Above the Floor: 31โณ
Max Weight on Table: 750 Lbs.
Spindle Motor: 7.5 HP
Max Spindle Speed: 30 โ 6,000 RPM
Spindle Taper: No 40
Tool Positions on Changer: 22
Electrical: 208V, 3PH, 60 HZ
