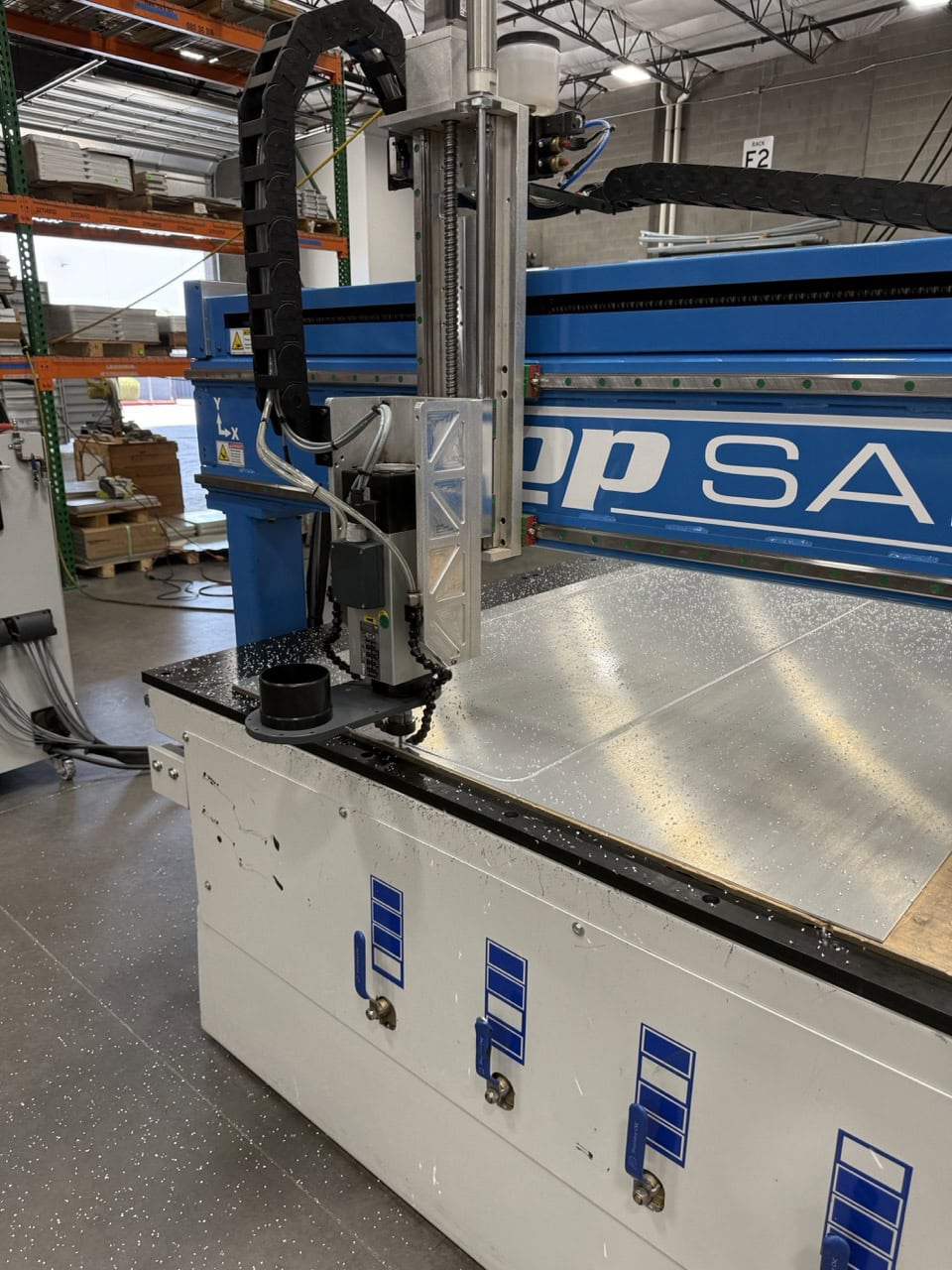

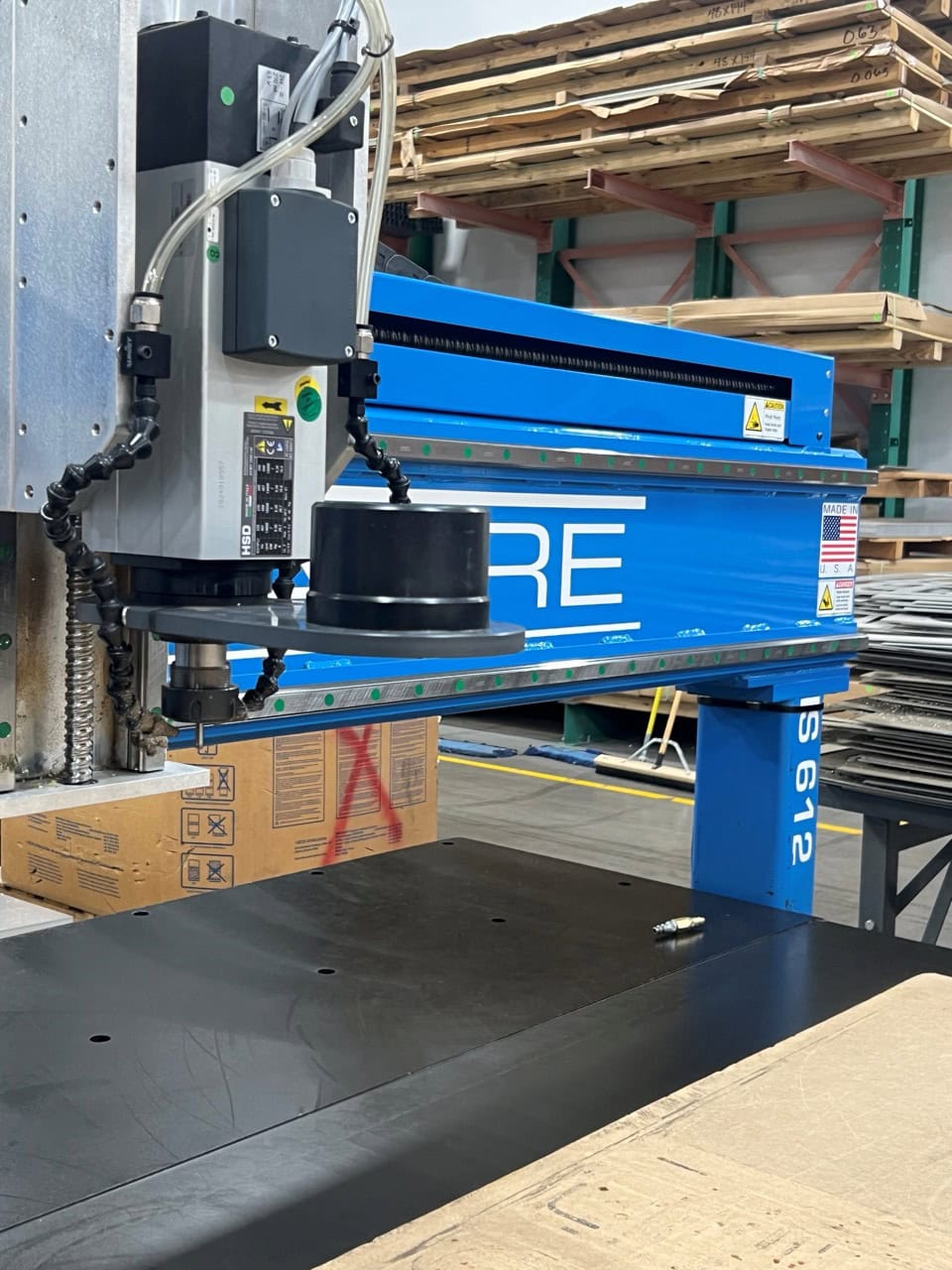

ShopSabre IS-612 Industrial CNC Router System, 2023
$44,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Table Size: 72″ x 144″
Cutting Area: 75″ x 146″
Z-Axis Travel: 16″
Spindle: HSD
Max Spindle Speed: 18,000
Rapid Speed: 2,100 IPM
Cutting Speed: 1,000 IPM
Resolution: 0.003″ to 0.005″
Repeatability: ยฑ0.001″
Table Top: Phenolic
Footprint: 110″ x 185″ x 98″
Weight: Approximately 3,500 to 4,500 lbs
Power Requirements: 20 amp / 220 Volt, 3 Phase (Spindle compatible with 1 or 3 Phase, 200-240V)
Equipped With:
-ShopSabre WINCNC Industrial Controller Hardware & Software

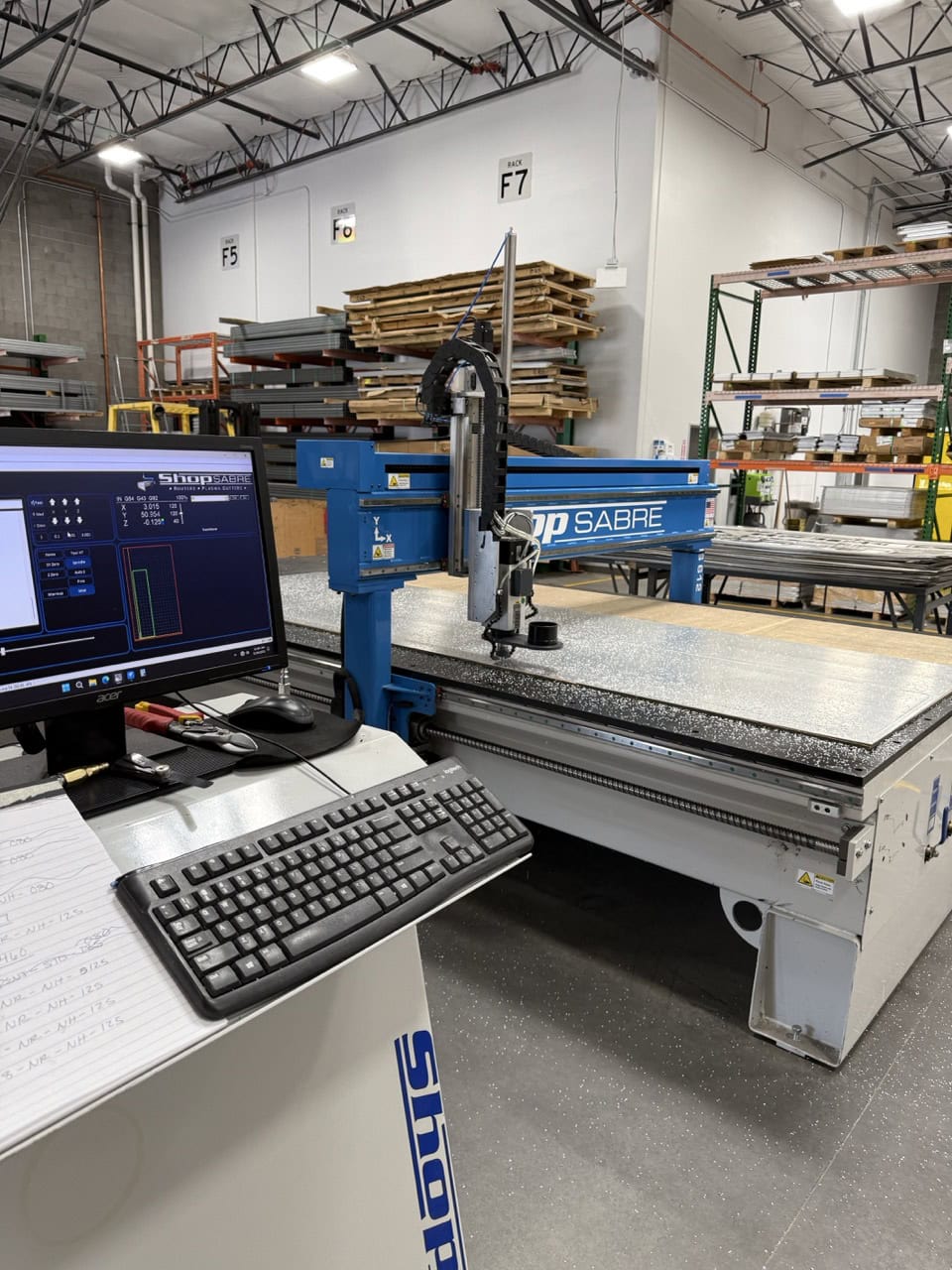

-ShopSabre Computer System: Full-size desktop, SSD, 8GB RAM, 19″ monitor, keyboard, mouse
-Vectric VCarve Pro CAD/CAM Software

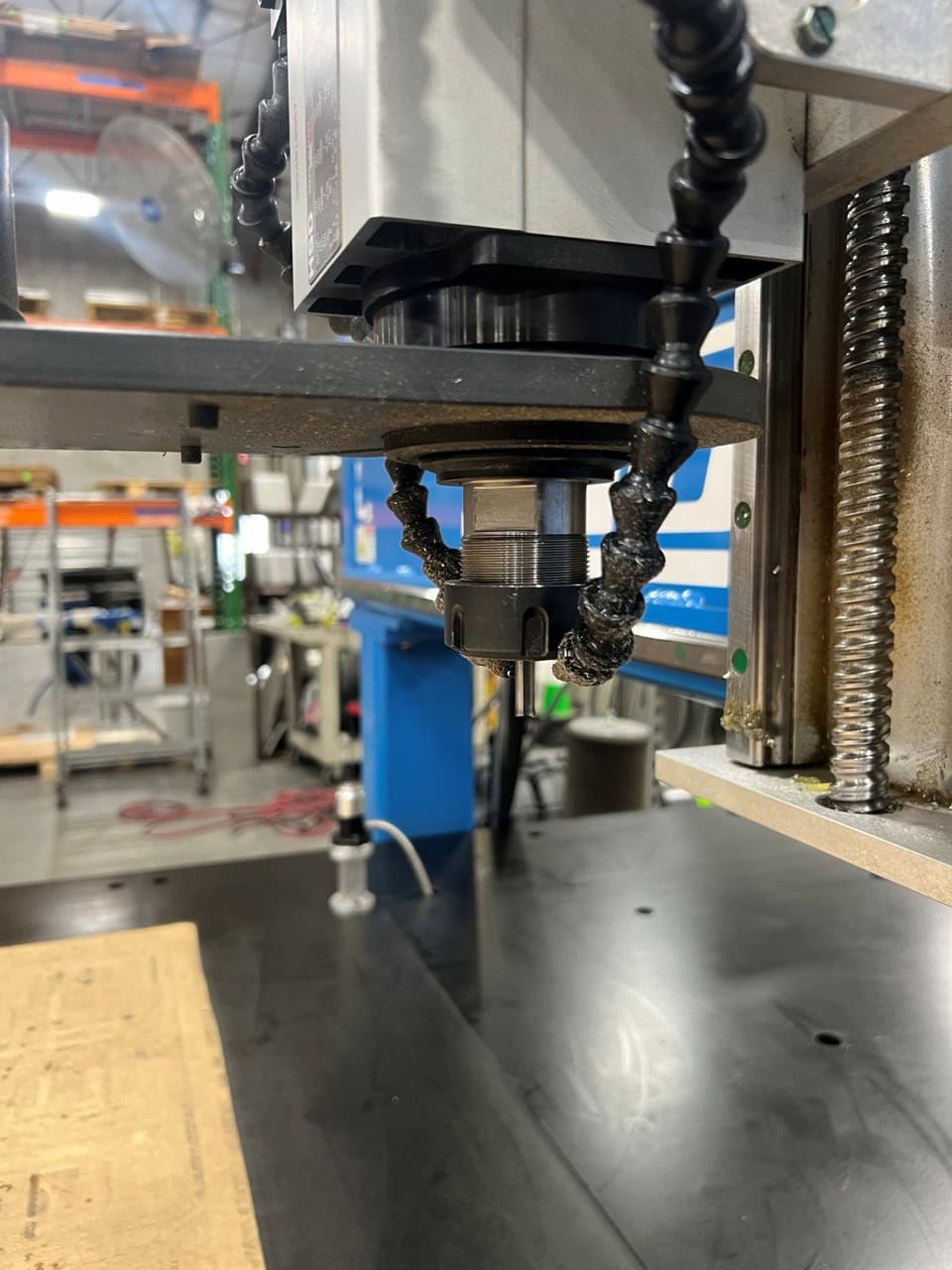

-7KW (9.3HP) HSD Industrial Electric Fan-Cooled Manual ER32 Spindle with VFD (18,000 max RPM, Mitsubishi VFD for S1 Rated operation)
-Automated Software Control for Spindle On/Off via G-Code or manual
-Automated Software Control for Spindle RPM via G-Code or manual
-Z Axis Air Balancer for locking Z on power down and increased Z-axis speed (ShopSabre Super Z Technology)
-Industrial Pop-Up Pneumatic Table Reference Pins (5 total; 3 left side, 2 front) for quick sheet or jig alignment, automated via G-Code
-Material Height Touch Pad for independent Z axis zero setting independent of tool length

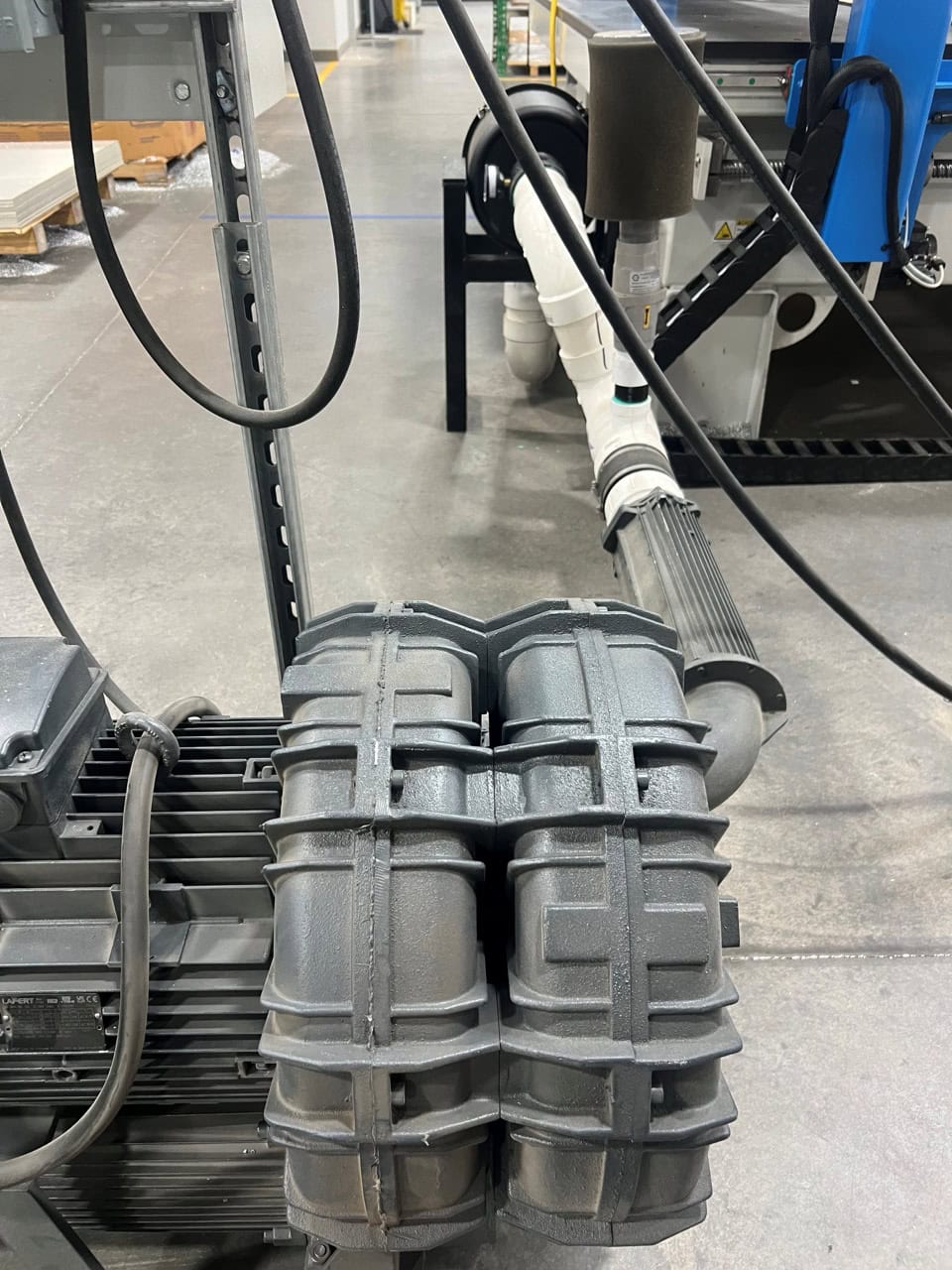

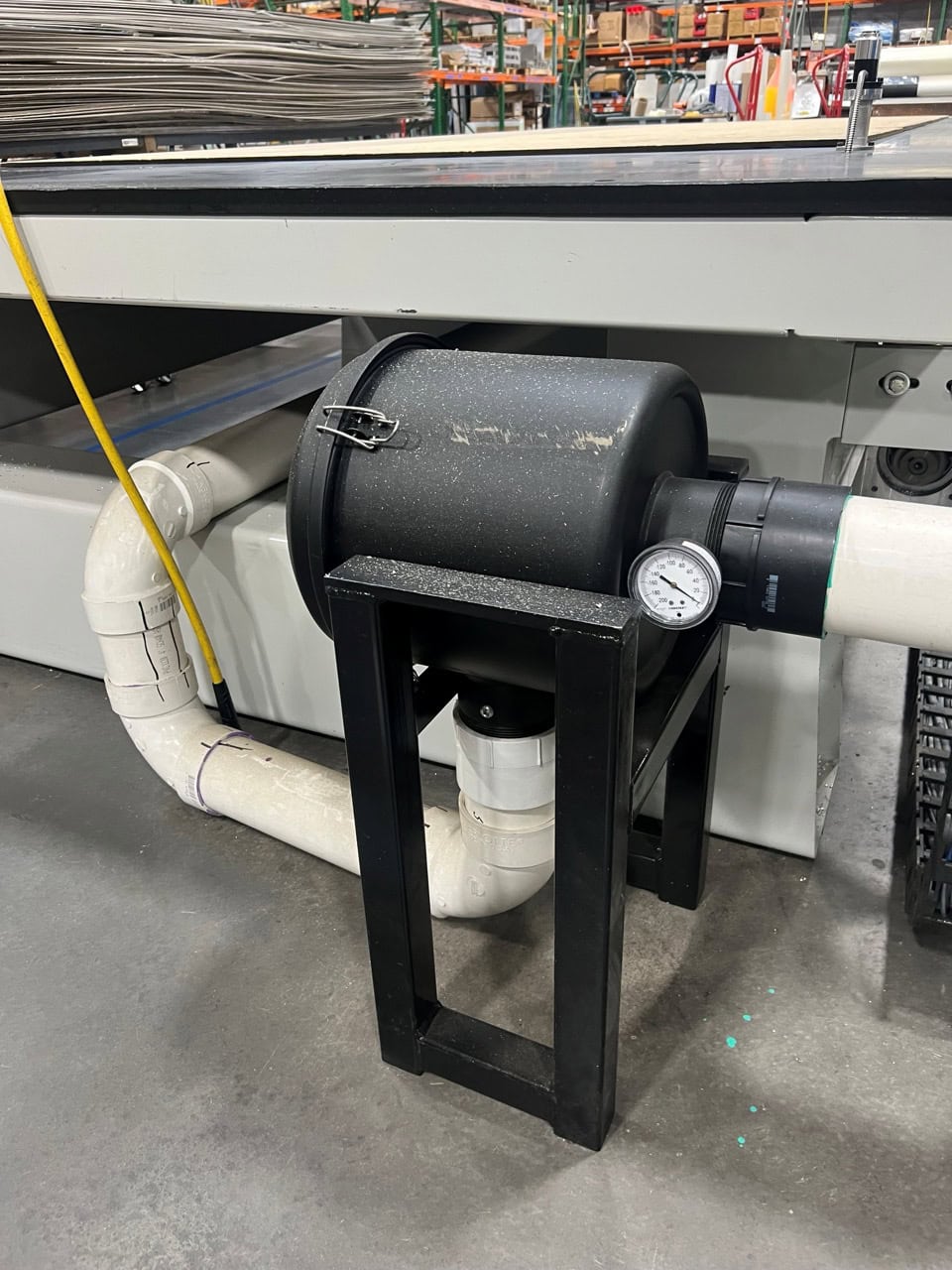

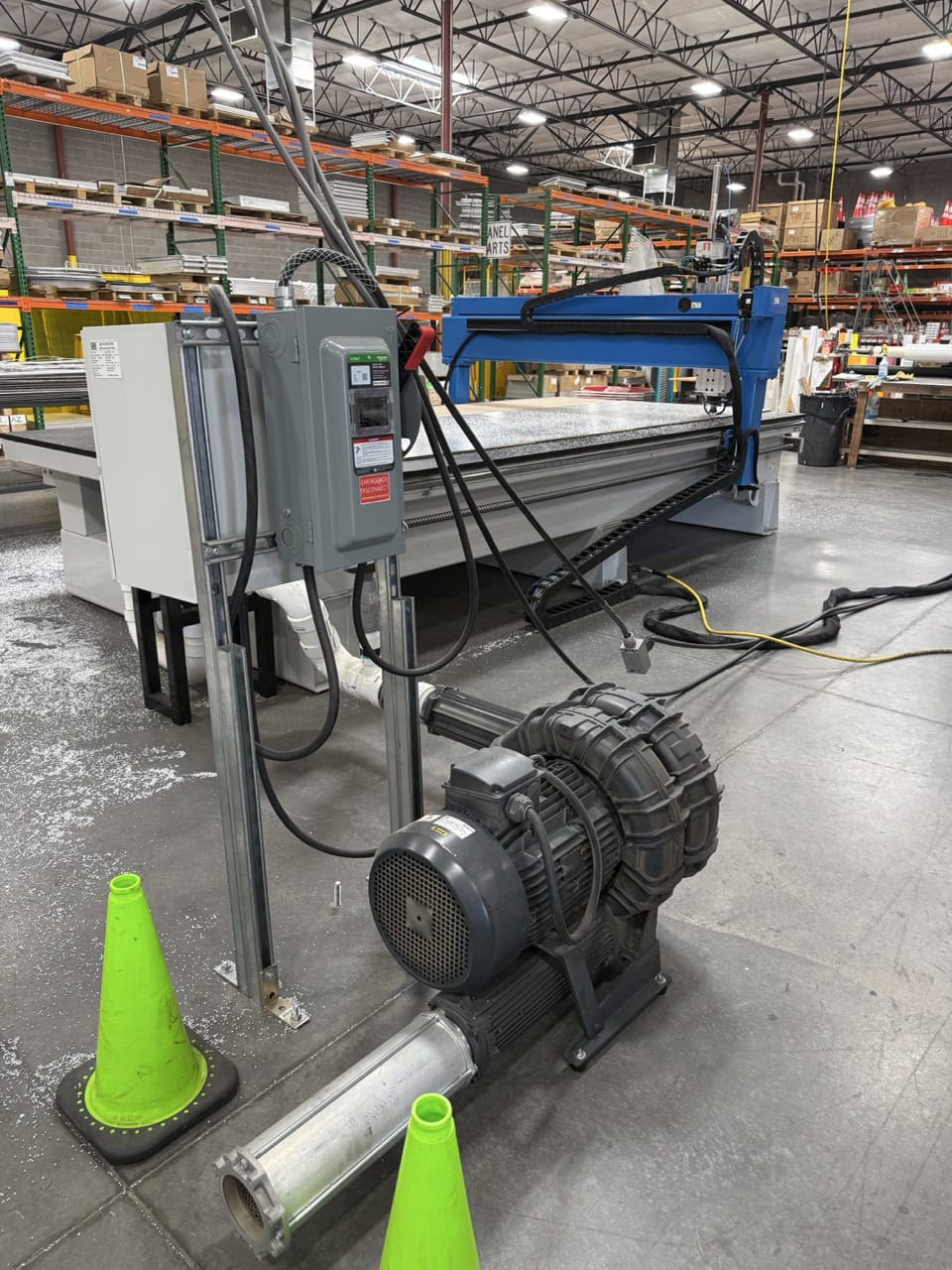

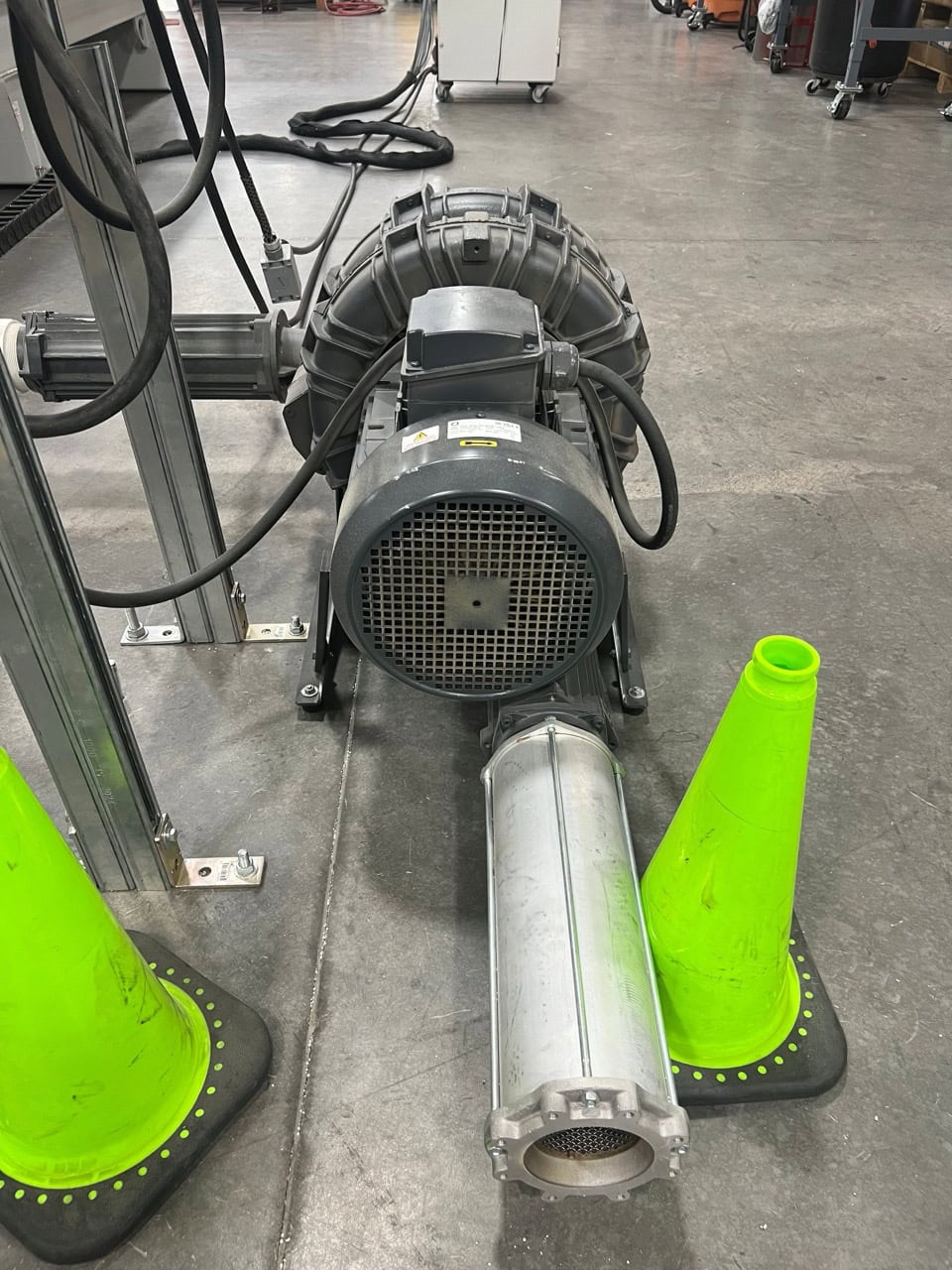

-25HP FPZ Italian Built Regenerative Blower Vacuum System with 4 Zone Vacuum Manifold (14″HG, 467 CFM open flow, 3 Phase power, 208/230/460V)
