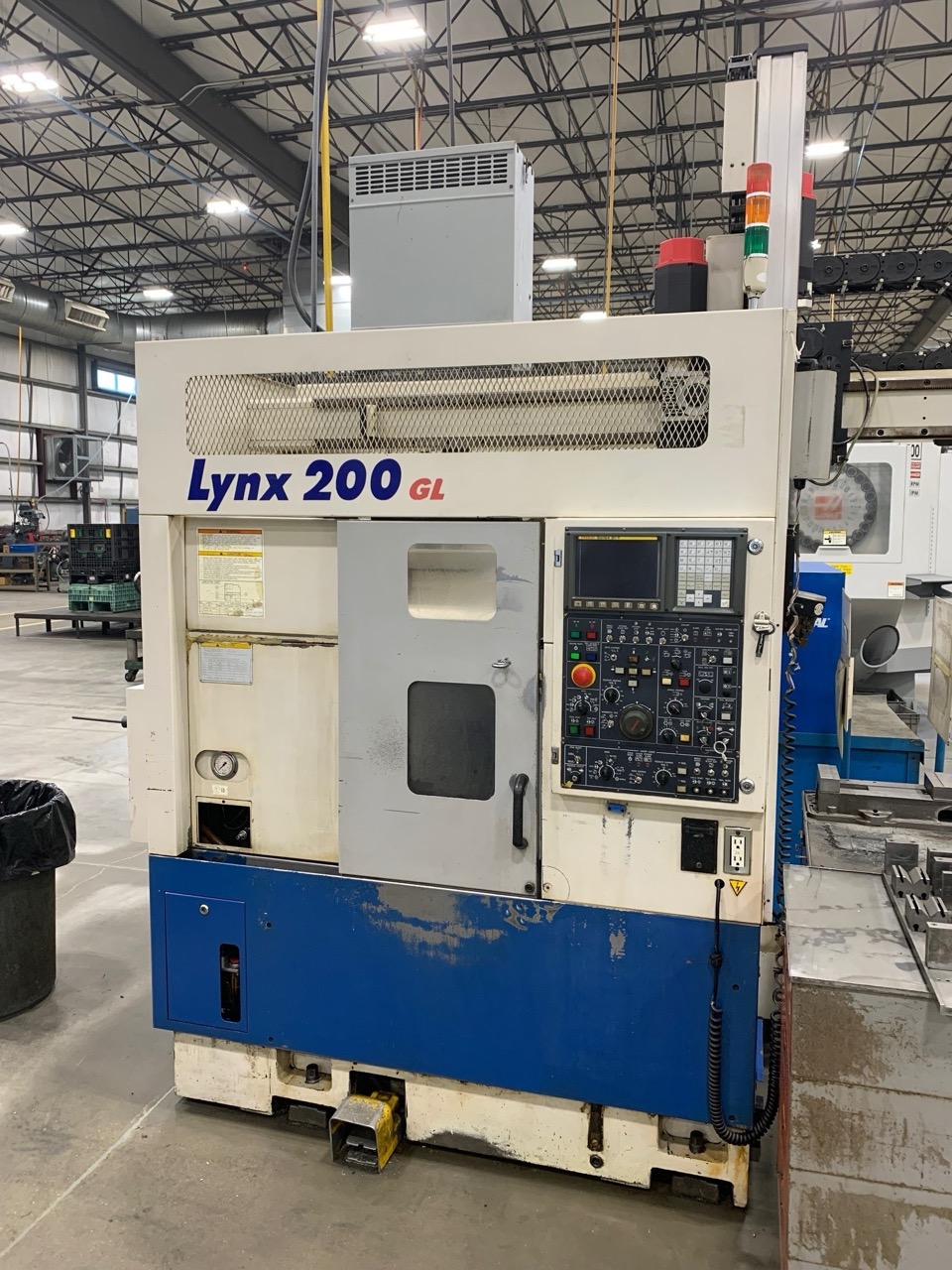

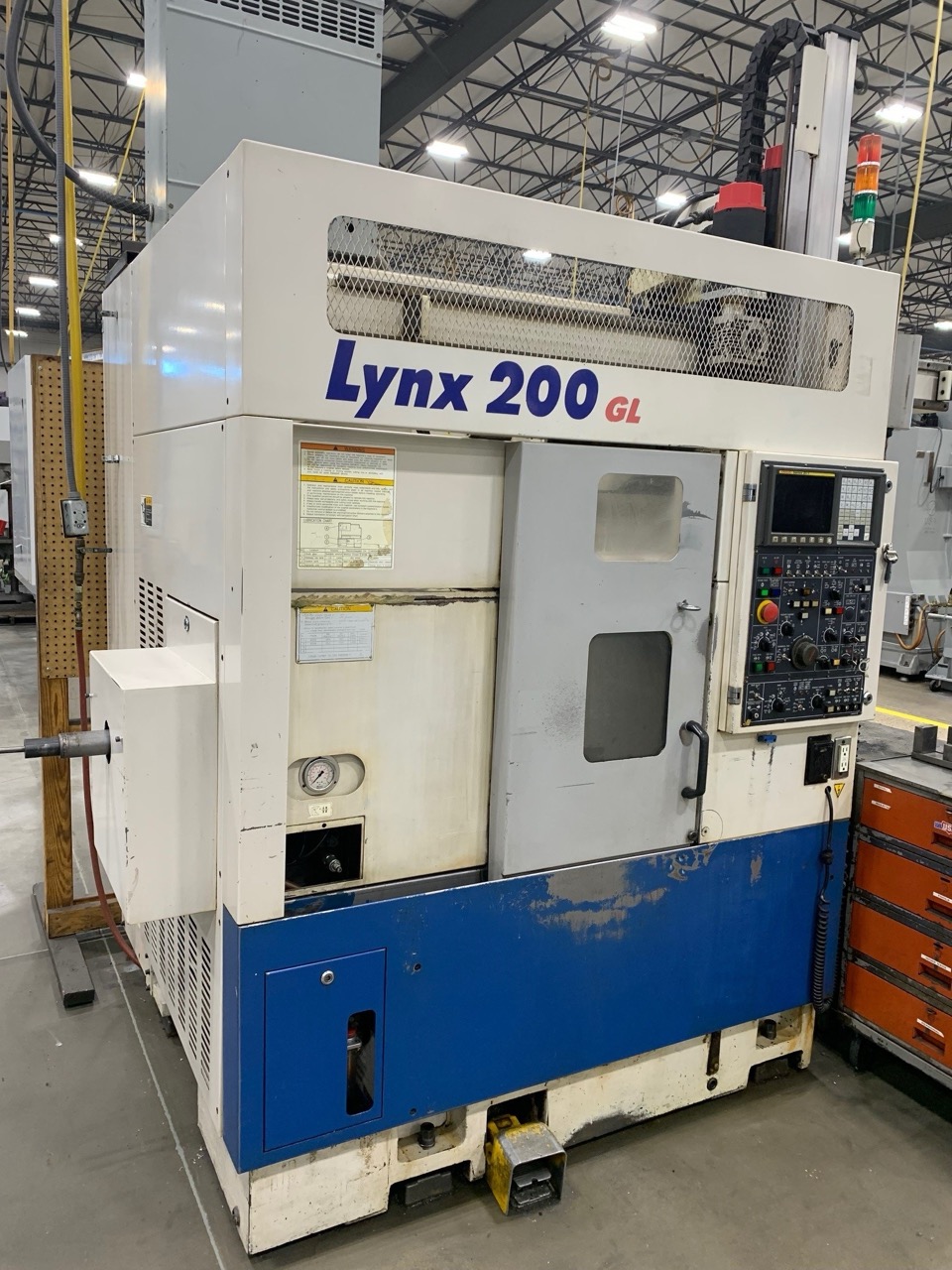

Daewoo Lynx 200GL CNC Lathe, 1999 – Parts Catcher, Tool Presetter, Chip Conveyor

Max Turning Diameter: 11.0″
Max Turning Length: 11.8″
Max Bar Capacity: 1.75″
Swing Over Bed: 18.0″
Distance Between Centers: 20.0”
X Axis Travel: 6.3″
Z Axis Travel: 13.0″
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle Nose: A2-5
Spindle Bore: 2.0″
Spindle Speed: 35 – 5000 RPM
Spindle Motor: 15 HP
Turret Capacity: 12 Stations
Turret Index Time: 0.15 Second
Overall Dimensions: 120” x 77” x 80” high
Weight: 7,600 lbs.

Equipped With:

Fanuc 21-T series CNC Control
Rigid Tapping

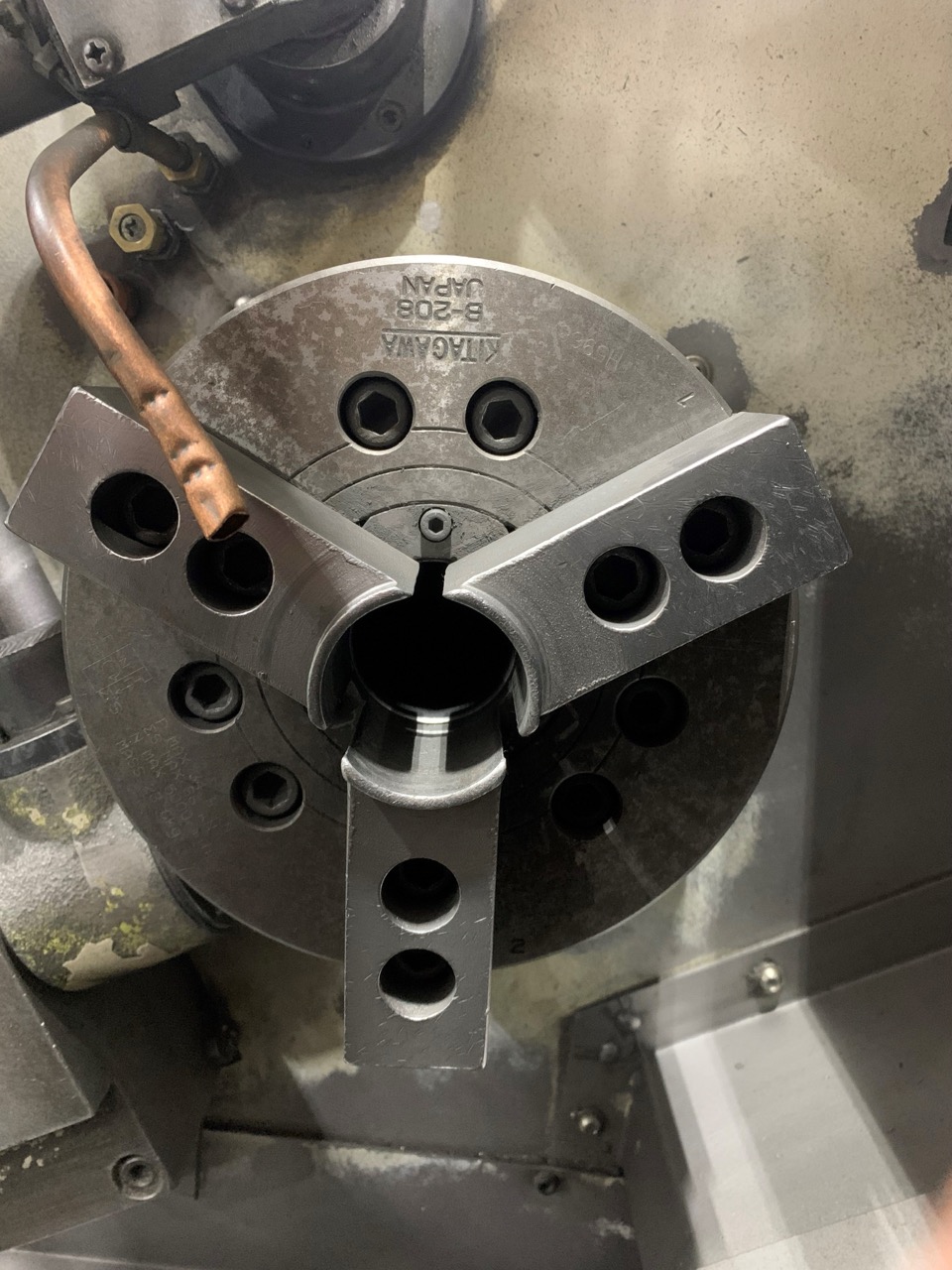

8″ 3 Jaw Kitagawa Hydraulic Chuck
Tool Presetter
Parts Catcher
RS-232
Coolant System
Foot Switch

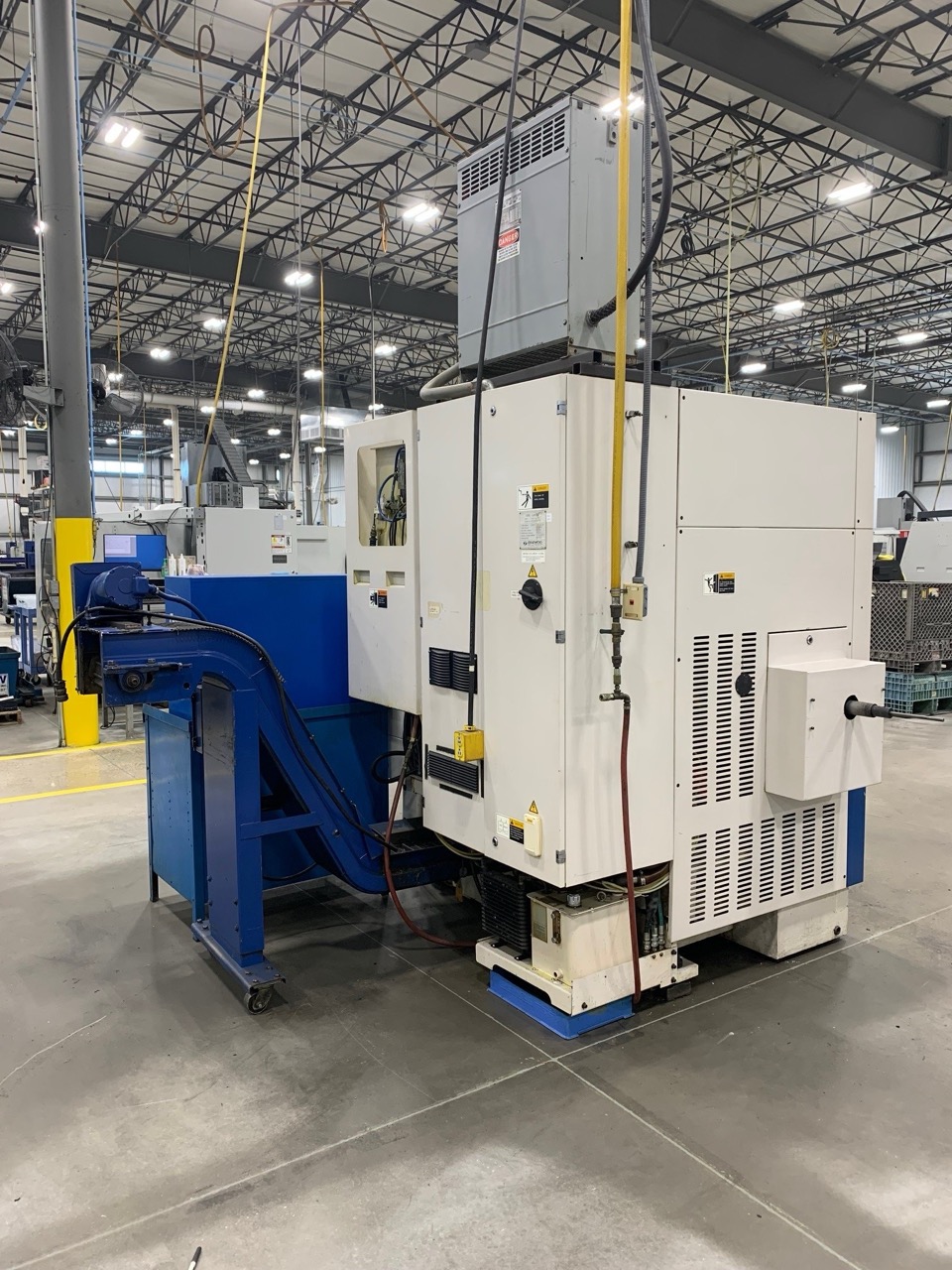

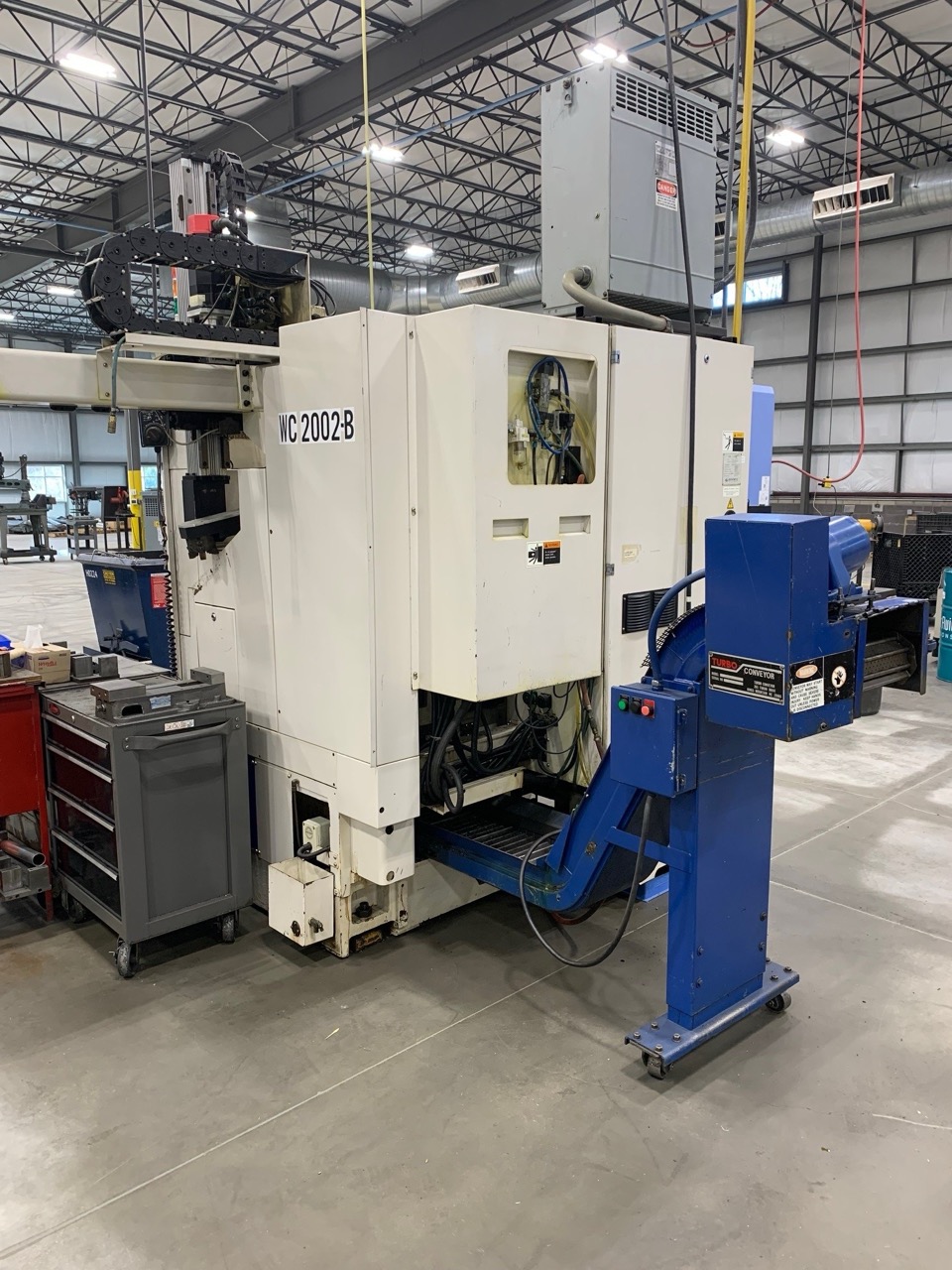

Turbo Chip Conveyor
