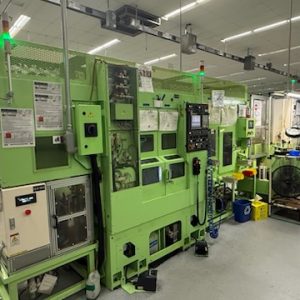

DMG Mori Multisprint 36 CNC Multi Spindle Lathe, 2019 – High Pressure Coolant, Chip Conveyor, Oil Mist Collector, (2) Fanuc Robots Included

$829,900.00

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Multi Axis Lathes
Make: DMG Mori
Model: Multisprint 36
Year: 2019
Machine Location: Indiana
Stock #: 732966

Max Bar Capacity: 1.41″ (36mm)
Max Bar Feed: 3.93″
Max Bar Feed with SWISSTYPEkit (Code I-B1270): 7.08″

Number of Work Spindles: 6
Spindle pitch circle diameter: 14.96″
Max Spindle Speed: 7500 RPM
Spindle Power: 20 HP
Bar Max Length: 0.13″
Bar Min Loading Length: 0.09″

Number of Units (Cross Slides with X – Y Axes Movements): 6
X-Axis Max Travel Pos.1-6: 1.96″
Y-Axis Max Travel Pos.1-6 mm: +/- 1.96″

Main Spindles Z-Slides
Number of Slides: 6
Z-Axis Travel: 3.93″
Z-Axis Travel Max. Travel with SWISSTYPEkit (Code I-B1270): 7.08″

Machine Weight: 33,000 Lbs.
Machine Dimensions: 401.57″ x 84.65″

Equipped With:
Fanuc 30i-B Control
Chip Conveyor, Hinged Type
High Pressure Device 0,25/5/12 MPa
Oil Mist Collector for Oil/Emulsion
Tool-Holder Block with no.3 Quick-Change Junctions
Motor Drive for Tool-Holders 8.000 rpm
Chiller System for Machine & High Pressure Device
(6) Collet Appl. Hainbuch TOPlus 40 W/O Axial Movement
Manual Collet Replacement dev. Hainbuch TOPlus 40
(12) Clamping Collet Type Hainbuch TOPlus 40 Max d.36
Drill/Boring-Holder ร˜25mm pos.TH02 Main Spindles
(8) Tool-Holder ext. for KM32 for Main Spindles
Drill/Boring-Holder ร˜25mm pos.TH03 Main Spindles
Radial Driven Unit 3900 rpm, ร˜16, ext. Cooling
G-Interface for Blank Loading Device
Transformer
DMG MORI SMARTkey Turning package (4 keys)
G- Set of (2) Fanuc Robots in the Working Area for the Workpieces Loading/Unloading
G-Set of (2) Axial Rolling Head FETTE Type
with (2) Sets of Rollers, Pneumatic Device
for Mechanical Reloading
G-Special Device for Part Feeding,
Assembled on the Slide, Complete
with Arm and Adaption
G-Adaptor for Presetting Outside the Machine
SK011 G-Interface for Blank Loading Device,
Including Signal and Blank Handling in the Machine
Other Available Tooling

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
