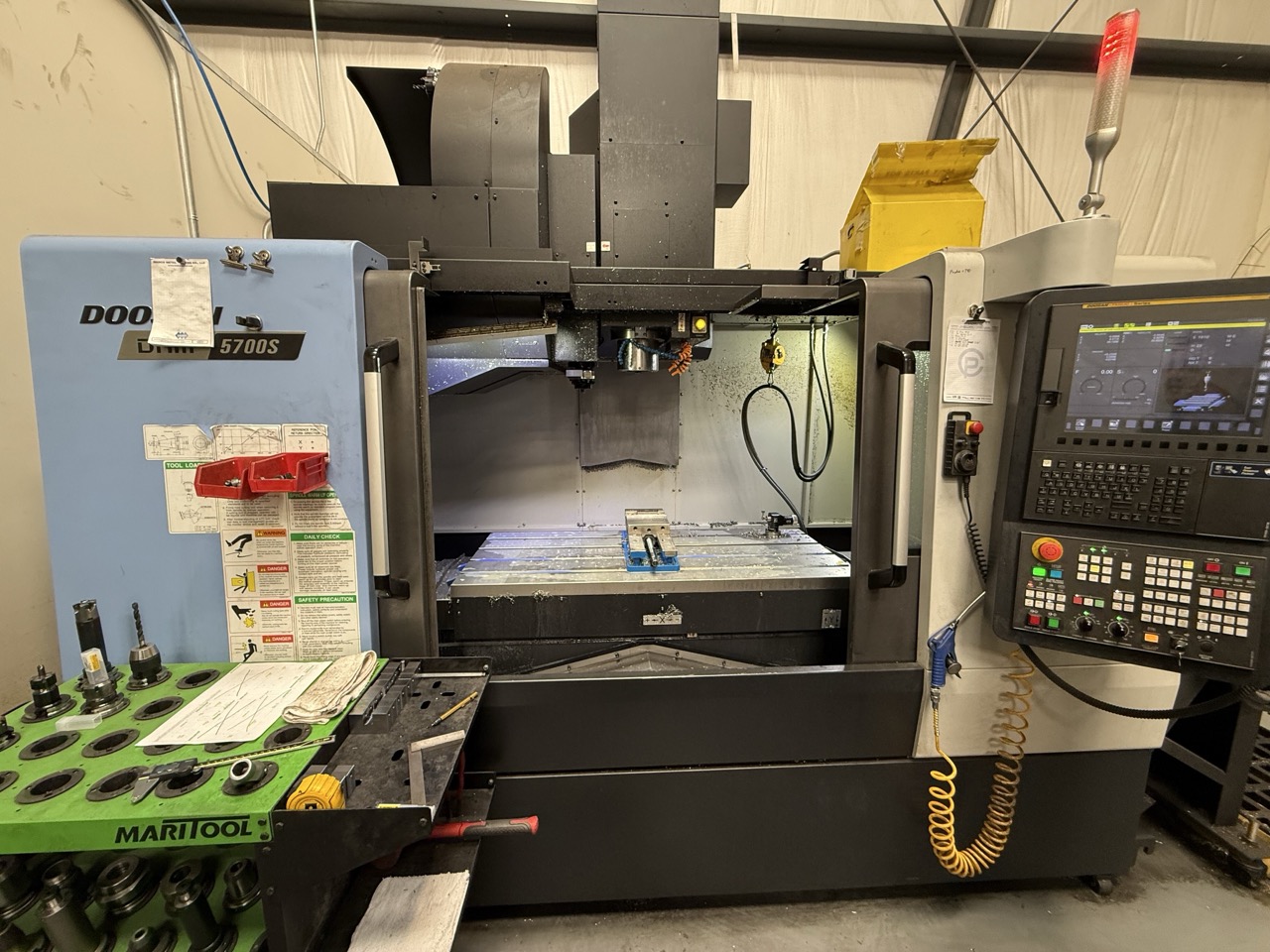

Doosan DNM 5700S CNC Vertical Machining Center, 2022 – FANUC 0i-Plus control withiHMi touch screen interface, 40 ATC and 15Kspindle
$89,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Max. Spindle Speed: 15,000 RPM
X-Axis Travel Distance: 41.3 ”
Y-Axis Travel Distance: 22.4″
Z-Axis Travel Distance: 20.1″
X-Axis Rapid Traverse: 1,654″/min
Y-Axis Rapid Traverse: 1,654 “/min
Z-Axis Rapid Traverse: 1,417 “/min
Max. Spindle Power: 24.8 HP
Max. Spindle Torque: 86.9 ft-lbs
Spindle Taper: CAT 40 Big Plus
Table Length: 51.2″
Table Width: 22.4″
Maximum Workpiece Weight: 1,764 lbs
Machine Dimensions: 95″ x 117.5″ x 122.4” Machine Weight: 14,330 lbs
Equipped with:

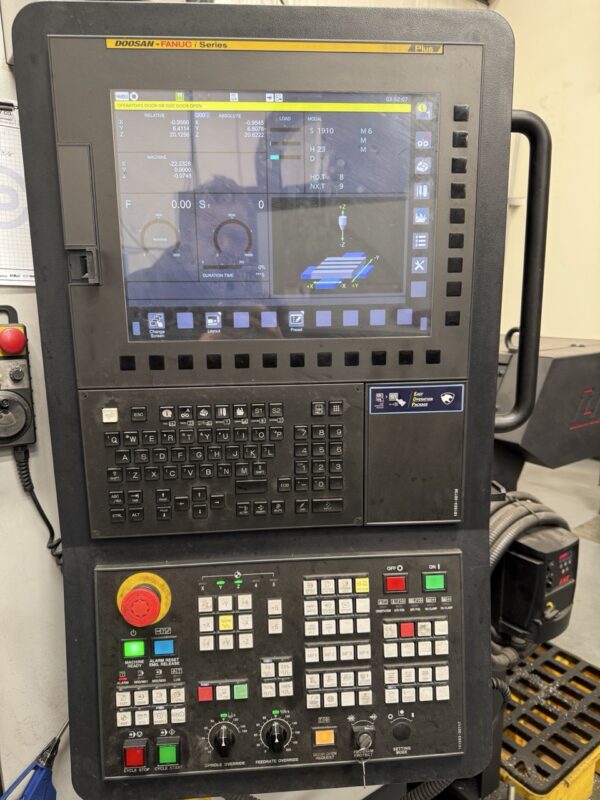

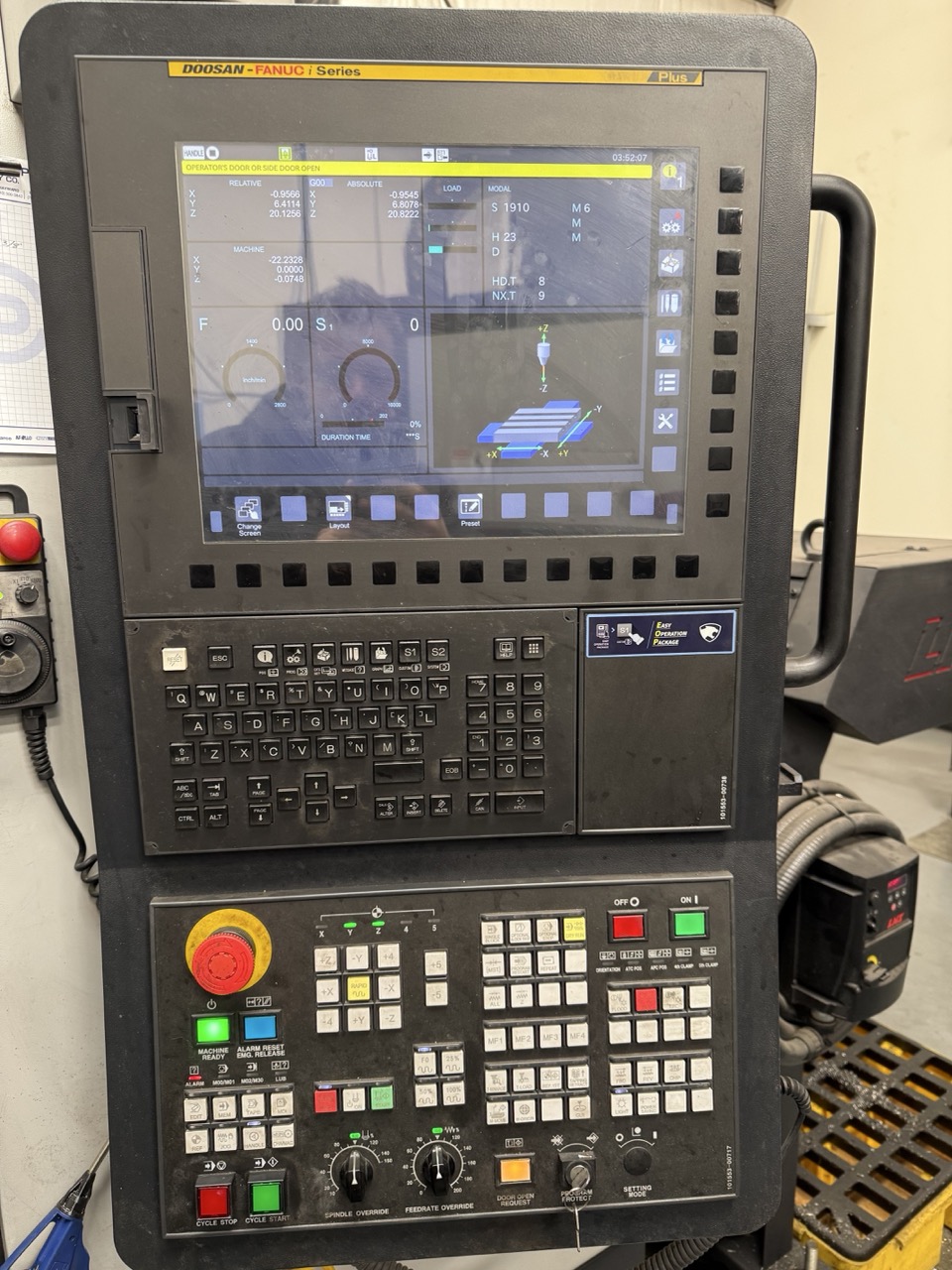

DNM 5700S with FANUC 0i-Plus control with iHMi touch screen interface
40 ATC
15K spindle
Coolant Through Spindle
LNS/Turbo Hinged belt Right hand chip conveyor with variable speed drive
M-code capability
Renishaw OTS-AA touch trigger tool setter
