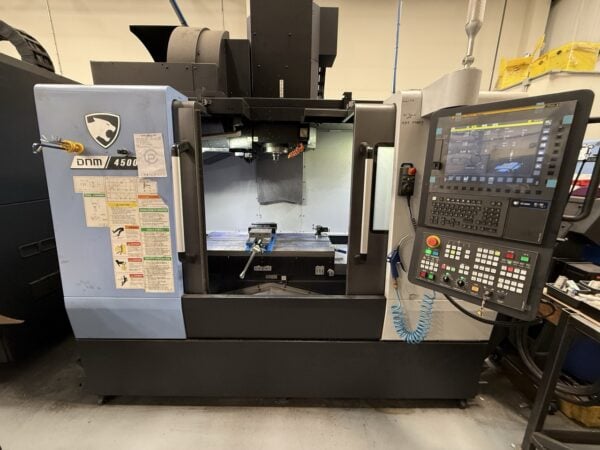

Doosan DNM4500 CNC Vertical Machining Center, 2023 – FANUC 0i-Pluscontrol, 30 ATC and 15K high speed spindle
$84,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Max. Spindle Speed: 15,000 RPM
X-Axis Travel Distance: 31.5″
Y-Axis Travel Distance: 17.7″
Z-Axis Travel Distance: 20.1″
X-Axis Rapid Traverse: 1,417
Y-Axis Rapid Traverse: 1,417″ /min
Z-Axis Rapid Traverse: 1,181 “/min
Tool Taper: CAT 40
Table Length: 39.4″i
Table Width: 17.7″
Maximum Workpiece Weight: 1,323 lbs
Machine Dimensions: 85″
Length x 117.5″ (2985 mm) Height x 103” (2615 mm) Widthh
Machine Weight: 11,023 lbs
Equipped With:
Fanuc Oi-Plus CNC Control
30ATC
15k High Speed Spindle
Coolant Through Spindle
LNS/Turbo Hinged Belt Right hand chip conveyor with speed drive
M-code Capability
Renishow OMP60 spindle probe, CAT 40 tool shank, 100mm probe stylus and hardware
Renishow OTS-AA touch trigger tool setter
Renishaw CAT40 tool setter calibration master
