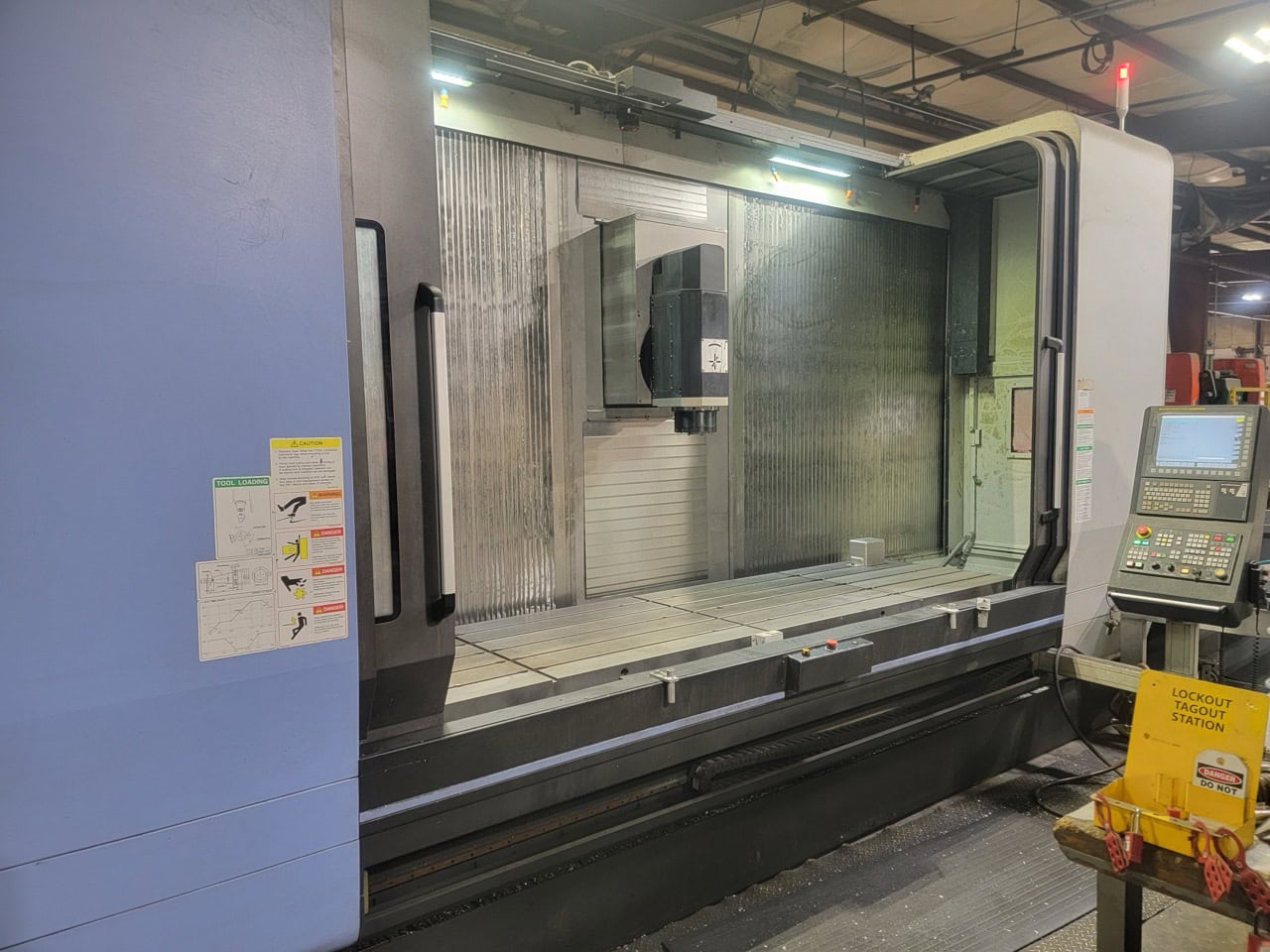

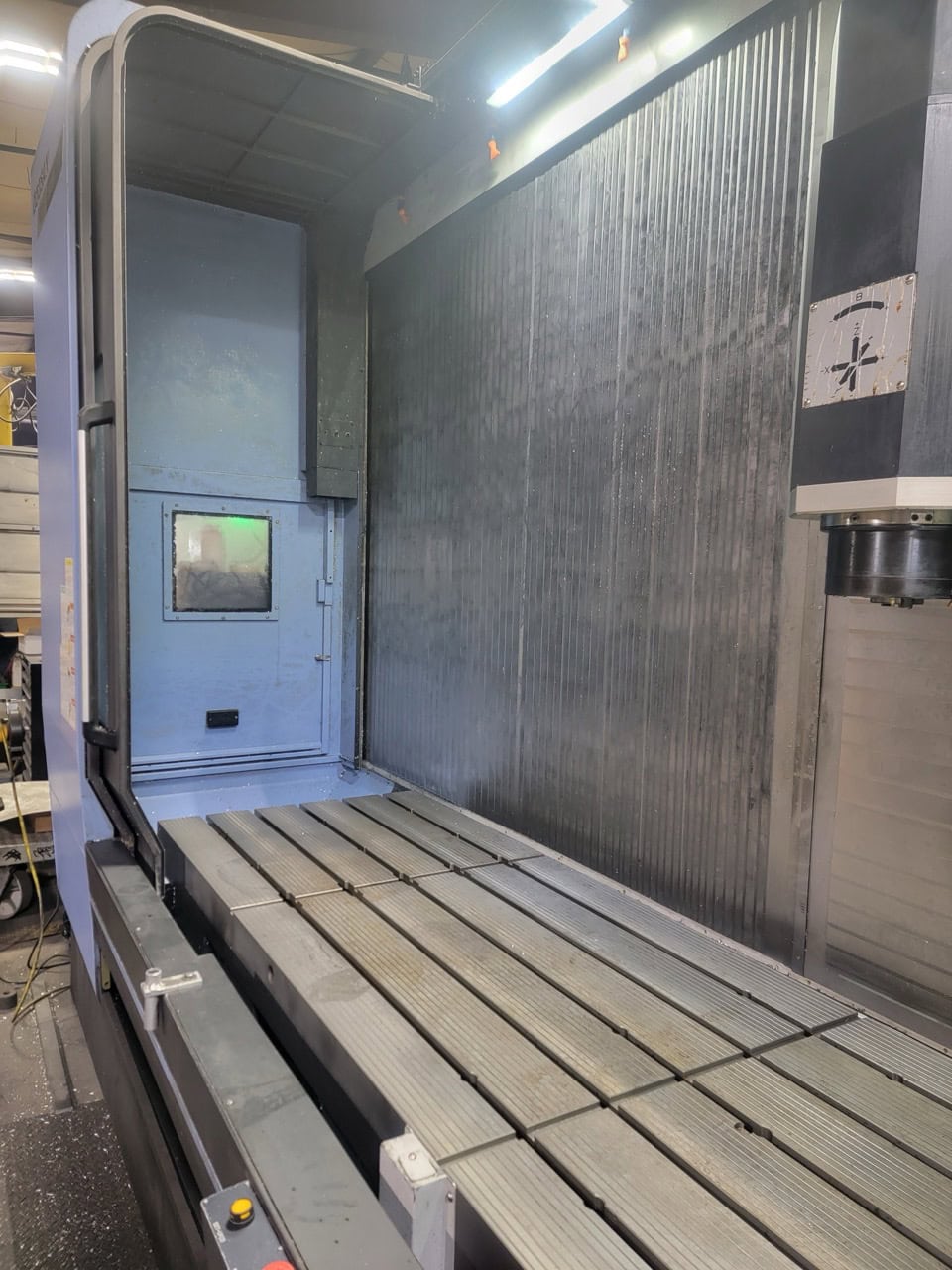

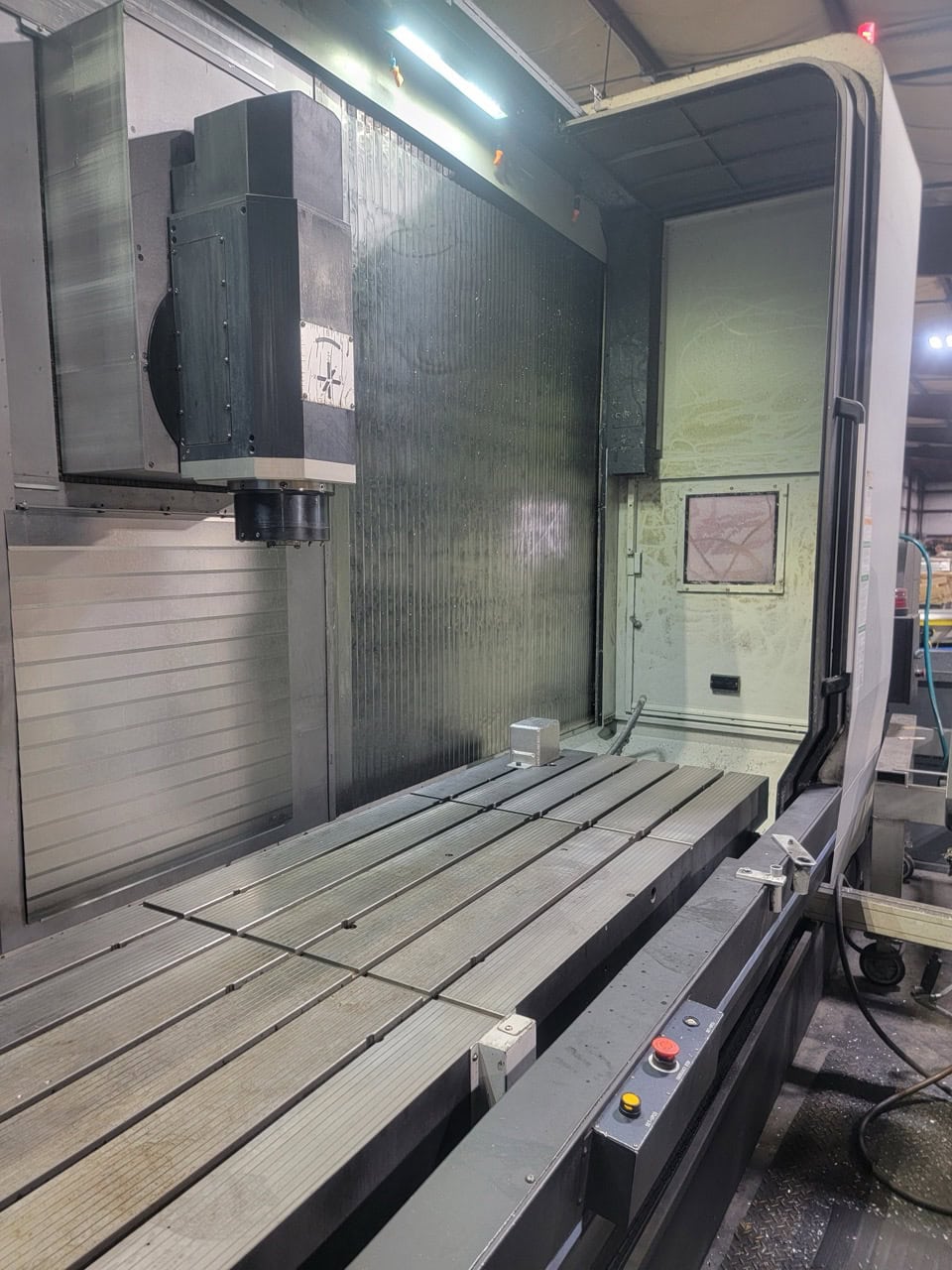

Doosan VCF 850LSR 4 Axis VMC, 2019 – Tilting B-Axis, Renishaw Probe, Tool-Setter, LNS Conveyor

$289,900.00

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Vertical Machining Centers
Make: Doosan
Model: VCF 850LSR
Year: 2019
Machine Location: Upon Request
Stock #: 074394

Travel X-axis 3000 mm (118.1 in)
Travel Y-axis 850 mm (33.5 in)
Travel Z-axis 800 mm (31.5 in)
Travel Distance B-axis 220°±110°
Travel Distance C-axis 360°
Rapid Traverse X-axis 40 m/min
Rapid Traverse Y-axis 40 m/min
Rapid Traverse Z-axis 40 m/min
Rapid Traverse B-axis 50 rpm
Rapid Traverse C-axis 25 rpm
Spindle Speed 18000 rpm
Power 32 kW (43 Hp)
Torque 126.3 Nm (93.2 ft-lbs)

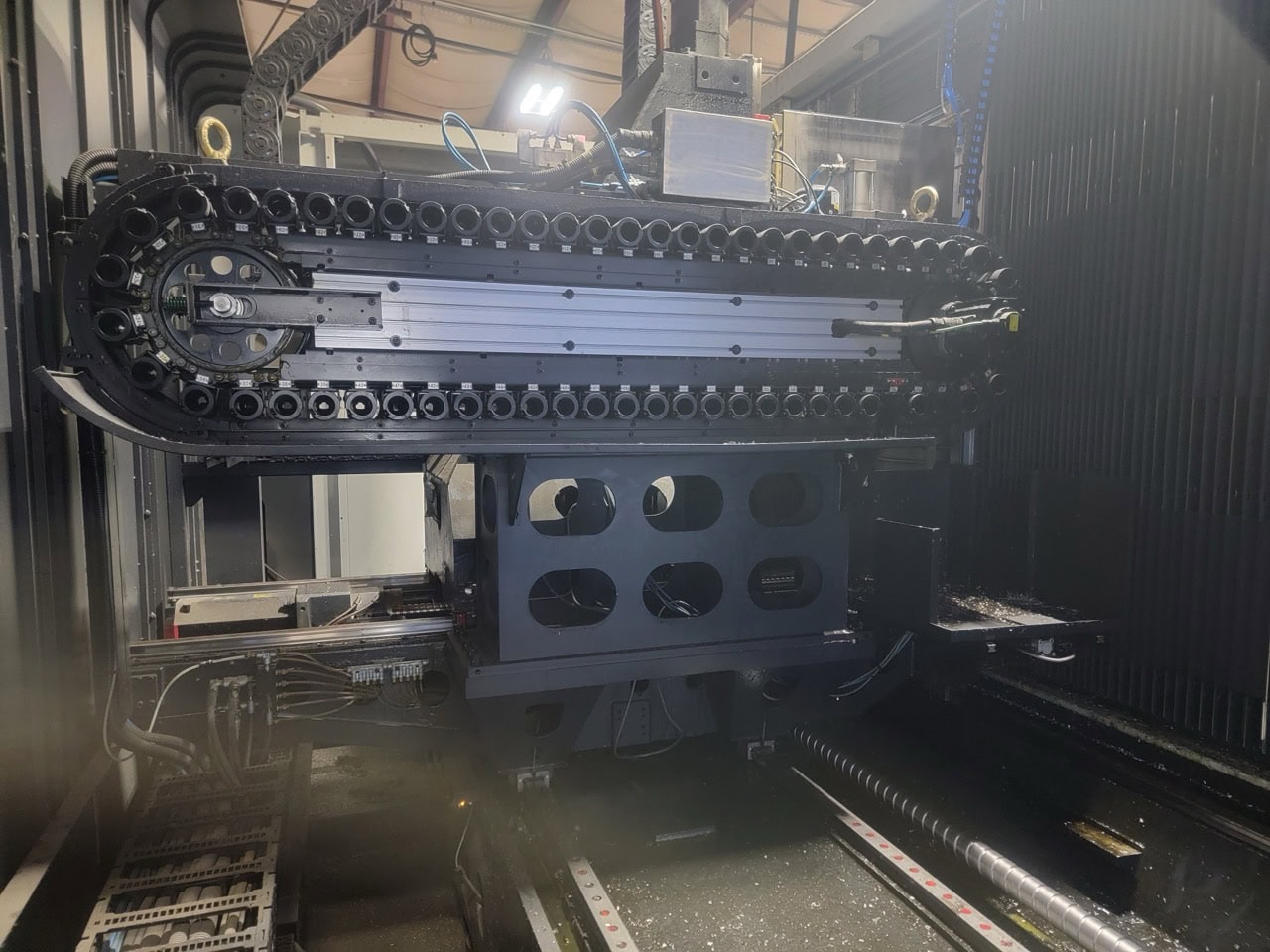

Number of Tools (Std) 60 tool
Tool Shank CAT 40

Max. Tool Length 300 mm (11.811″)
Max. Tool Weight 8 kg (17.64 lbs)
Tool to Tool 5.5 second

Equipped with:

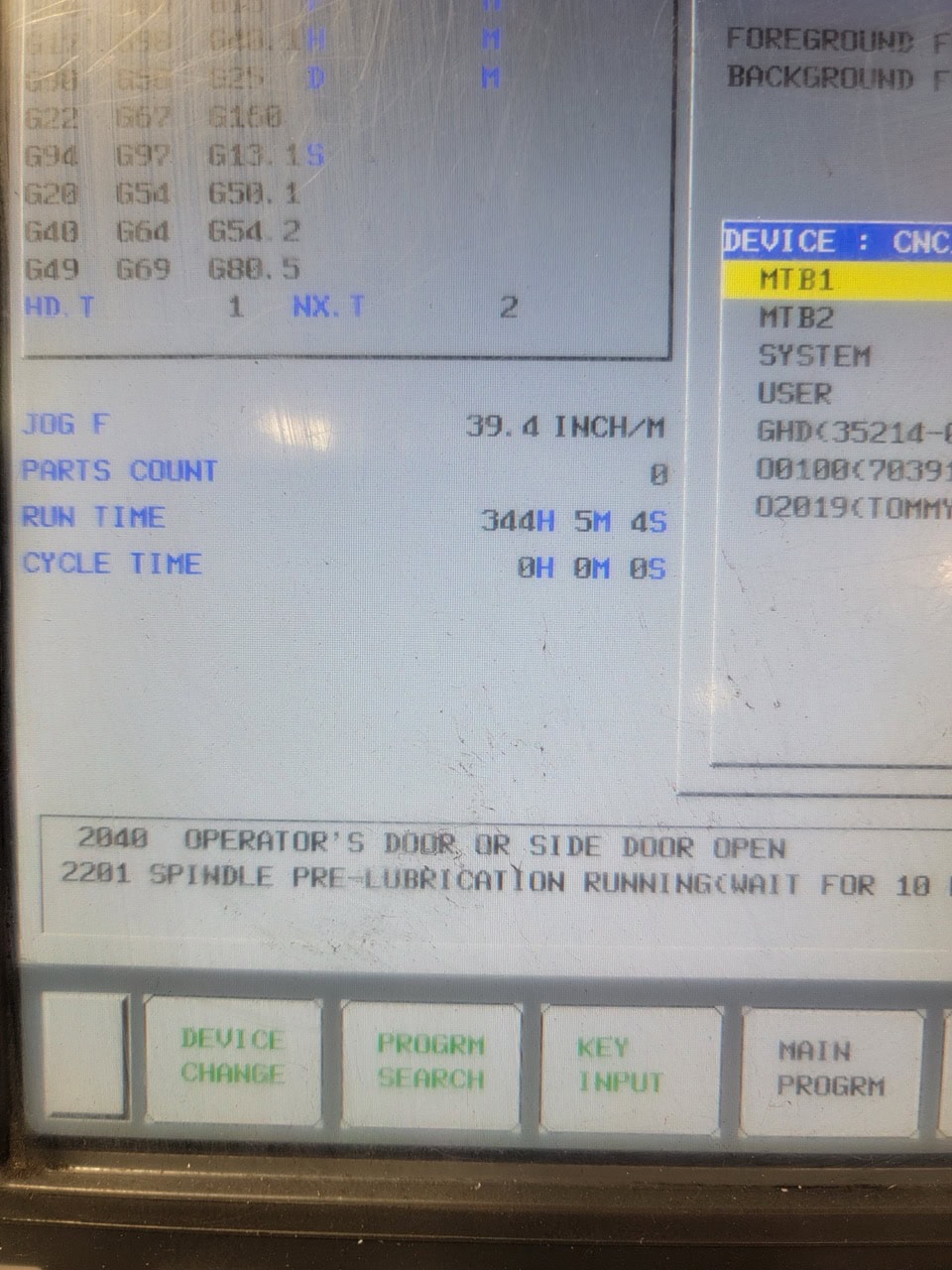

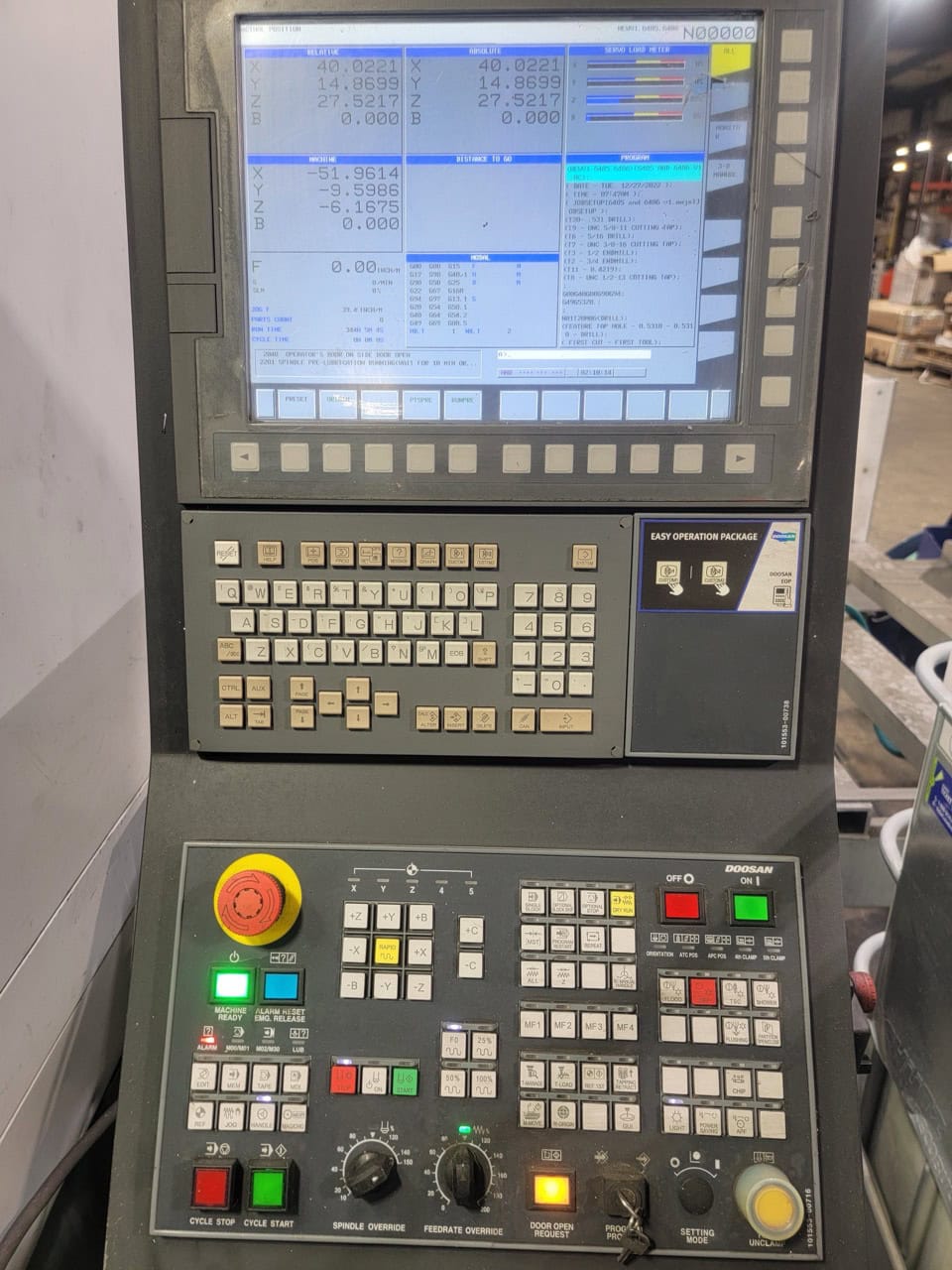

Fanuc 31i-B5
LNS Turbo Conveyor
Renishaw RMP60 spindle probe
Renishaw RTS-AA touch trigger tool setter

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
