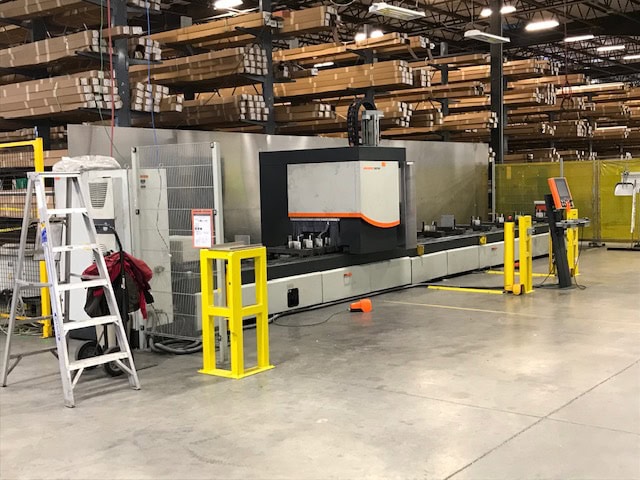

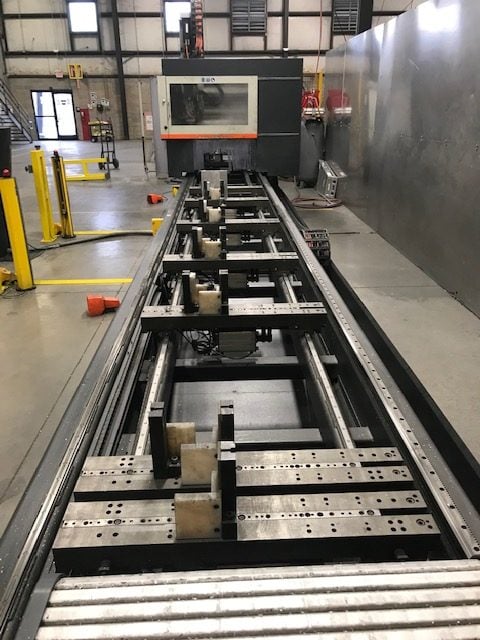

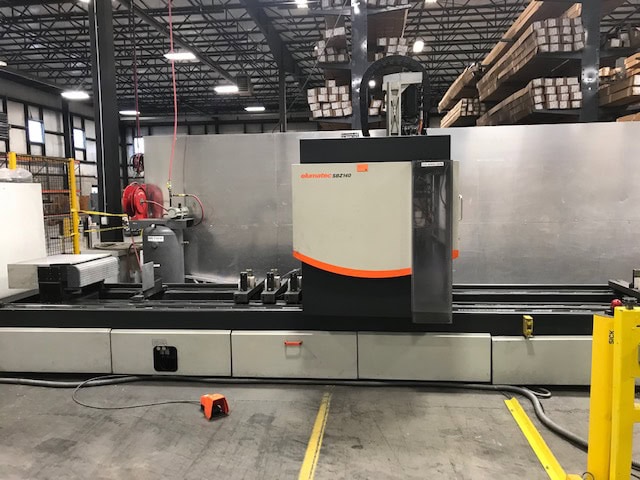

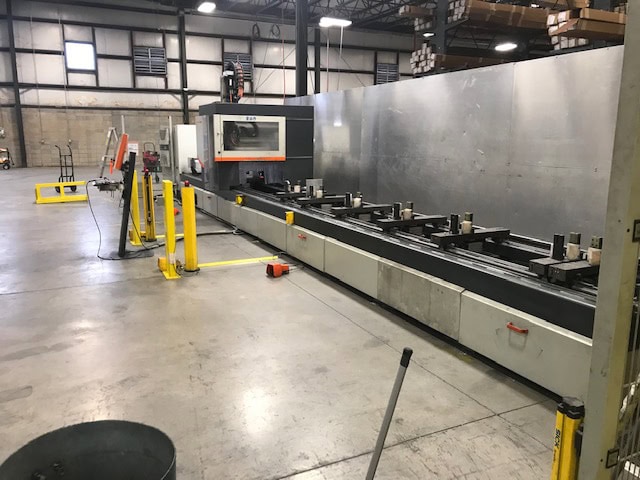

Elumatec SBZ-140 4-Axis Machining Center, 2014 - 9.7 Meter Bed Length, Low Hours
Elumatec SBZ-140 4-Axis Machining Center, 2014 - 9.7 Meter Bed Length, Low Hours - Image 2
Elumatec SBZ-140 4-Axis Machining Center, 2014 - 9.7 Meter Bed Length, Low Hours - Image 3
Elumatec SBZ-140 4-Axis Machining Center, 2014 - 9.7 Meter Bed Length, Low Hours - Image 4
Elumatec SBZ-140 4-Axis Machining Center, 2014 - 9.7 Meter Bed Length, Low Hours - Image 5
Elumatec SBZ-140 4-Axis Machining Center, 2014 - 9.7 Meter Bed Length, Low Hours - Image 6
Elumatec SBZ-140 4-Axis Machining Center, 2014 - 9.7 Meter Bed Length, Low Hours - Image 7
Elumatec SBZ-140 4-Axis Machining Center, 2014 - 9.7 Meter Bed Length, Low Hours - Image 8
DJL
43491034231

Elumatec SBZ-140 4-Axis Machining Center, 2014 – 9.7 Meter Bed Length, Low Hours

$84,999.00

Elumatec SBZ-140 4-Axis Machining Center, 2014 - 9.7 Meter Bed Length, Low Hours
Elumatec SBZ-140 4-Axis Machining Center, 2014 - 9.7 Meter Bed Length, Low Hours - Image 2
Elumatec SBZ-140 4-Axis Machining Center, 2014 - 9.7 Meter Bed Length, Low Hours - Image 3
Elumatec SBZ-140 4-Axis Machining Center, 2014 - 9.7 Meter Bed Length, Low Hours - Image 4
Elumatec SBZ-140 4-Axis Machining Center, 2014 - 9.7 Meter Bed Length, Low Hours - Image 5
Elumatec SBZ-140 4-Axis Machining Center, 2014 - 9.7 Meter Bed Length, Low Hours - Image 6
Elumatec SBZ-140 4-Axis Machining Center, 2014 - 9.7 Meter Bed Length, Low Hours - Image 7
Elumatec SBZ-140 4-Axis Machining Center, 2014 - 9.7 Meter Bed Length, Low Hours - Image 8

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Fabrication
Make: Elumatec
Model: SBZ-140
Year: 2014
Machine Location: Upon Request
Stock #: 034231

Max Machining length with Profile end Machining: 31′ (9.7 Meter)
Traverse Path X-axis: 31′ (9,820 mm)
Traverse Path Y-axis: 33″ (845 mm)
Traverse Path Z-axis 24″ (620 mm)
A-axis Pivoting range: -90 0 +90 degree
Spindle Speed: Max. 24,000 RPM
Direction of Machining: Top, Front, Rear, Left/Right
Positioning Accuracy: .004″ (.1 mm)
Tool Holder: HSK-63F
Tool Changing: 8 tools
Dimensions approx: 44′ L X 11’W X 9’H
Approx. Weight: 18,000 lbs.

Equipped with:

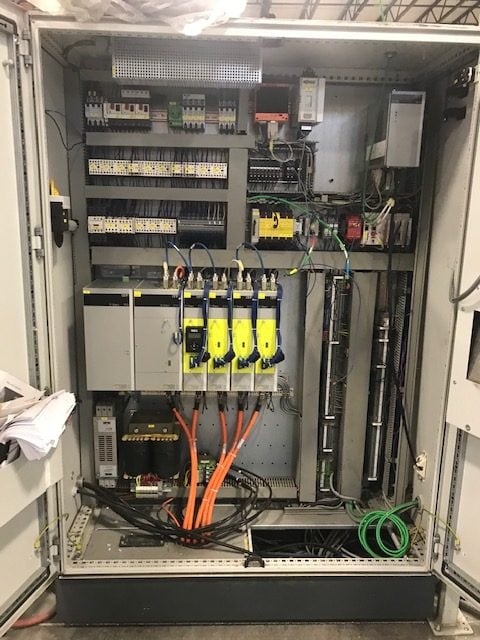

4-axis controller
18.5″ colour display, USB ports and network connection
Windows operating system
eluCam

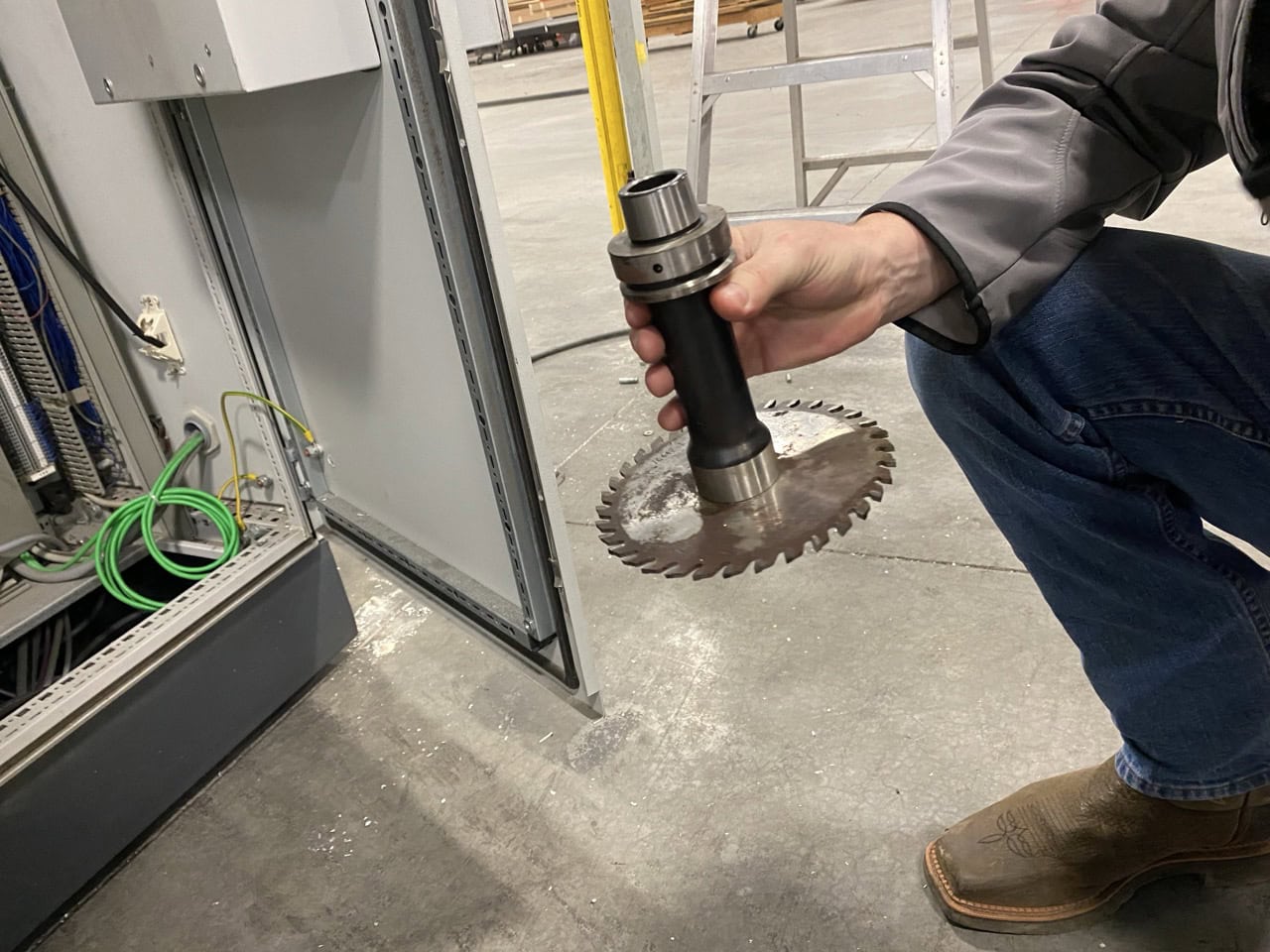

Saw blade attachment for notching
*videos available

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
