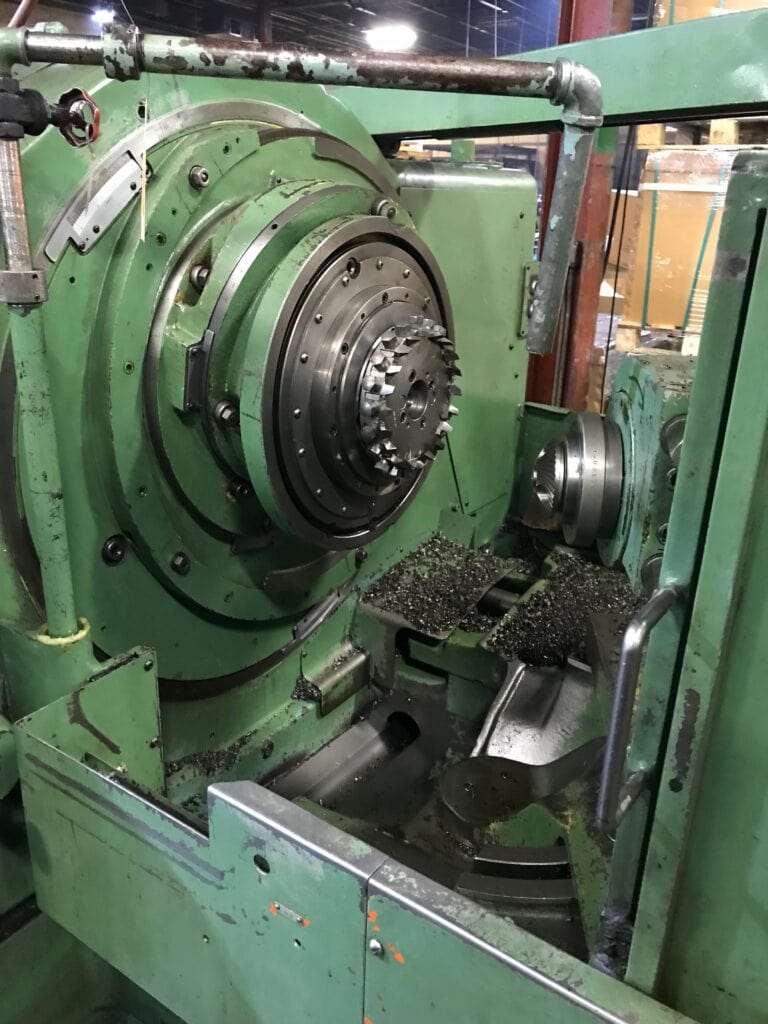

Gleason No. 116 Hypoid Production Rougher, 1970s

$19,900.00

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Gear Machinery
Make: Gleason
Model: No.116
Year: 1970s
Machine Location: South Carolina
Stock #: 515866

Cone Distance, Max. (30 Degree Angle and 12″ Cutter): 9″
Pitch Angle-Max., Shafts at 90 Degrees: 84 Degrees/18′
Pitch Angle-Min., Shafts at 90 Degrees: 5 Degrees/ 42′
Diametral Pitch (coarsest): 2*
Max. Depth: 1″
Extreme Ratio, Shafts at 90 Degrees: 10 to 1
Largest Pitch Diameter, 30 Degree Spiral Angle;
10 to 1 Ratio, Gear: 18″
2 to 1 Ratio, Gear: 16″
1 to 1 Ratio, Gear: 12 3/4″
Number of Teeth: 5-175
Max Ratio for Pinions to Operate with Formate Gears: 2 to 1
Widest Face**
*Requires Special Depth Cutter Blades
** Using a 12″ Dia. 20 Blade Cutter and 35 Degree Spiral Angle the Face Width Should Not Exceed 1 3/8″ on Gears to Prevent Two Blades in The Cut. However Any Reasonable Face Width Can Be Accommodated.

Work Spindle
Diameter of Taper Hole at Large End: 3 29/32″
Taper per Foot: 39/64″
Depth of Taper: 6″
Diameter of Hole Through Spindle: 3 1/16″
Diameter of Spindle Nose: 5 1/2″

Cutter Diameters: 6″-7.5″- 9″- 12″

Work Head Settings
Max. Offset Above Center: 4 1/2″
Max. Offset Below Center: 4 1/2″
Max. Distance from Machine Center to Nose of Spindle: 13 1/2″
Cutter Speeds: 20-115 Rpm
Feed (sec./ Tooth): 9 to 80 Seconds

Feed Motor: 5 Hp/1800 Rpm
Hydraulic Motor: 3/4 Hp/ 1800 Rpm
Coolant Motor: 1/2 Hp/ 3600 Rpm

Dimensions: 75″x 114″x 77″
Weight: 23,400 Lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
