Reishauer RZ 303 C CNC Gear Grinding Line, 2008 – Complete Automated Gear Grinding System

Complete high-precision CNC gear grinding line for series production and finish grinding of hardened external gears for the automotive and transmission industries.

MAIN EQUIPMENT

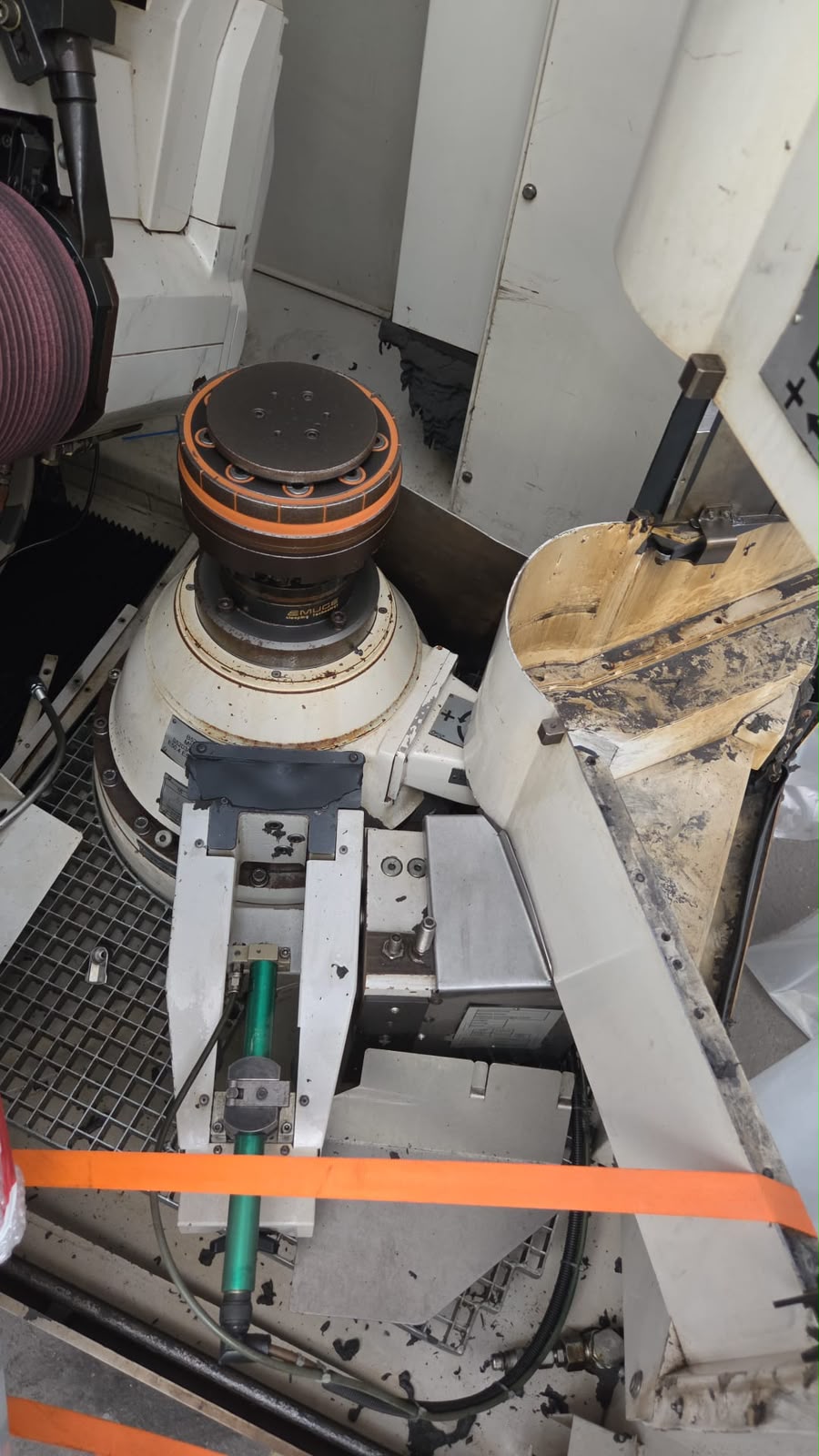

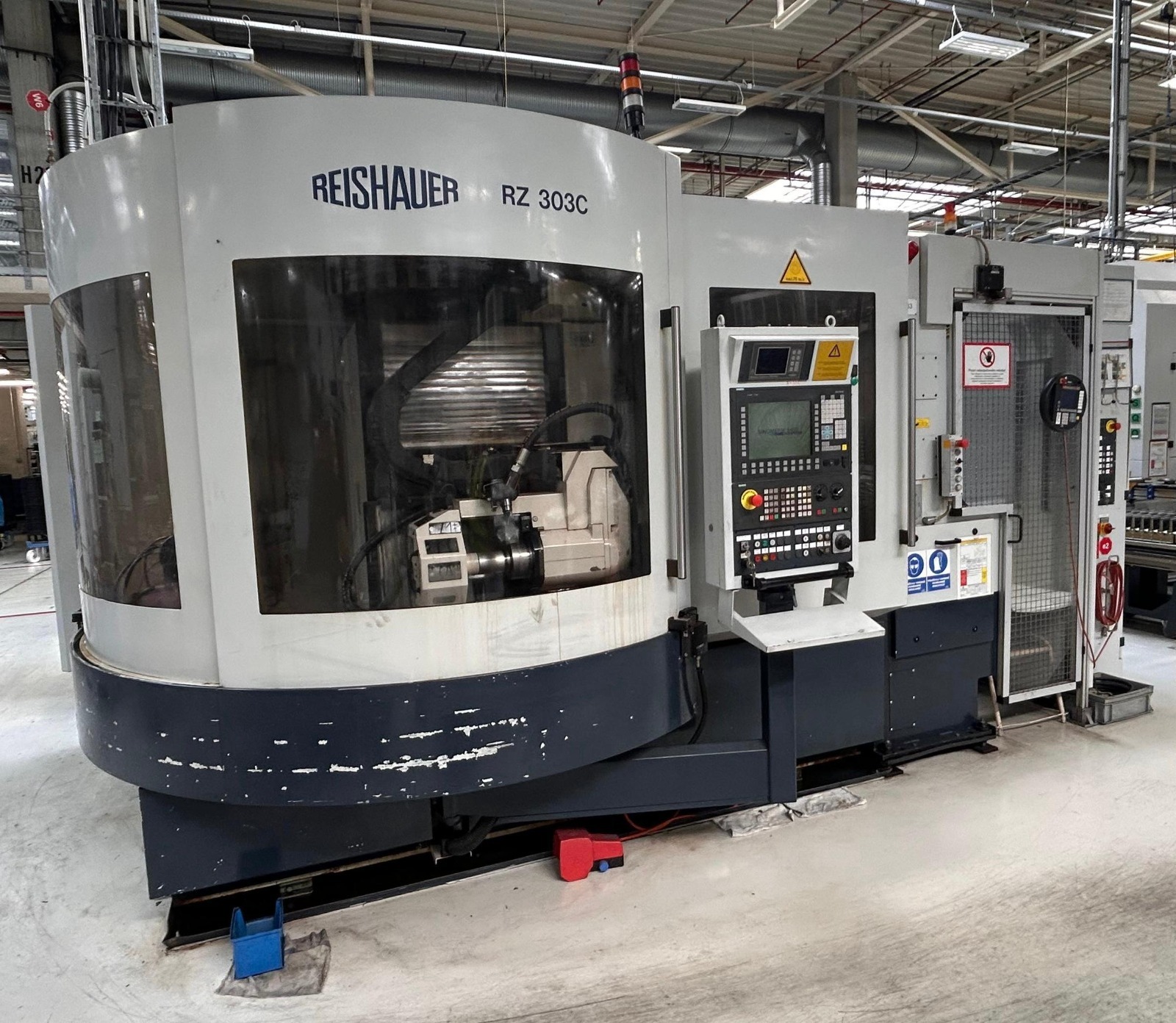

1. Reishauer RZ 303 C CNC gear grinding machine
2. Felsomat automatic loading and unloading system

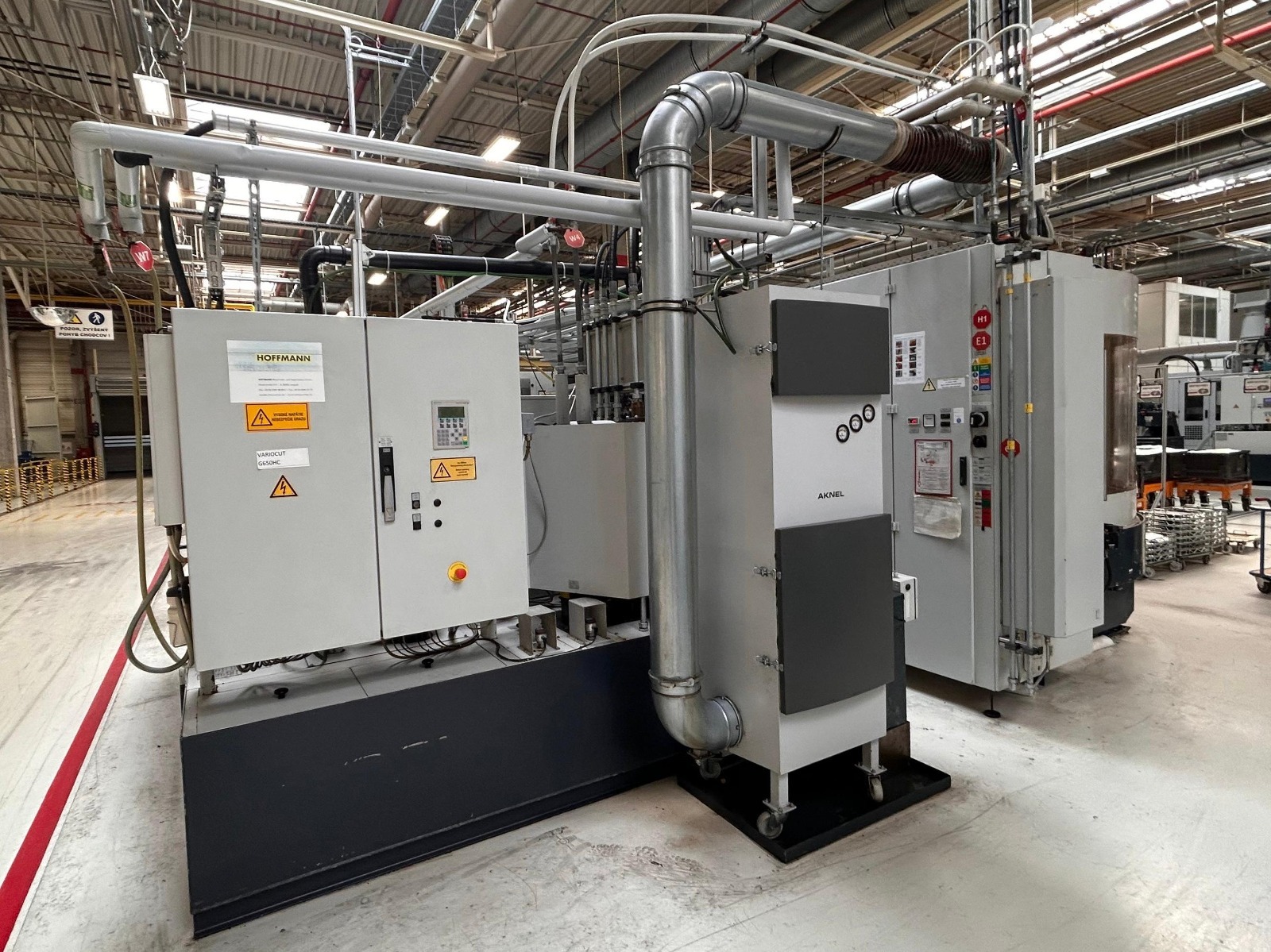

3. Hoffmann filtration and cooling system

TECHNICAL DATA
Maximum workpiece diameter: 300 mm
Module range: approx. 0.5–5.5/6 mm
Helix angle: −48° to +48°
Maximum tooth width: 200 mm
Maximum grinding spindle speed: 4770 rpm
Maximum cutting speed: 75 m/s

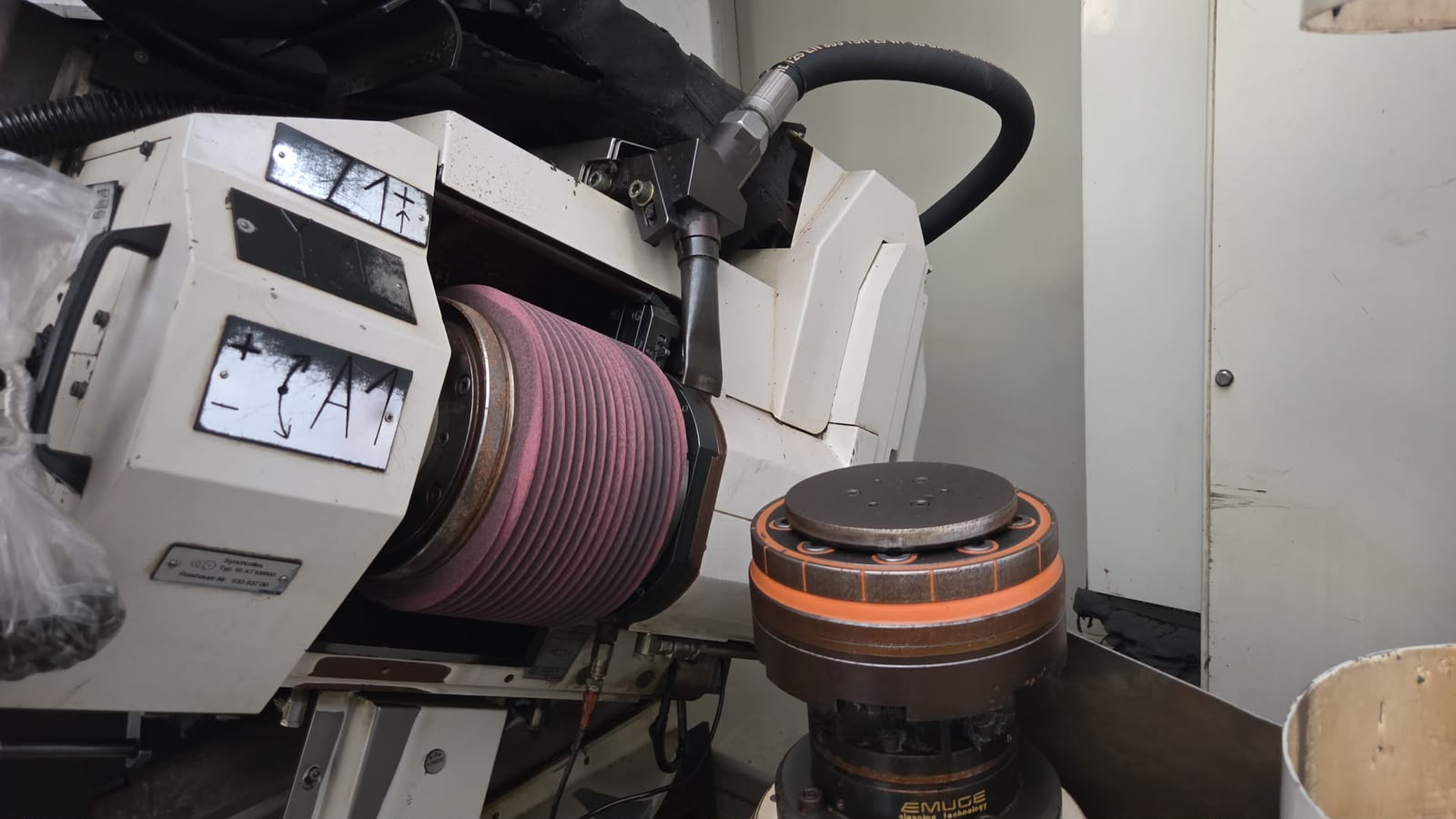

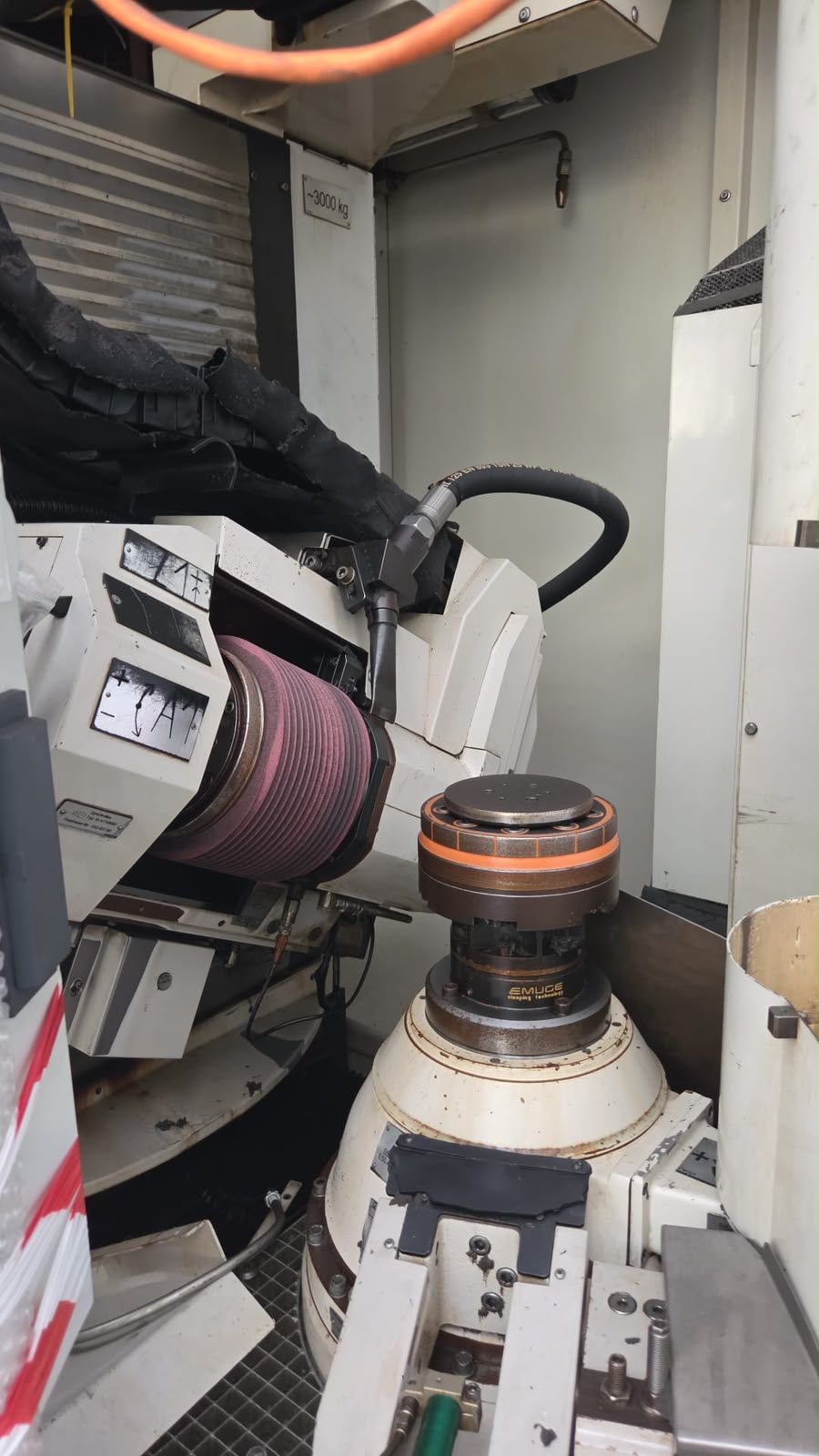

Grinding worm diameter: up to 300 mm
Grinding worm width: approx. 125 mm

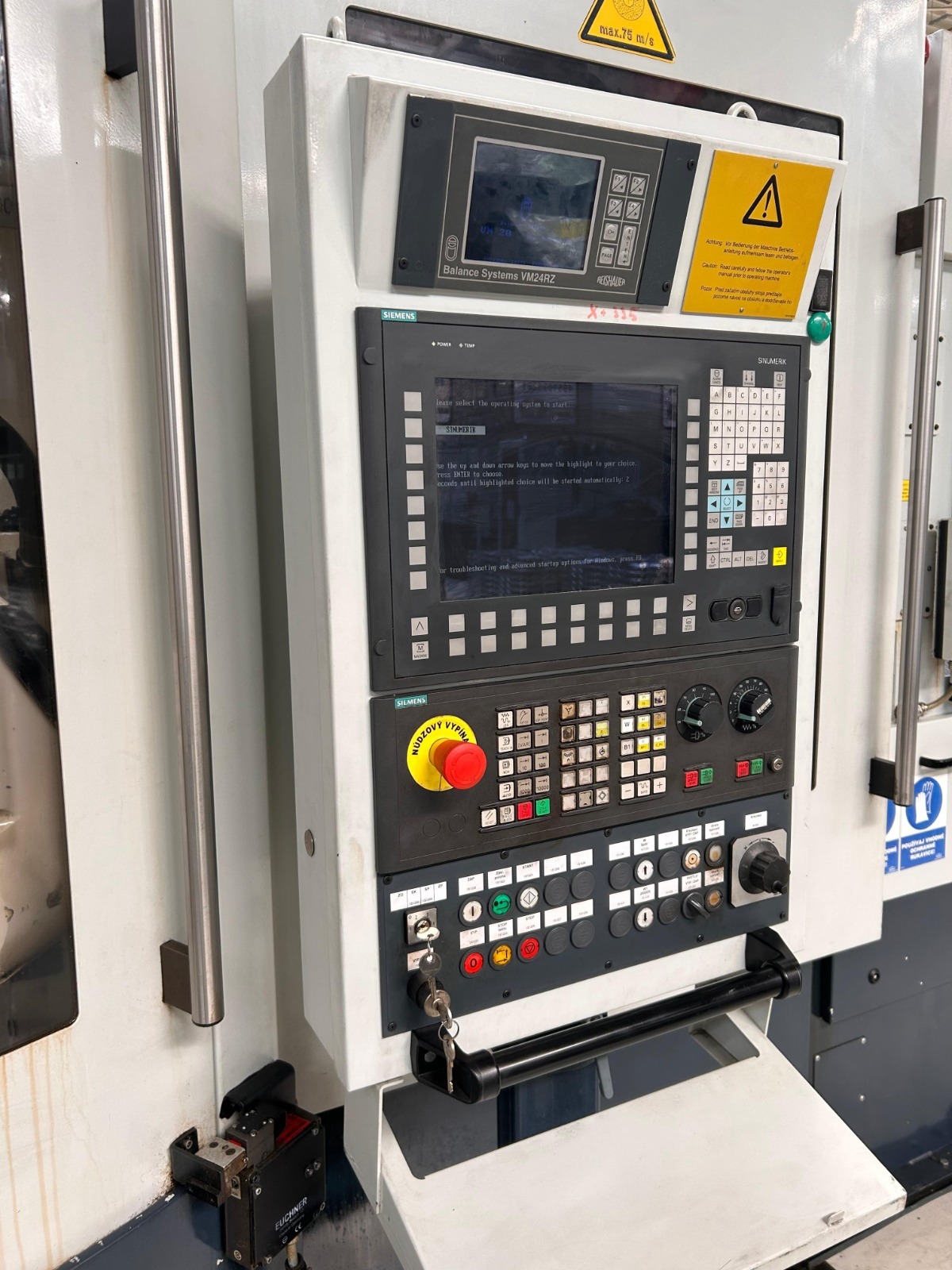

CNC control: Siemens Sinumerik
