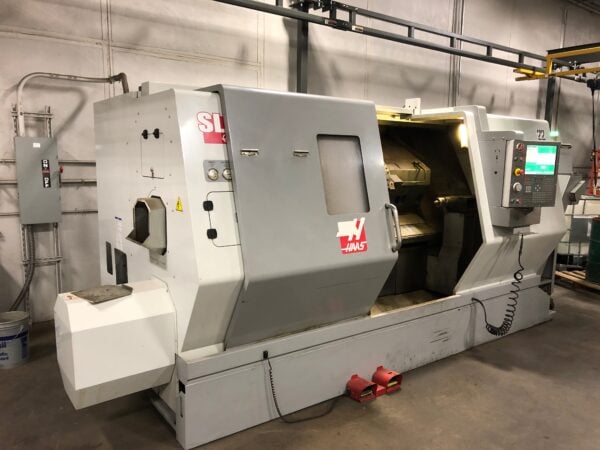

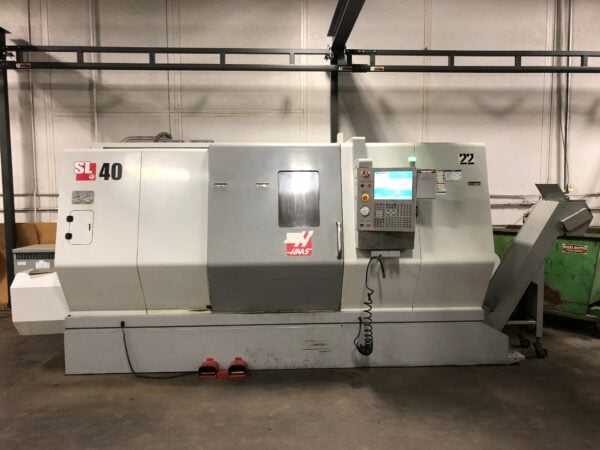

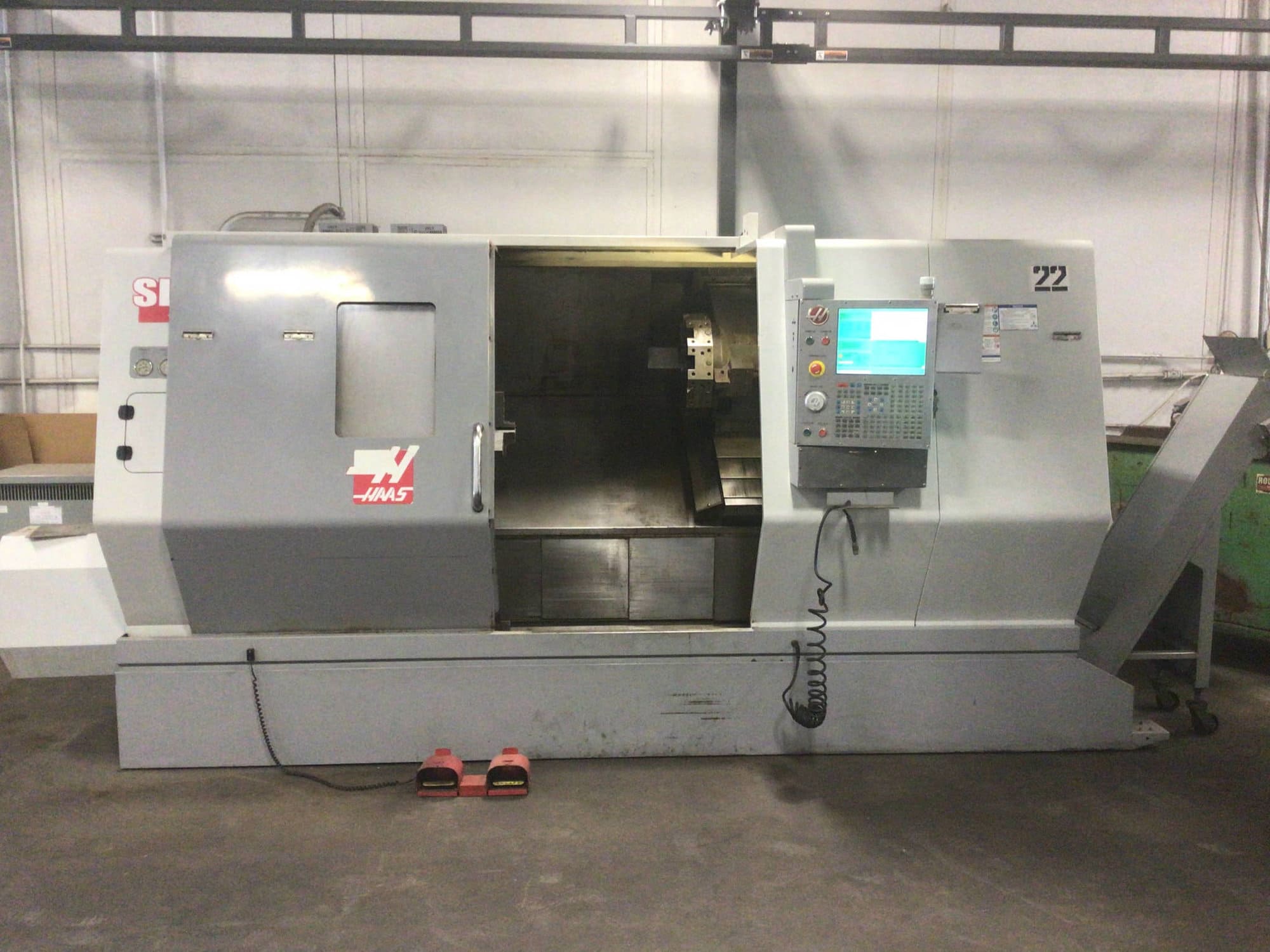

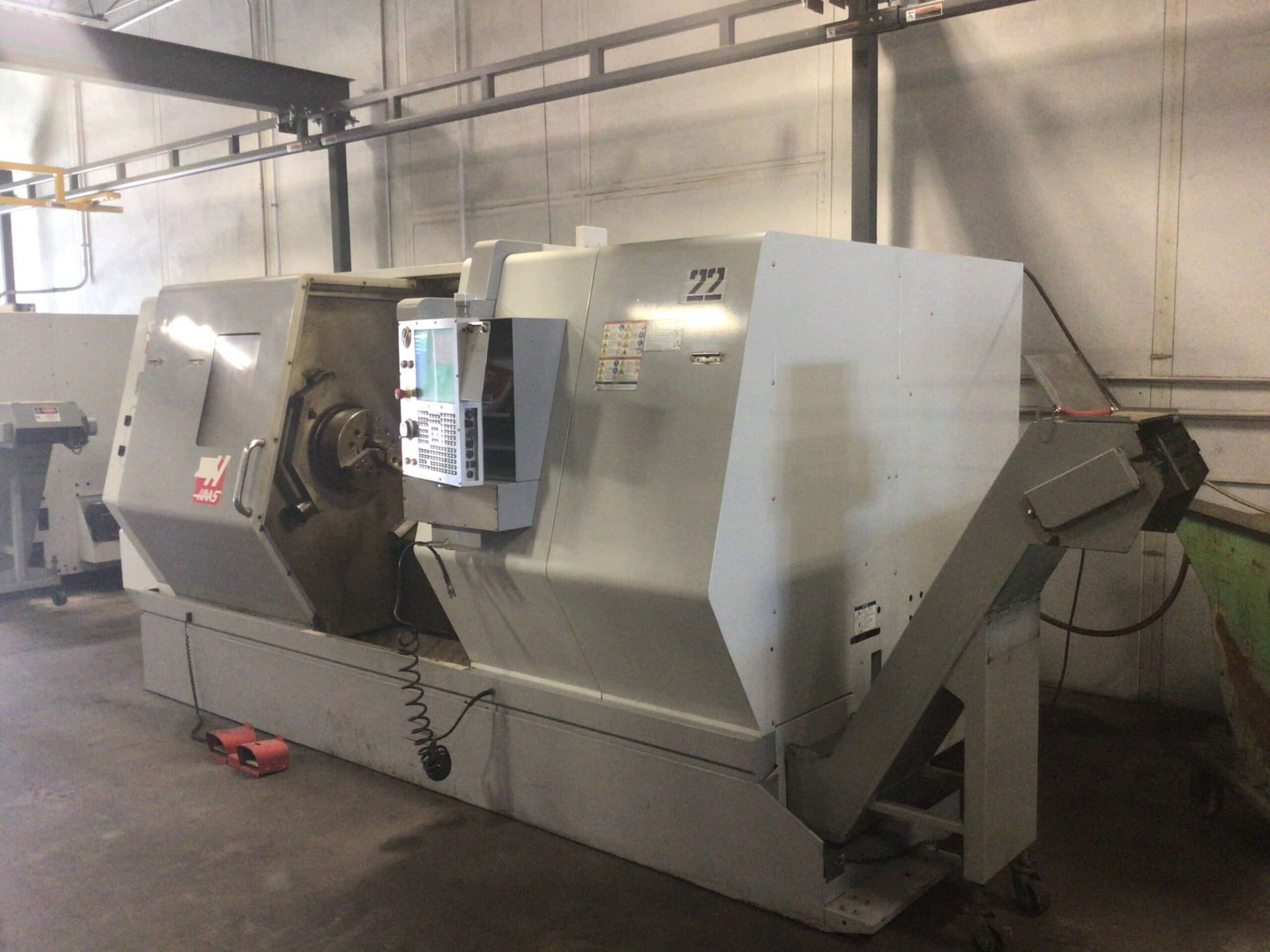

Haas SL-40 CNC Lathe, 2012 – Tailstock, Video, Available Immediately
$67,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

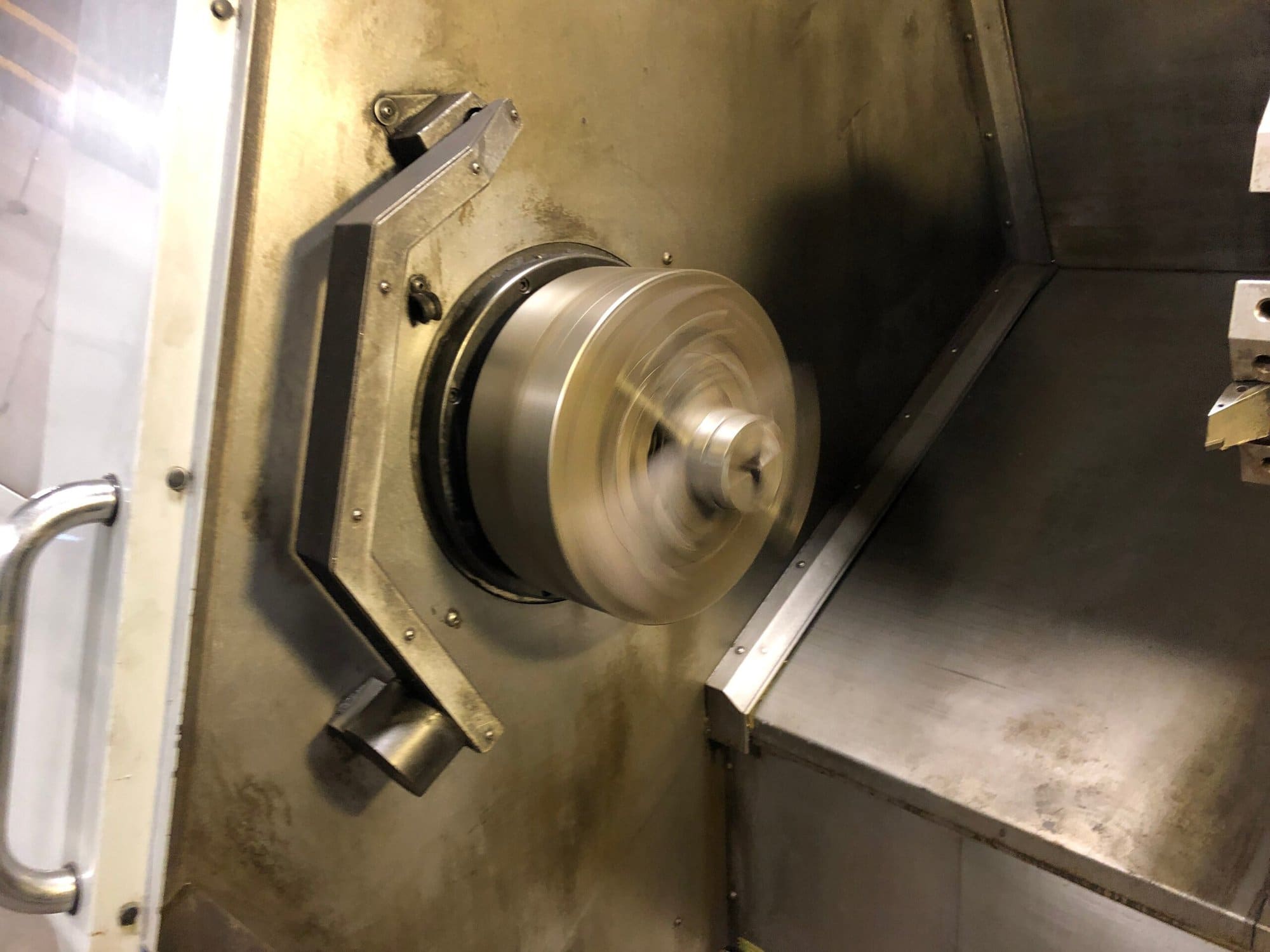

Chuck size: 15″
Maximum swing: 40″
Maximum swing over cross slide: 25″
Maximum cutting diameter: 25.5″
Maximum cutting length: 44″
Maximum distance between centers: 51″
Maximum bar capacity: 4″
X-axis travel: 17″
Z-axis travel: 44″
Spindle nose / bore / bar capacity: A2-8 / 4.62″ / 4″
Spindle speeds: 2,400 RPM
Spindle motor: 55 HP
Number of turret positions: 10 Station Turret
Rapid traverse rates: 710 IPM
Tailstock body travel / tailstock taper: 44″ / MT #5
Machine dimensions: 170″ x 102″ x 89″
Machine weight: 25,000 lbs.
Equipped with:

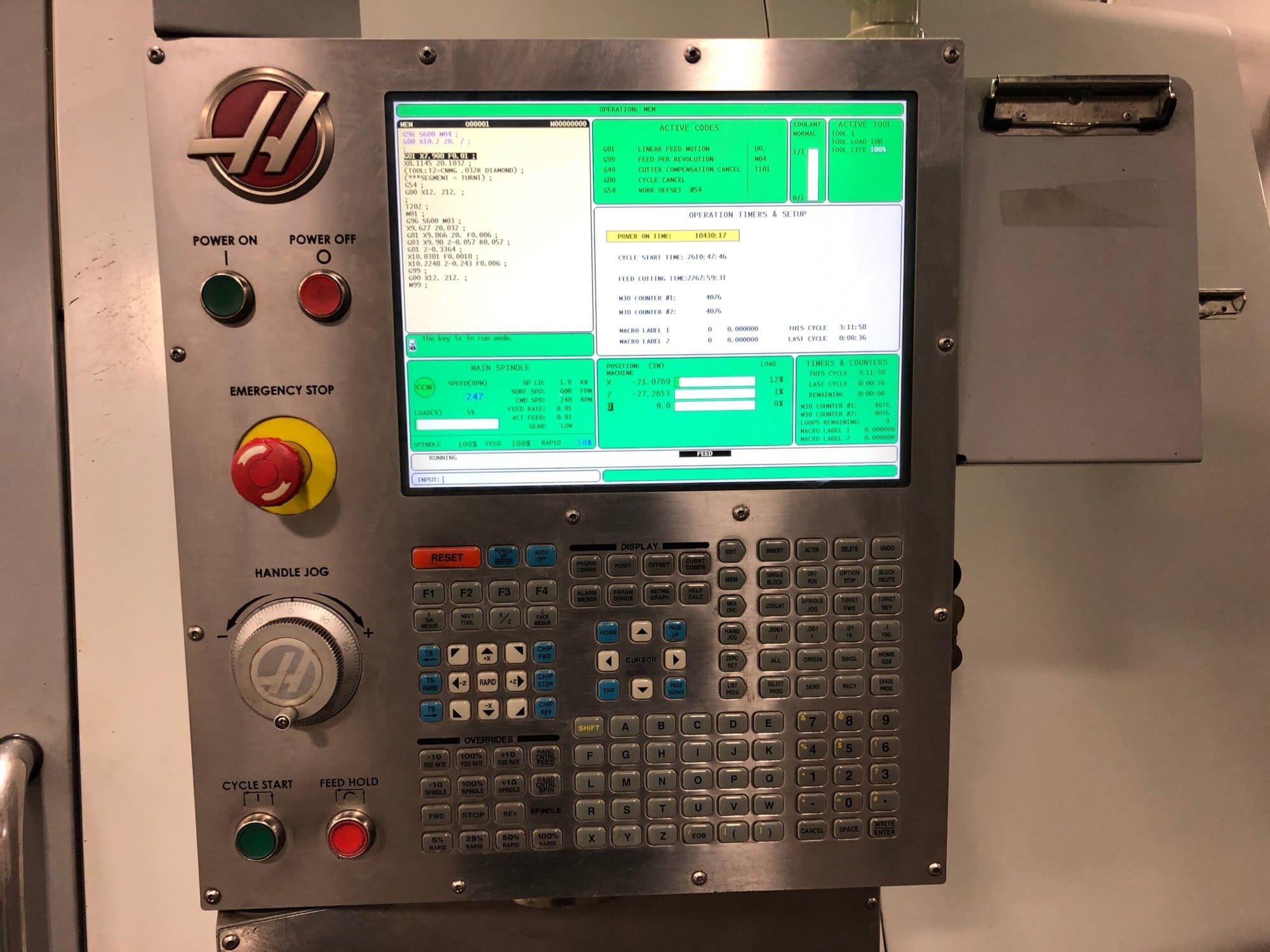

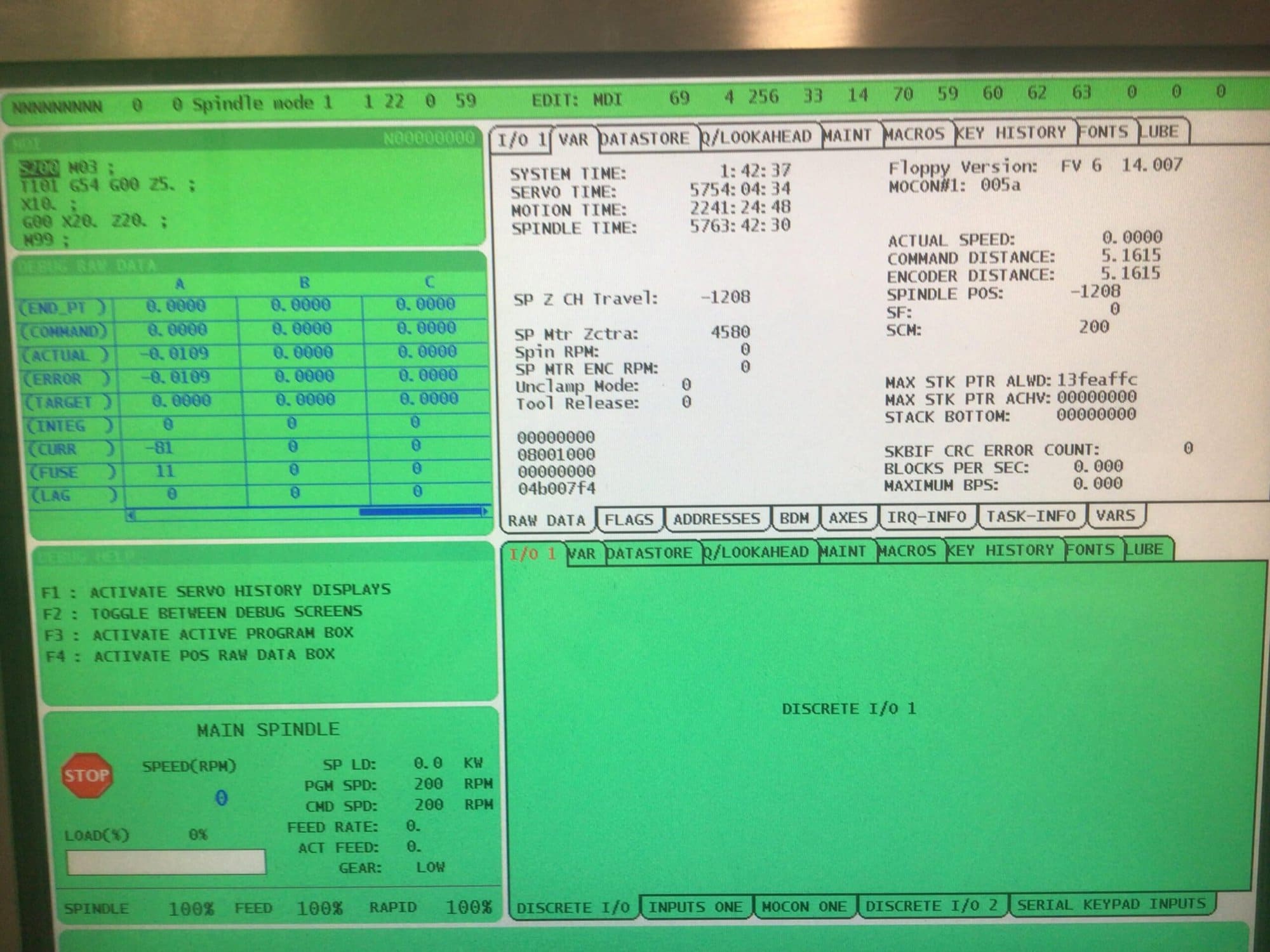

Haas CNC Control
Chip Conveyor

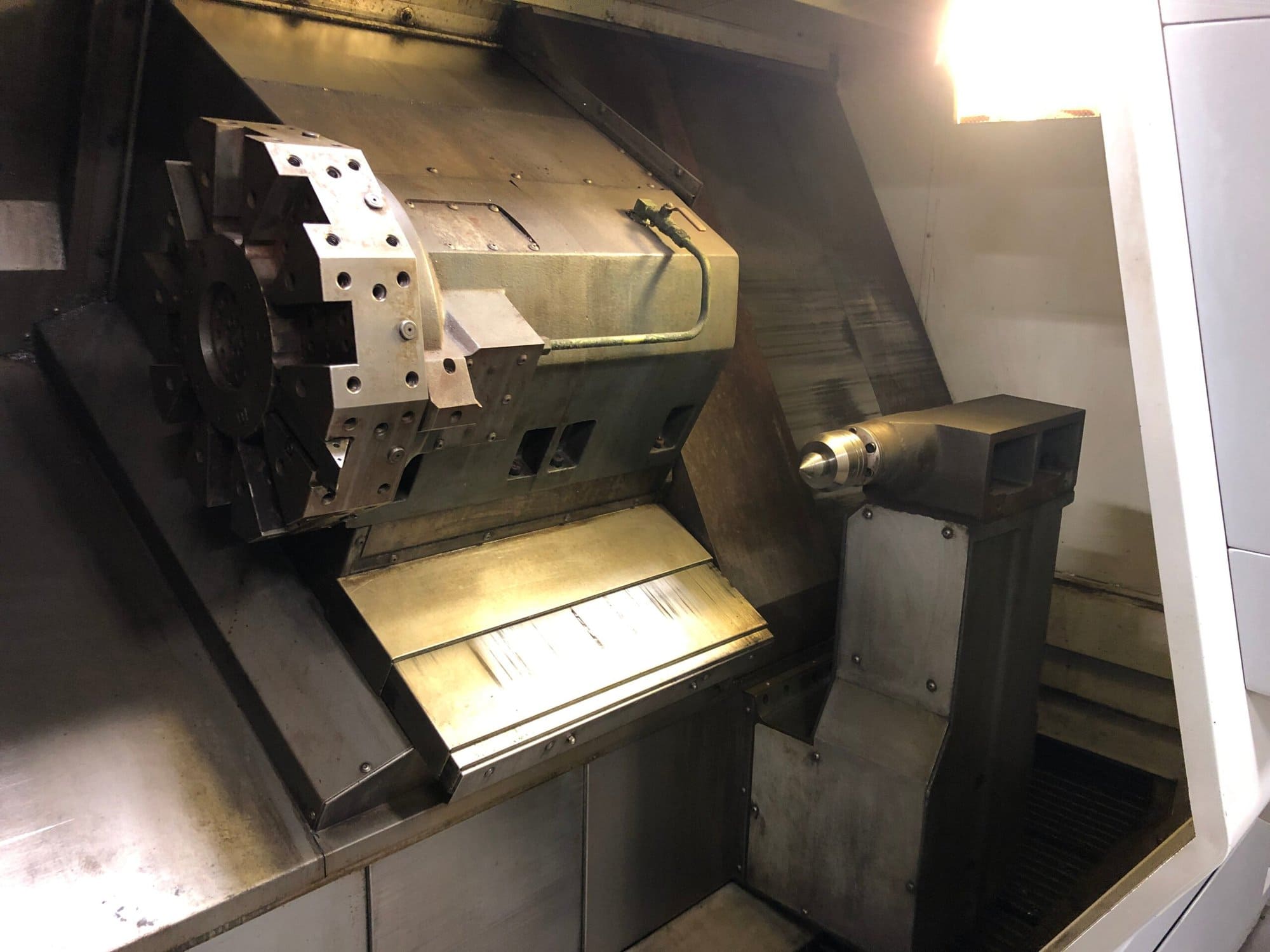

BOT Turret
Programmable Tail-stock
Rigid Tap
X-Performance Option
