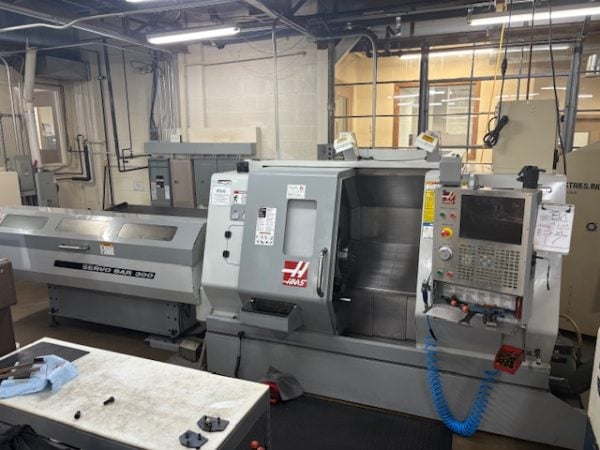

Haas SL20TB CNC Lathe, 2006 – Tailstock, Bar Feeder
$24,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Swing Over Front Apron: 31.75″
Swing Over Cross Slide: 20″
Max Turning Diameter: 10.30″
Max Turning Length: 20″
X-Axis Travels: 9″
Z-Axis Travels: 20″
Spindle Type: Big-Bore
Spindle Nose: A2-6
Max Bar Capacity: 2.5″
Spindle Speed: 3,400 RPM
Spindle Motor: 20 HP
Turret Type: Servo-Driven
Stations: 12-Station Bolt-On Turret
Tailstock Quill Diameter: 3.15″
Tailstock Quill Travel: 4″
Max Cutting Feed: 500 IPM
Electrical: 208/230V, 3-Phase
Approximate Machine Weight: 7,500lbs
Approximate Machine Dimensions: 112″ x 64″ x 73″
