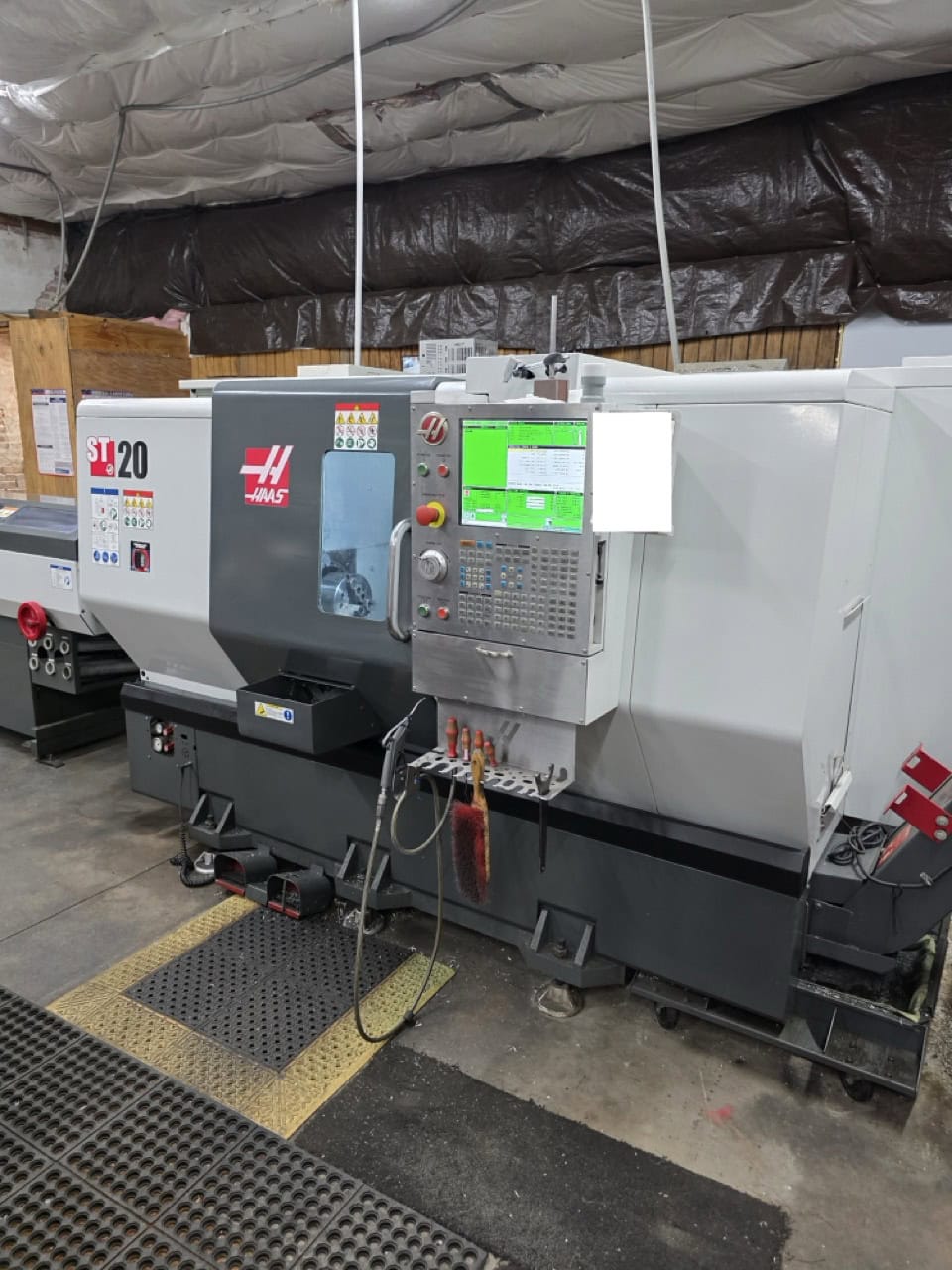

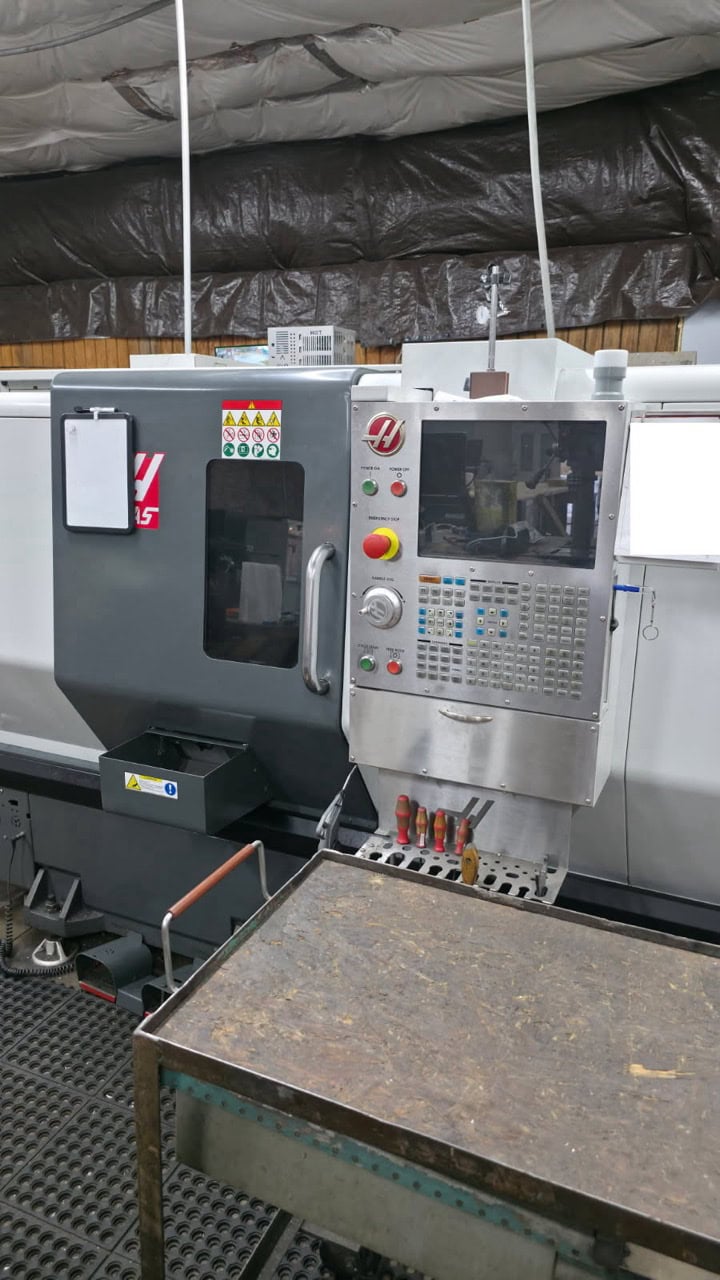

Haas ST-20 CNC Lathe, 2017 – Bar Feeder, Tailstock

Chuck Size: 8.3″
Max Part Swing: 21″
Bar Capacity: 2.5″
X-Axis Travels: 8.4″
Z-Axis Travels: 22.5″

Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
Spindle Nose: A2-6
Max Cutting Diameter: 13″
Max Cutting Length: 22.5″
Feedrate Rapids: 945 in/minute
Coolant Capacity: 55 Gallons
Electrical: 220V, 3-Phase

Approximate Dimensions: 130″ x 64″ x 77″
Approximate Machine Weight: 8,820lbs

Equipped With

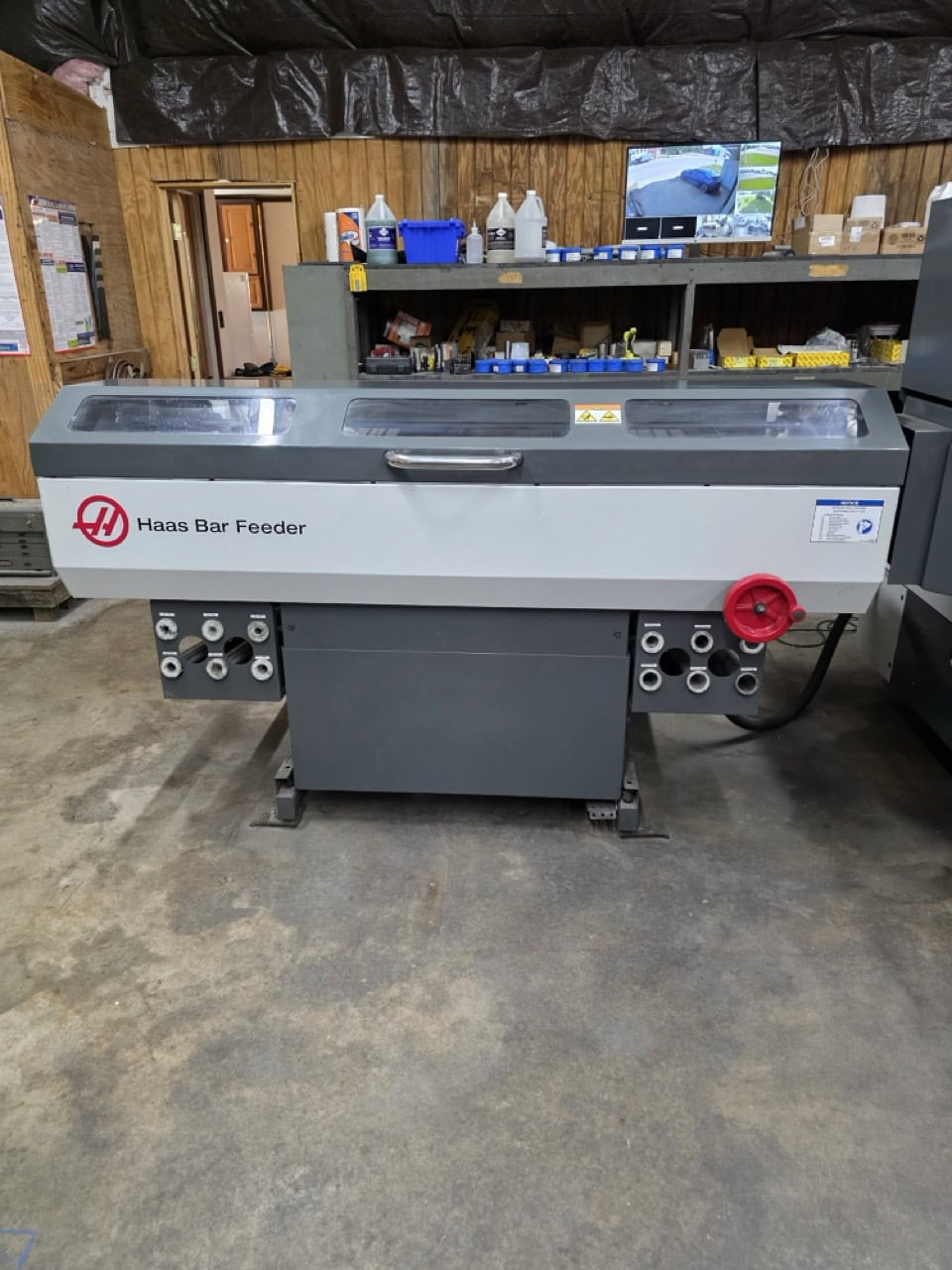

Haas Bar Feeder

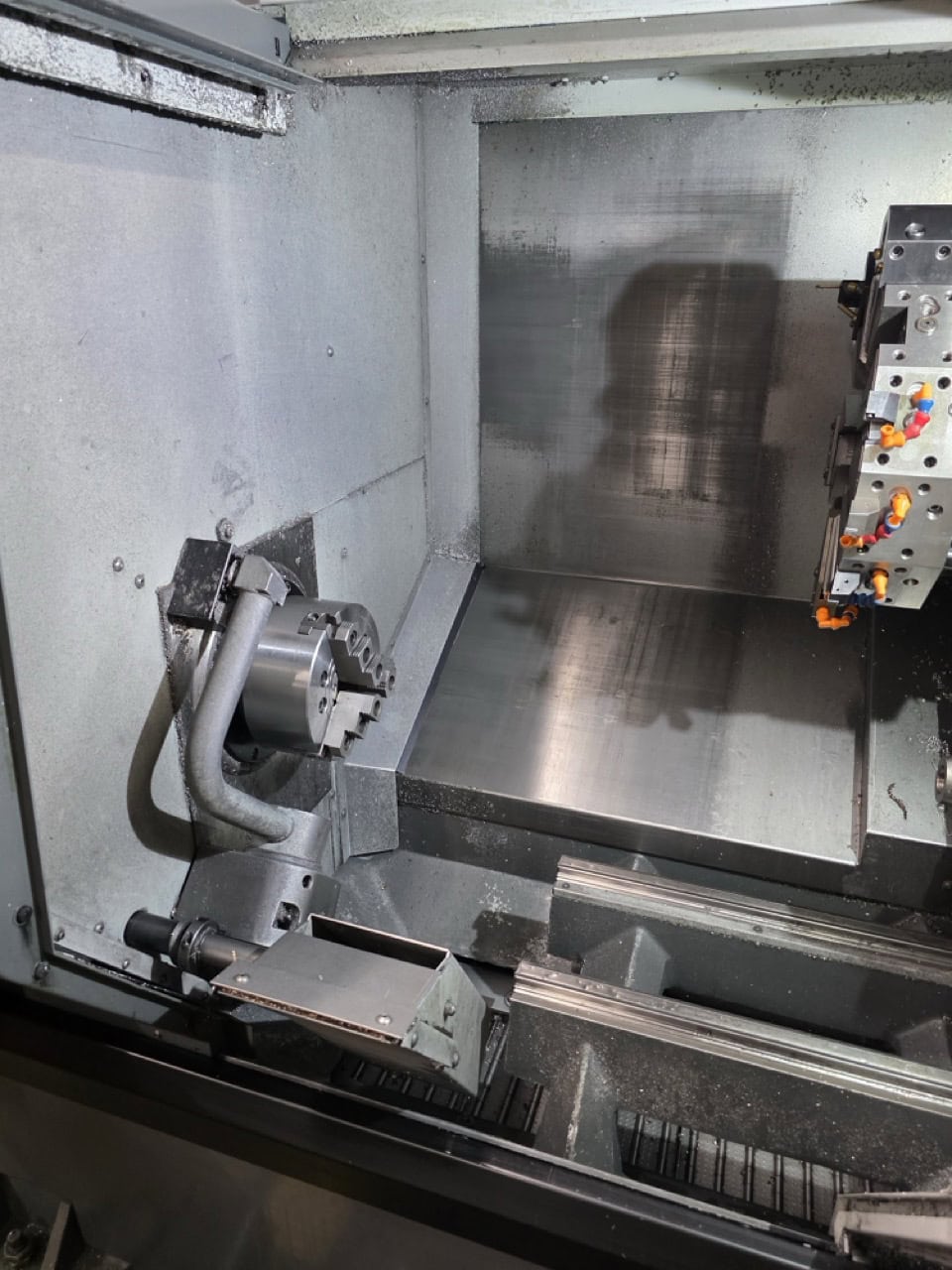

3 Jaw Chuck
Royal Collet Chuck

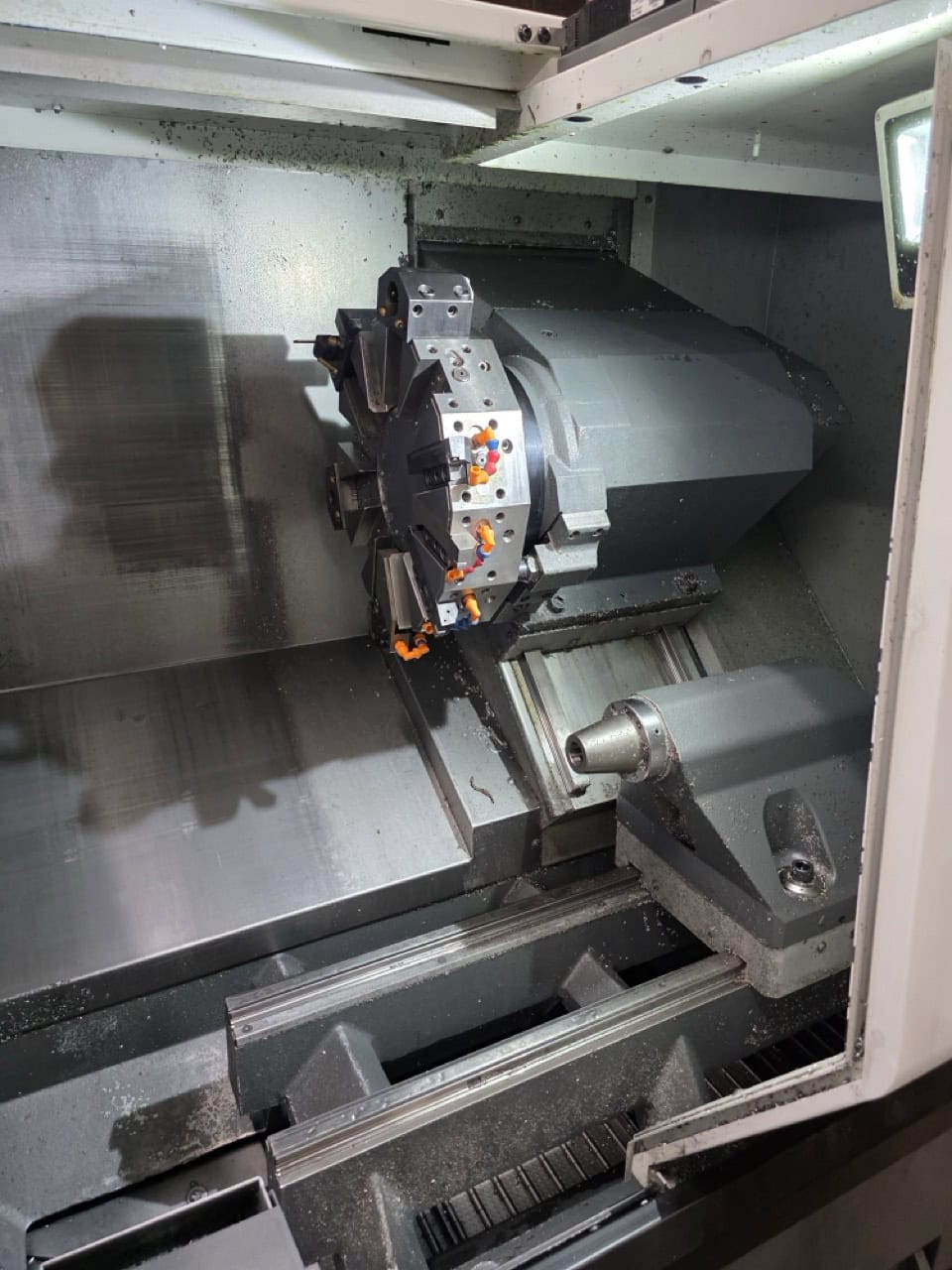

Tailstock
