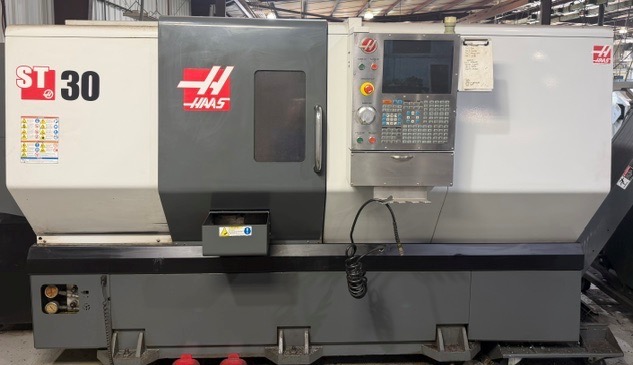

Haas ST-30 CNC Lathe, 2012 – Tailstock, Conveyor

$24,900.00

Haas ST-30 CNC Lathe, 2012 - Tailstock, Conveyor
Haas ST-30 CNC Lathe, 2012 - Tailstock, Conveyor - Image 2
Haas ST-30 CNC Lathe, 2012 - Tailstock, Conveyor - Image 3
Haas ST-30 CNC Lathe, 2012 - Tailstock, Conveyor - Image 4
Haas ST-30 CNC Lathe, 2012 - Tailstock, Conveyor - Image 5
Haas ST-30 CNC Lathe, 2012 - Tailstock, Conveyor - Image 6

Request a Quote to Instantly See Pricing

Call Now

Machine Type: CNC Lathes
Make: Haas
Model: ST-30
Year: 2012
Machine Location: Indiana
Stock #: 716690

Chuck Size: 10″
Bar Capacity: 3.0″
Swing Over Bed: 31.7″
Swing Over Cross Slide: 20.8″
Maximum Turning Diameter: 26″
Maximum Cutting Length / Distance Between Centers: 30″
Spindle Bore: 3.5″
Spindle Nose: A2‑6
Spindle Speed: 0–3400 RPM
Main Motor Power: 30 HP vector drive

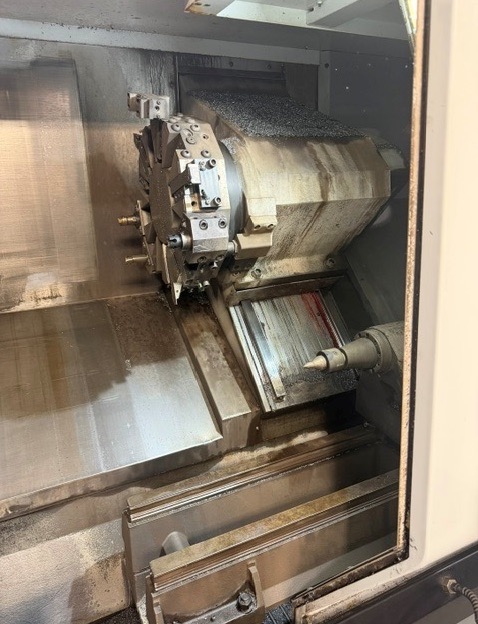

Turret: 12‑station
X‑Axis Travel: 12.5″
Z‑Axis Travel: 30″

Equipped With:

Haas CNC Control
Tailstock
Chip Conveyor
*Tool Presetter (Eye needs to be calibrated)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
