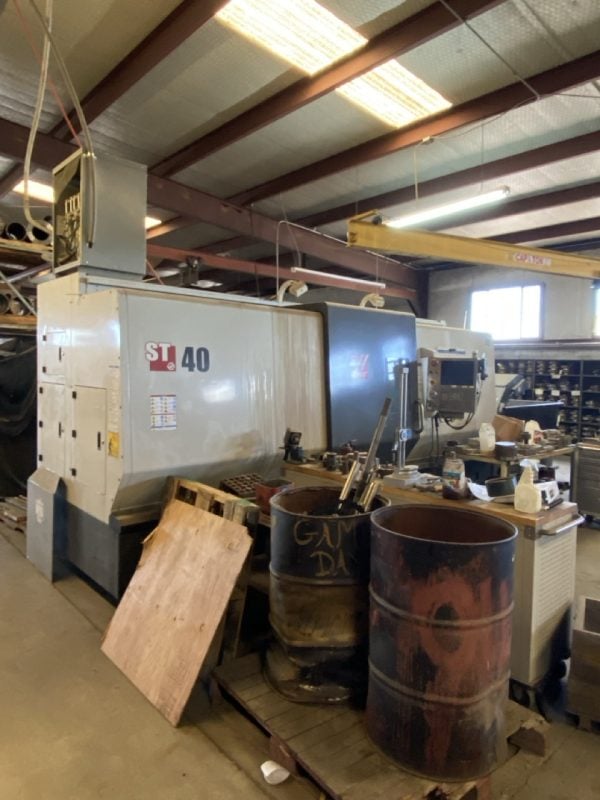

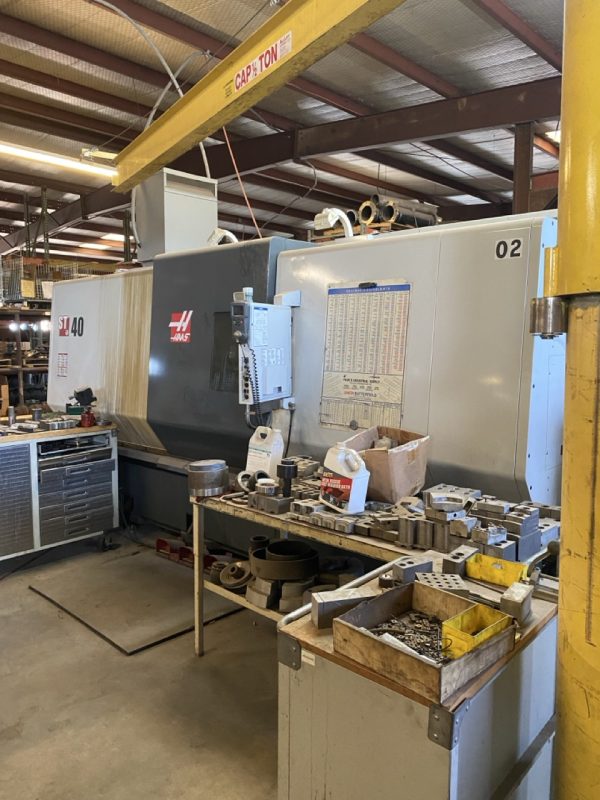

Haas ST-40 CNC Lathe, 2013 – HT Live Tooling w/ C-Axis, Programmable Tailstock, Auto Tool Presetter, Upgraded Spindle, High-Pressure Coolant

Max Turning Diameter: 25.5″
Max Turning Length: 44″
Swing Over Front Apron: 34″
Swing Over Cross Slide: 25.5″
Bar Capacity: 4.0″
Chuck Size: 15″
Spindle Motor: 55 HP
Spindle Bore: 4.62″
Max Spindle Speed: 2,400 RPM
Spindle Nose: A2-8
Turret Type: Hybrid BOT/VDI
Tool Positions: 12 stations
Live Tool Motor Power: 12 HP
C-Axis: Yes (0.001° indexing)
X-Axis Travel: 14.5″
Z-Axis Travel: 44″
Z-Axis Servo Motor: 12 HP
Approx. Dimensions: 170″ × 90″ × 90″
Approx. Weight: 19,000 lbs

Equipped With:
HT Live Tooling with C-Axis
Hybrid BOT/VDI Turret; 12 St
Automatic Tool Presetter
Belt-Type Chip Conveyor
High Intensity Lighting
Prog Servo Tailstock, MT5
Steady Rest Provision
