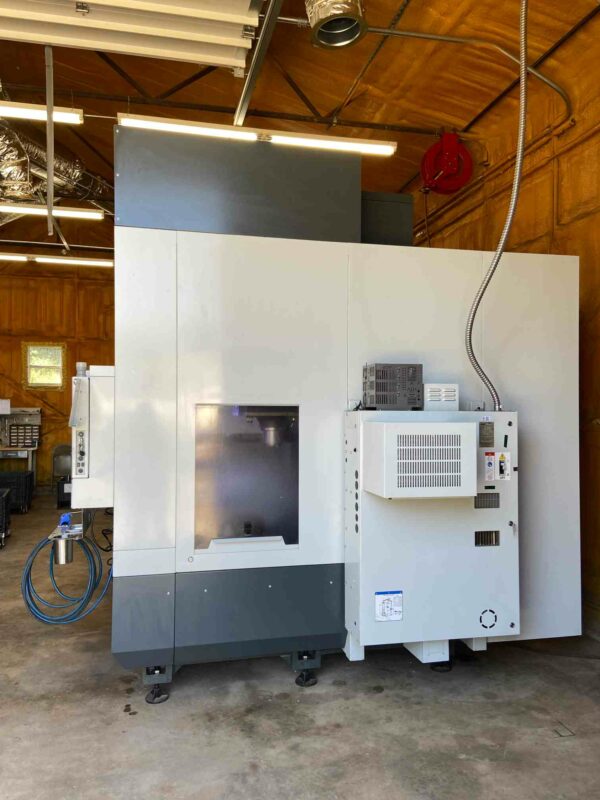

Haas UMC-750 Universal Machining Center, 2020 – Rigid Tap, WIPS, 10k RPM Spindle, Chip Conveyor
$149,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
X Axis: 30″
Y Axis: 20″
Z Axis: 20″
Max Spindle Speed: 10,000 rpm
Spindle Taper: CT40
B Axis – Tilt
Travel: 120 ยฐ to 35- ยฐ
Max Speed: 50 ยฐ/sec
Max Torque: 2240 ftโ
lb
Brake Torque: 2000 ftโ
lb
C Axis – Rotation
Travel: 360 ยฐ
Max Speed: 50 ยฐ/sec
Max Torque: 1854 ftโ
lb
Brake Torque: 900 ftโ
lb
Max Part Swing: 27.0 ”
Platter Diameter: 19.70 ”
Max Weight on Platter: 660 lb
T-Slot Width 0.626 ” to 0.630 ”
Number of Std T-Slots: 7
T-Slot Center Distance: 2.48 ”
Feedrates
Max Cutting: 650 ipm
Rapids on X: 900 ipm
Rapids on Y: 900 ipm
Rapids on Z: 900 ipm
Tool Capacity: 30+1 ATC
Max Tool Diameter (full): 2.5″
Max Tool Diameter (adjacent empty): 5.0 ”
Max Tool Length (from gage line): 12″
Max Tool Weight: 12 lb
Tool-to-Tool (avg): 2.8 s
Chip-to-Chip (avg): 3.6 s
Eauipped With:
– 1 GB Memory
– 55-Gallon Coolant Tank

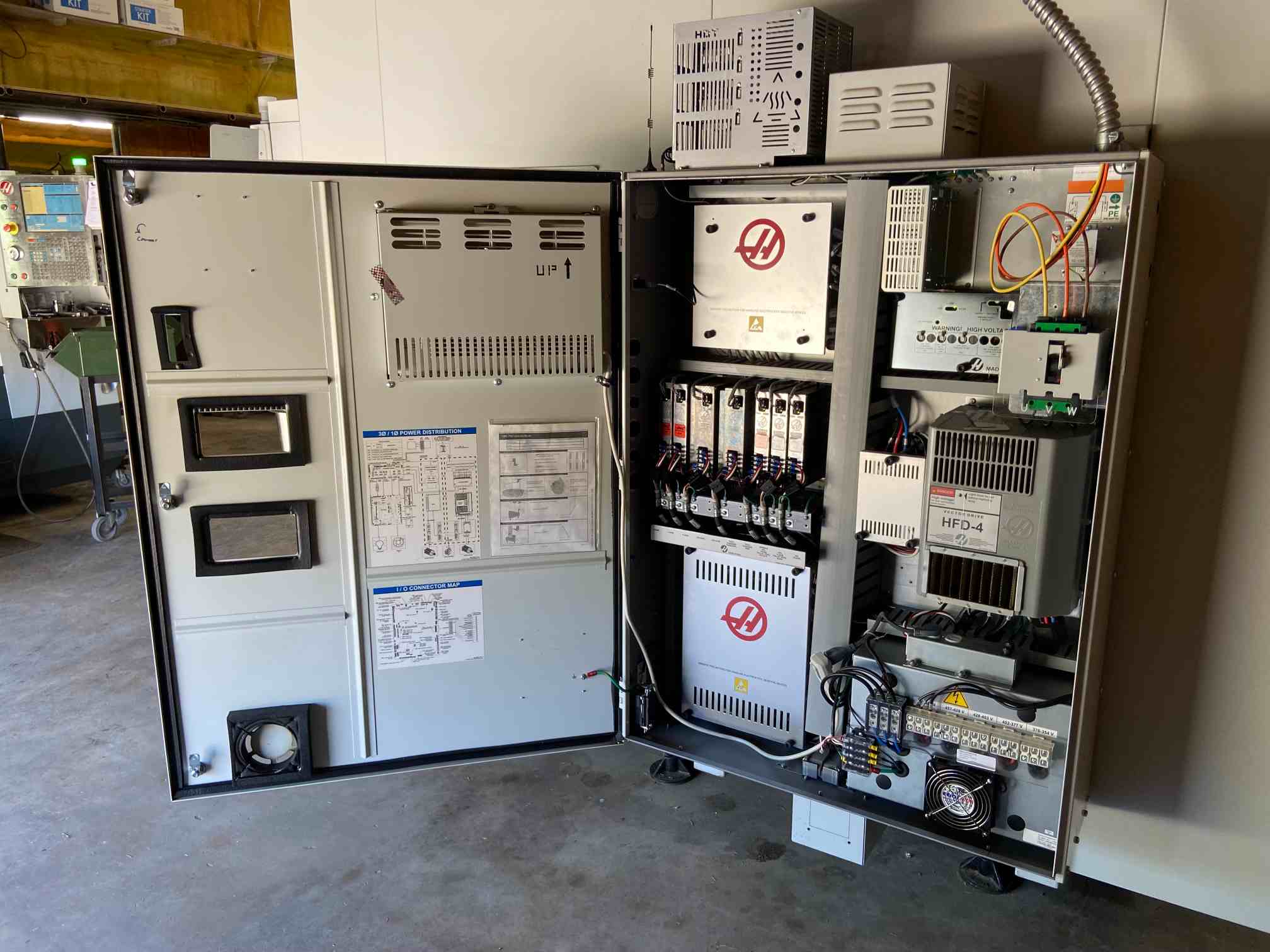

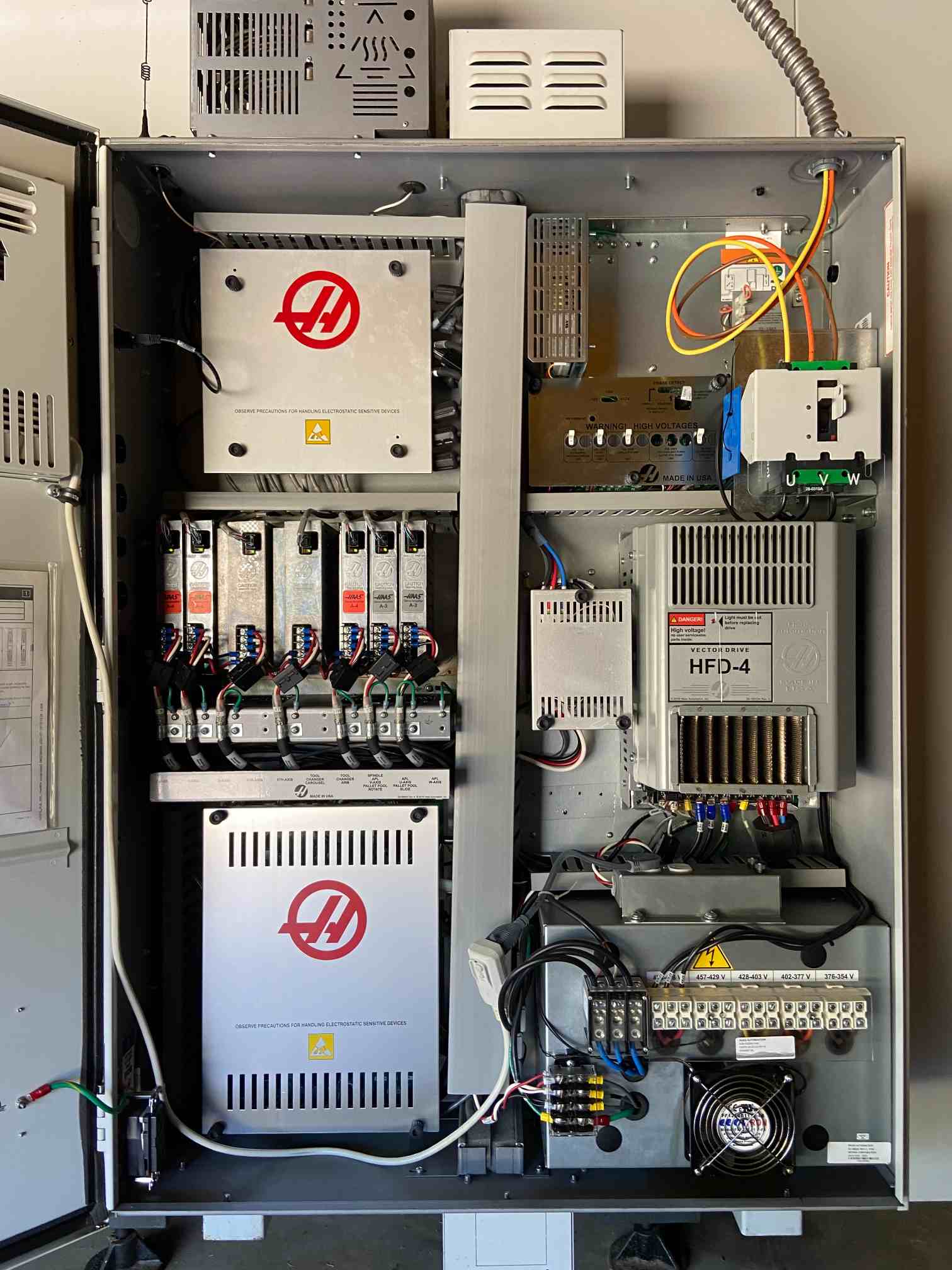

– CNC Control Cabinet Cooler
– Dynamic Work Offsets and Tool Center –
– Point Control
– Early Power-Failure Detection Module
– Ethernet Interface
– HaasConnect: Remote monitoring
– HaasDrop
– Second Home Position
– Media Display M-Code; M130
– Remote Jog Handle with Touchscreen Display
– Rotary Scales
– Rigid Tapping
– Safe Run
– 30+1 Side-Mount Tool Changer
– Top Cover for UMC Series
– WiFi Connection for the Haas Control

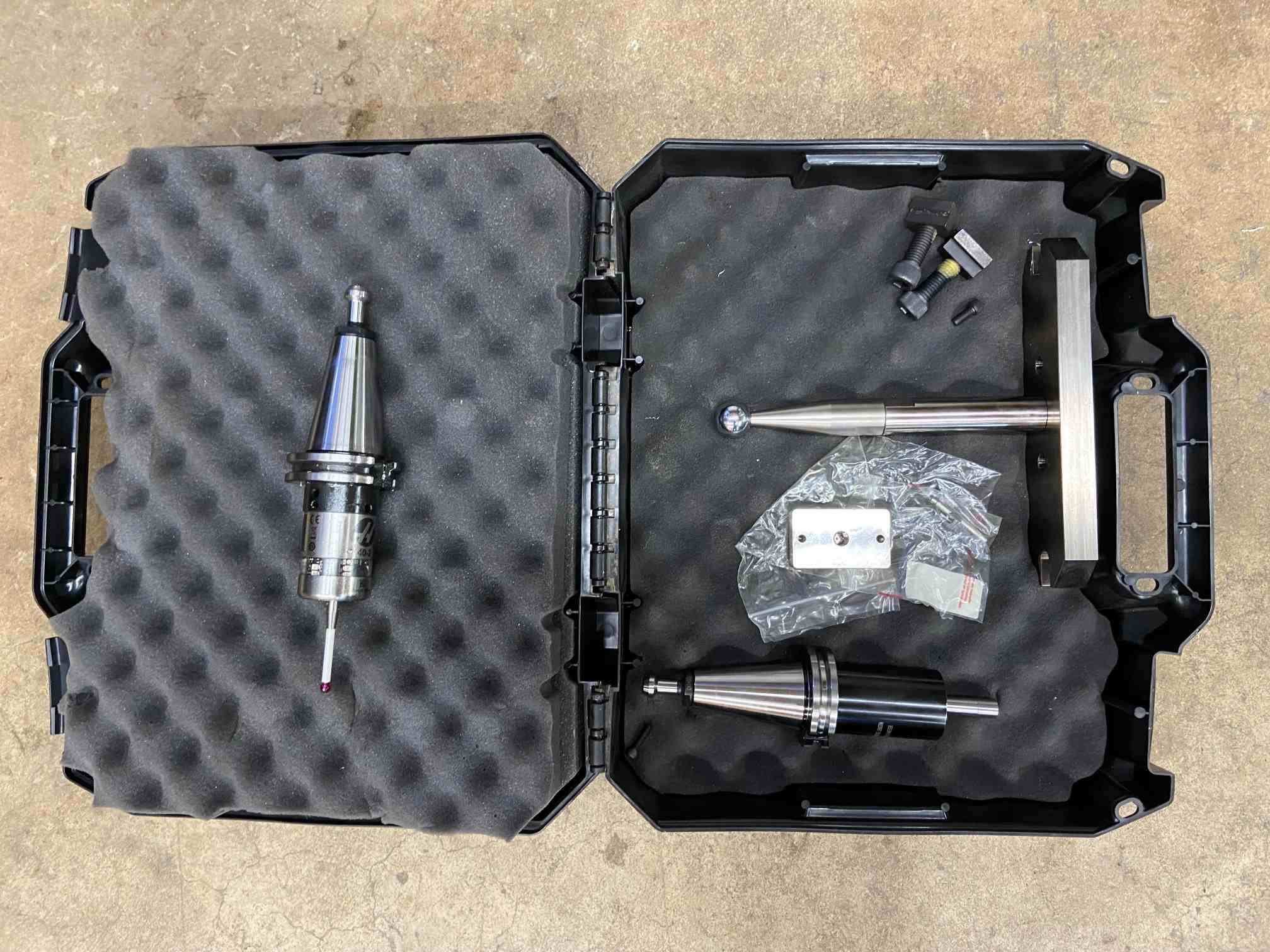

– Wireless Intuitive Probing System
– CT-Style Tool Changer Grippers

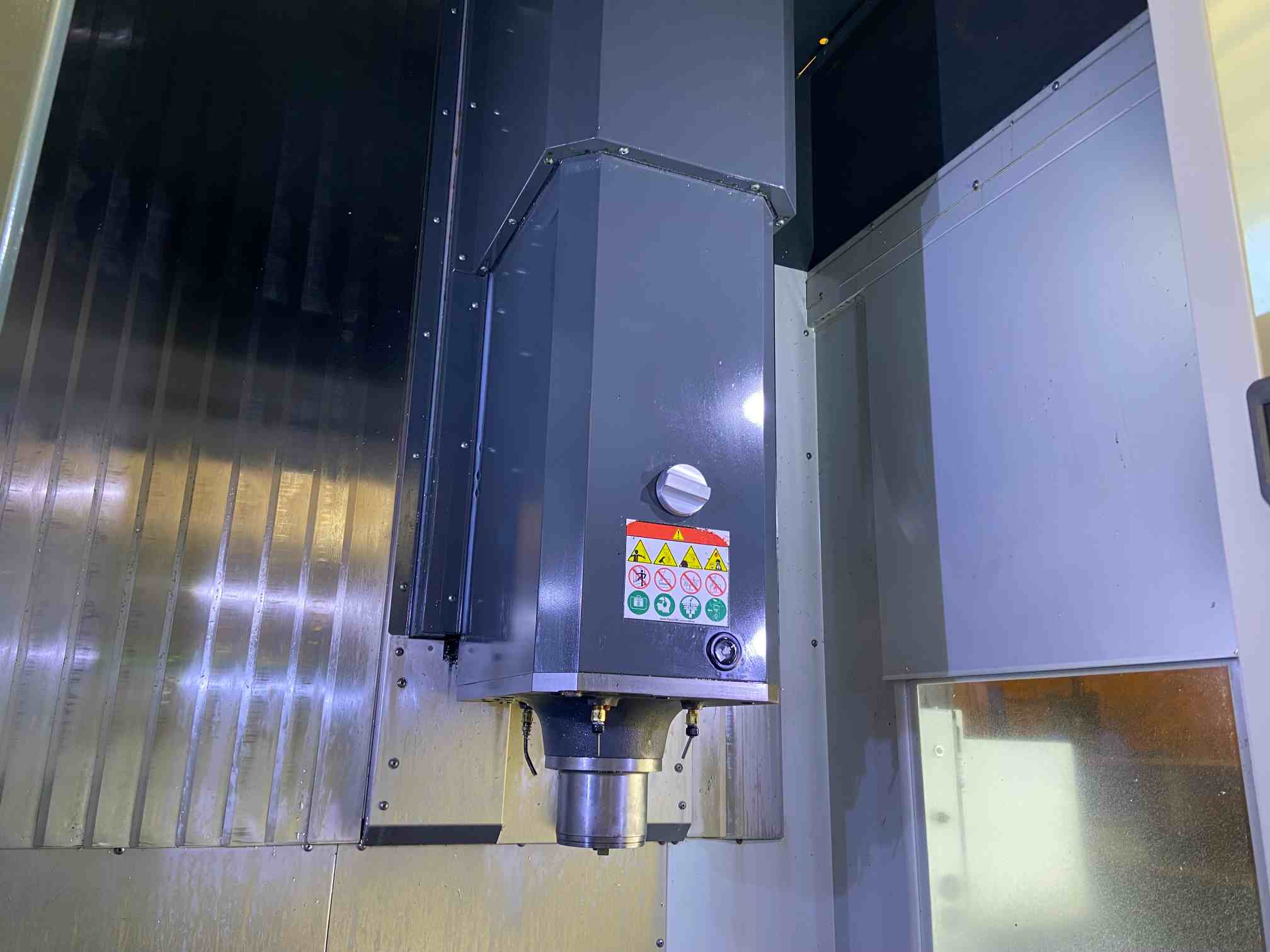

– 10,000-rpm Spindle
– Belt-Type Chip Conveyor UMC
– 32 GB Expanded Memory
– High-Voltage Internal Transformer
Includes:
– Assorted Tooling & Workholding
