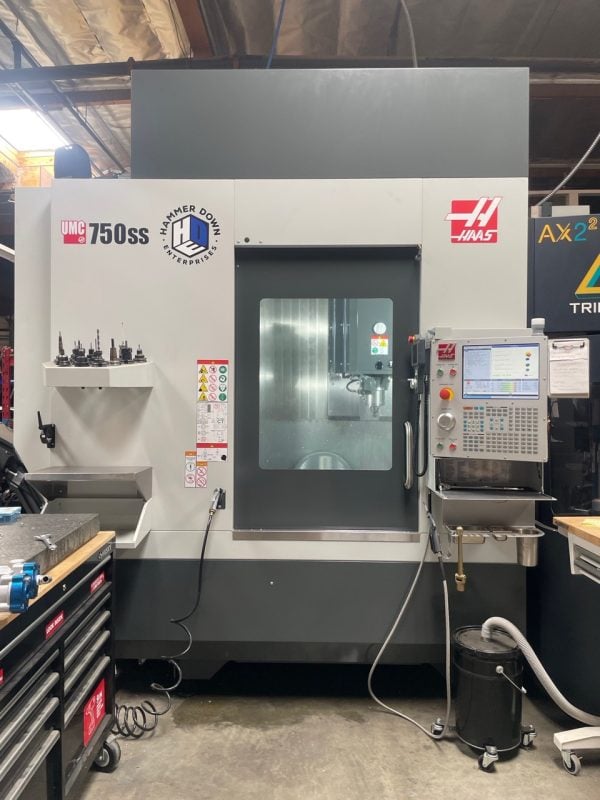

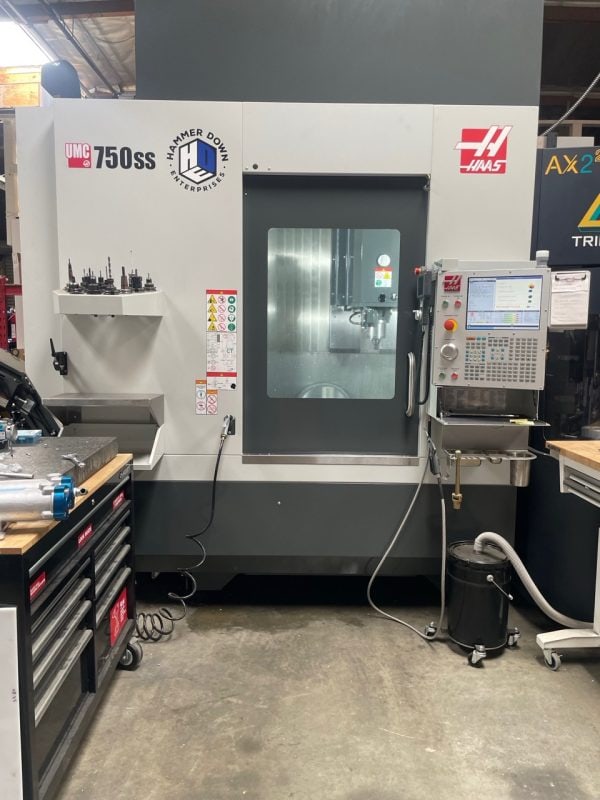

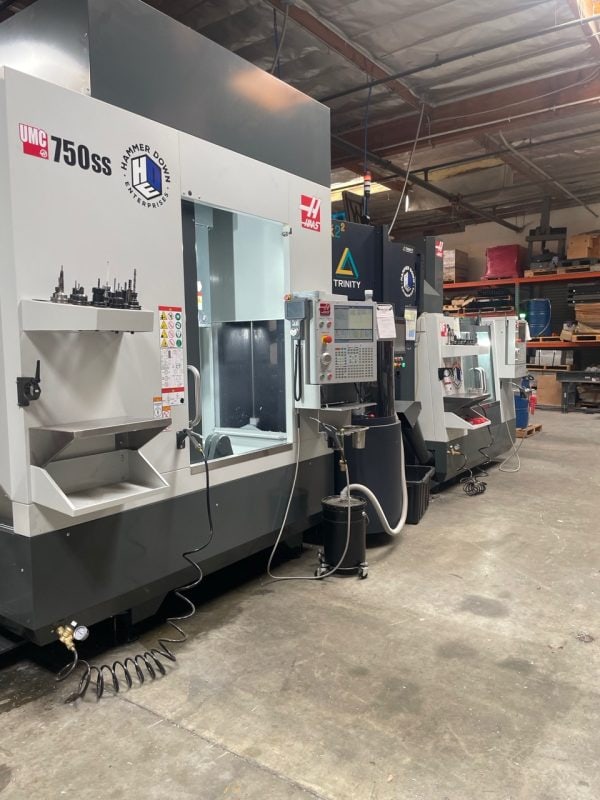

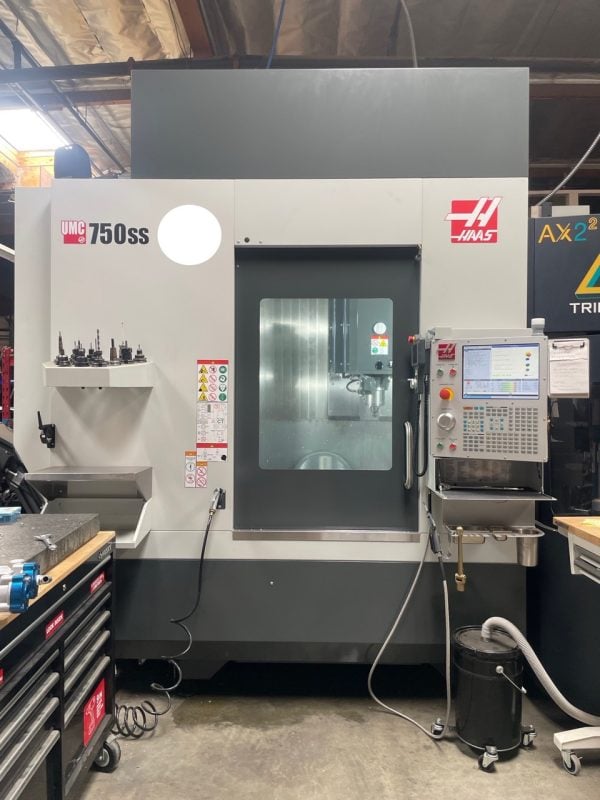

Haas UMC-750SS Universal Machining Center, 2023 – 70 Tool SMTC, TSC, Programmable Coolant, Chip Conveyor, High Pressure Coolant

X-Axis: 30″
Y-Axis: 20″
Z-Axis: 20″
Spindle Nose to Platter: 4-24″
Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Taper: CAT 40
B-Axis: 120° to 35-°
Max Speed: 170 °/sec
C-Axis: 360°
Max. Speed: 179 °/sed
Max. Part Swing: 27″
Platter Diameter: 19.7″
Max. Weight on Platter: 660 lbs
Max. Cutting Feedrate: 650 ipm
X, Y, & Z Axis Rapids: 1200 ipm
Dimensions: 168″x96″x141″
Weight: 18,340 lbs

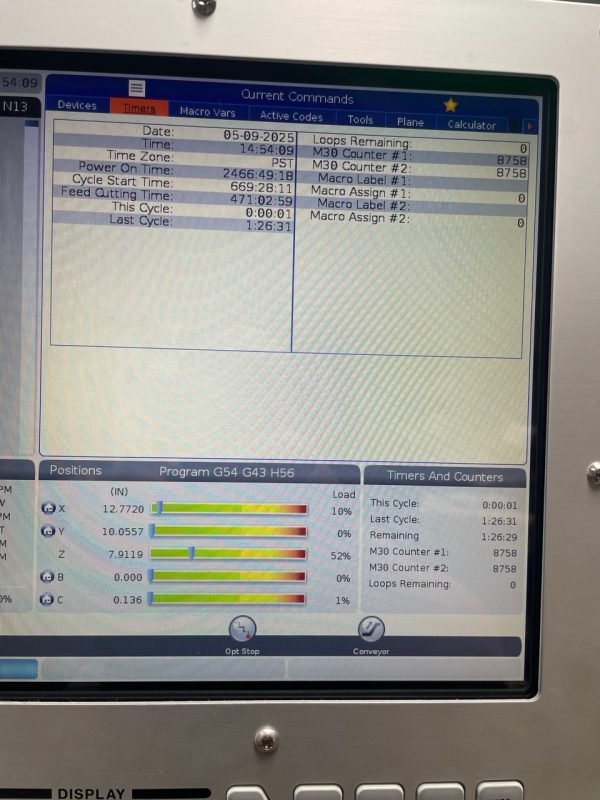

Feed Cutting Hours: 471:02

Equipped With:
Haas Control
70+1 Side Mount Tool Changer
300 PSI Through Spindle Coolant
Auto Window
Automatic Coolant Refill
95 Gallon Coolant Tank

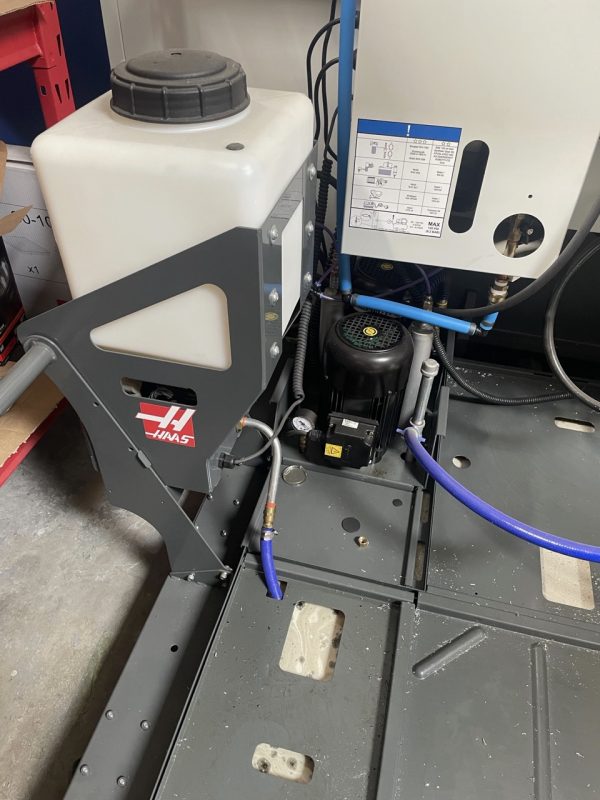

High Pressure Coolant
Programmable Coolant Nozzle
Anchoring Kit
Chip Conveyor
Sump Filter Screen

*2023 VF-2SS and Trinity AX2-24 Duo Pallet System also available with this machine at additional cost
