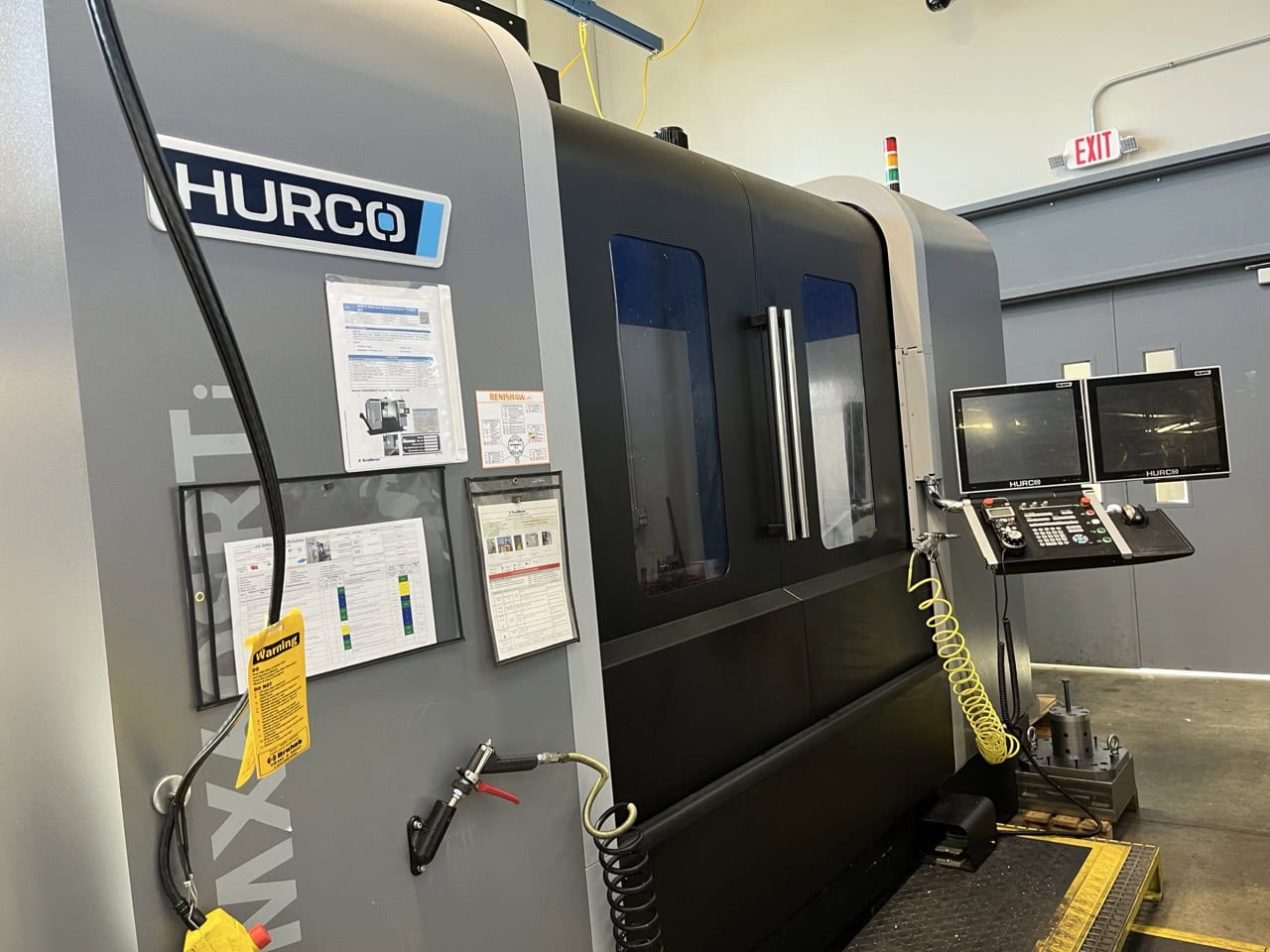

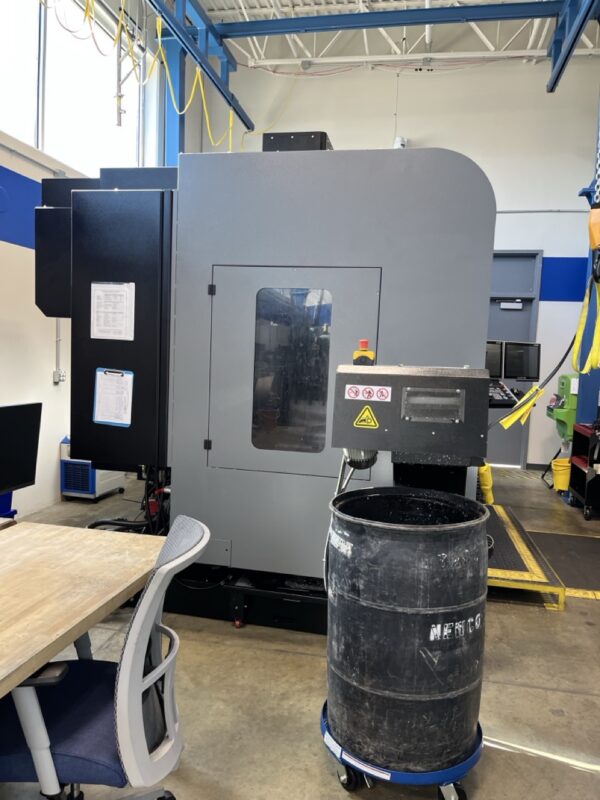

Hurco VMX-60SRTi, 2022 VMC 5-Axis, 16,000 RPM, Probes, Tilting Head, CTS, Glass Scales
$274,950.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
X, Y, Z Axis Travel 60 x 26 x 24 in
B, C Axis Travel +/- 92°, 360°
Spindle Nose to Table (Min-Max) .5 / 24.5 in
Table Size 66 x 26 in
Table Size C 23.6 in diameter
Max. Weight on Table 3,000 lbs
Max Weight on Rotary/ Trunnion Table 1,100 lbs
Spindle
Max. Spindle Speed 16,000 rpm
Tool Changer CAT-40
Number Of Tools 40
Max Tool Diameter 2.95 in (75 mm)
Max Tool Length 9.8 in (249 mm)
Max Tool Weight 15.4 lb (7 kg)
Max. Operating Floor Space 222.9 x 154.4 in
Machine Height 129.8 in
Machine Weight 23,980 lb
Equipped With:
WinMax CNC Control
300 psi Coolant Thru Spindle
16,000 RPM spindle
3D Import includes DXF
Tool & Material Library
UltiPockets
NC/Conversational Merge
Renishaw RMP 60 Part Probe & RTS Tool Probe
Mist Collector
