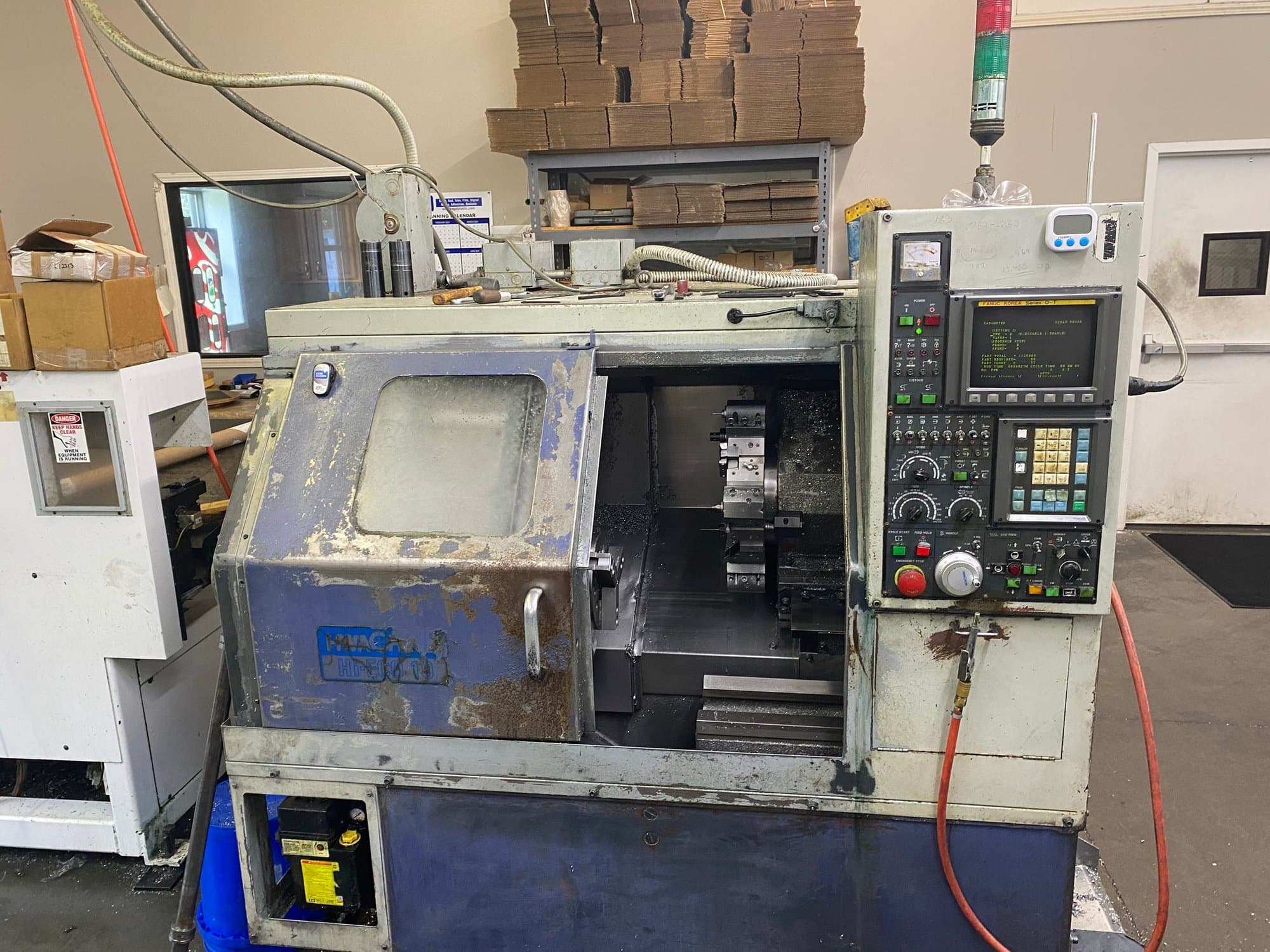

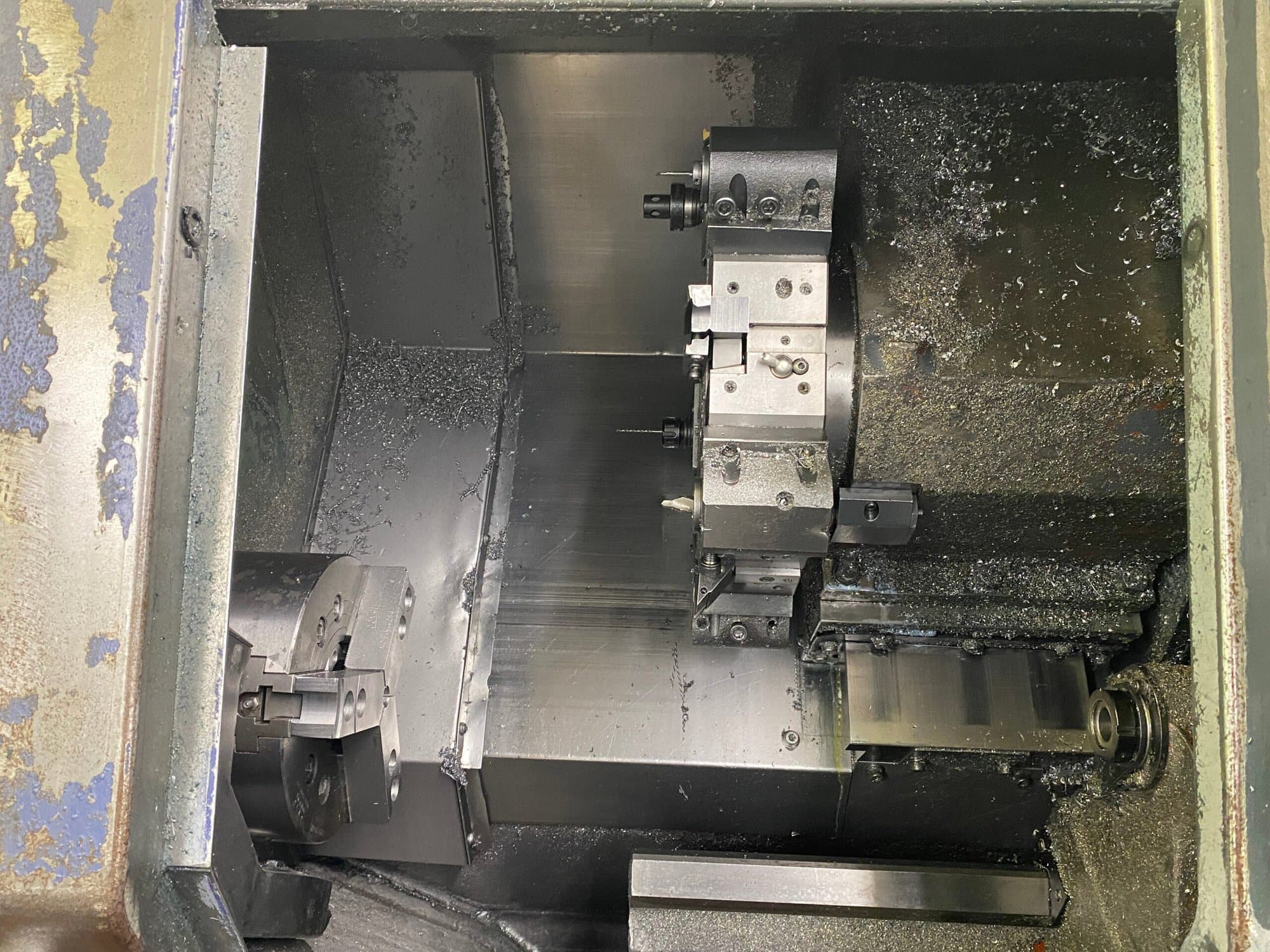

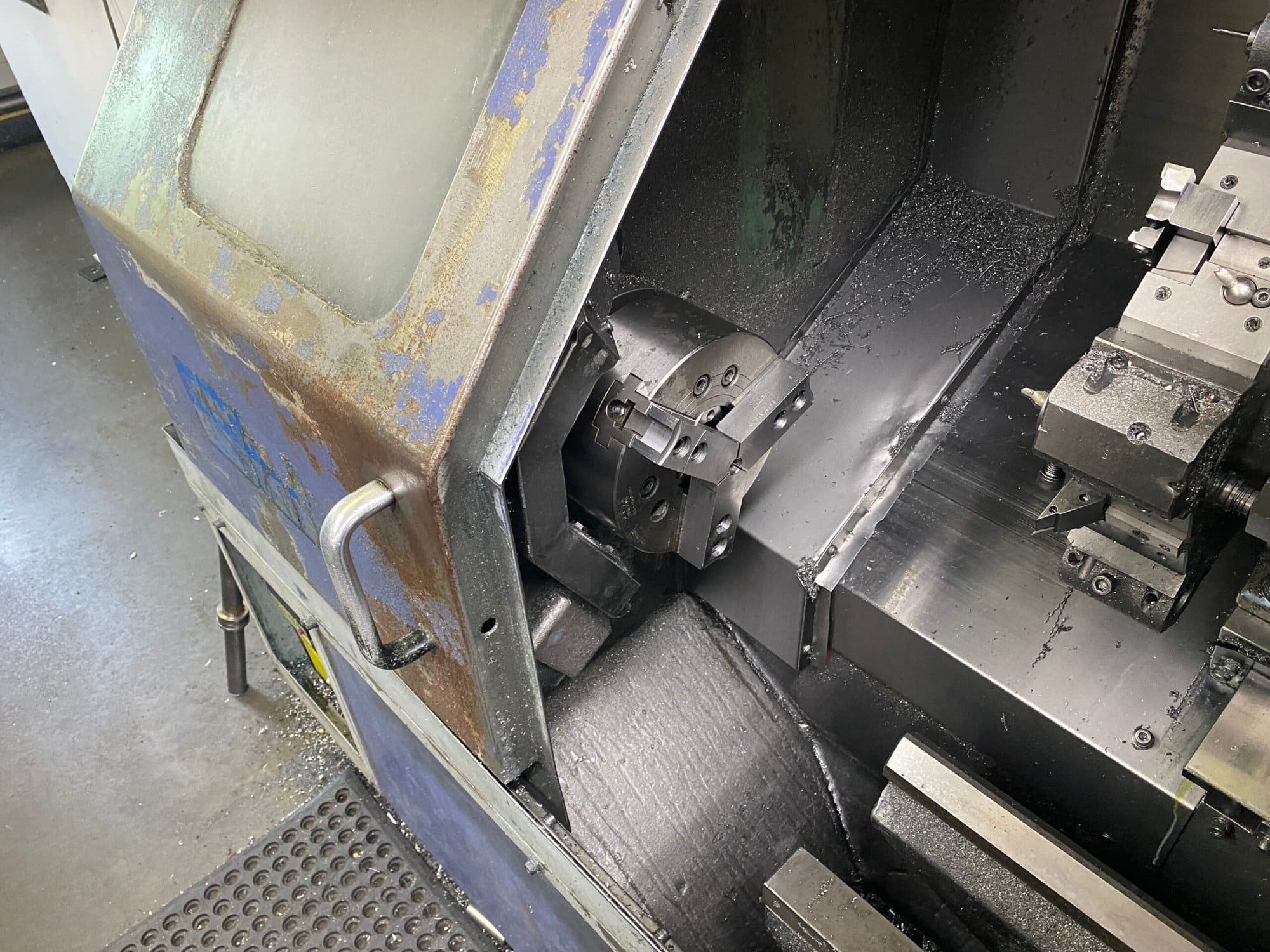

Hwacheon Hi ECO 10 CNC Lathe, 1997 – Tail Stock, Fanuc Control
$14,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Swing Over Bed: 15.7″
Max. Turning Diameter: 8.7″
Standard Turning Diameter: 8″
Max. Turning Length: 15″
X-Axis Travel: 5.1″
Z-Axis Travel: 17.5″
Spindle Rpm: 30 – 5000 Rpm
Spindle Nose: Asa A2-6
Spindle Hole Size: 2.4″
Spindle Bar Size: 2″
Spindle Front Bearing Dia.: 4″
Spindle Hole Taper: Mt No 5.5

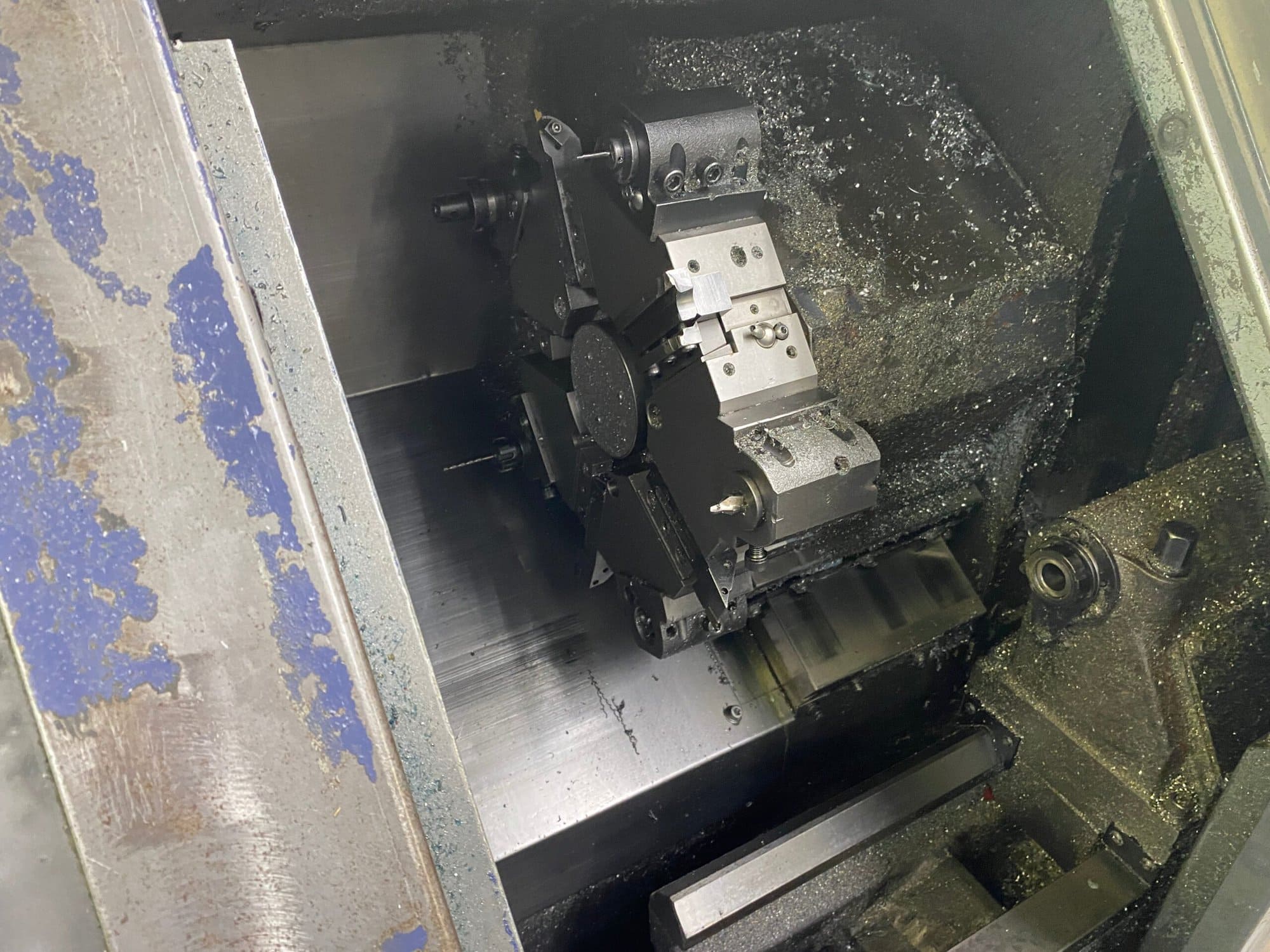

Turret Tool Positions: 10 Stations
Cutting Feed Rate: 0.001-500 Rev
Tail Stock Taper: Mt #3
Spindle Motor: 15/11
Dimensions: 67 X 54 X 67h
Weight: 4850 Lbs
Equipped With:
3-Jaw 8″ Chuck

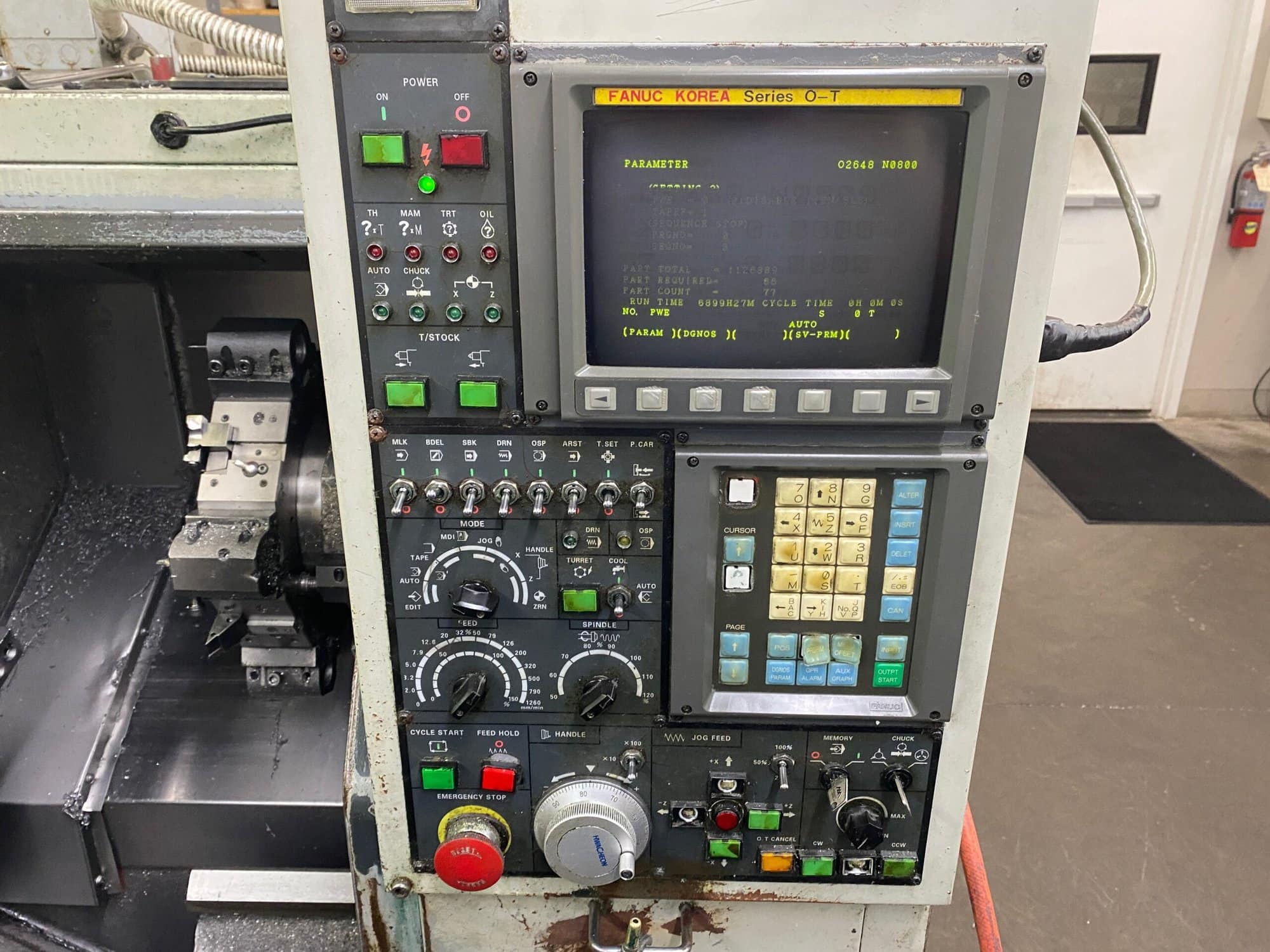

Fanuc Series O-T Control
Tailstock
