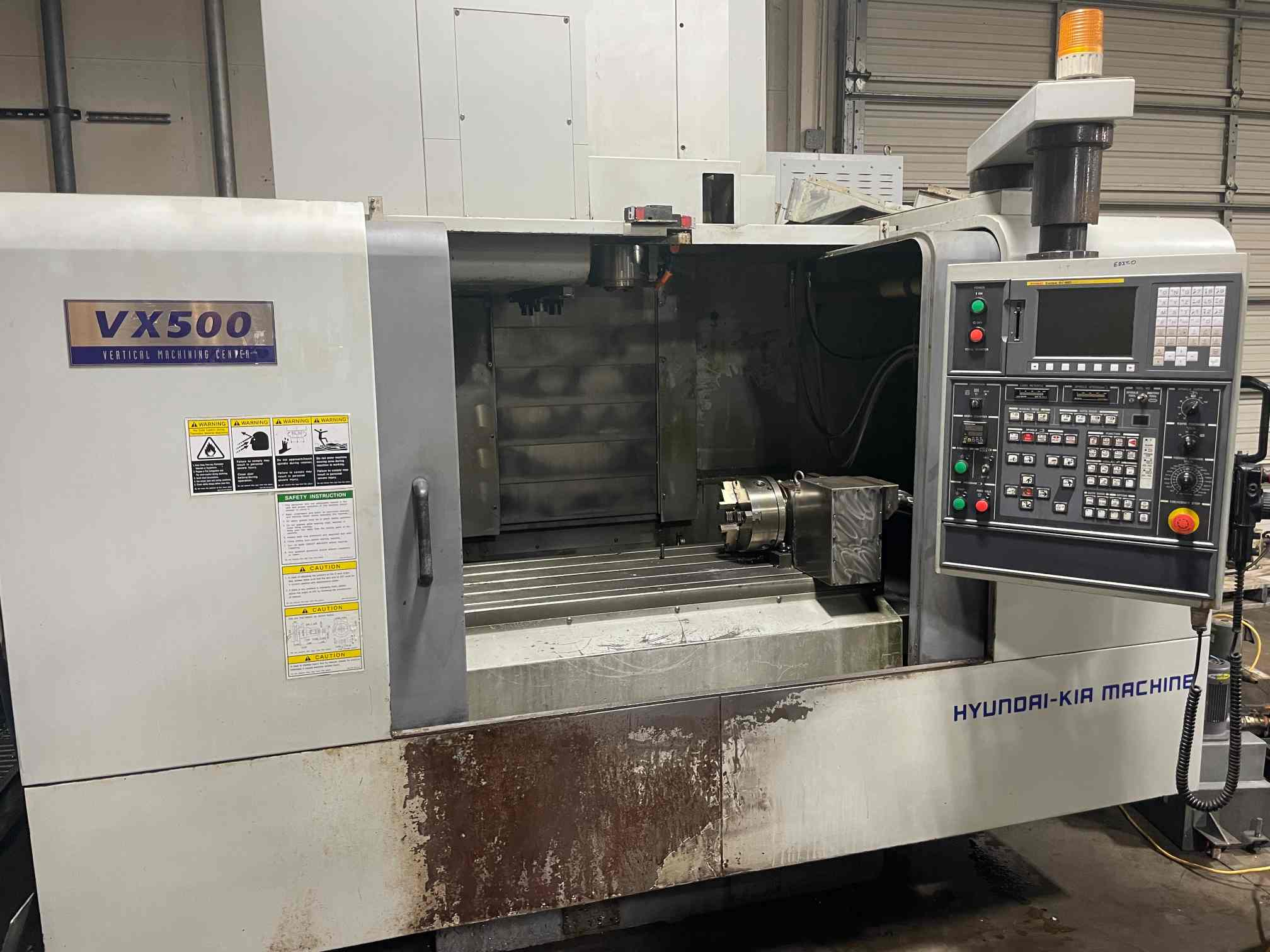

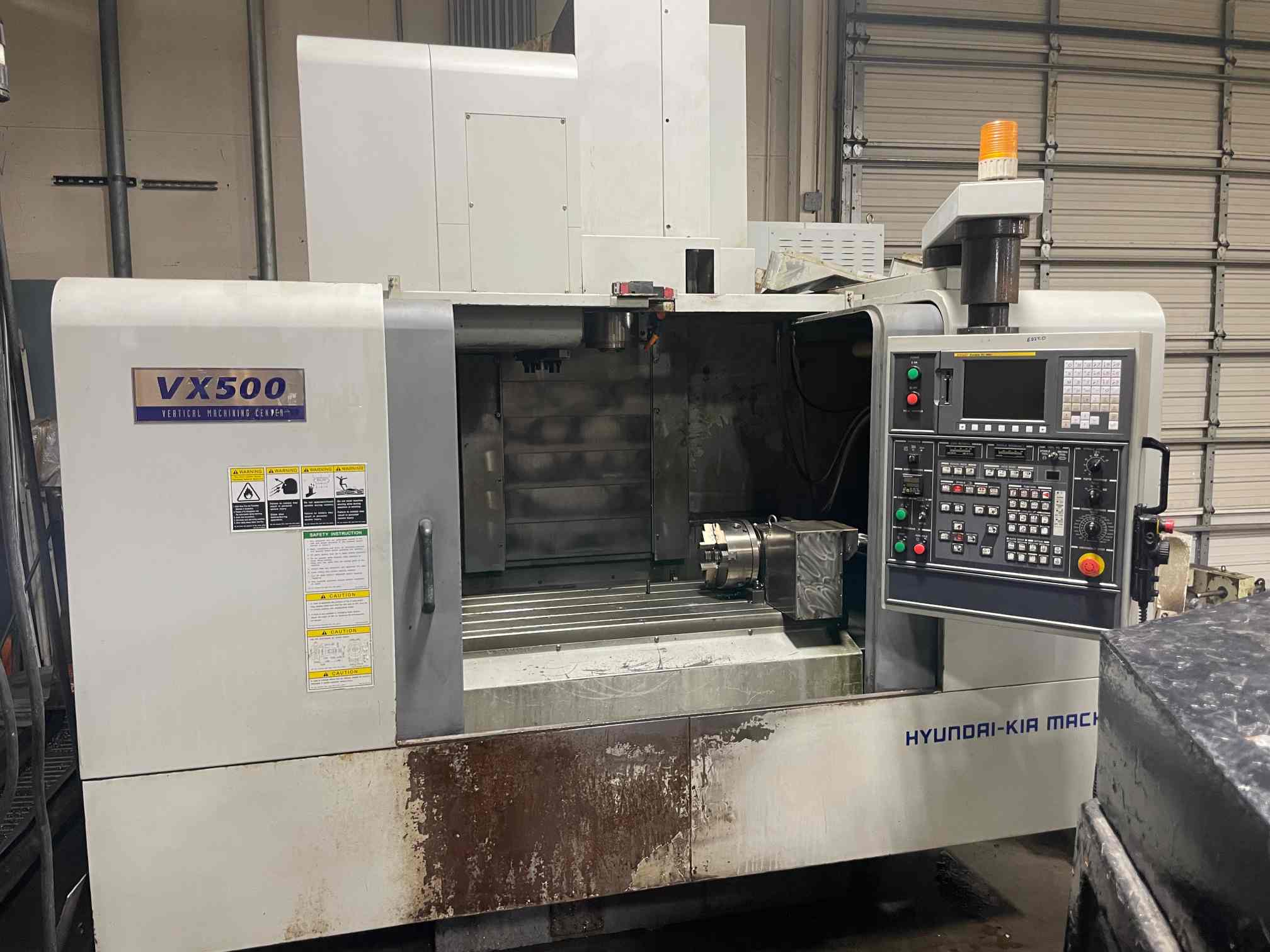

Hyundai Kia VX500 VMC, 2010 – 4th Axis, Fanuc Control, CTS

X Axis Travel: 41.7″
Y Axis Travel: 20.1″
Z Axis Travel: 25″
Table Size: 47.2″ x 20.7″
Max Table Load: 1,763 LBS
Spindle Motor: 25HP
Spindle Speed: 10,000 RPM
Spindle Taper: CAT 40
Tool Changer: 24 ATC
Dimensions: 128″ x 98″ x 110″
Weight: 15,500 LBS

Equipped With:

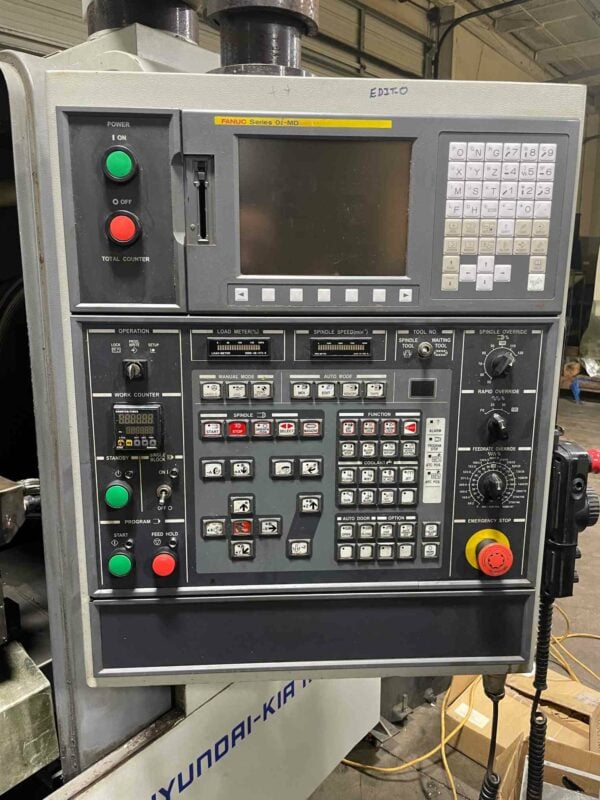

Fanuc 0iMC Control with swivel panel and remote jog handle
290 psi thru spindle coolant
Rear Discharge Chip conveyor

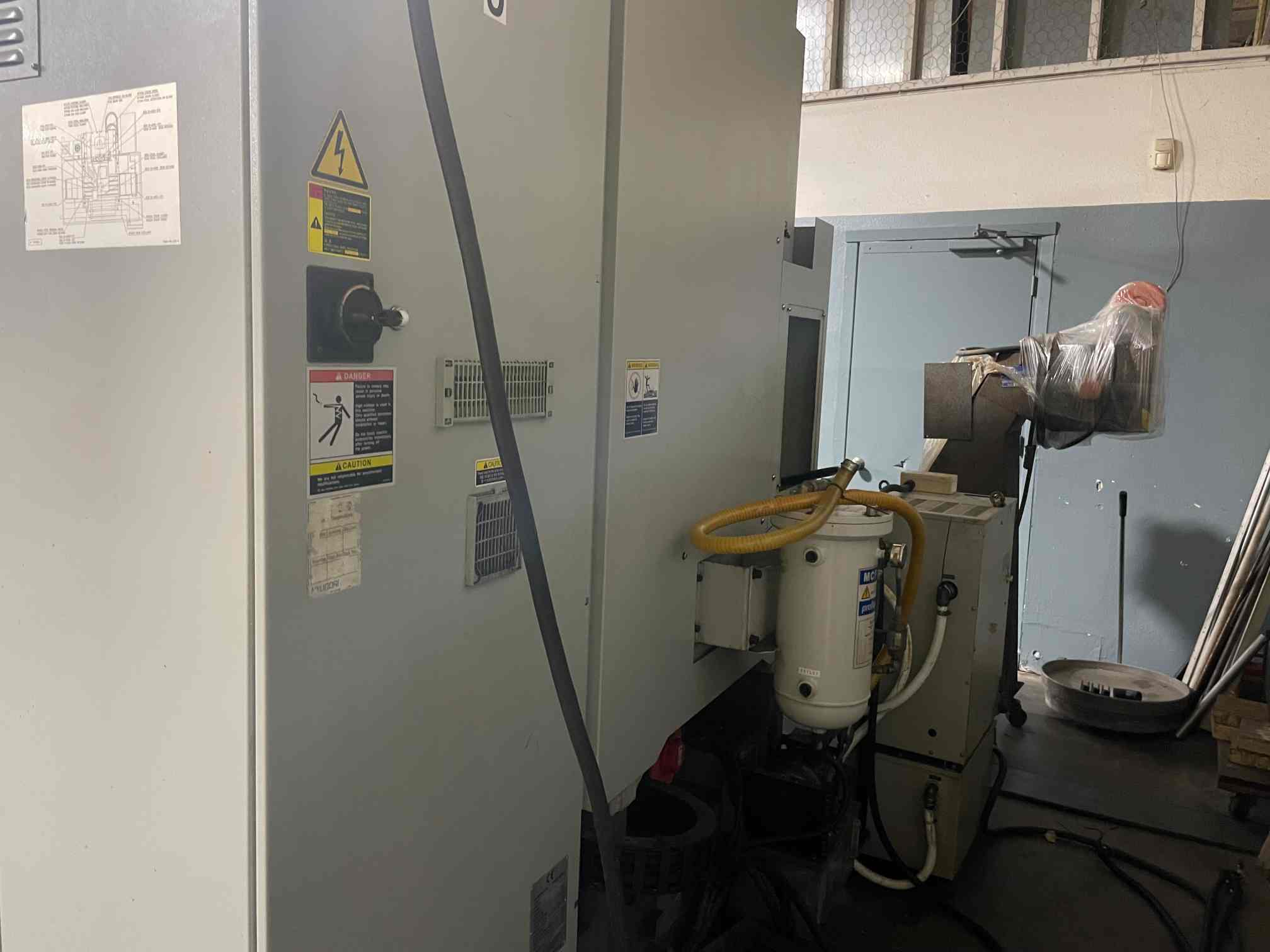

Spindle Oil Chiller
4th Axis
