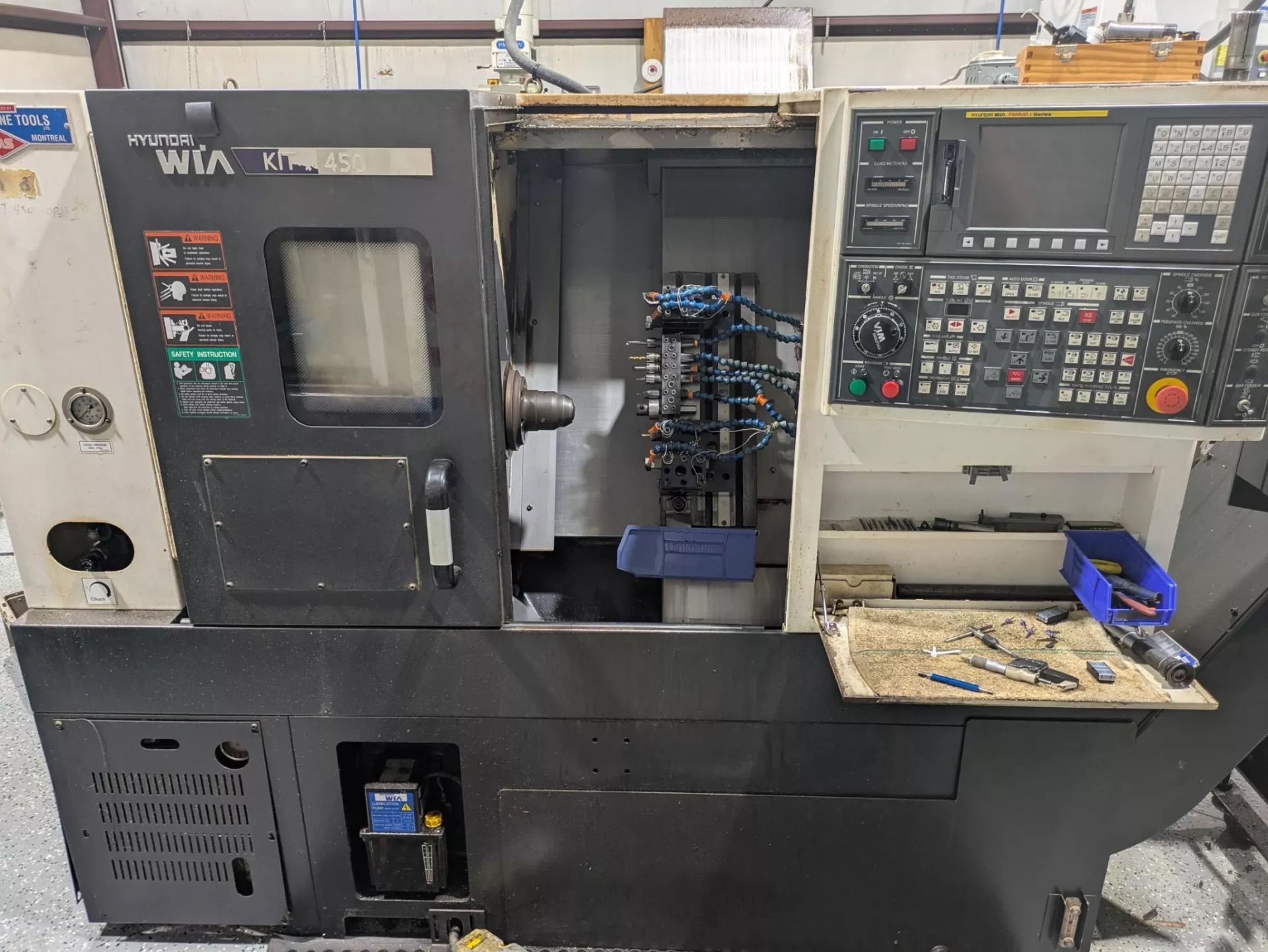

Hyundai Wia KIT-450 CNC Gang Tool Lathe, 2014 – Fanuc Control
$10,000.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
SWING OVER BED: 20.9″
MAXIMUM TURNING DIAMETER: 12.8″
MAXIMUM TURNING LENGTH: 12.8″
BAR CAPACITY: 1.8″
CHUCK SIZE: 6.5″
SPINDLE BORE: 2.05″
SPINDLE SPEED: 50–6,000 RPM
SPINDLE MOTOR POWER (MAX/CONTINUOUS): 20/15 HP
TORQUE (MAX/CONTINUOUS): 70 / 51 FT-LB
SPINDLE TYPE: BELT-DRIVEN
SPINDLE NOSE: A2-5
TRAVEL (X/Z): 450/300 MM (17.7″/11.8″)
RAPID TRAVERSE RATE (X/Z): 1,181 / 1,417 IN/MIN
SLIDE TYPE: LM GUIDE
NUMBER OF TOOLS: 6
TOOL SIZE (OD/ID): 1″ / 1.25″
ELECTRIC POWER SUPPLY: 20 KVA
VOLTAGE/FREQUENCY: 220V / 60HZ
MACHINE DIMENSIONS: (82.7″ × 56.5″ x 72″)
WEIGHT: (5,952 LBS)
Equipped With:

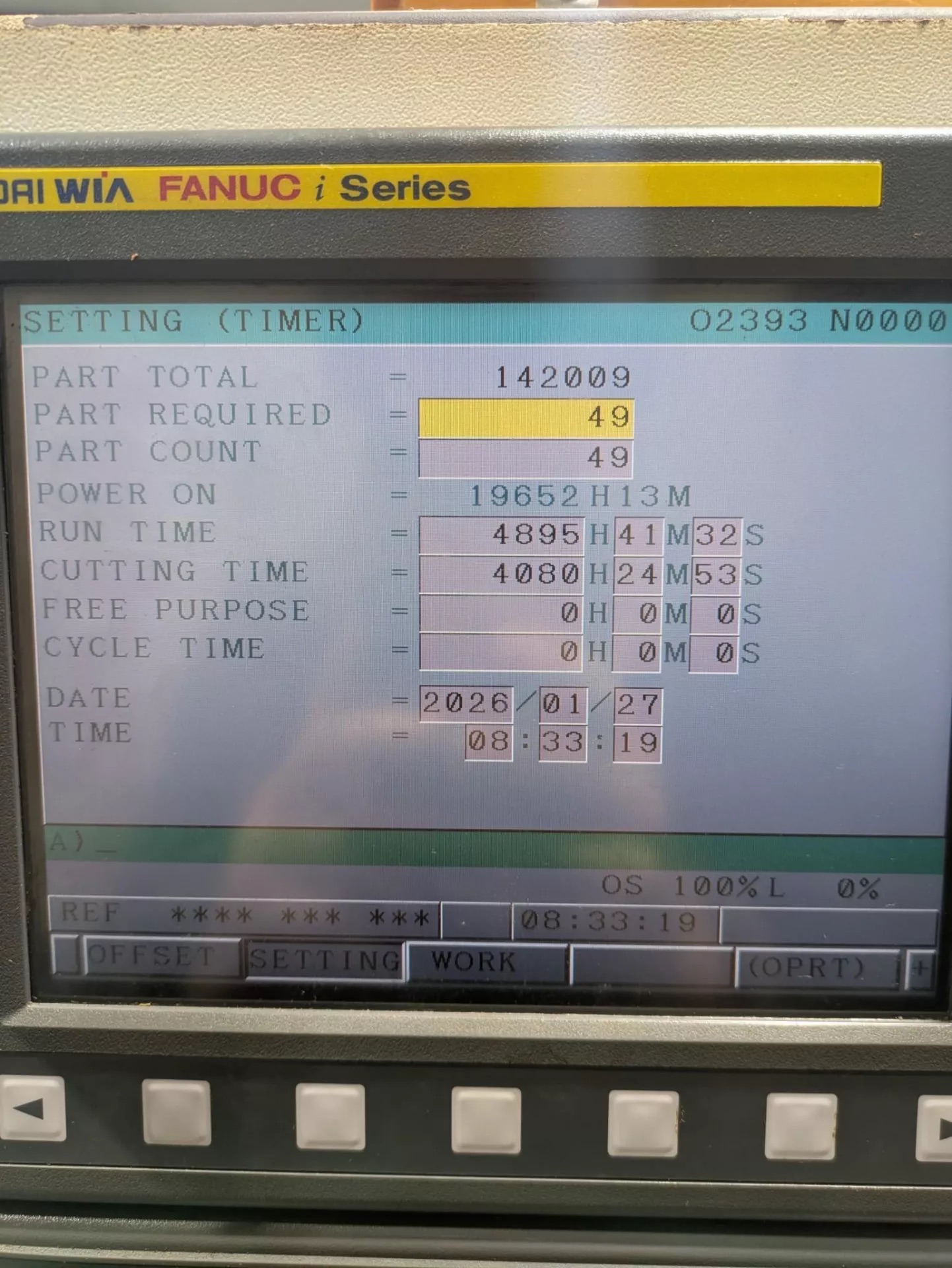

FANUC I SERIES
