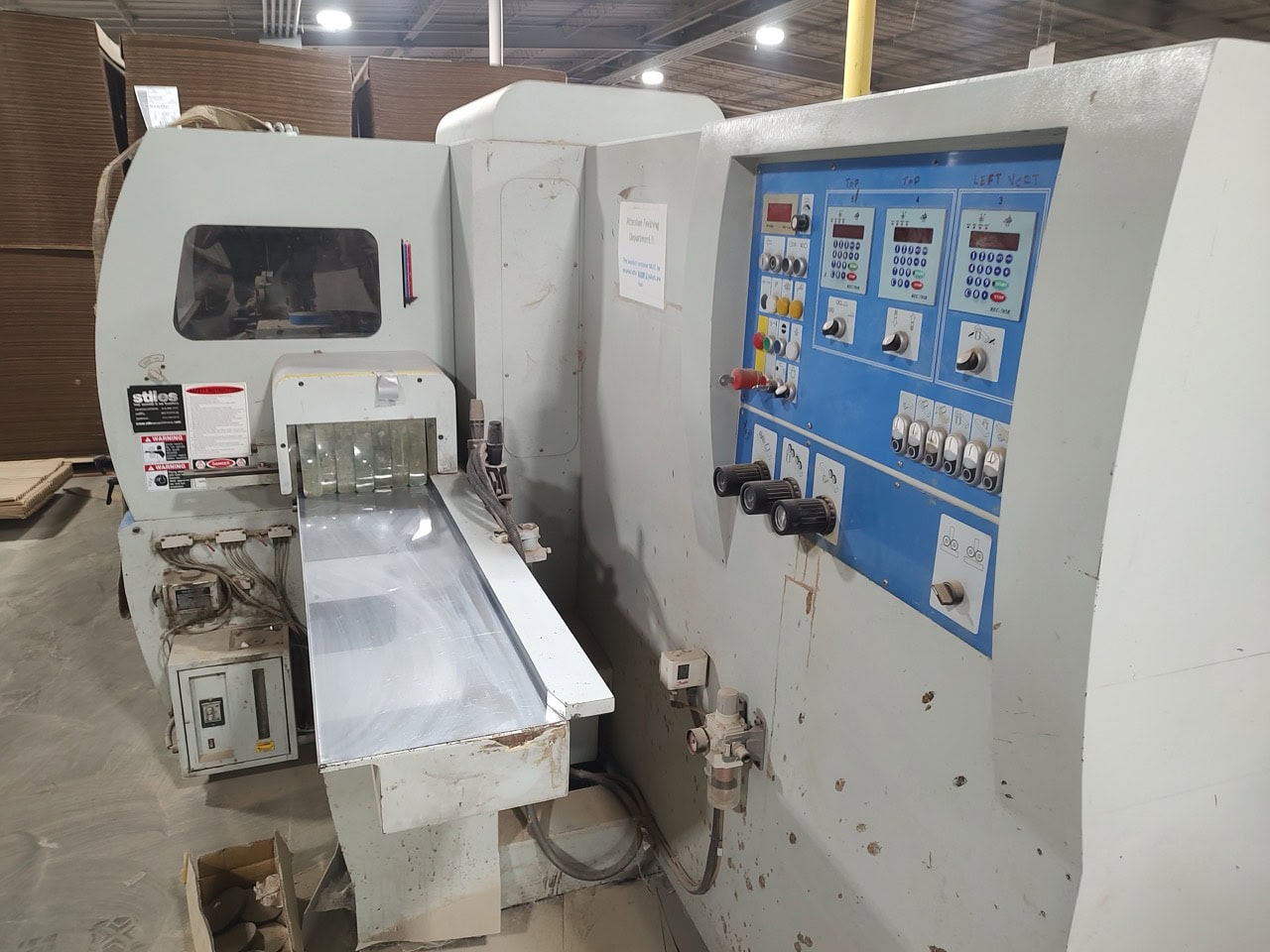

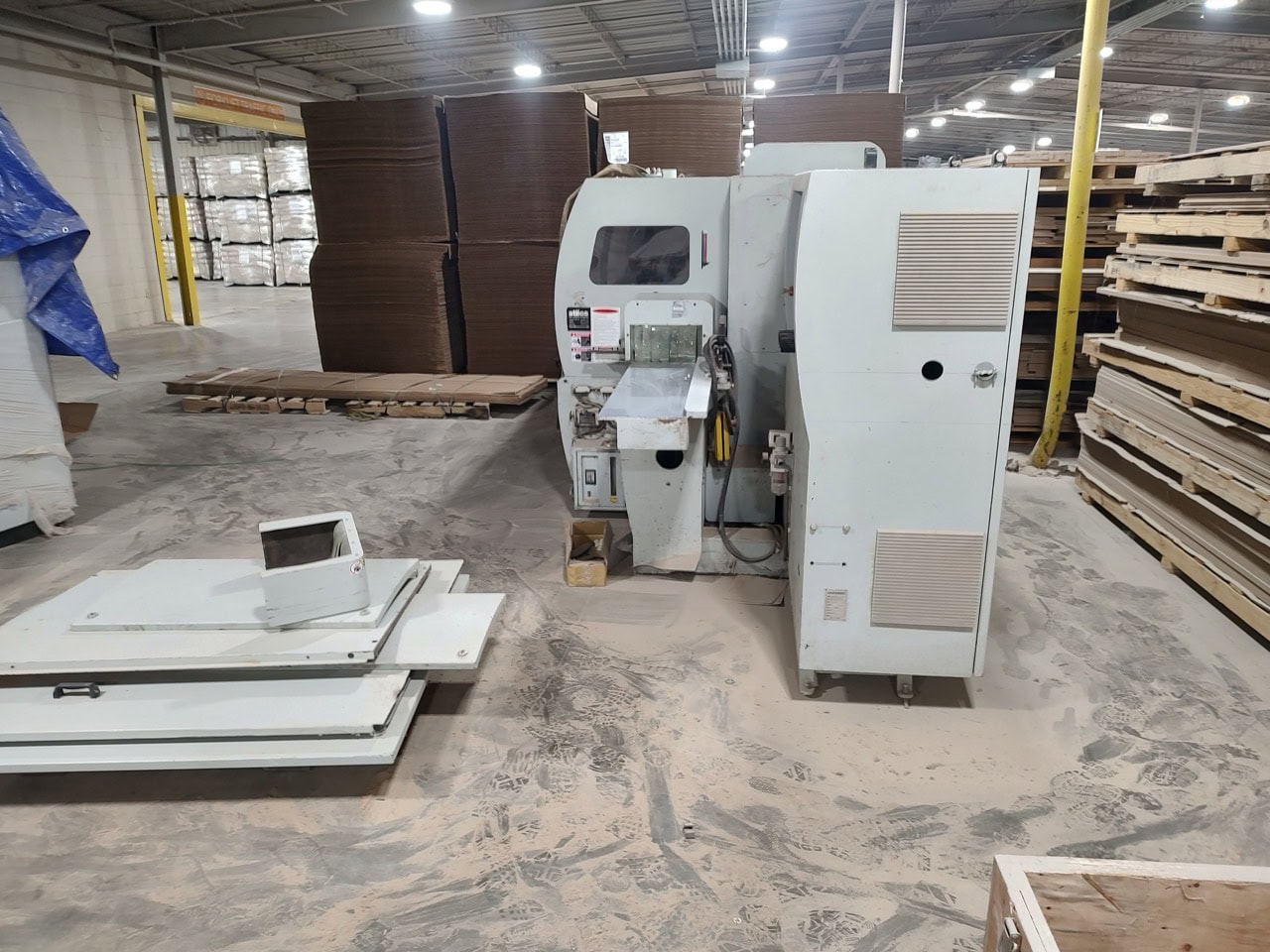

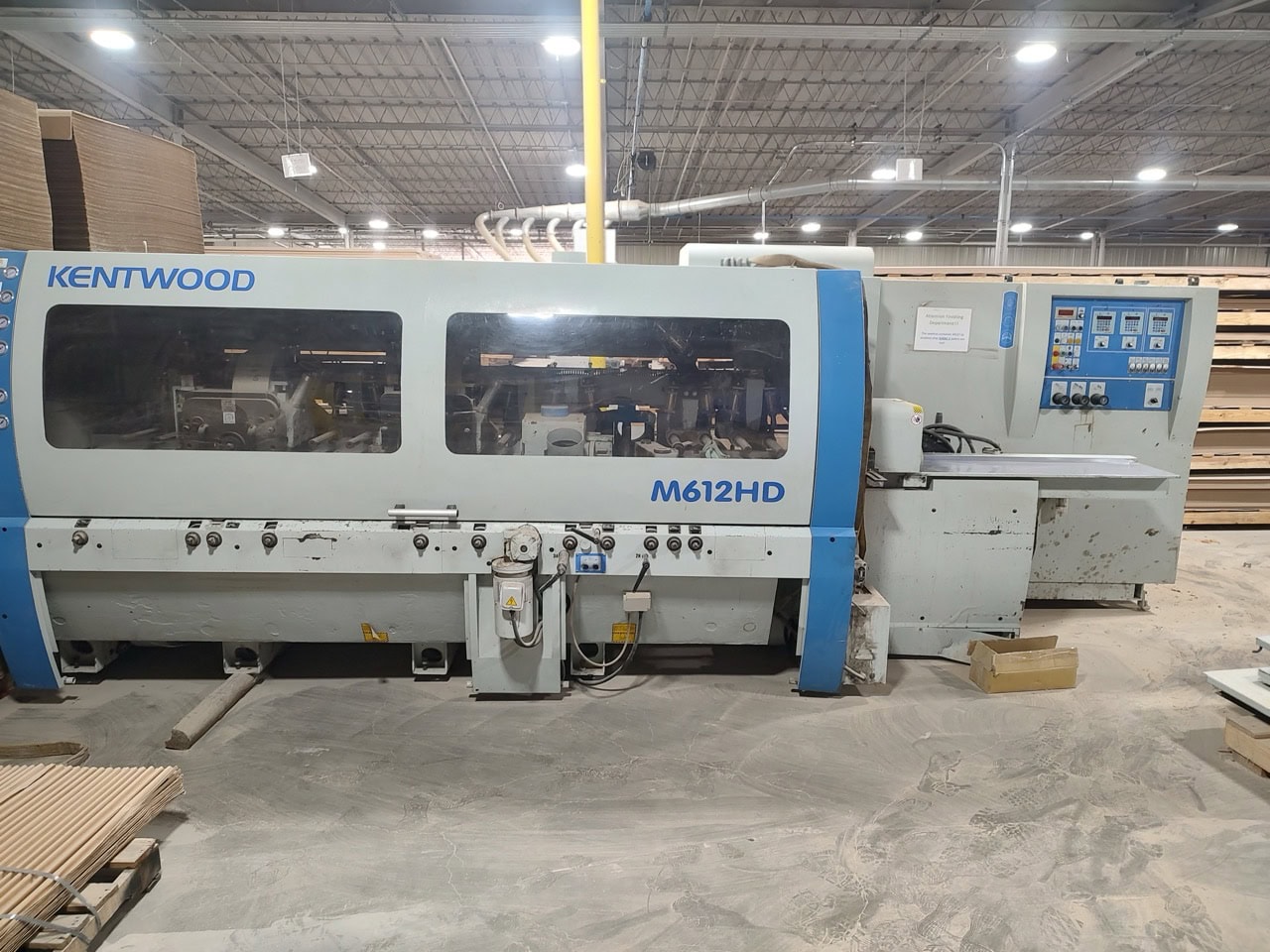

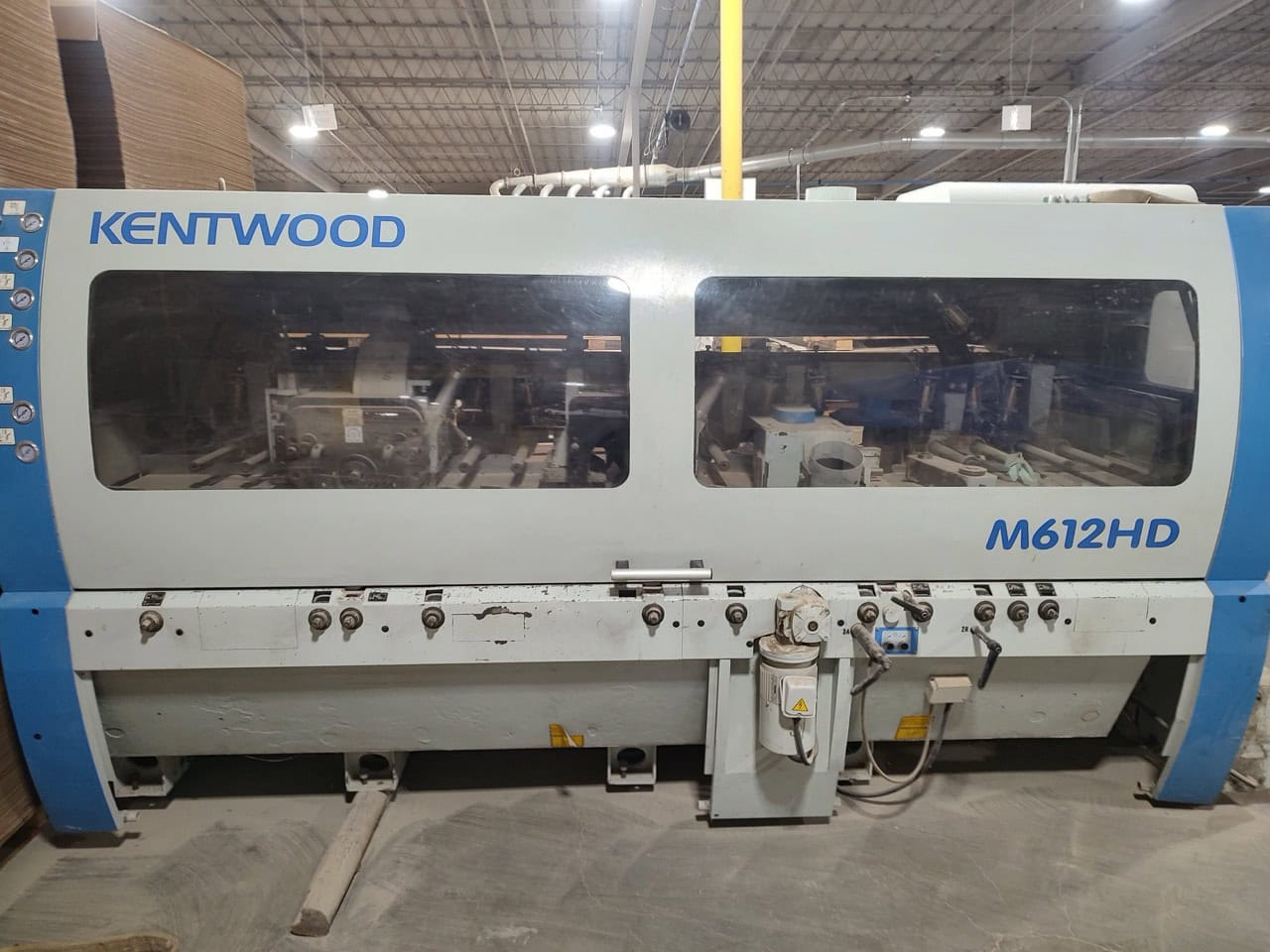

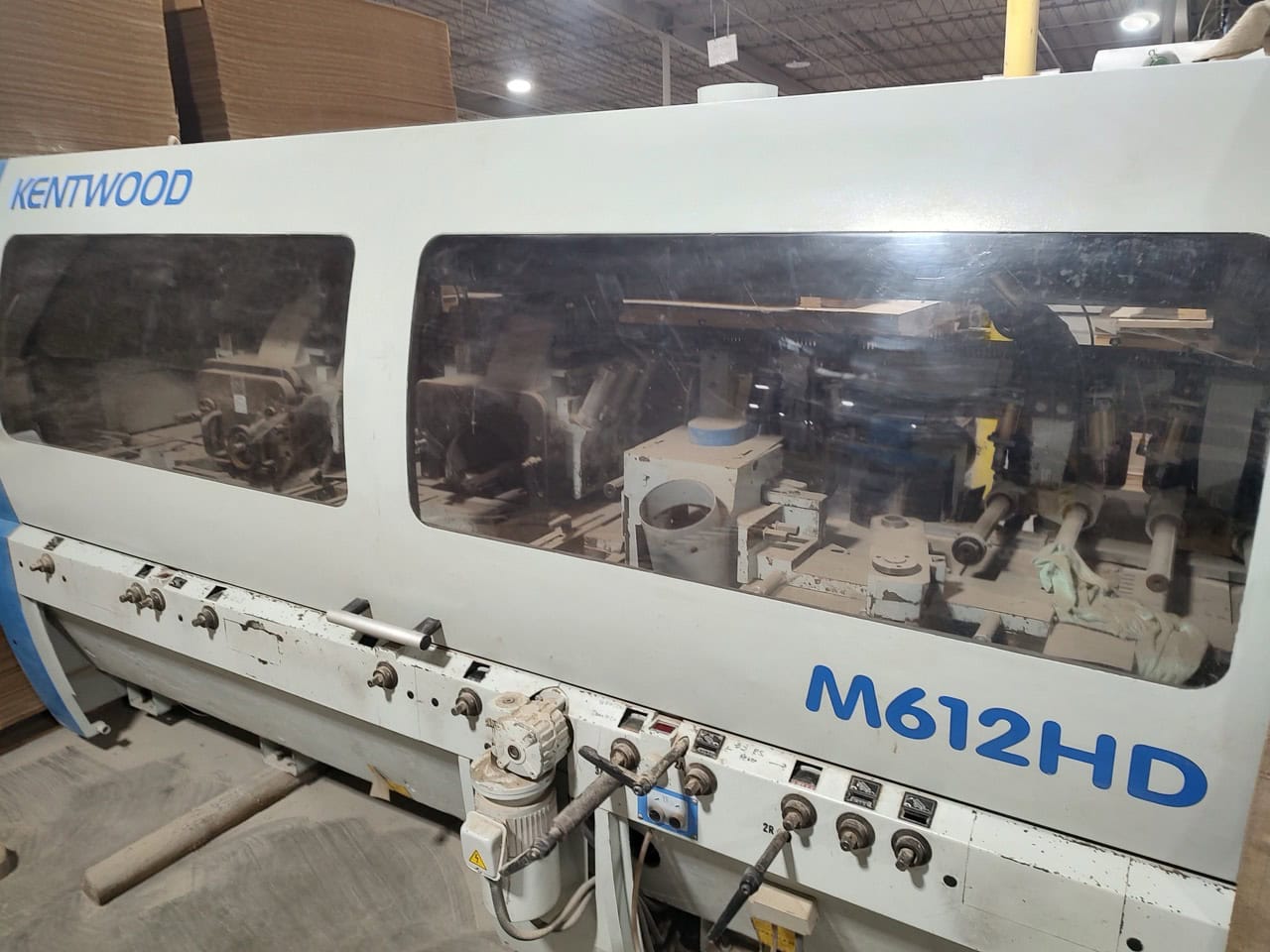

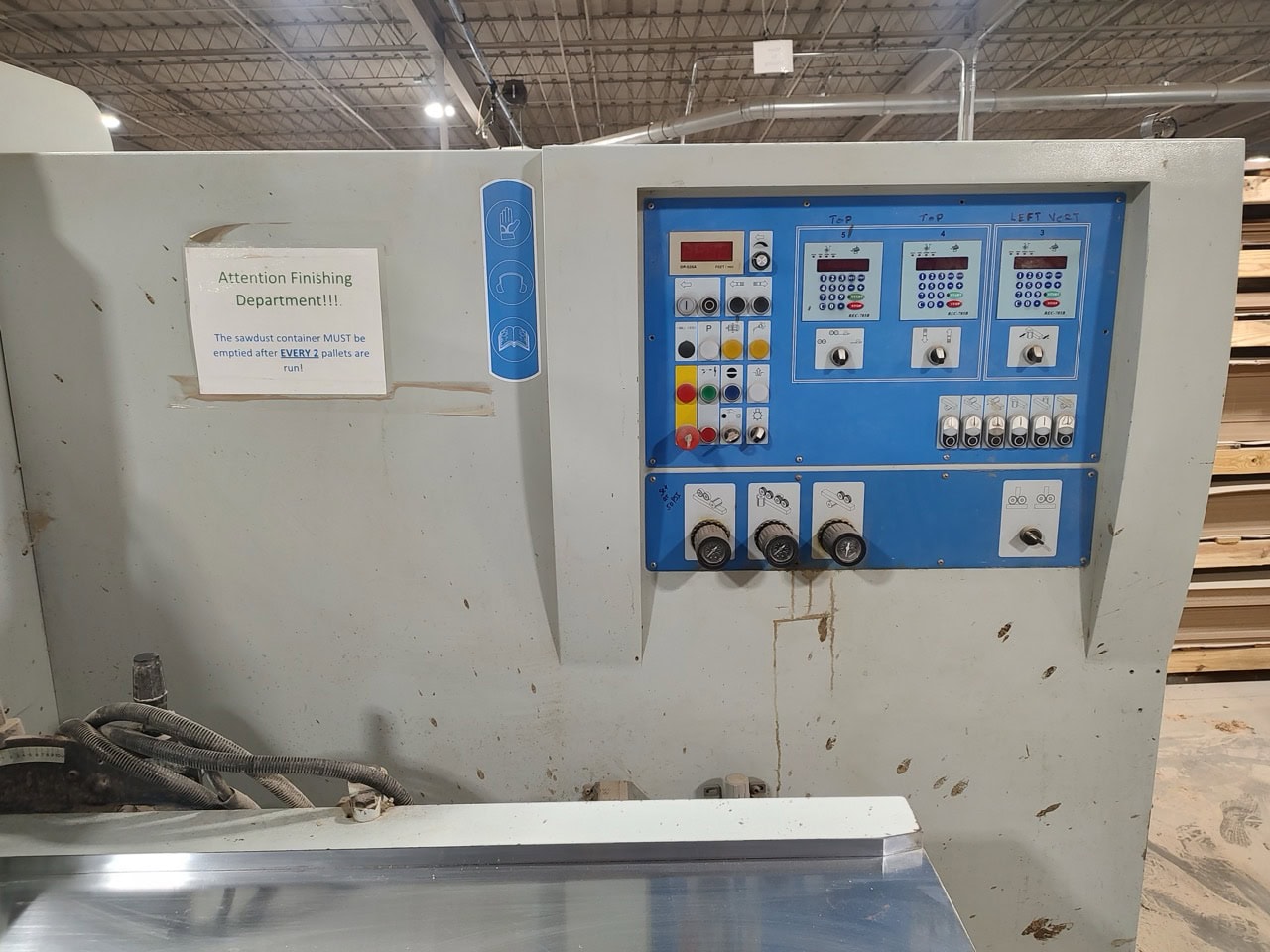

Kentwood 612HD Moulder, 2014

$39,900.00

Request a Quote to Instantly See Pricing

Machine Type: Woodworking
Make: Kentwood
Model: 612HD
Year: 2014
Capacity: ” Ø
Machine Location: Mississippi
Stock #: 809233

working width, min 0.59”
working width, max* 11.81’
working height, min 0.39”
working height, max 5.9”
machine base cast iron
work piece length, butt feed, min 11.8”
work piece length, single feed, min 31.5”
spindle RPM 6000RPM
feed speed, ft/min 20-118
number of bottom rollers 6
number of top rollers 12

adjustment range of vertical
spindles, axial* 3.14”

adjustment range of horizontal
spindles, axial 1.57”

infeed table length 6’6”
main fence height 2.56”
table lubricant device auto
table surface chrome
motorized spindle positioning, axis 3 axis
spindle braking electronic
pressure elements pneumatic
feed drive inverter
pad shoe segments 2
remote pendent standard
outboard bearings 4

Spindle Configuration M612HD
1 st spindle 15hp
2 nd spindle 15hp
3 rd spindle 15hp
4 th spindle 30hp
5 th spindle 30hp
6 th spindle 20hp
Feed motor 7.5hp

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
