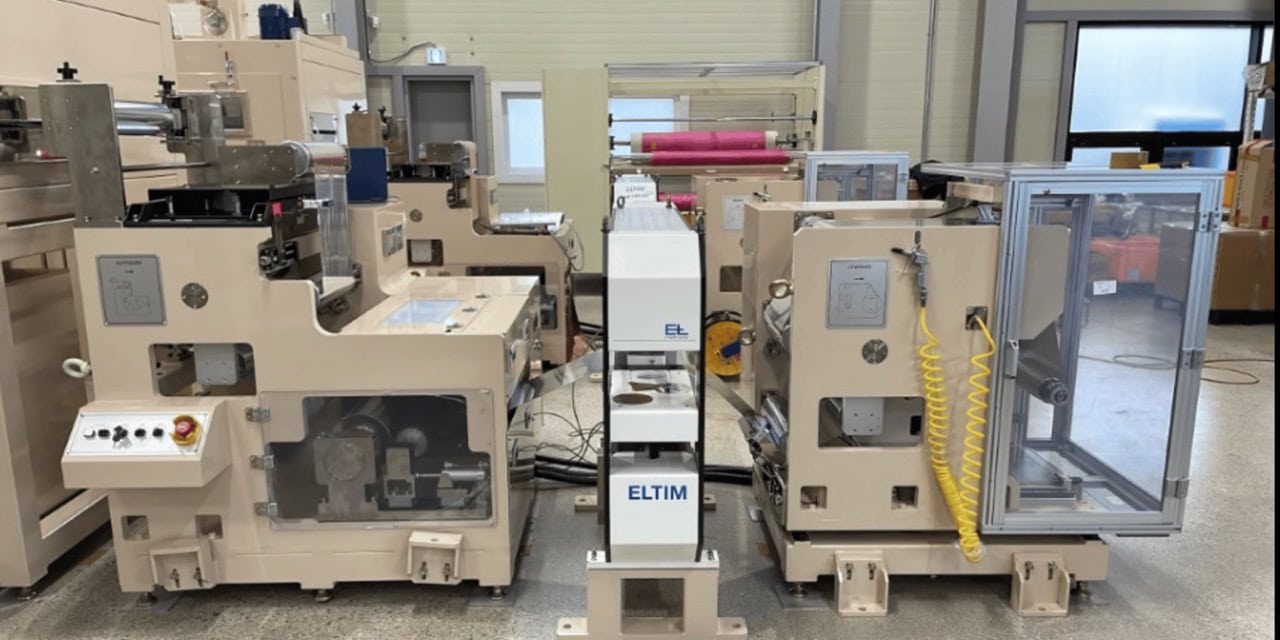

KGA Anode Electrode Tandem Coater- OEM NEW!

Key Technical Specifications
Overall Dimensions 11,810 × 1,878 × 2,863 mm
Equipment Weight 10 tons (approximate)
Maximum Web Width 350 mm
Maximum Coating Width 300 mm
Foil Thickness Range 6-30 μm (Cu), 10-30 μm (Al)
Maximum Machine Speed 10 m/min
Working Speed 3 m/min (process dependent)
Drying Zone Length 4.5 m (3 zones × 1.5m)
Temperature Range 60-150°C (±3°C accuracy)
Total Power Consumption 100 kW maximum
Slurry Tank Capacity 30 L (dual tanks)
Tension Control 250N maximum with EPC
Position Accuracy ±0.5 mm (top & bottom)
