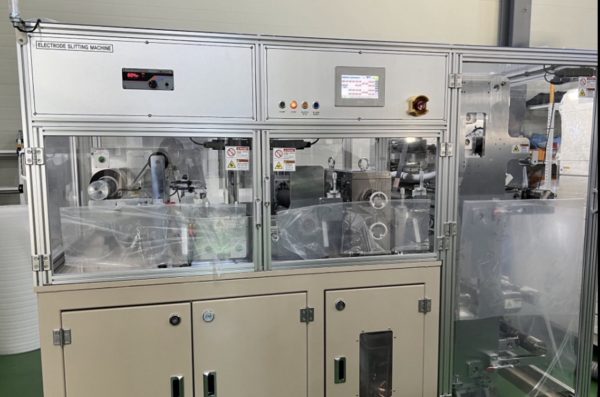

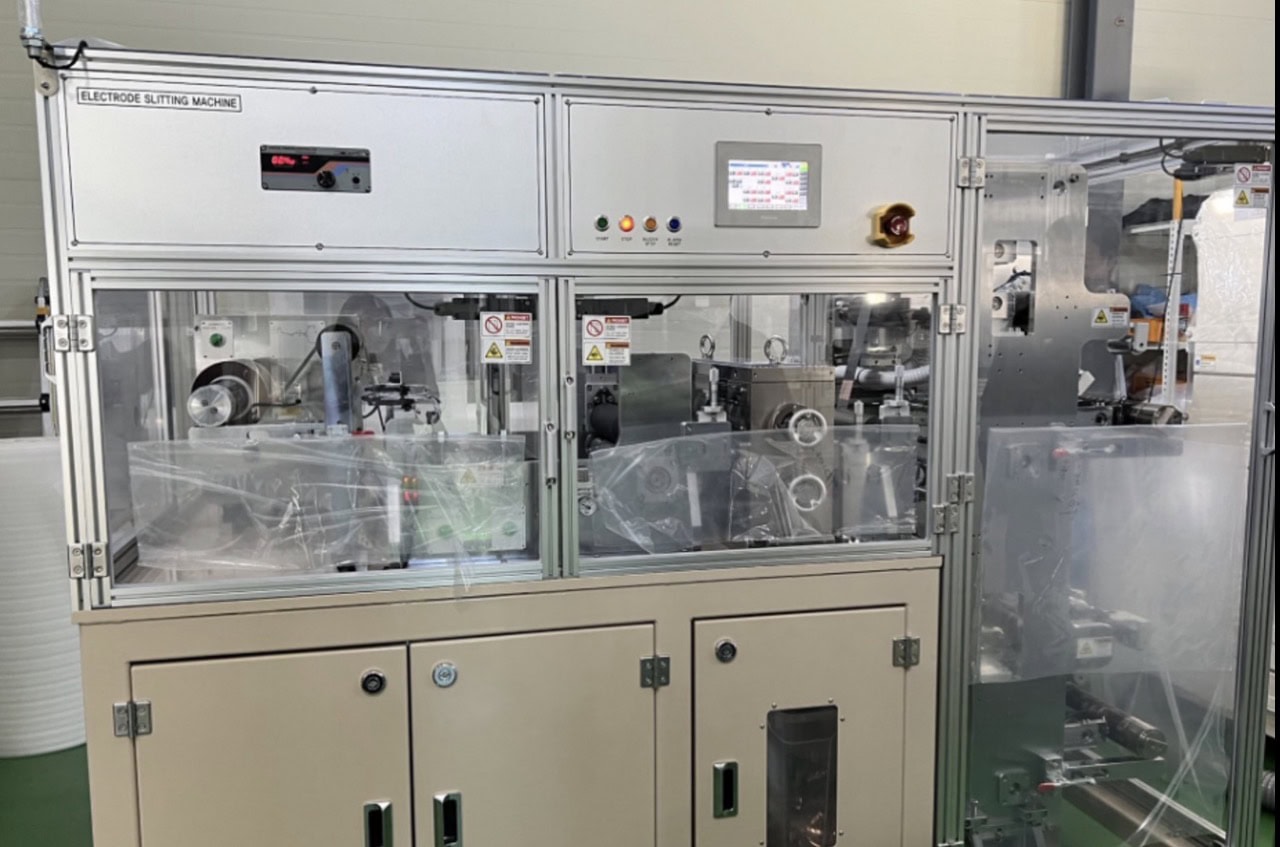

LaON Technology 4-Lane Pilot Electrode Slitter- OEM NEW!

Four-lane carbide knife cutting with ±0.1mm accuracy and <20μm burr specification
Wheel-type knife system with AC reversible motor drive and fixed block configuration
EPC system with speed control motor for electrode positioning and tracking

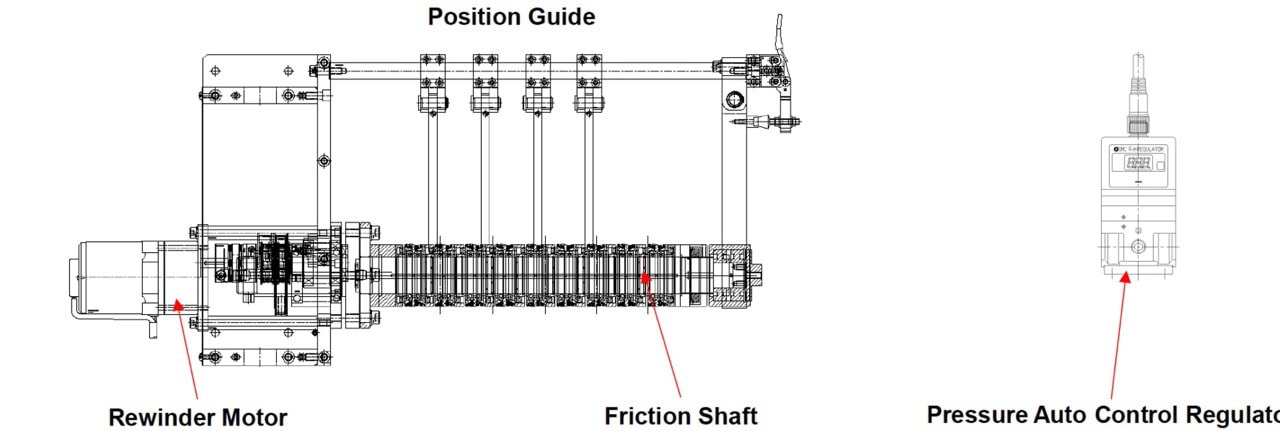

Dual friction shaft rewinders with automated pressure regulation and position guides
Photo sensor monitoring for foil break detection across all four lanes
Mitsubishi PLC control with Proface 7″ touchscreen interface
350mm maximum foil width with 5 m/min processing speed capability
System includes integrated unwinder with 3″ air shaft and automated tension control.

Additional Documentation (NDA Required)
Detailed Process Specifications
Key Technical Specifications
Maximum Foil Width 350 mm
Machine Speed 5 m/min maximum
Slitting Lanes 4 lanes
Slitting Accuracy ±0.1 mm
Burr Specification <20 μm
Position Accuracy ±0.1 mm
Maximum Spool Size Ø300 mm
Knife Material Carbide
Knife Configuration Fixed Block Type
Tension Control Powder clutch & dancer roll
Unwinder Shaft 3″ air shaft
Rewinder Shafts 3″ friction shaft (2 sets)
