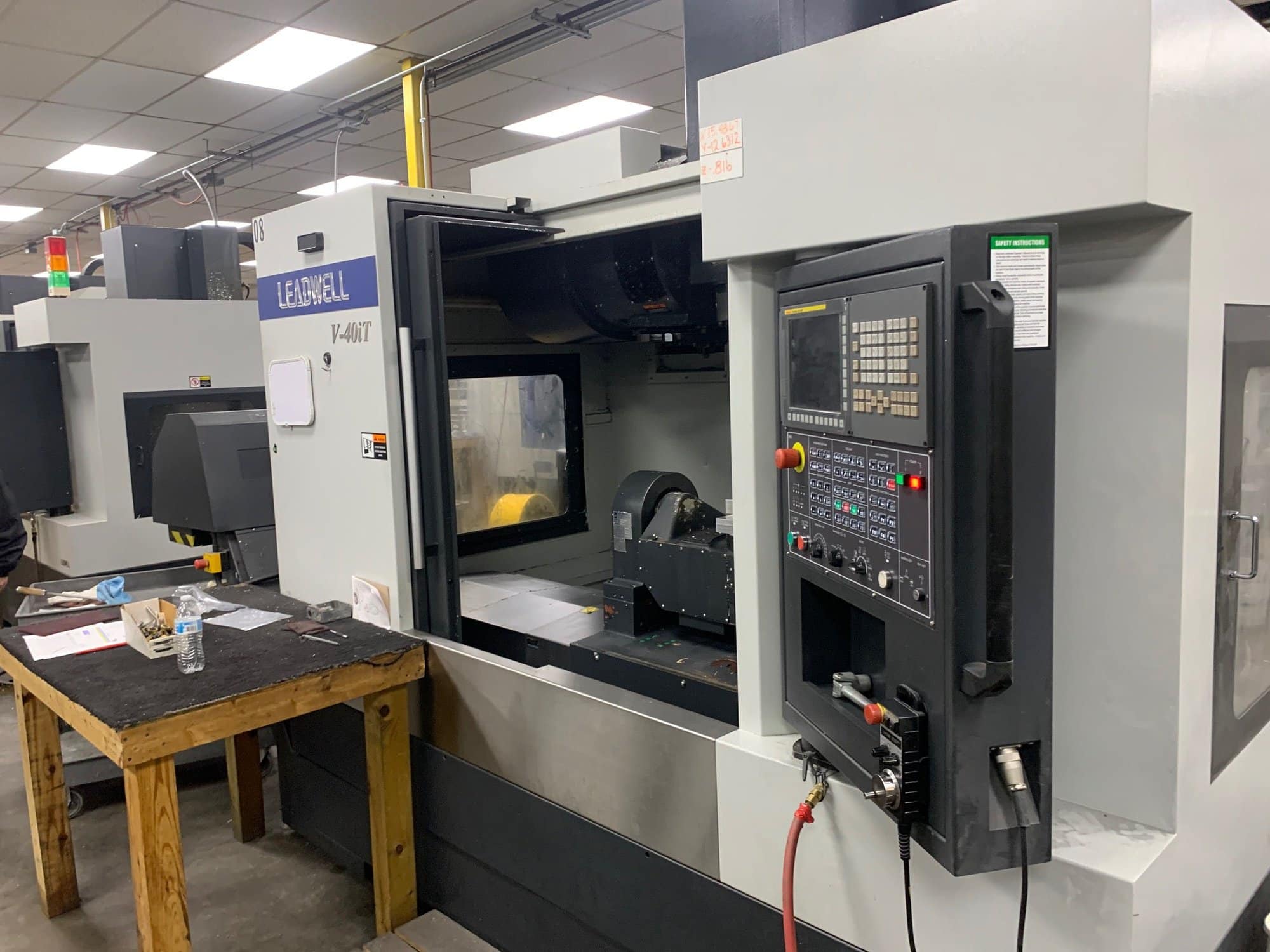

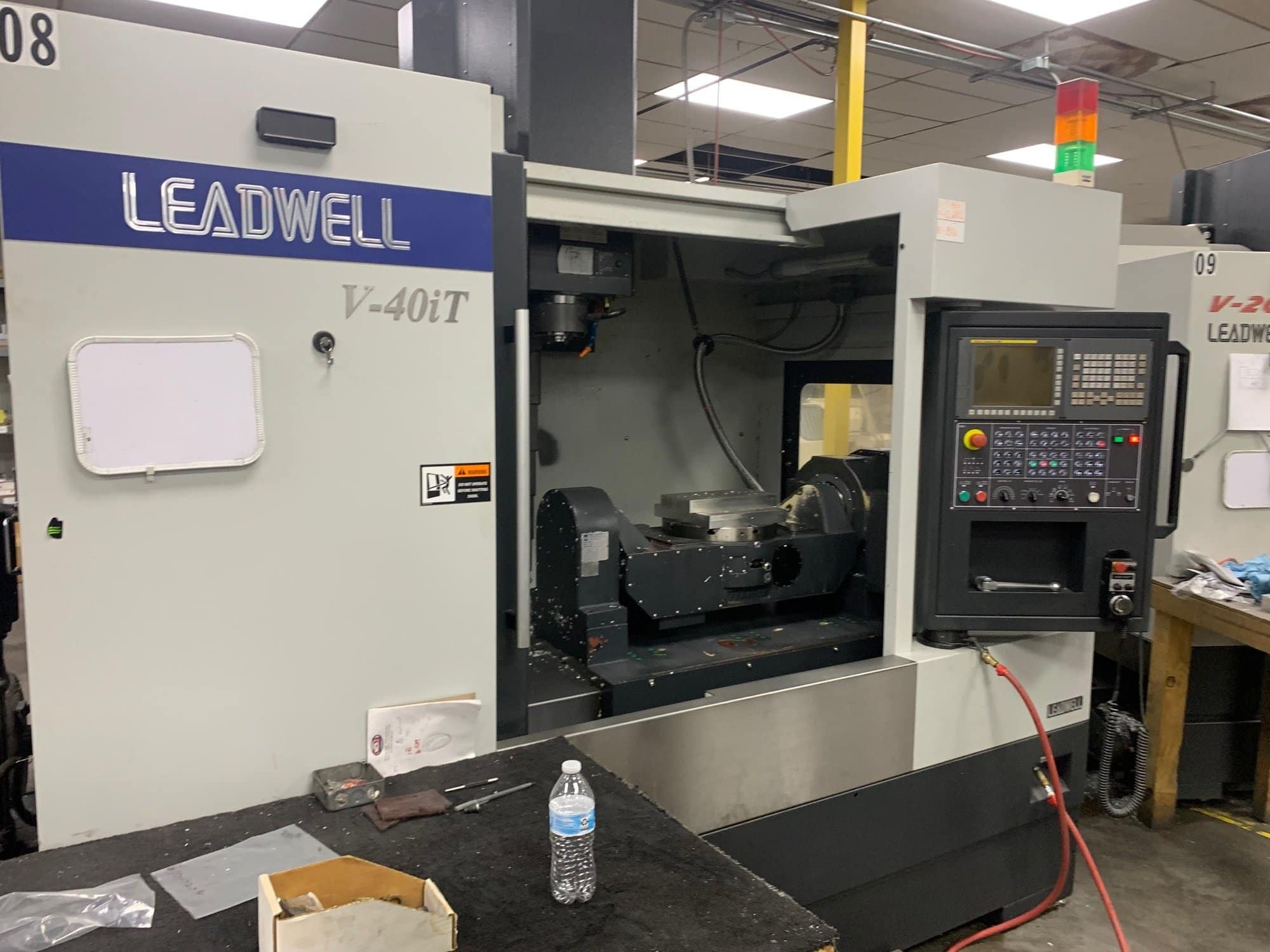

Leadwell V40iT VMC, 2016 – 5 Axis,Chip Conveyor, Low Hours, Video Available

$114,900.00

Request a Quote to Instantly See Pricing

Machine Type:
Vertical Machining Centers
Model:
V40iT
Make:
Leadwell
Year:
2016

Spindle Speed: 12000 RPM
Number of tables / pallets: 1
Table size: 22″ X 13.3″
Weight on table: 440 / 220 LBS.
Integrated nc rotary table size: 13.8″ ROUND
Spindle nose to table: 1.9″ – 21″
Main spindle speeds: 12,000 RPM
Main spindle taper: 40 CT
Main spindle horse power: 24.8 HP
X – axis travel: 33″
Y – axis travel: 25″
Z – axis travel: 19.2″
A – axis travel: + – 90 DEGREES
B – axis travel: .001 DEGREE
Rapid traverse x, y, z: 1417, 1417, 1417 IPM
Cutting feed rate: 394 IPM
Automatic tool changer: 24 ATC
Tool diameter: 3.7″ / 5.2″
Tool length: 9.8″
Machine weight: 15,432 Lbs.

Equipped With:
High Pressure Coolant
Has cooler

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
