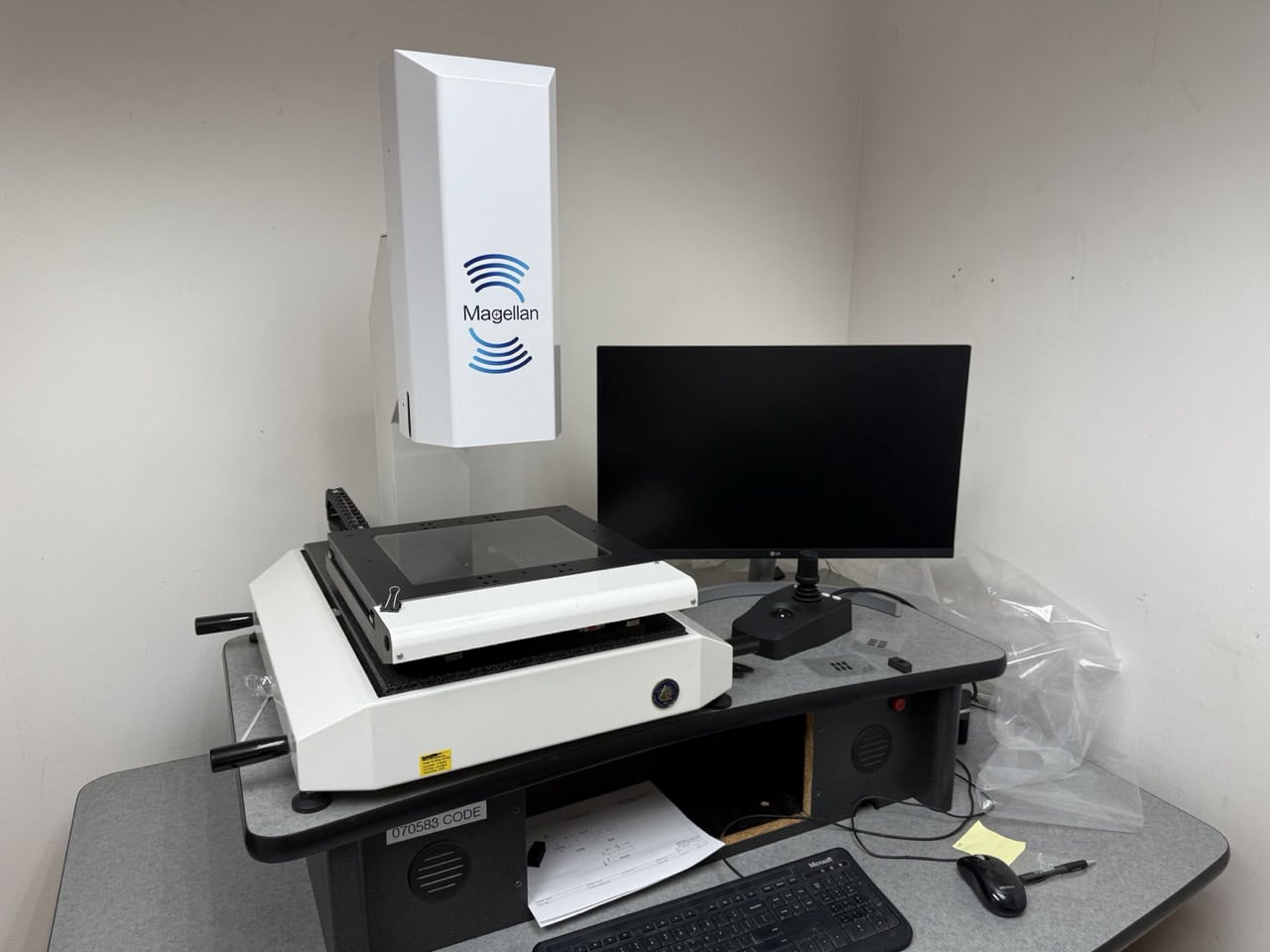

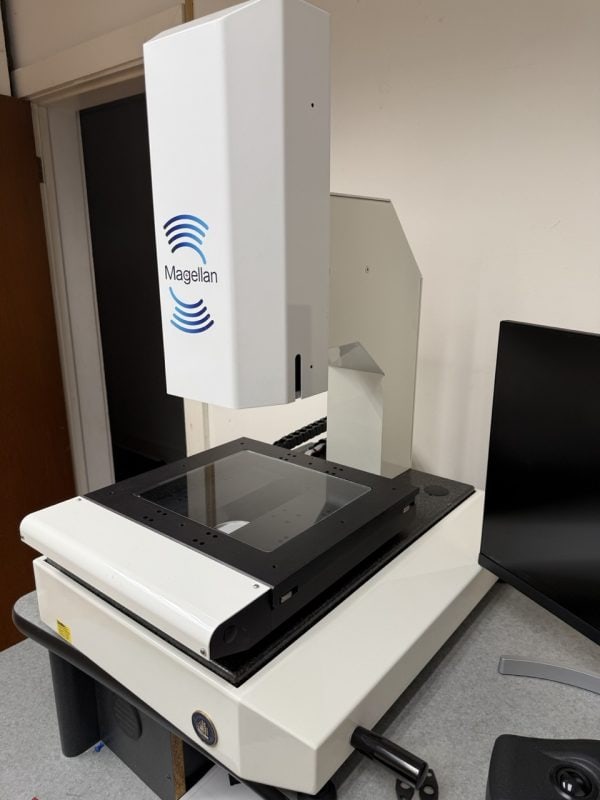

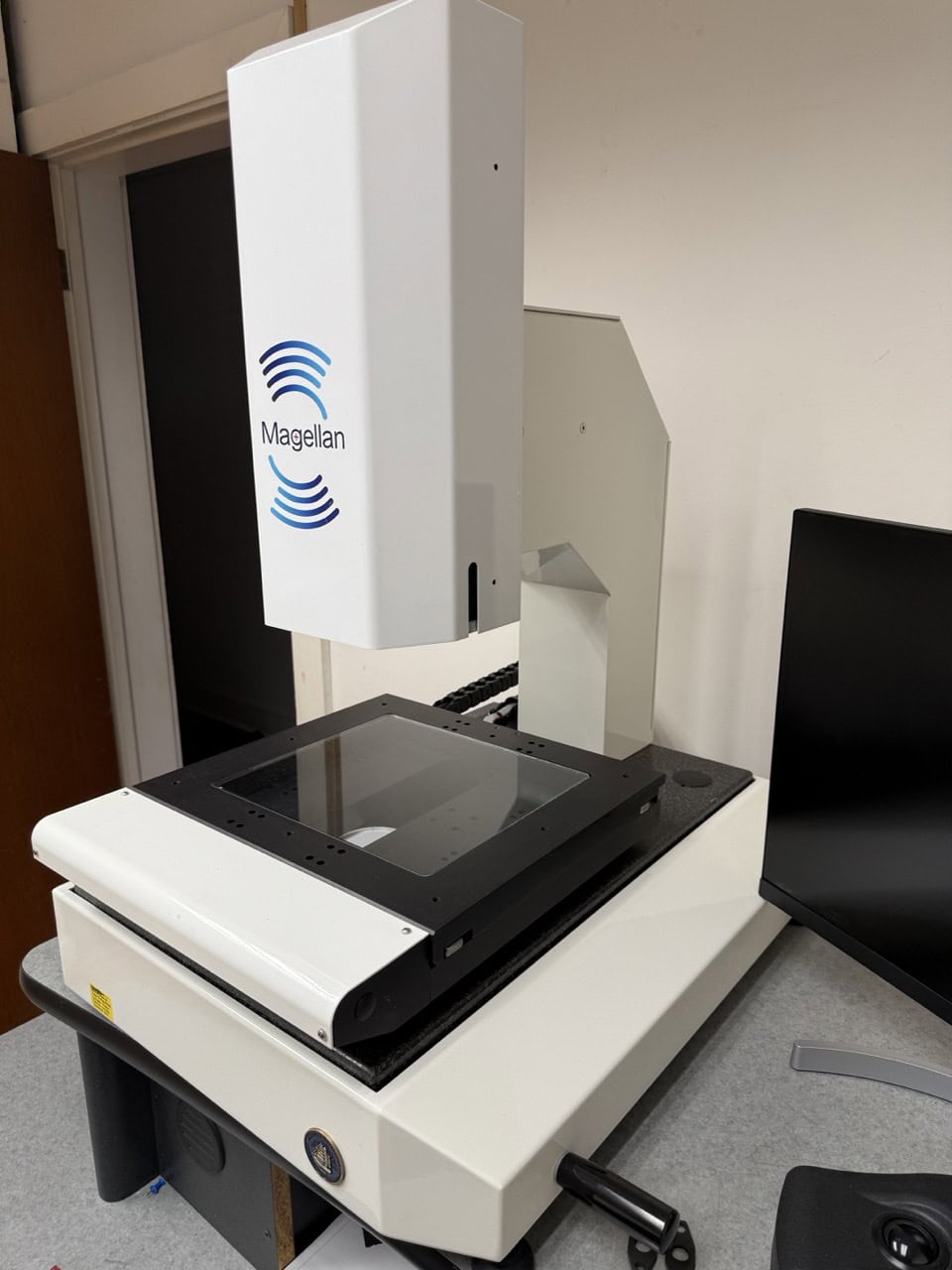

Magellan V200 CNC Visual Measuring System, 2023

FOV (field of view) video measuring machine

Measuring Range:
X-axis: 8″
Y-axis: 6″
Z-axis: 8″
Machine Base: Bench Top Granite.
Measuring Stage: Precision Mono-Rail Bearing.
Control: CNC
Technical Specifications
Resolution: .0005mm/.00002”
XY Accuracy: (3+L/100) micrometers
Max Stage Load: 60 lbs
0x to 160x Par Central Motorized Zoom Lens

Illumination:
-Tele-Centric Profile LED
-Quad Surface Ring Light
-Proprietary VTL Inner Ring Light

Power: 110-240 VAC, 50-60Hz 70w

Metlogix© Measuring Software

X-axis Travel: 8″
Y-axis Travel: 6″
With Heidenain
