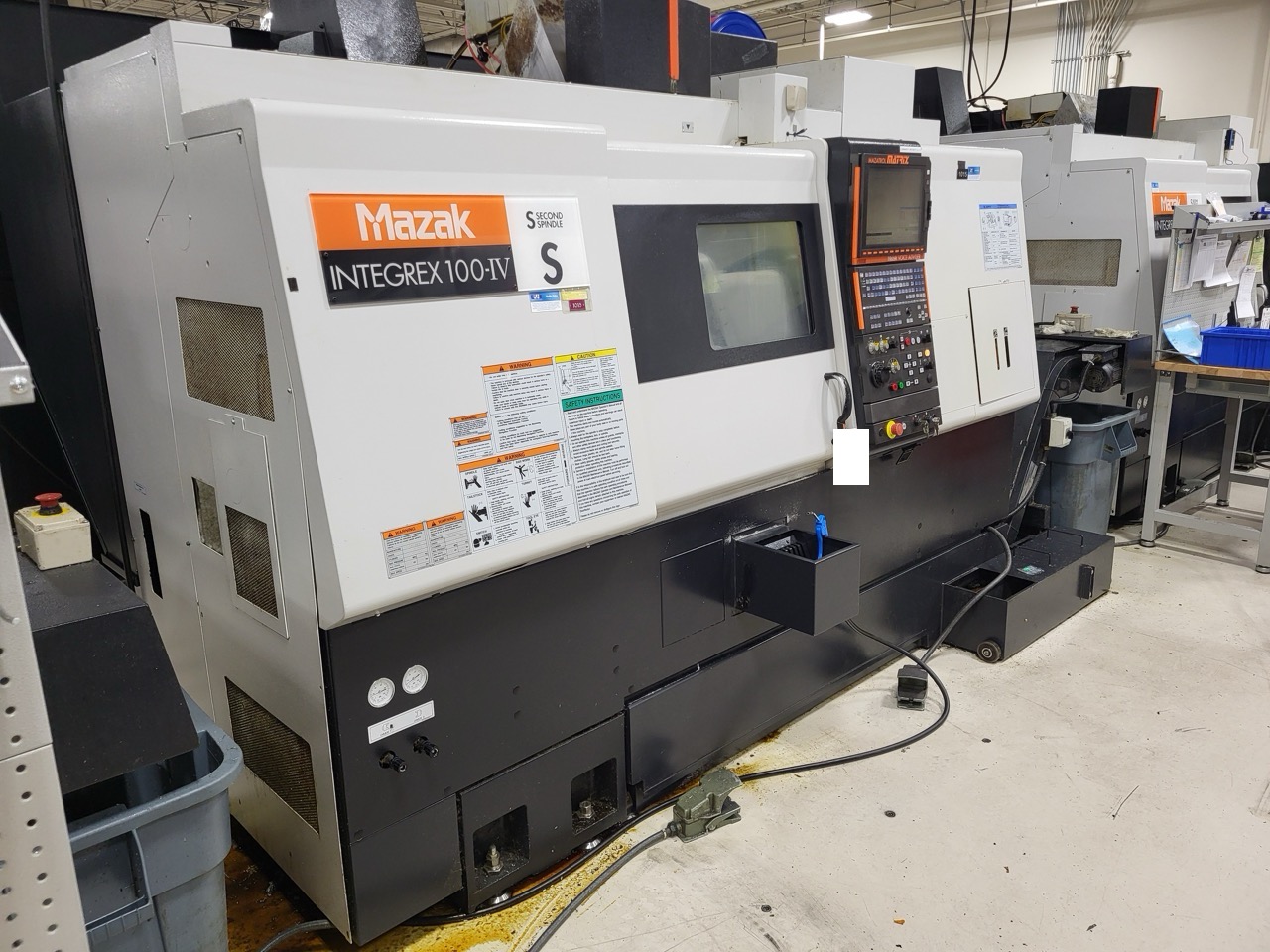

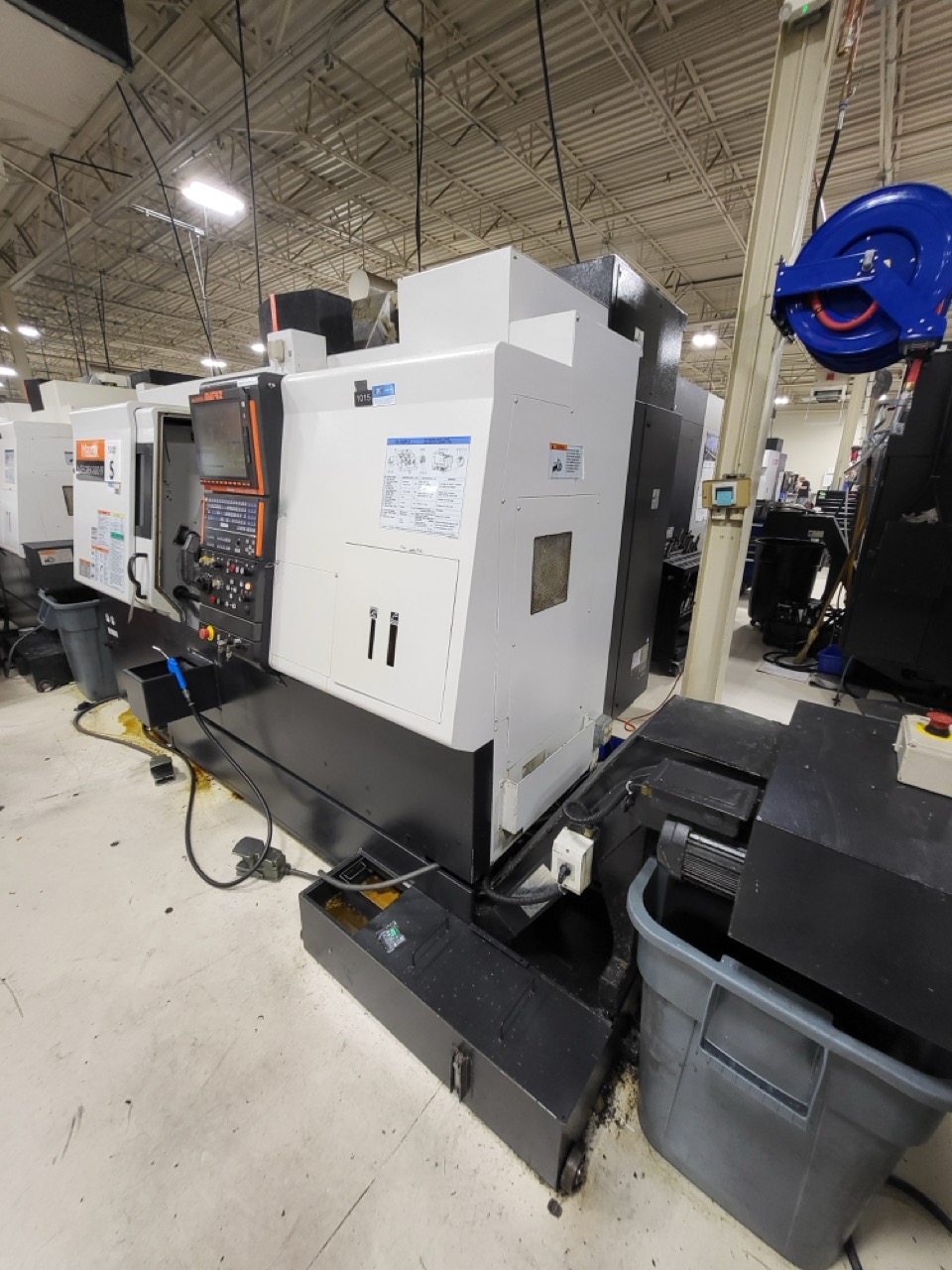

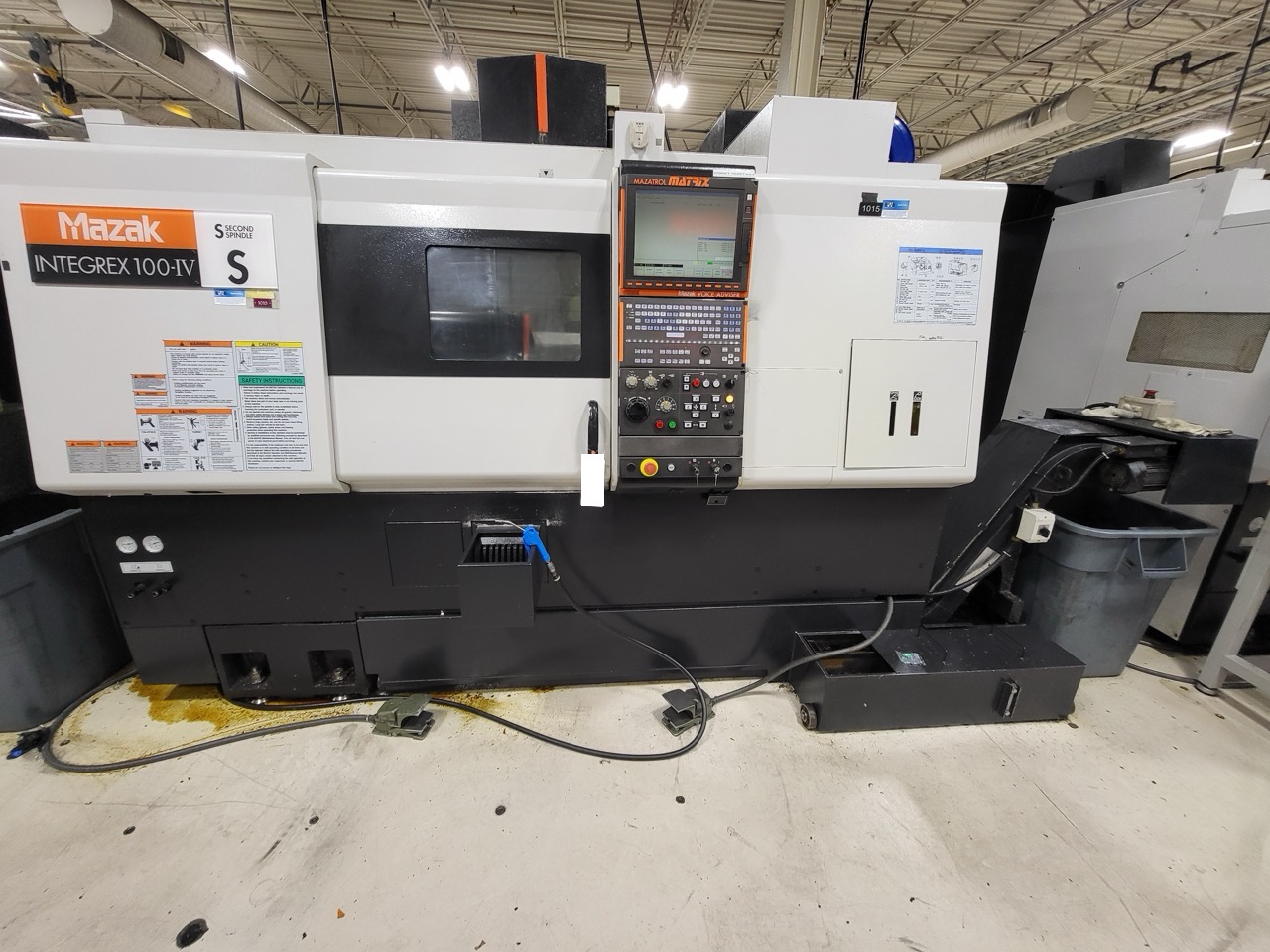

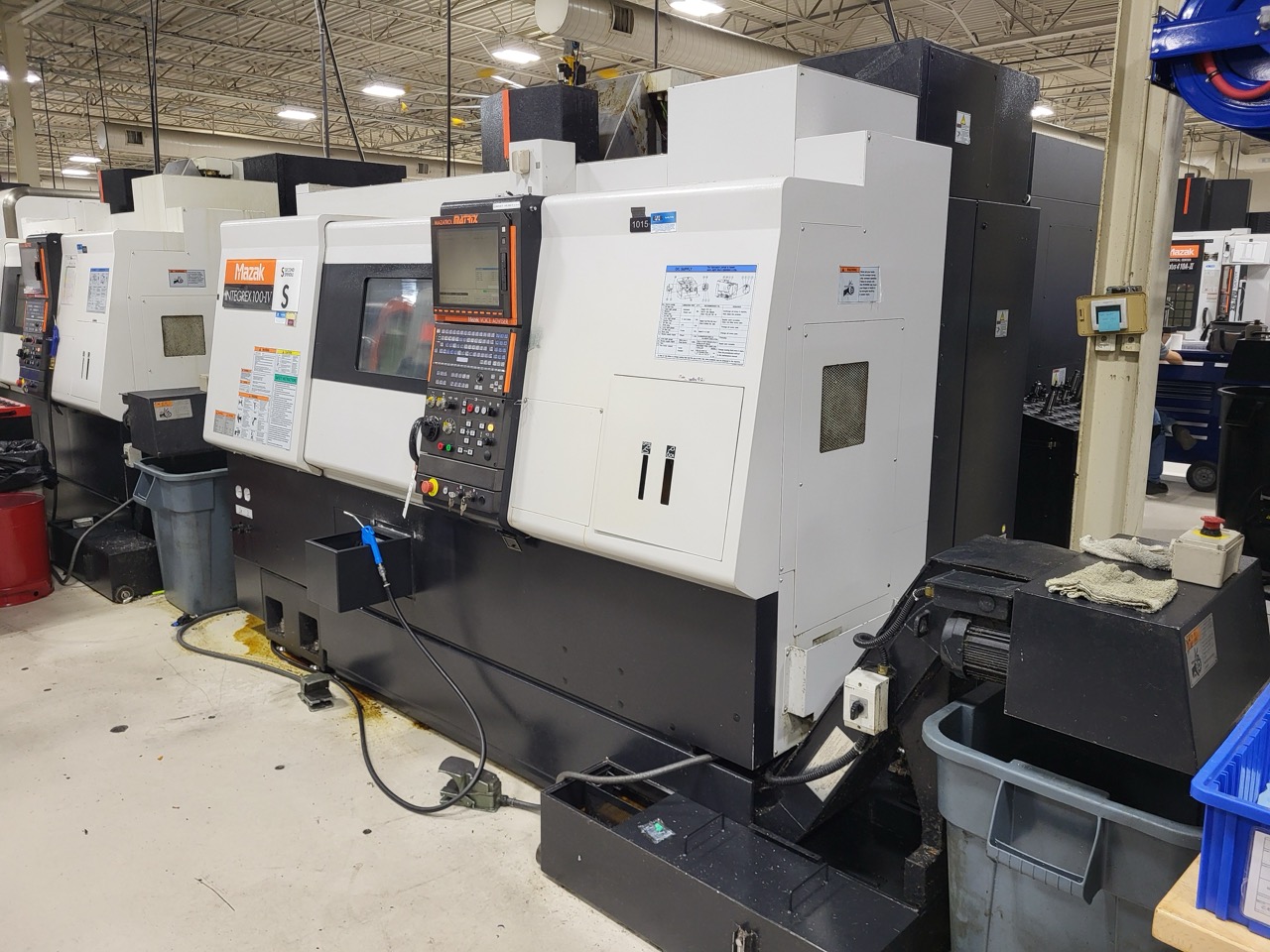

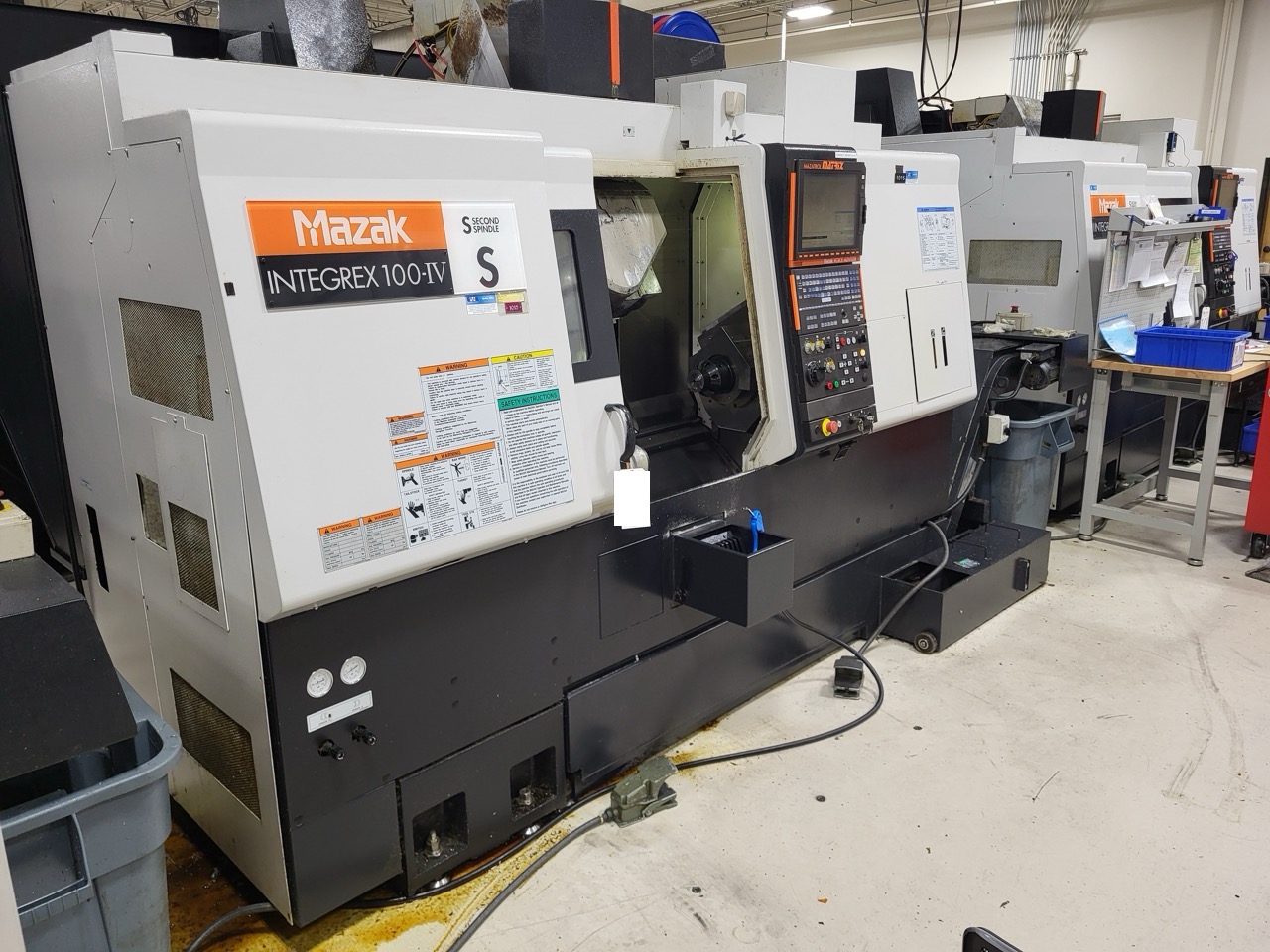

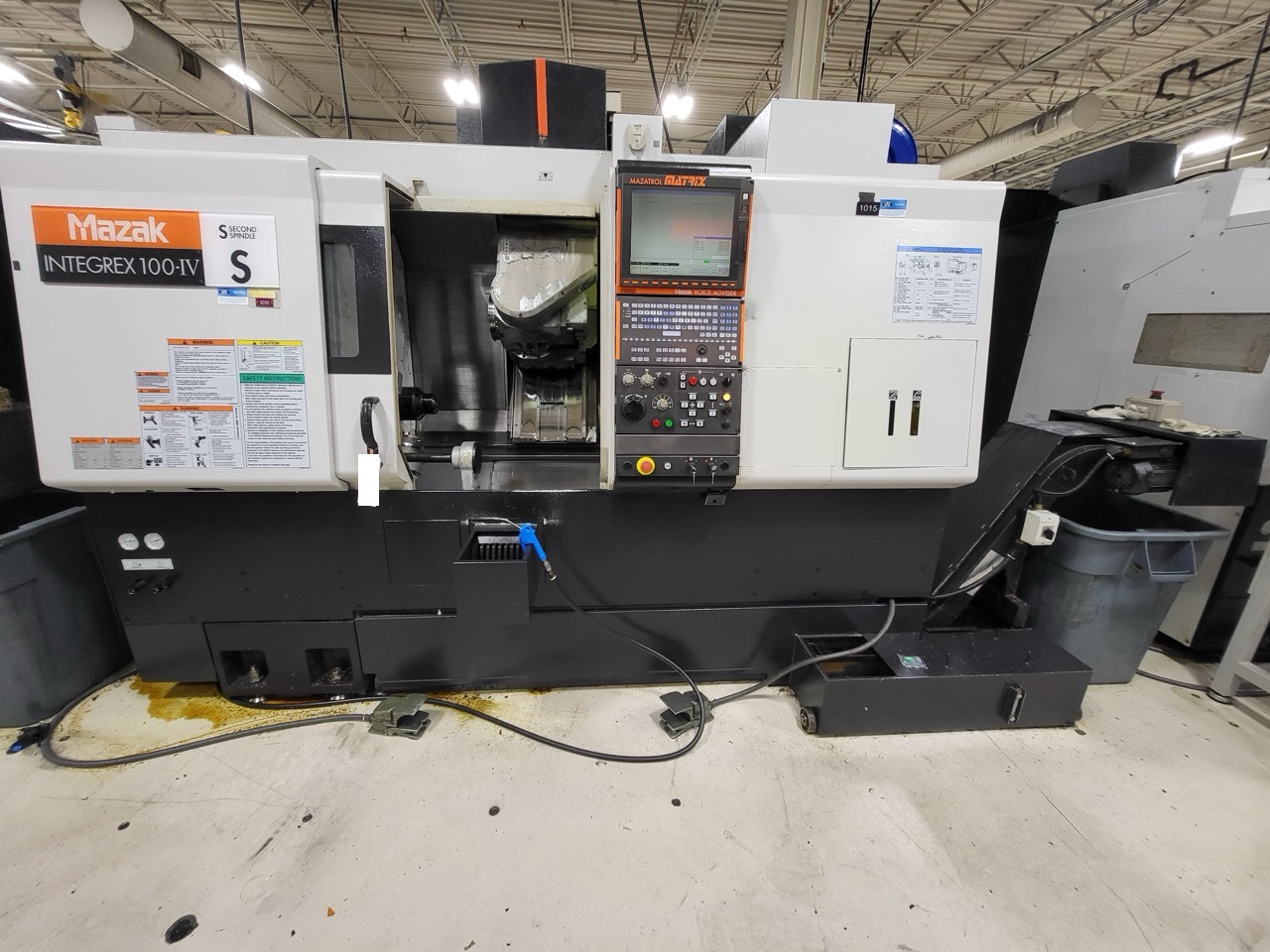

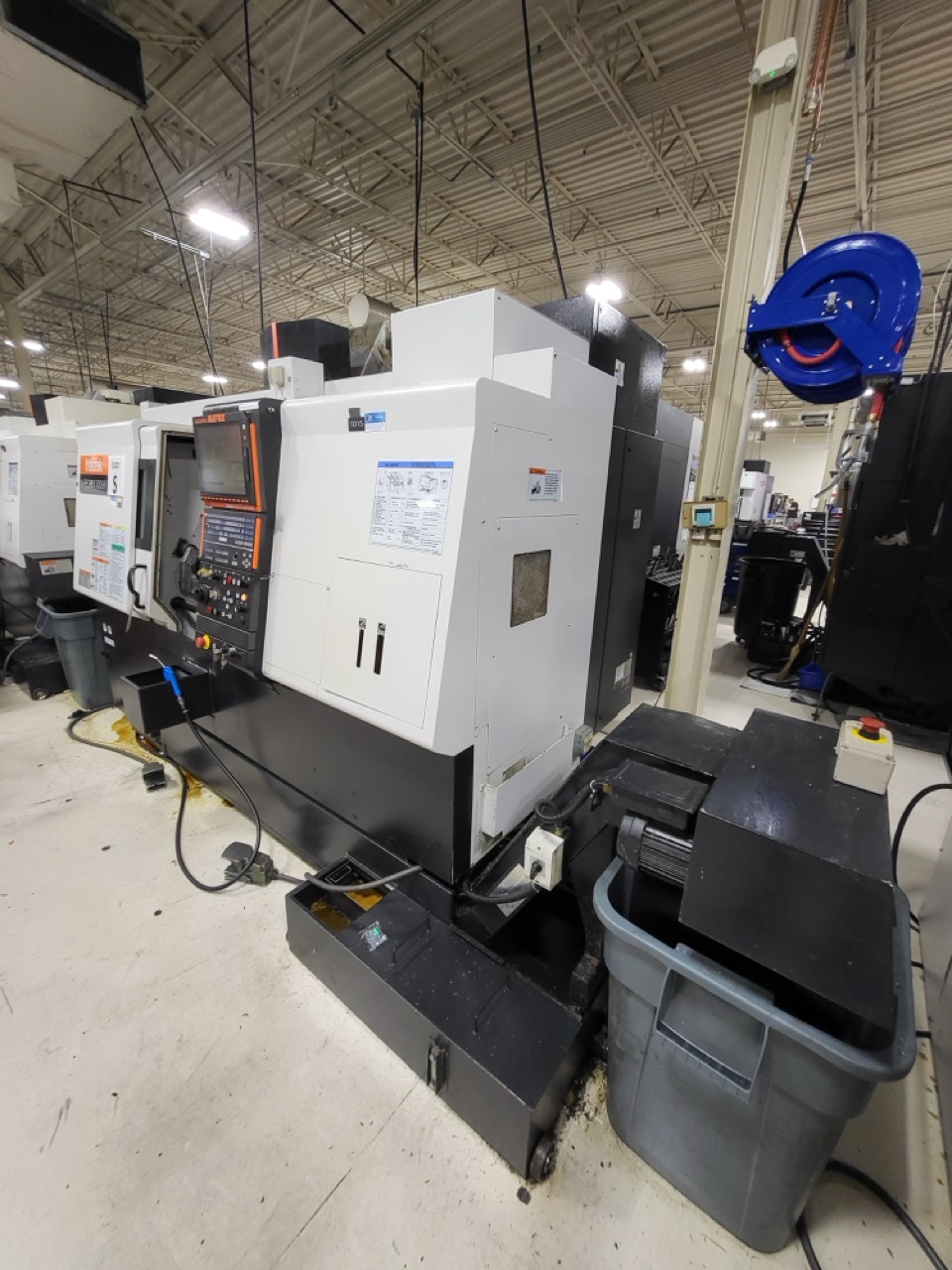

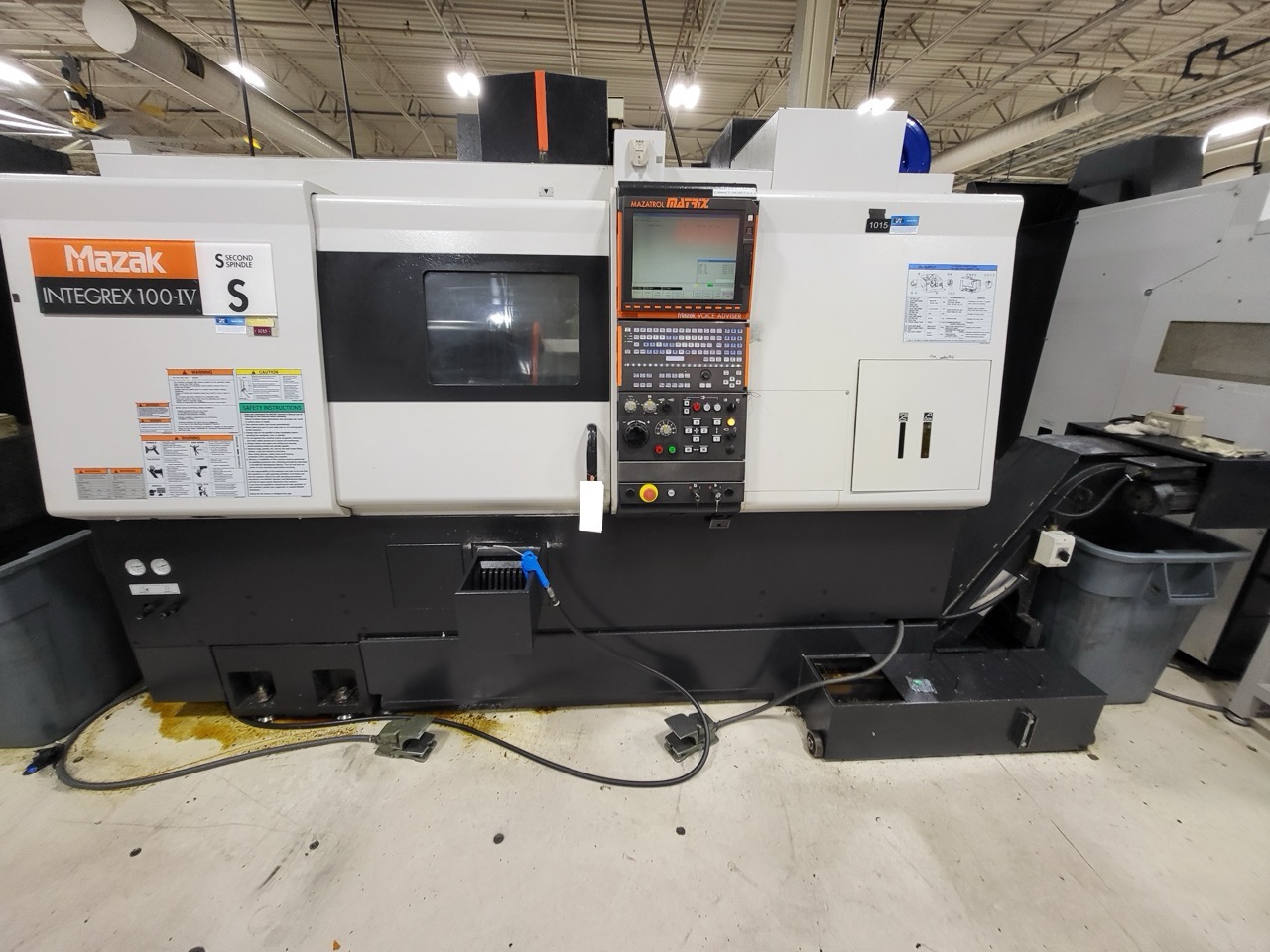

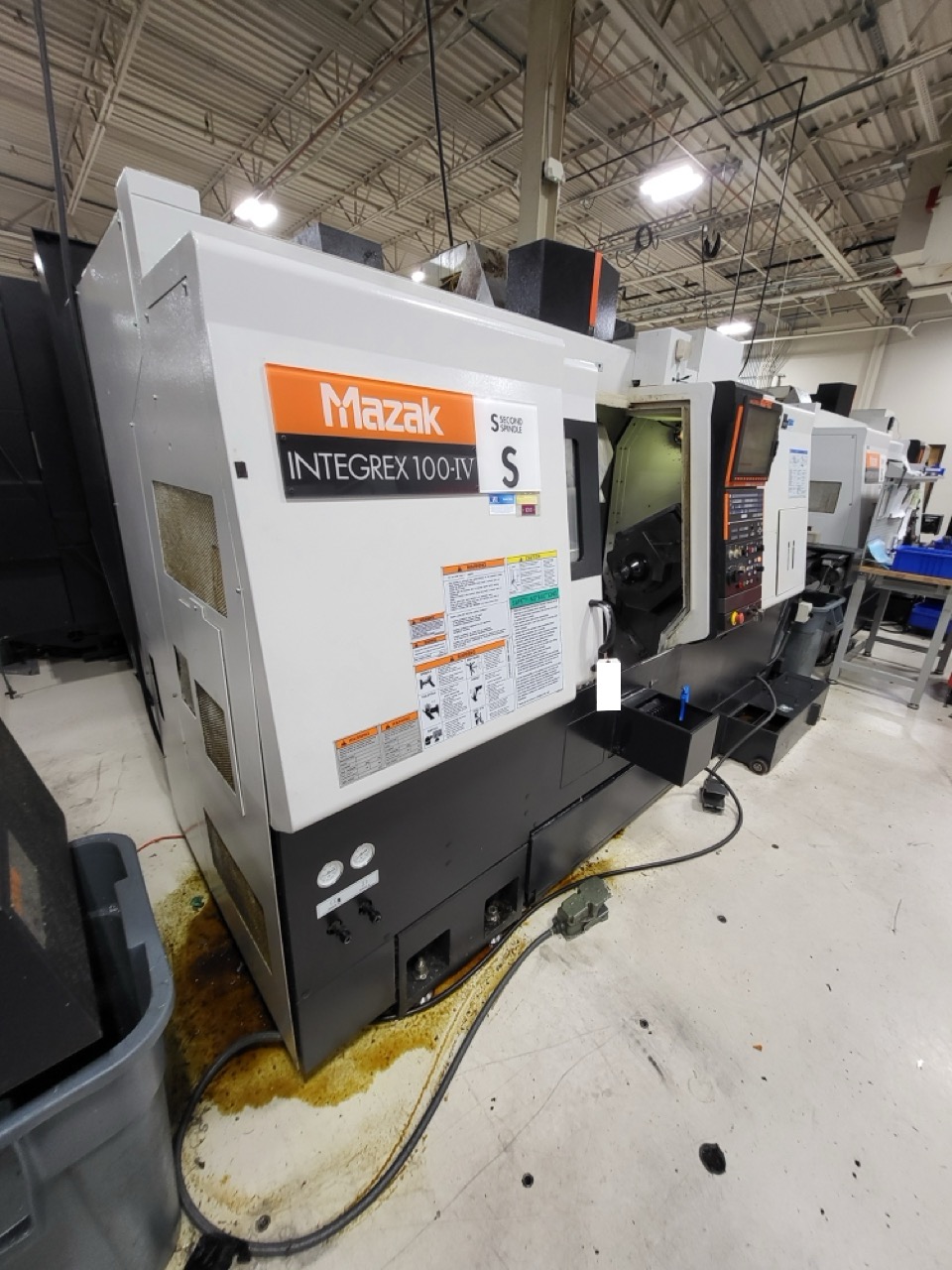

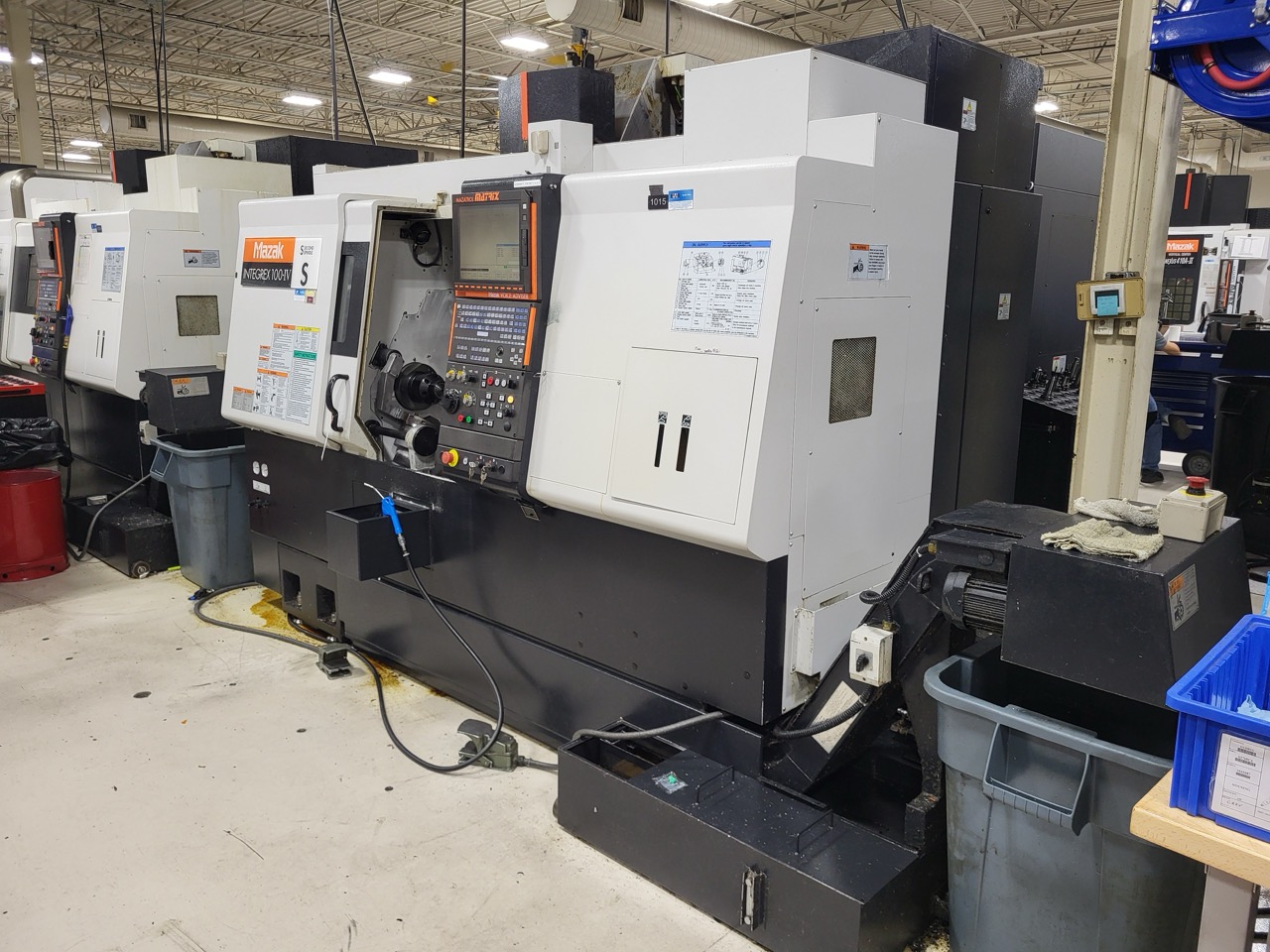

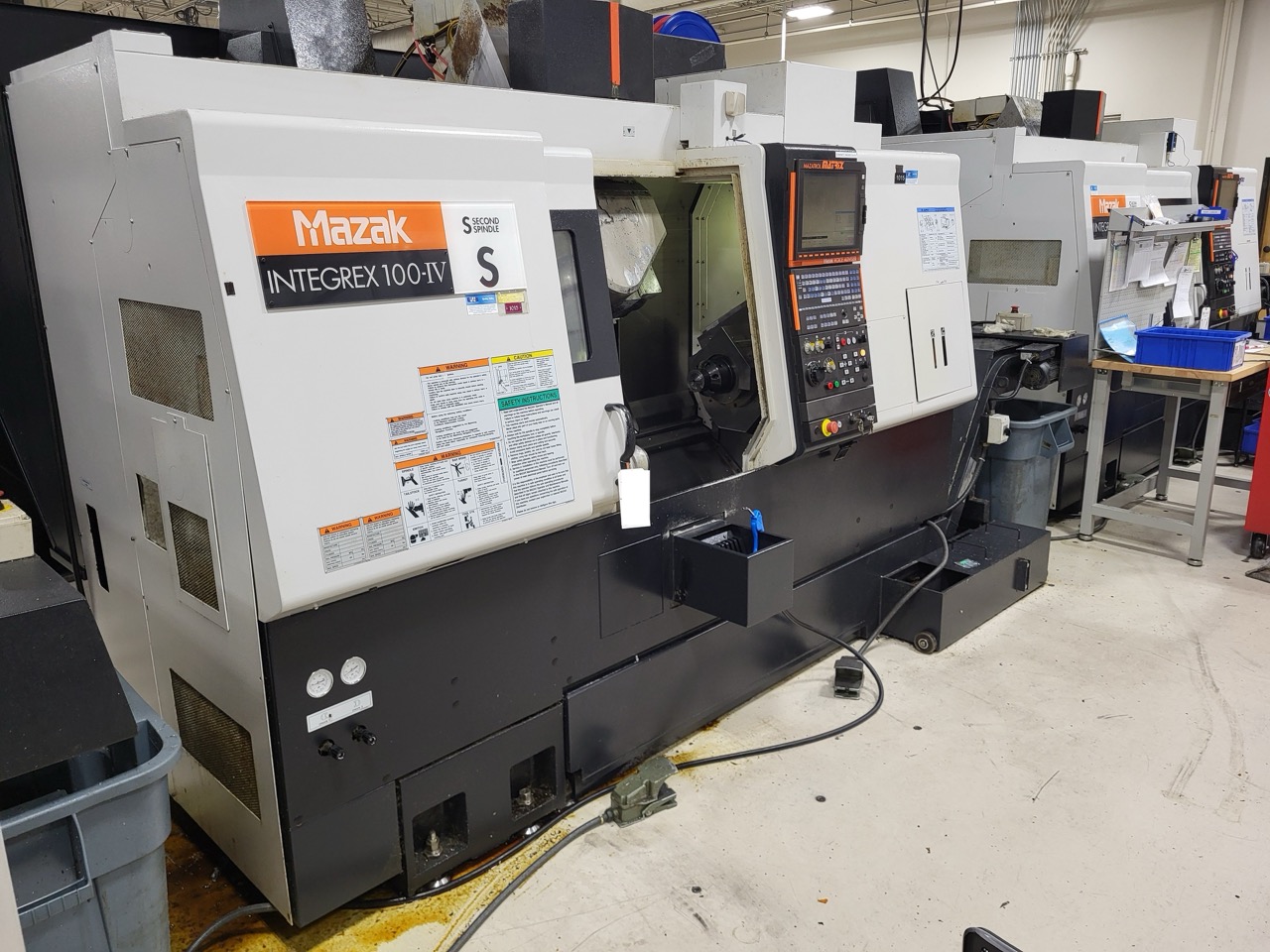

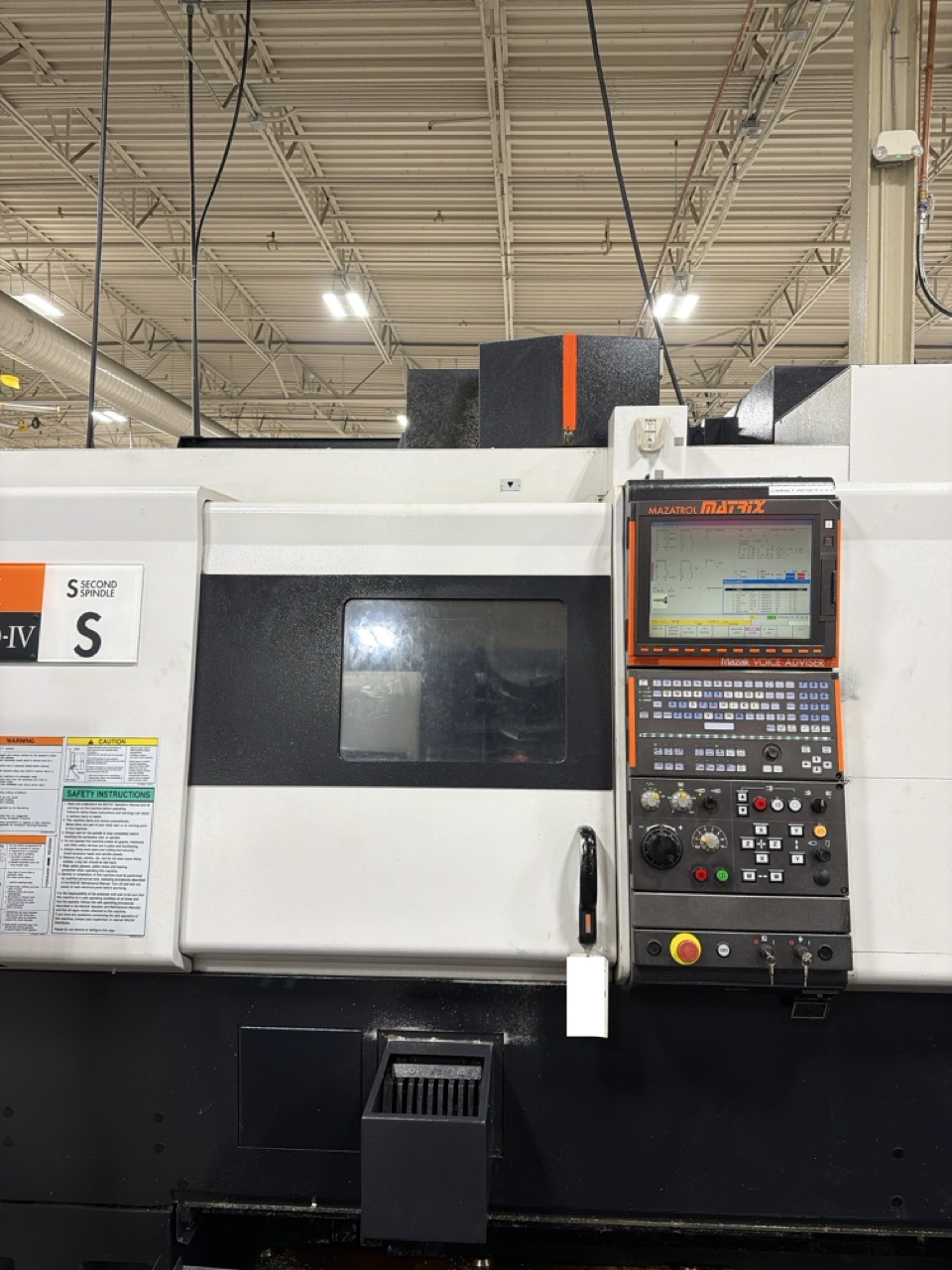

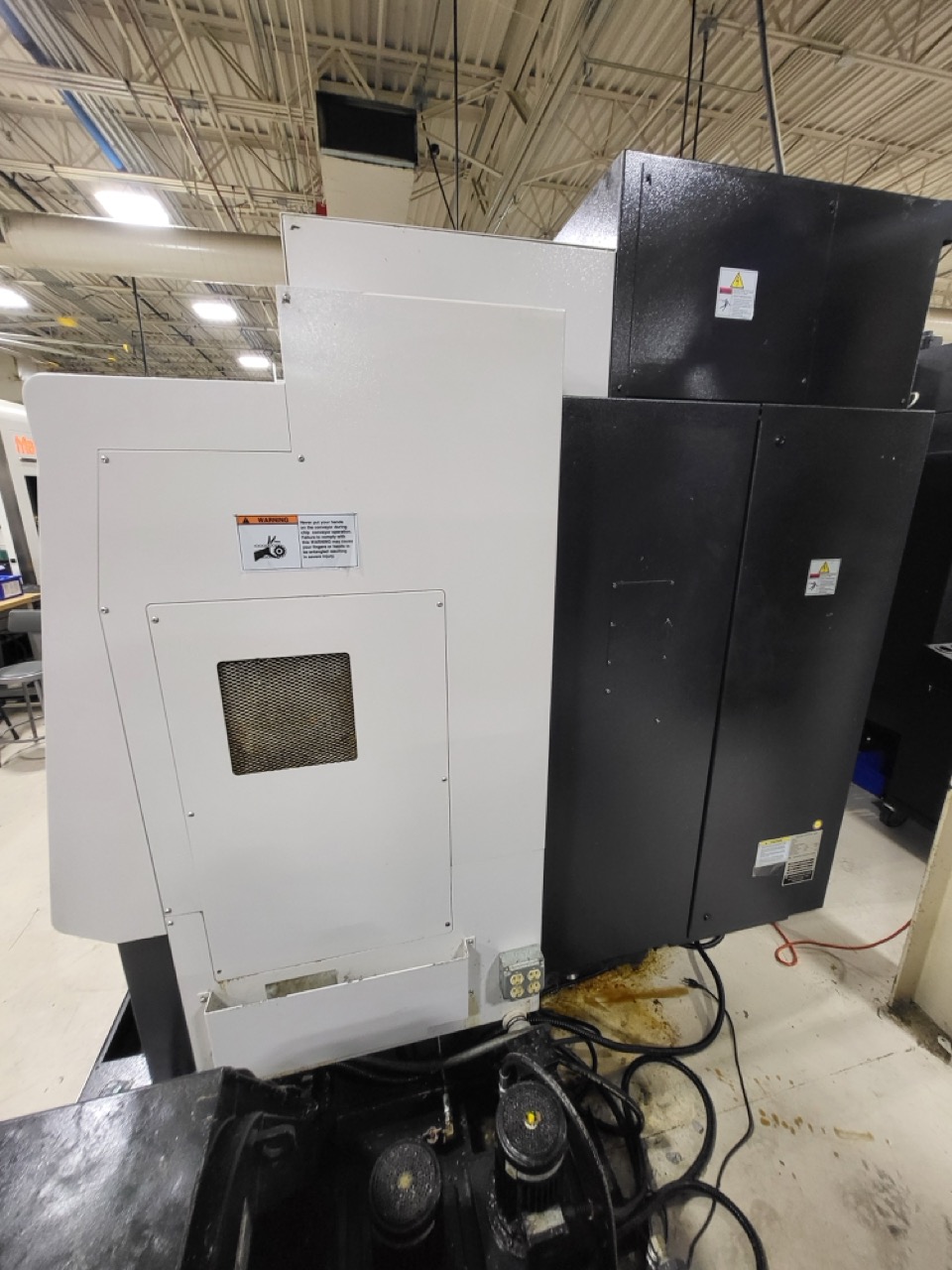

Mazak Integrex 100-4 S Cnc Multi-Tasking Turning Center, 2007

X-Axis: 16.14″
Y-Axis: ±2.76″
Z-Axis: 31.69″
W-Axis (Sub-Spindle): 31.3″
B-Axis (Milling Head): 225° (-30° To +195°)
Main Spindle

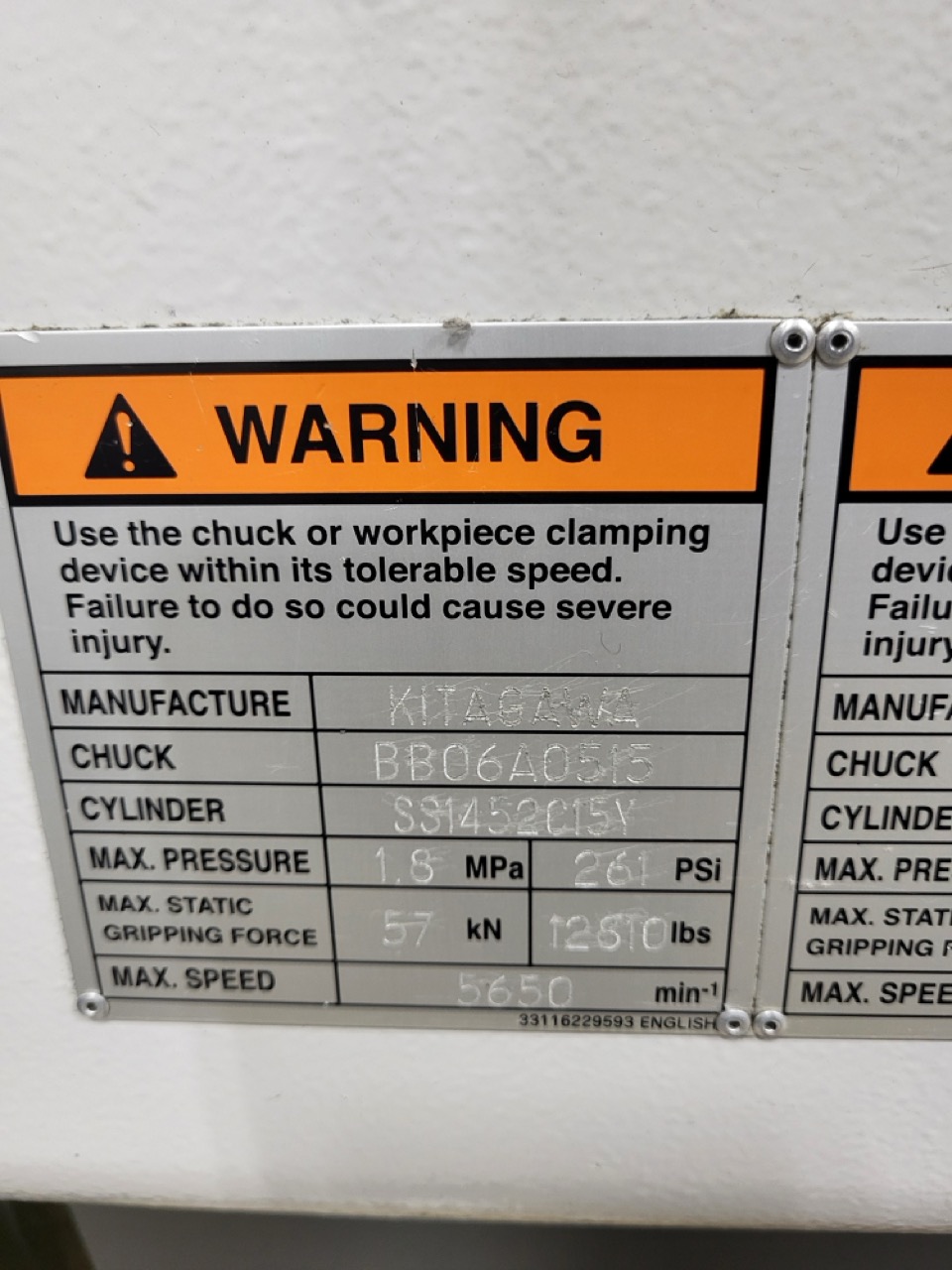

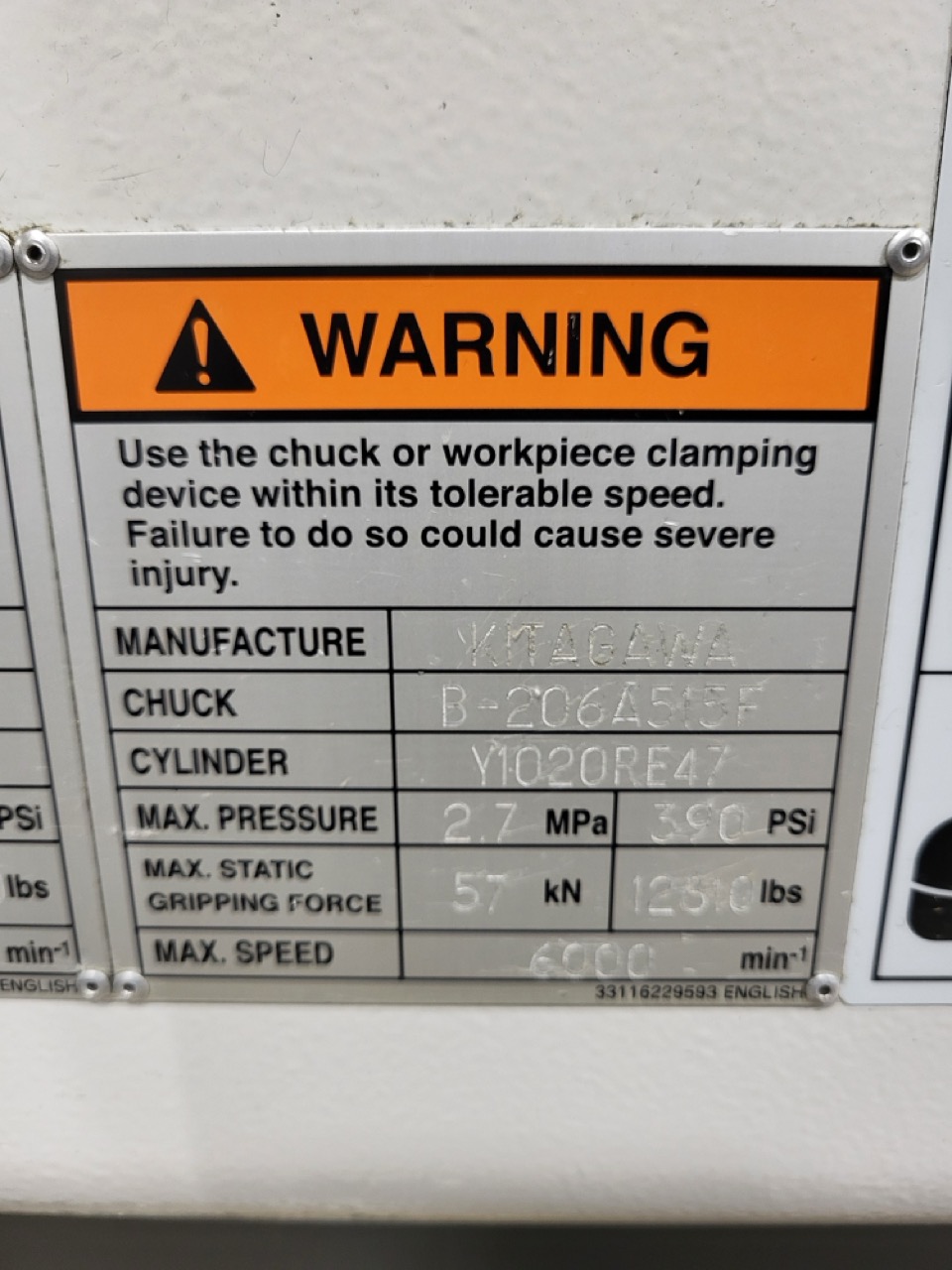

Chuck Size: 6″
Max Speed: 6,000 Rpm
Motor Power: 15 Hp
Bar Capacity: 2.0″
C-Axis Indexing: 0.0001°

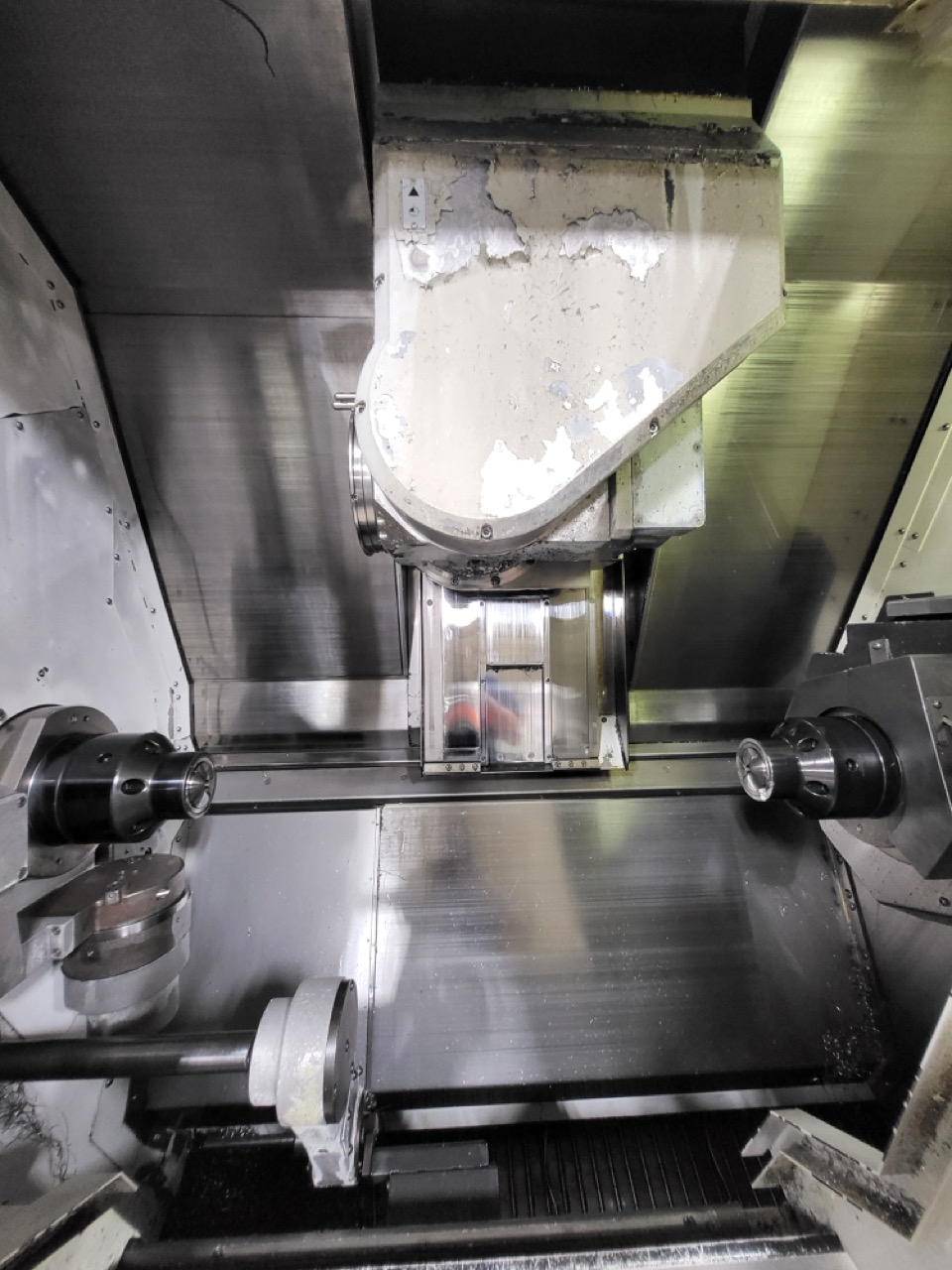

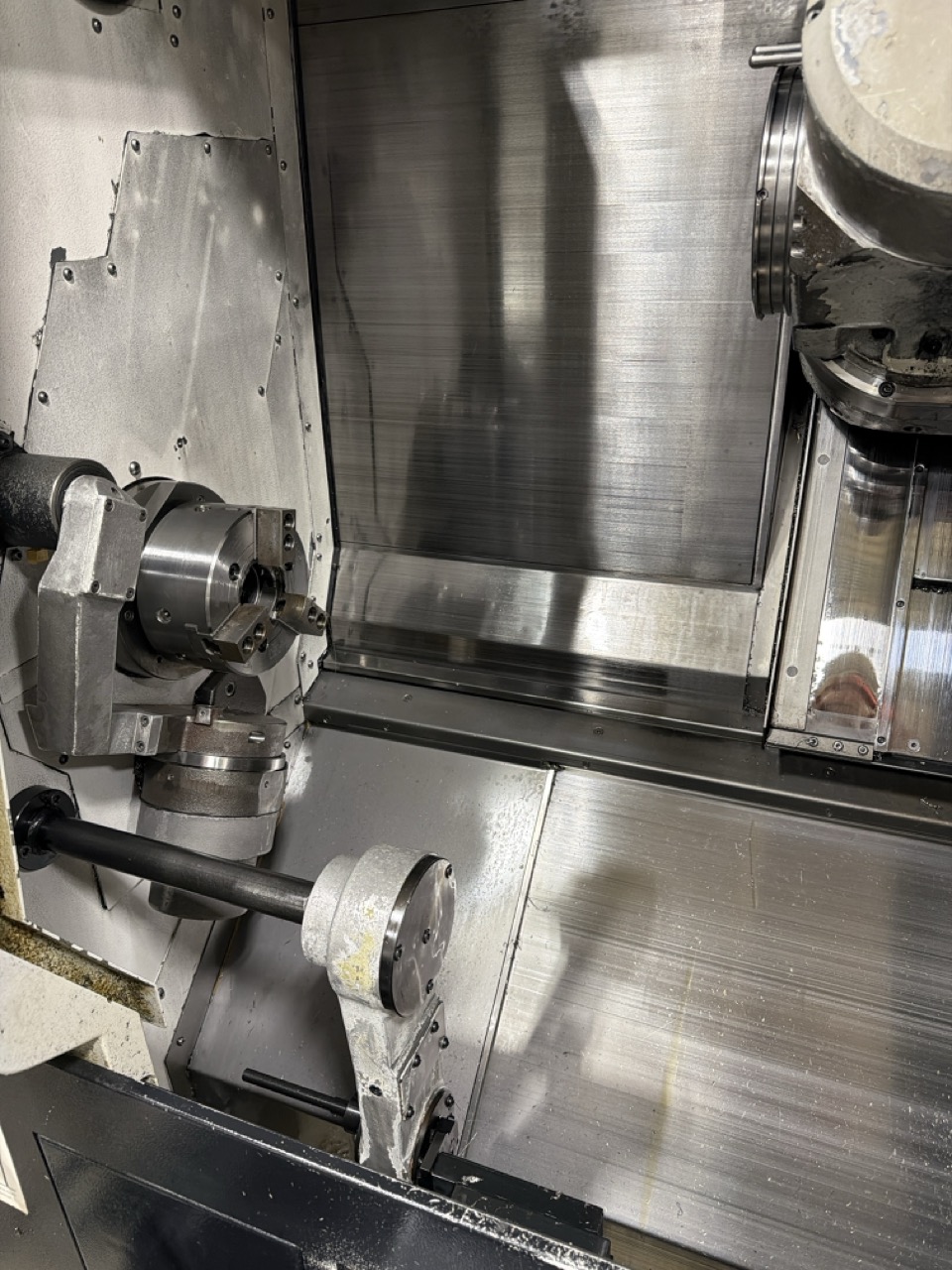

Second (Sub) Spindle
Chuck Size: 6″
Max Speed: 6,000 Rpm
Motor Power: 15 Hp
C-Axis Indexing: 0.0001°

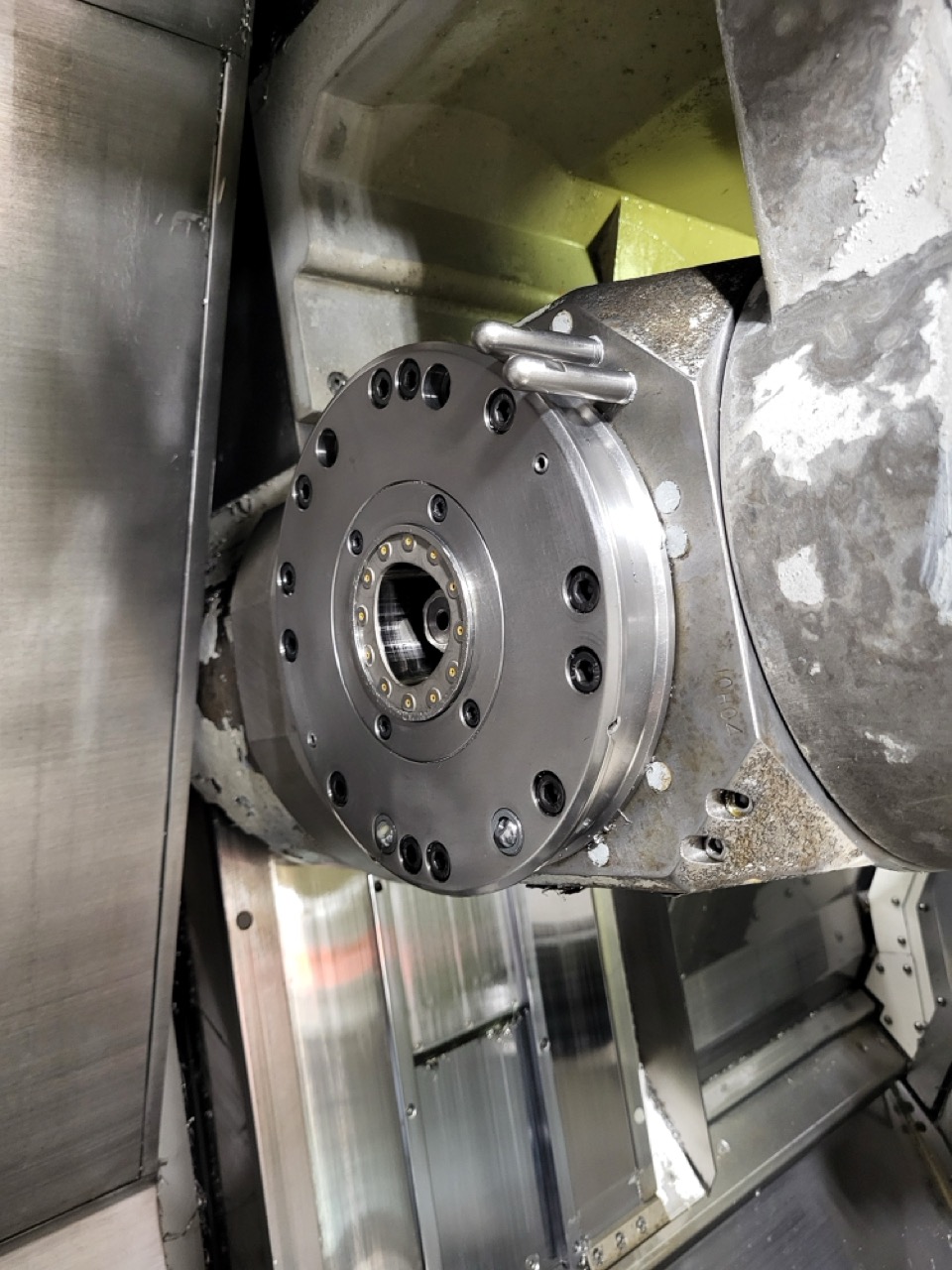

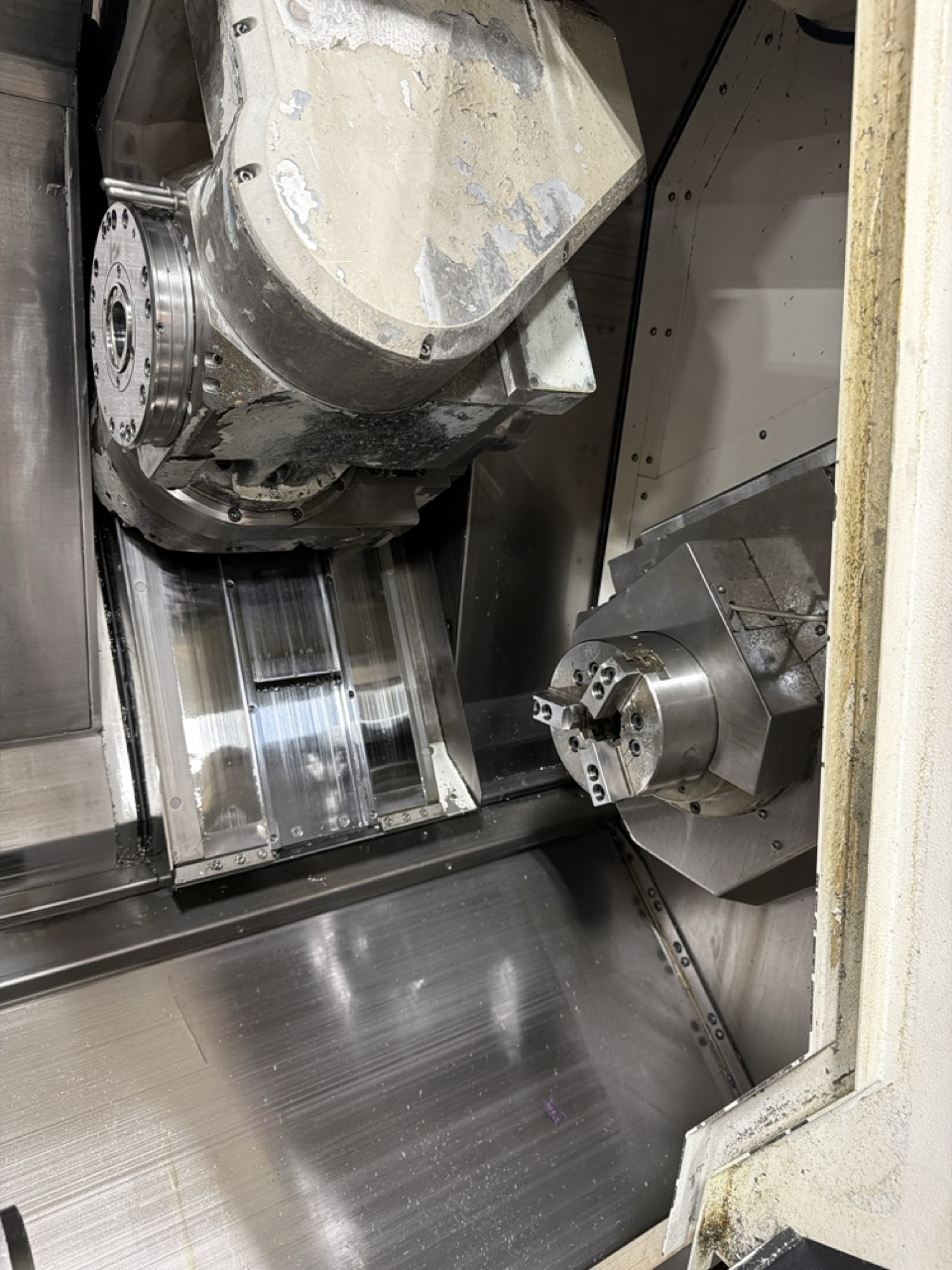

Milling Spindle
Max Speed: 12,000 Rpm
Motor Power: 7.5 Hp
Tool Shank: CAPTO C6
Tool Storage: 40 Tools
Machining Capacity
Max Machining Diameter: 21.46″
Max Machining Length: 29.7″
Physical Dimensions
Machine Weight: 15,400 Lbs
Footprint: Approx. 92.5″ X 80.7″

Equipped with:

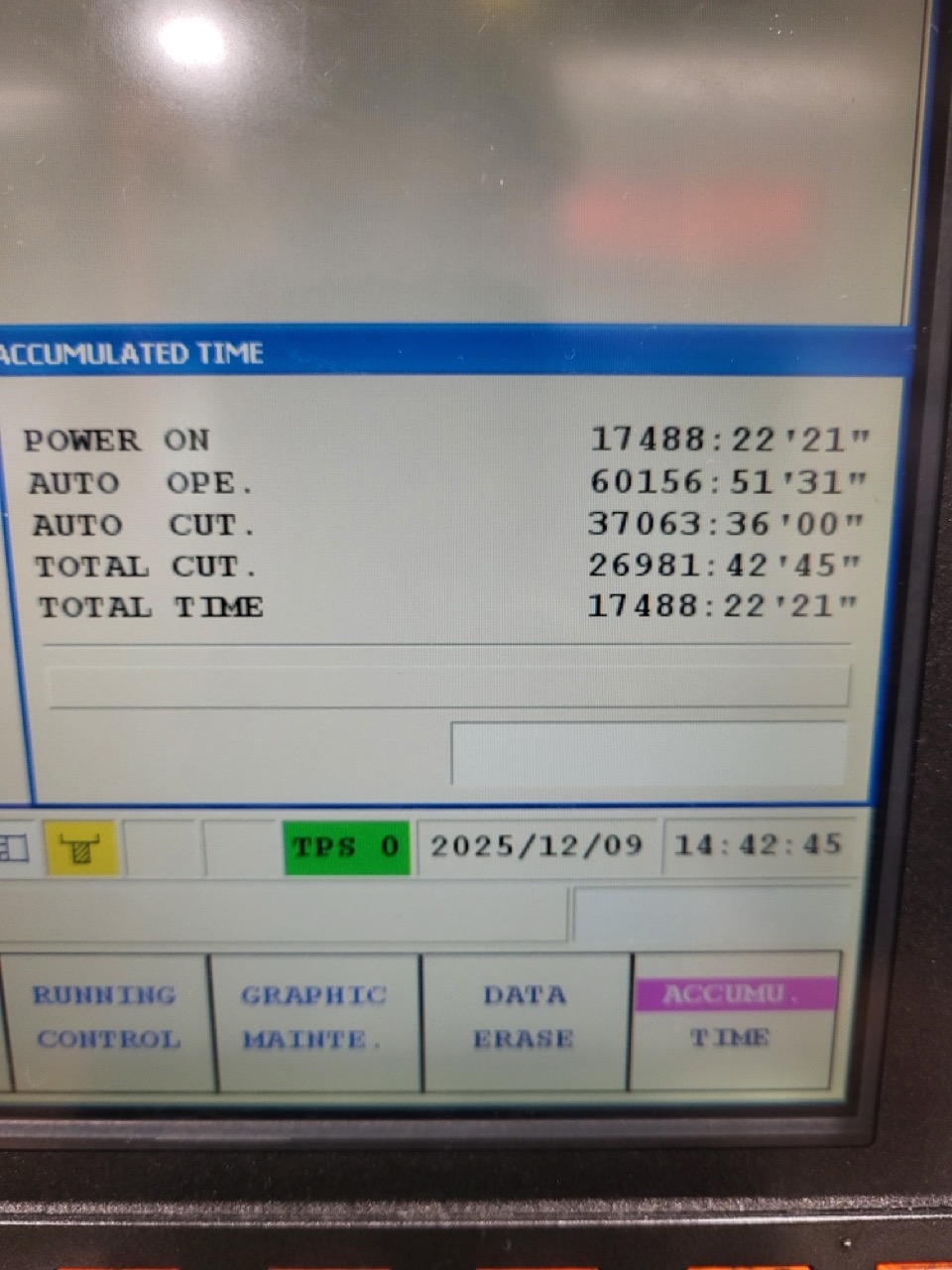

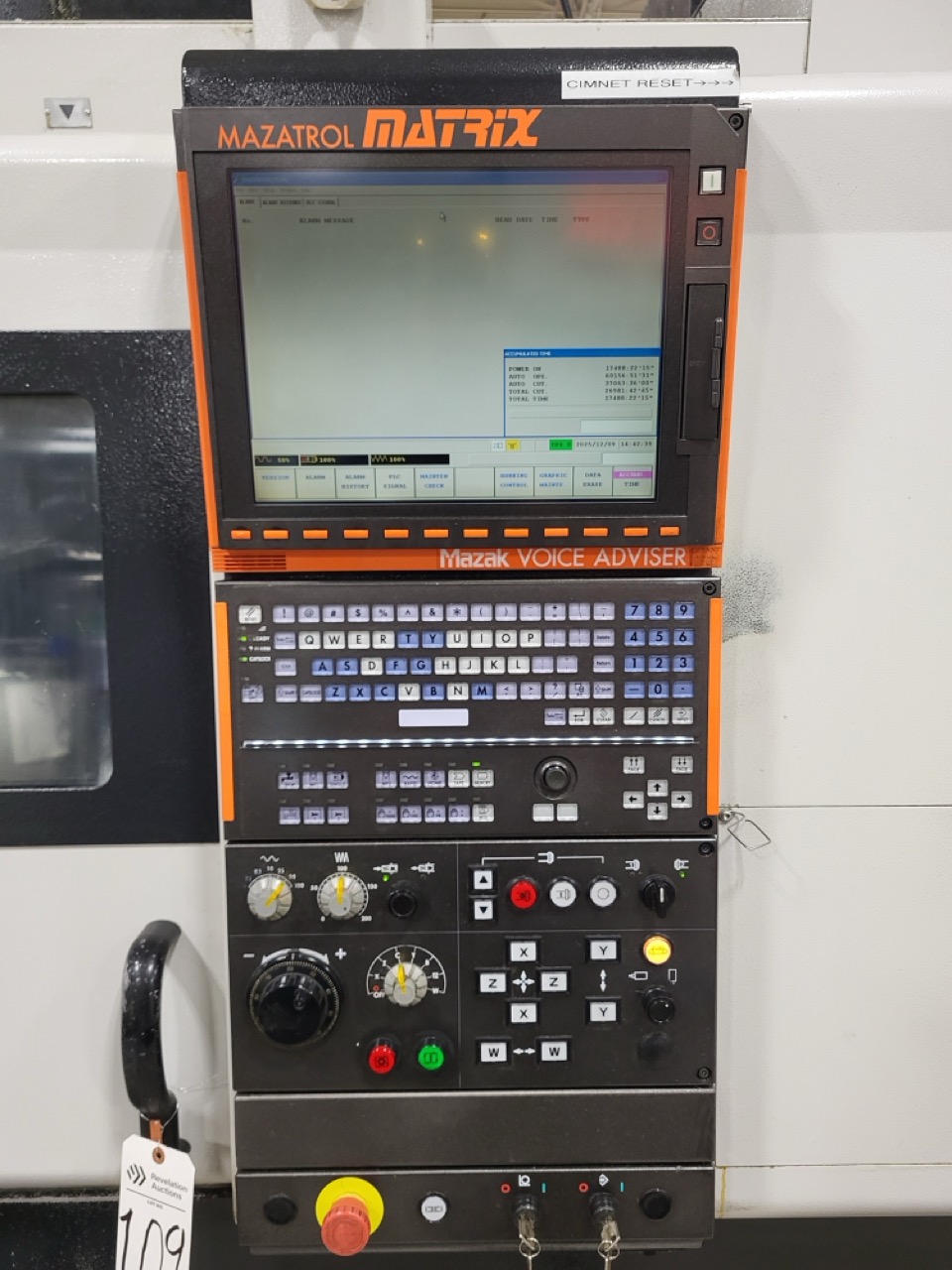

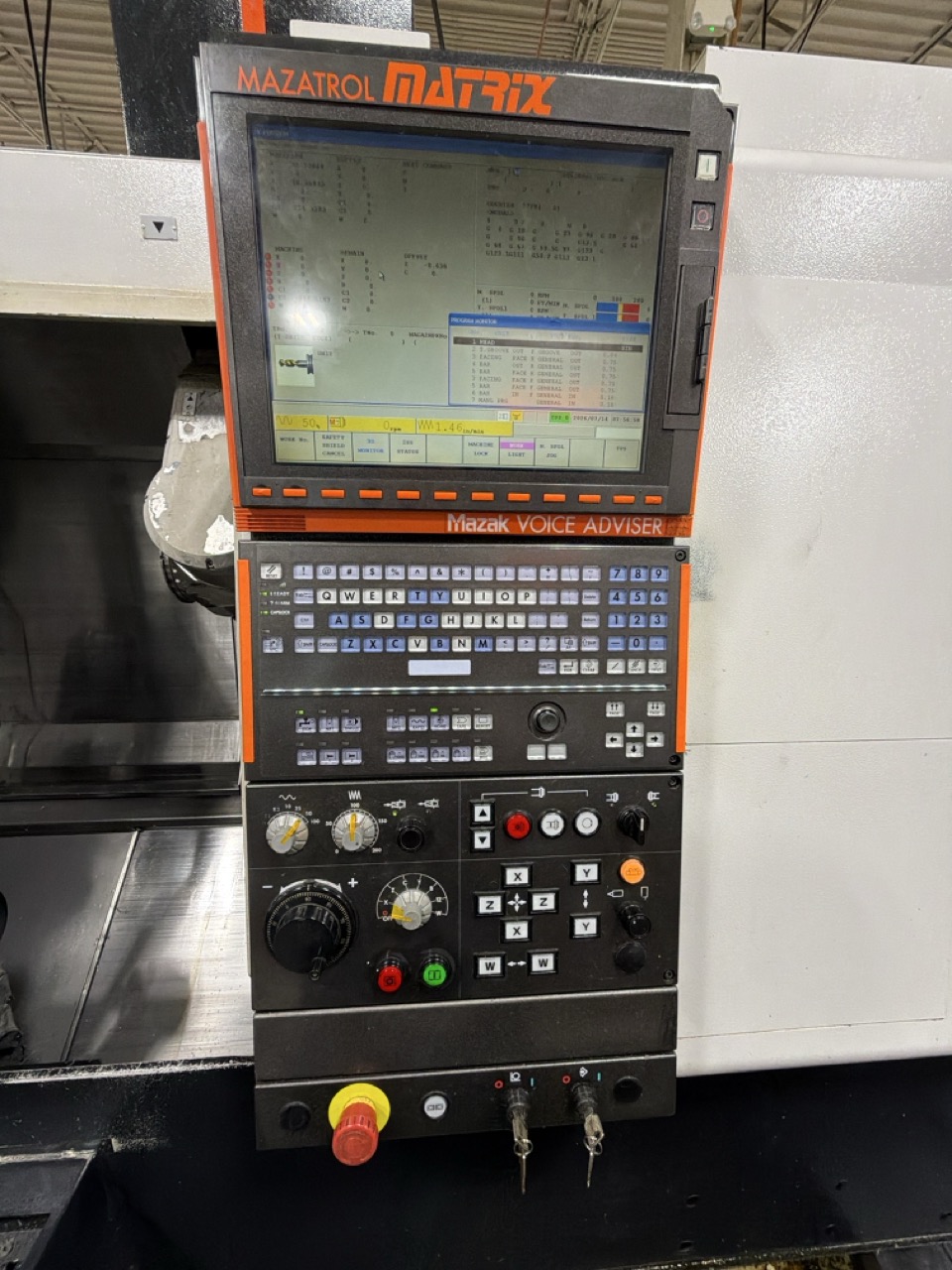

Mazatrol Matrix CNC Control

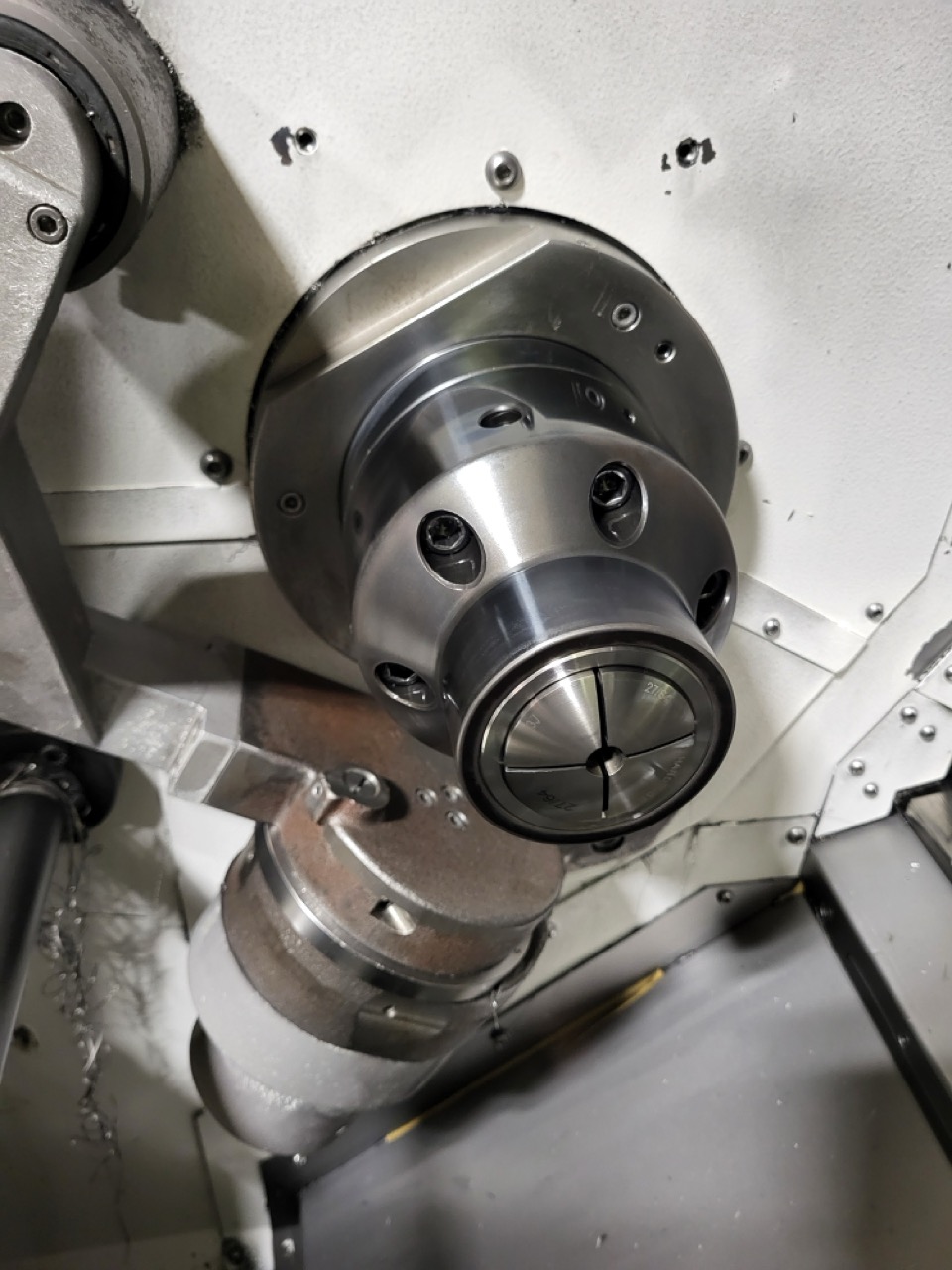

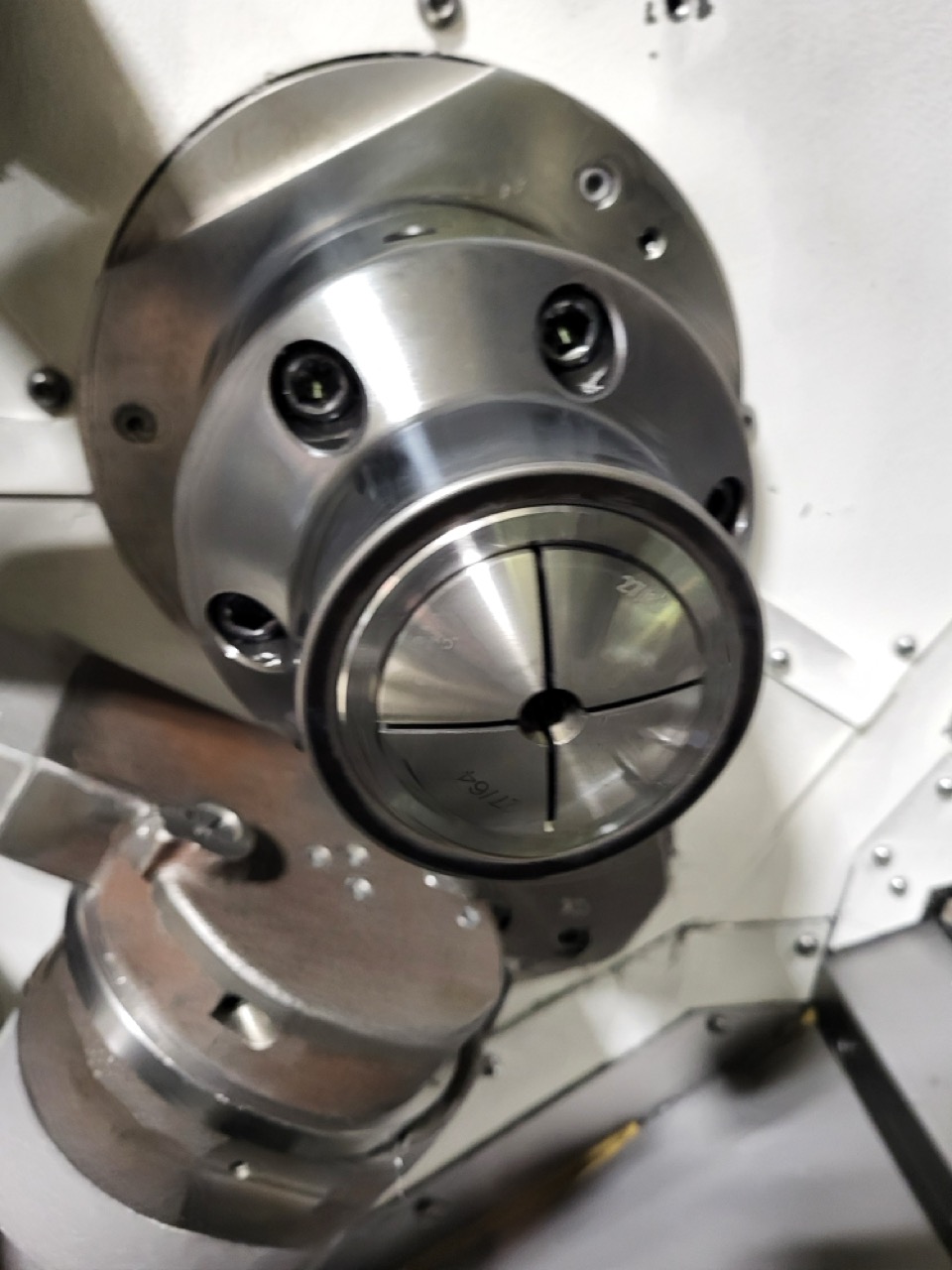

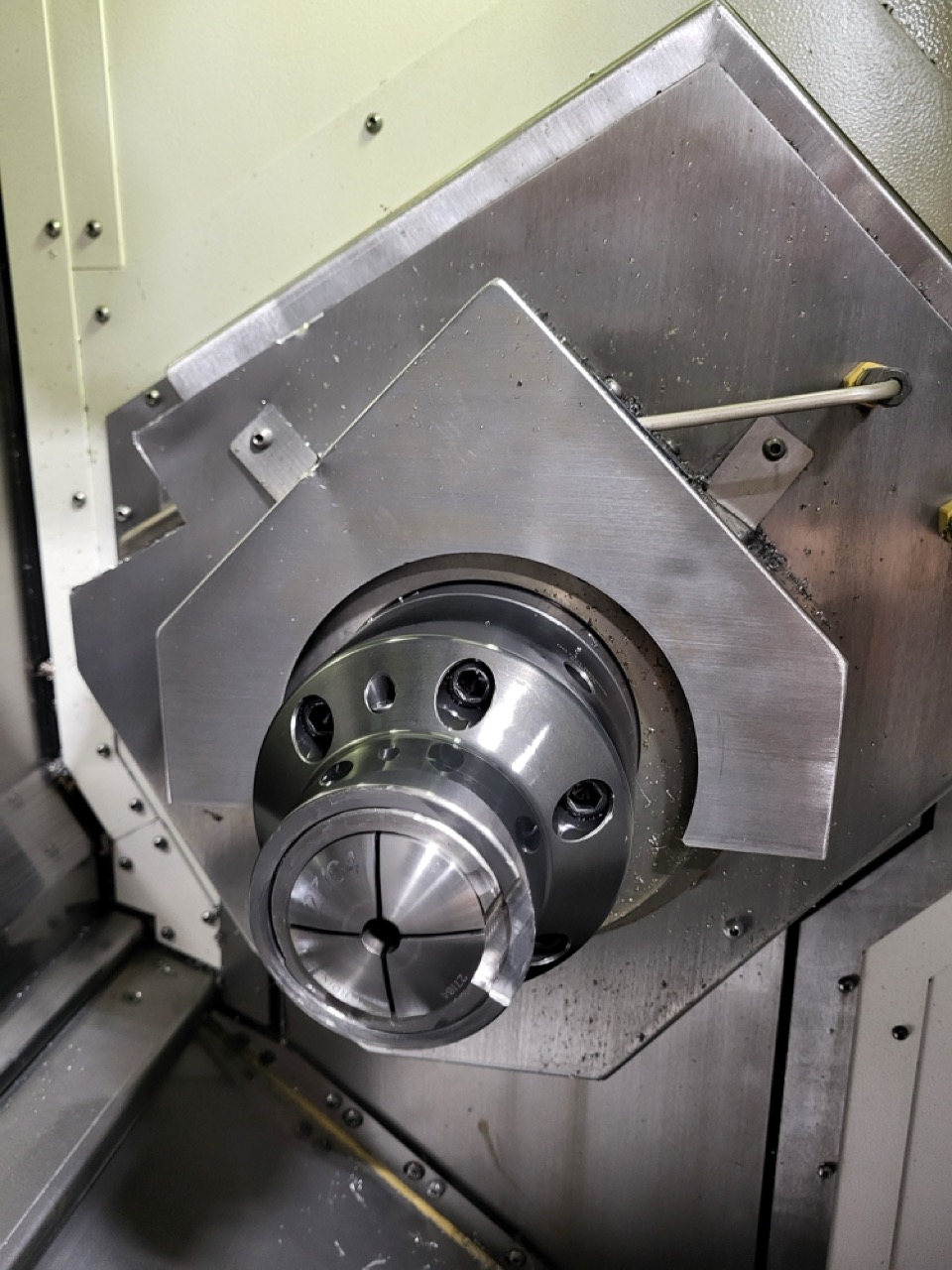

Collet Chucks

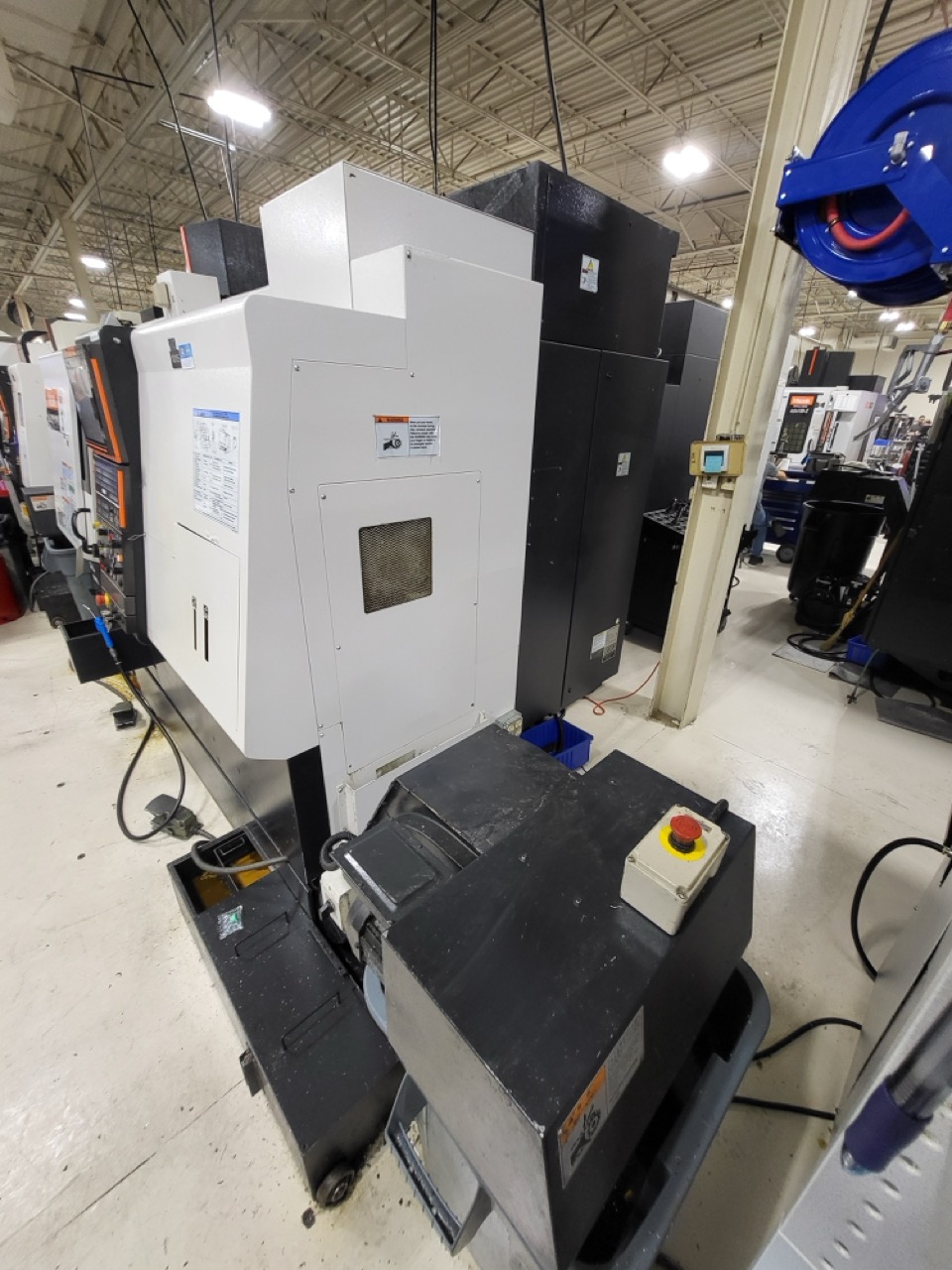

Chip Conveyor
