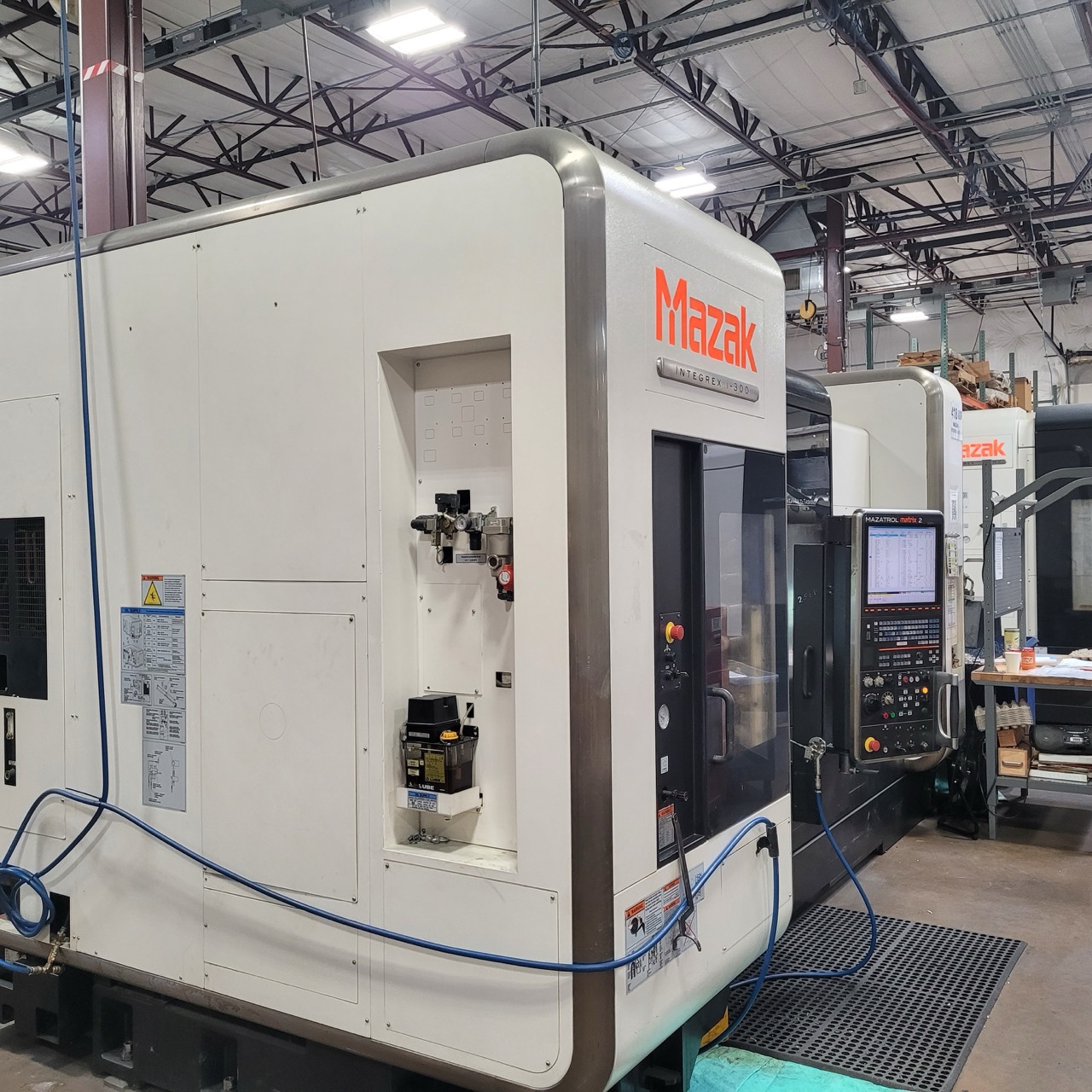

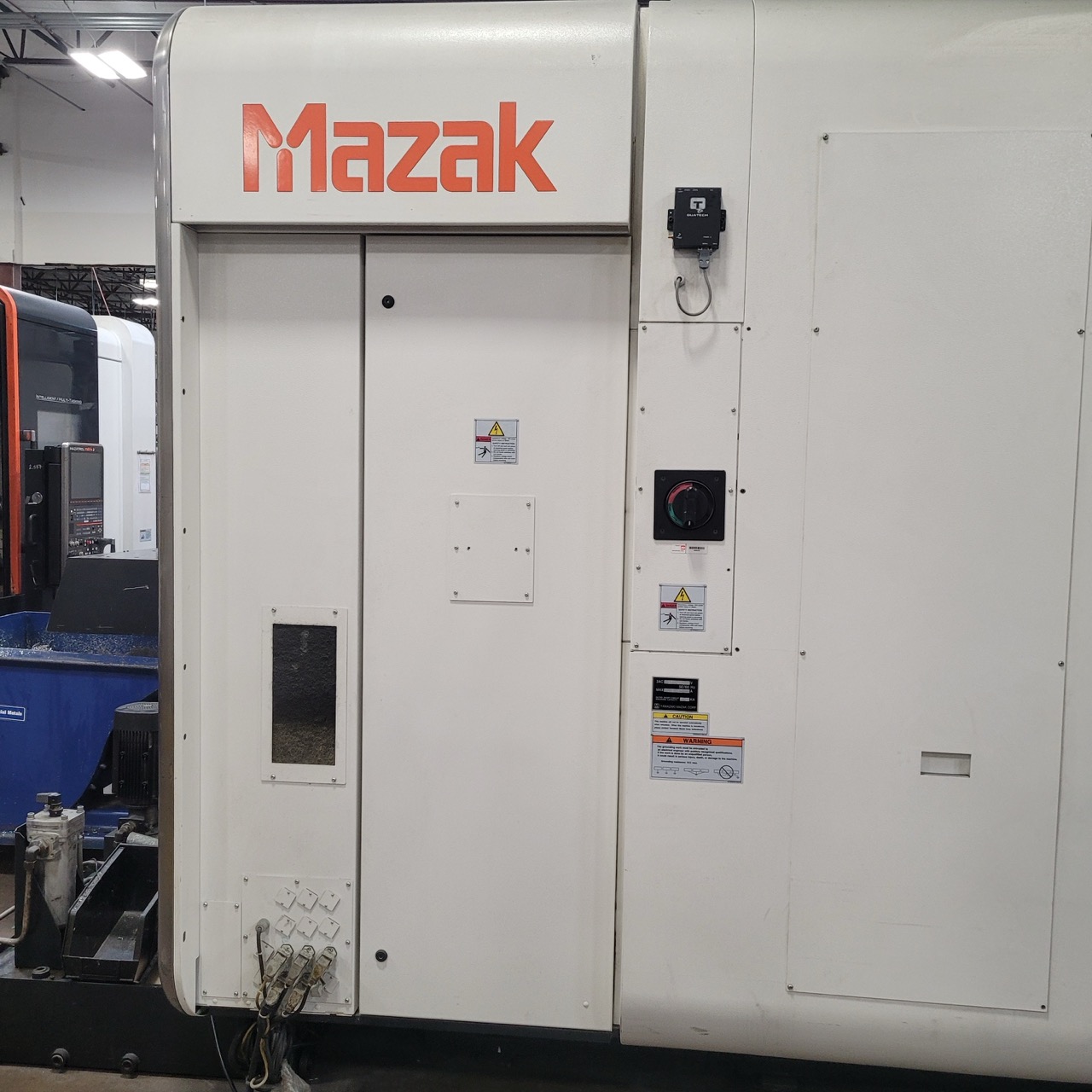

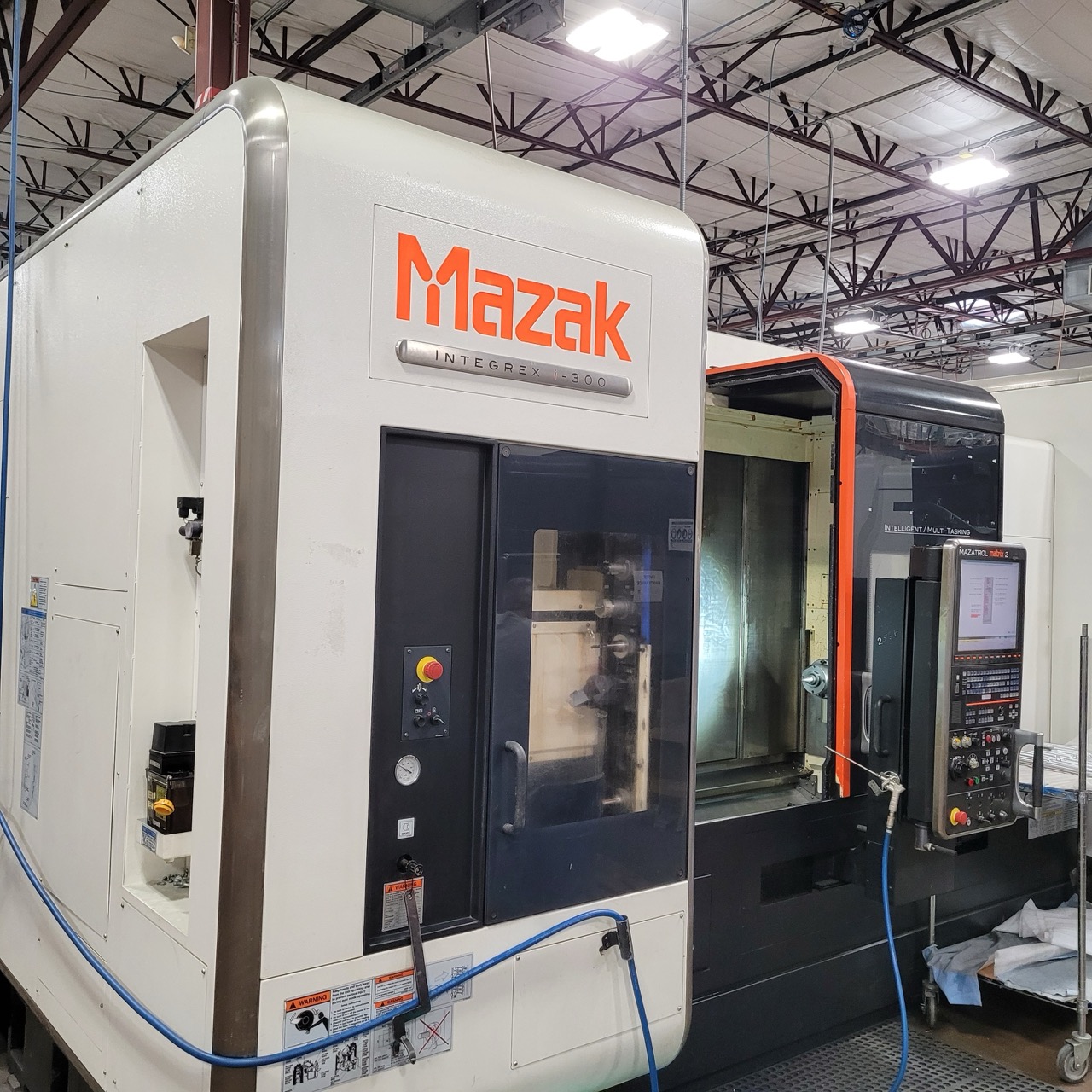

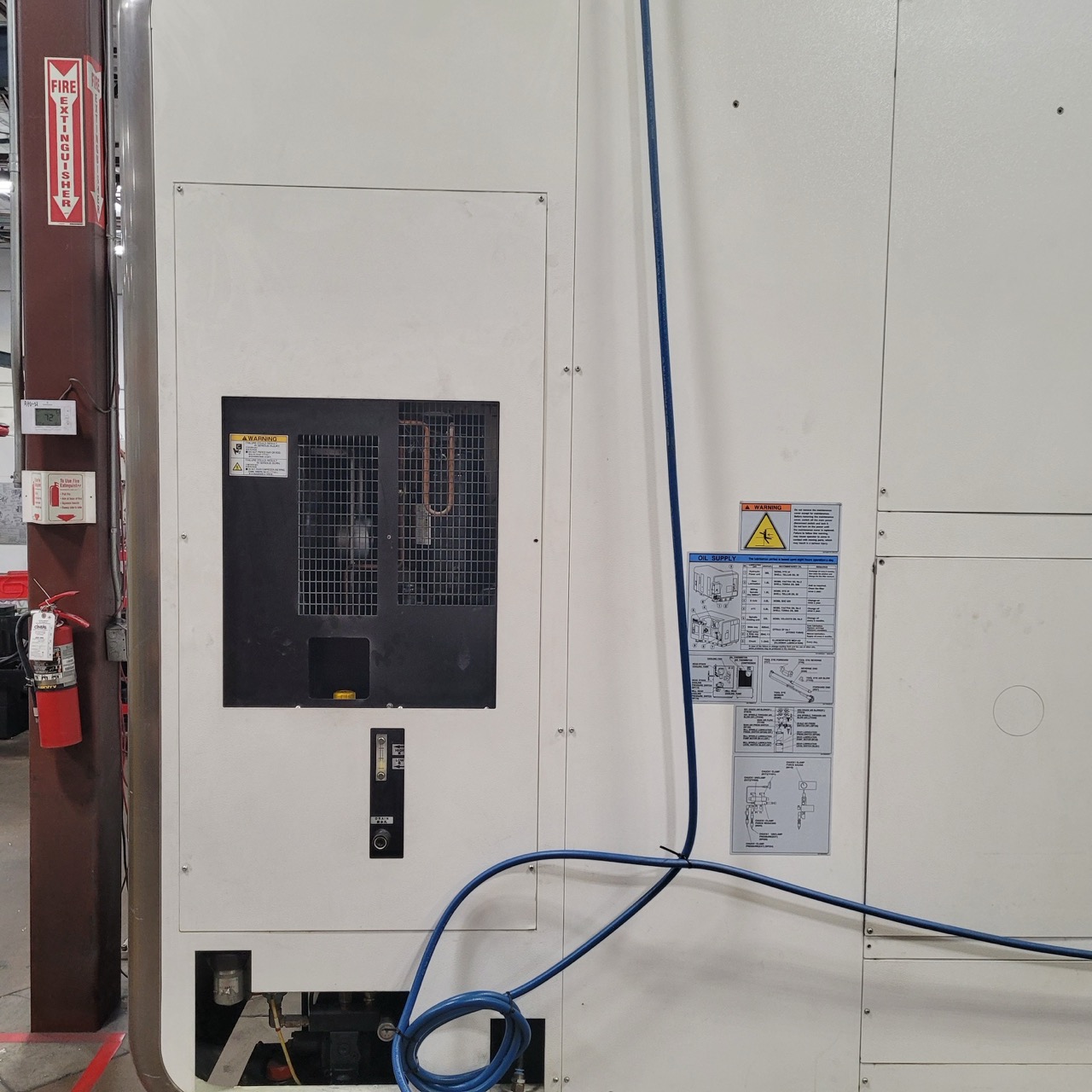

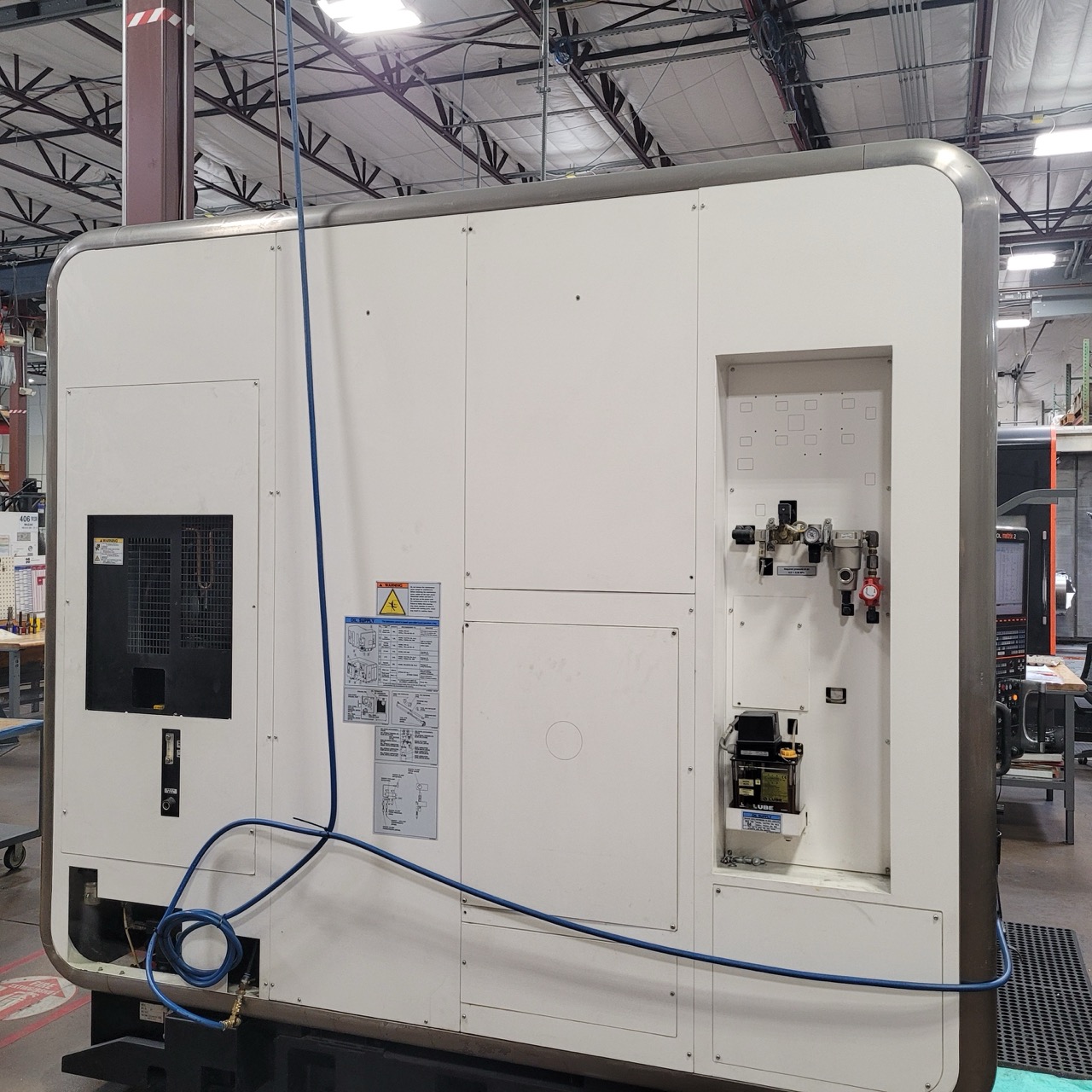

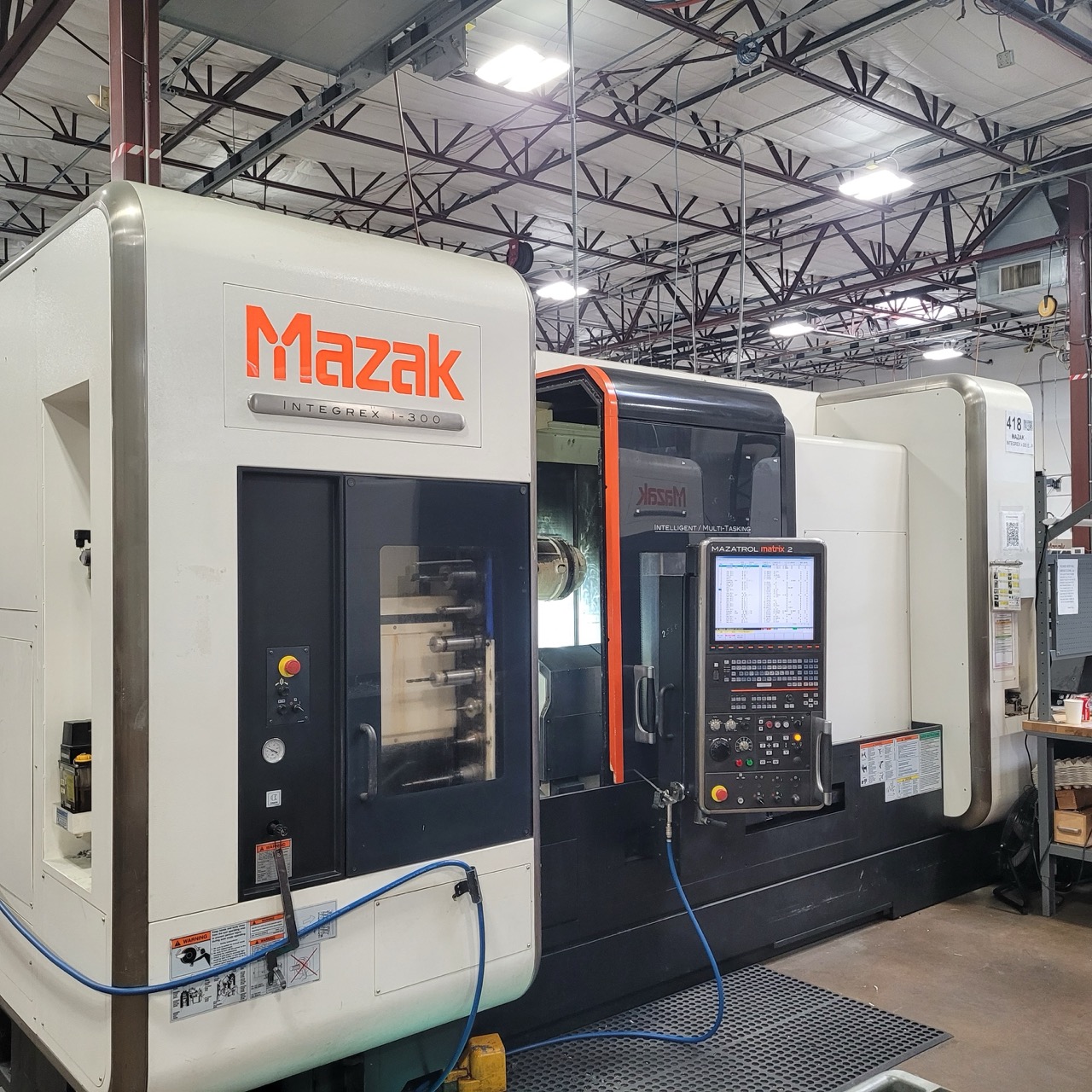

Mazak Integrex i-300 Multi Axis CNC Lathe, 2011 – Y Axis, Live Milling

Max. swing / Swing over cross slide: 25.9″
Max. machining diameter (Upper turret): 25.9″
Max. machining length: 39.8
Max. bar work capacity: 3.15″
X Axis Travel: 24.2″
Z Axis Travel: 42.4″
Y Axis Travel: 10.24″
B Axis Travel: 30° ～ 210°
Chuck Size: 10″
Main Spindle Speed: 4,000 RPM
Main spindle nose: A2-8
Main spindle bore: 3.58″
Minimum main spindle indexing increment: 0.0001°

Milling spindle speed: 12,000 RPM
Boring bar shank diameter: 1.5″
B-axis minimum indexing increment: 0.0001°

Tool Changer Capacity: 36

Spindle Motor: 30/40 HP
Milling Spindle Motor: 20 / 30 HP

Equipped With:

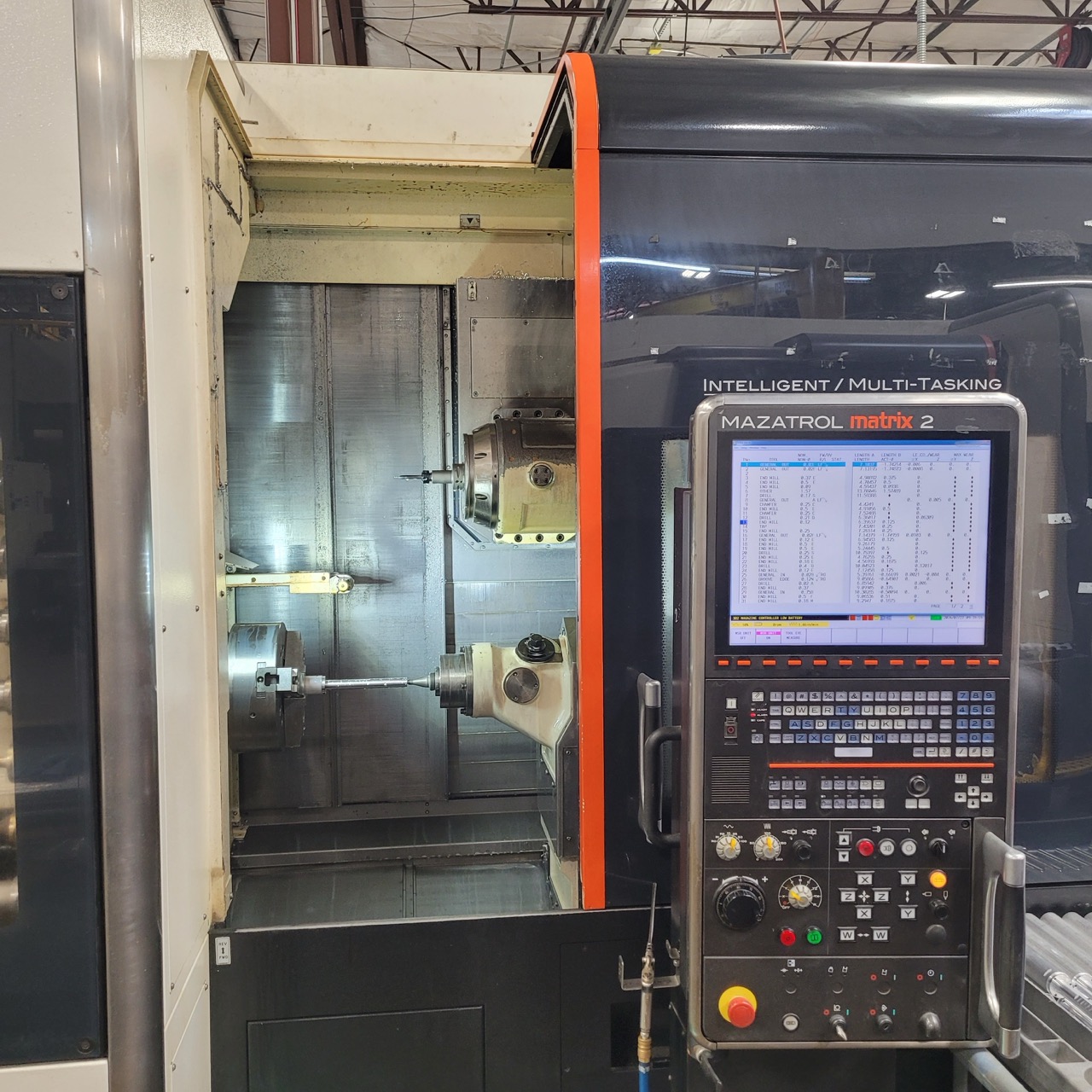

Mazatrol Matrix 2 CNC Control

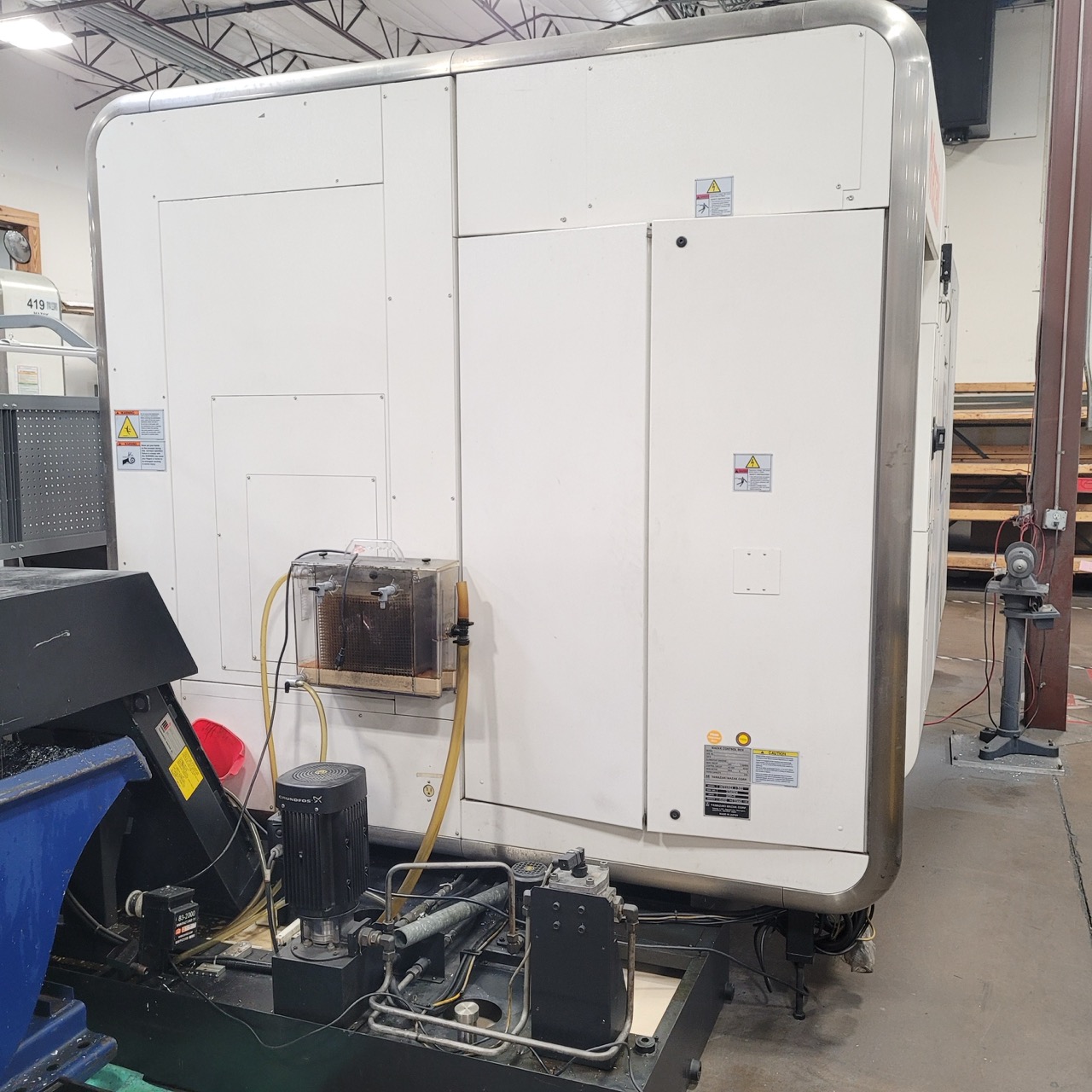

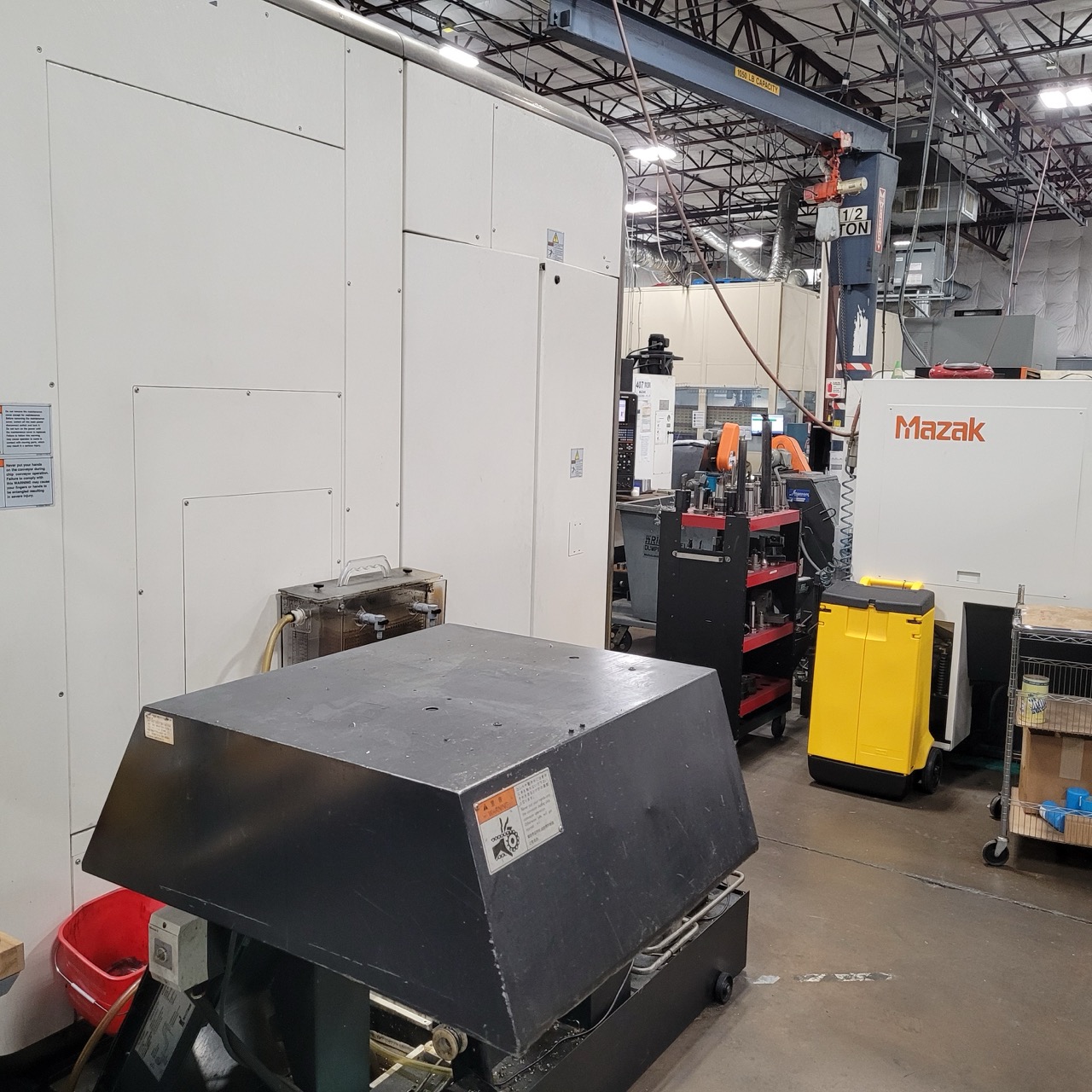

Chip Conveyor

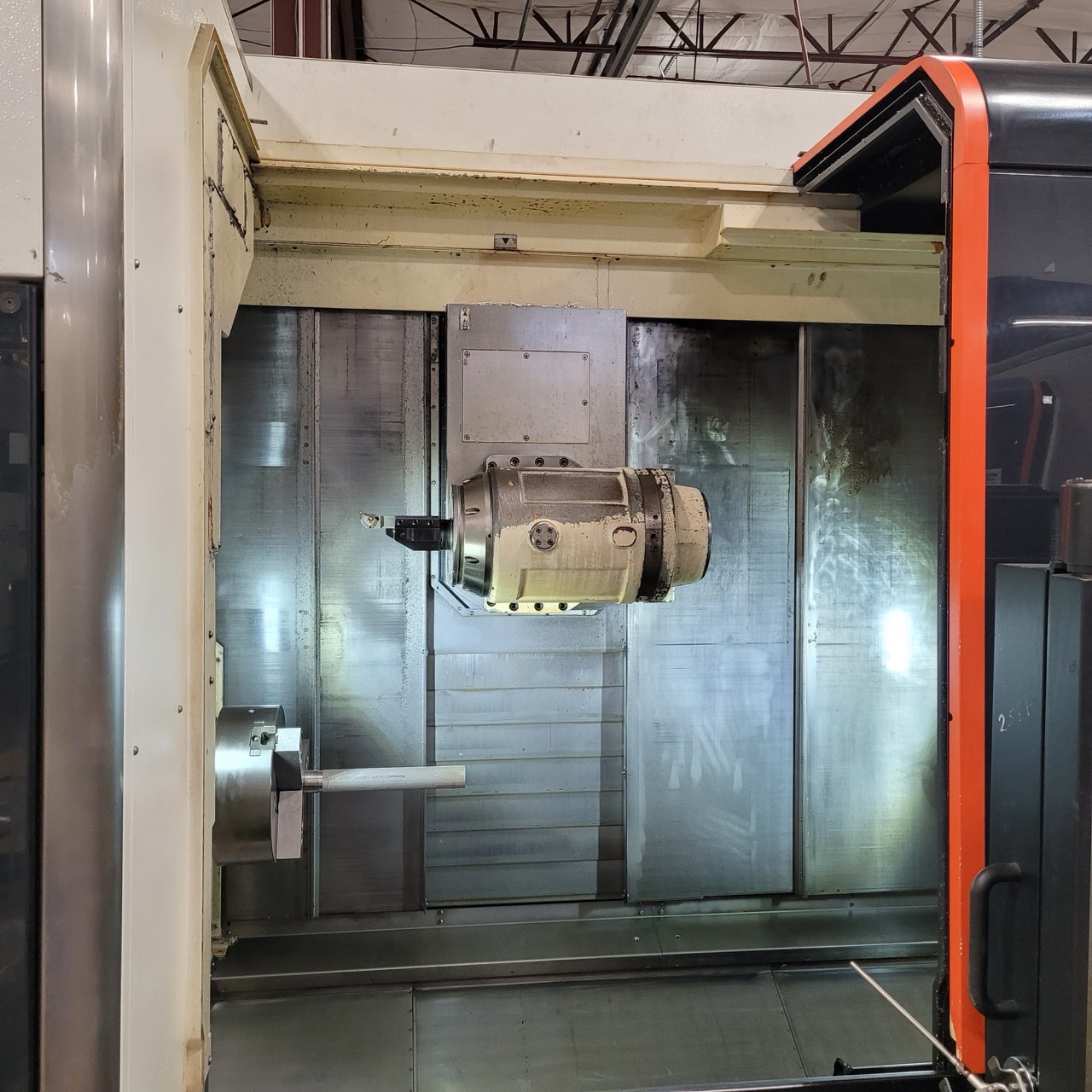

Live Milling
Y Axis
Tailstock
EIA
EIA 3D Comp
Sync. Mill Tapping
Tilted Working Plane
