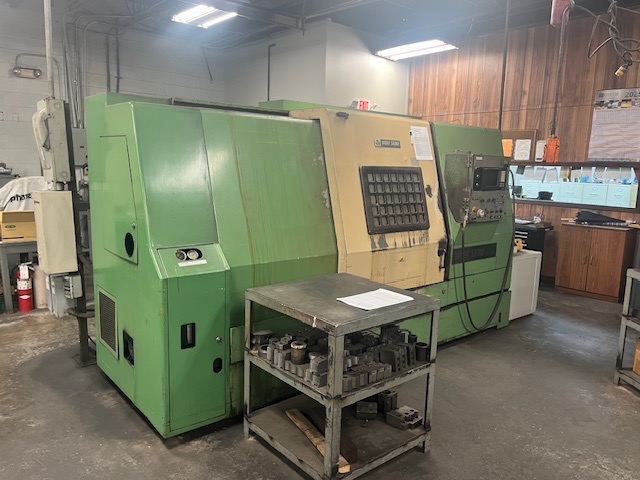

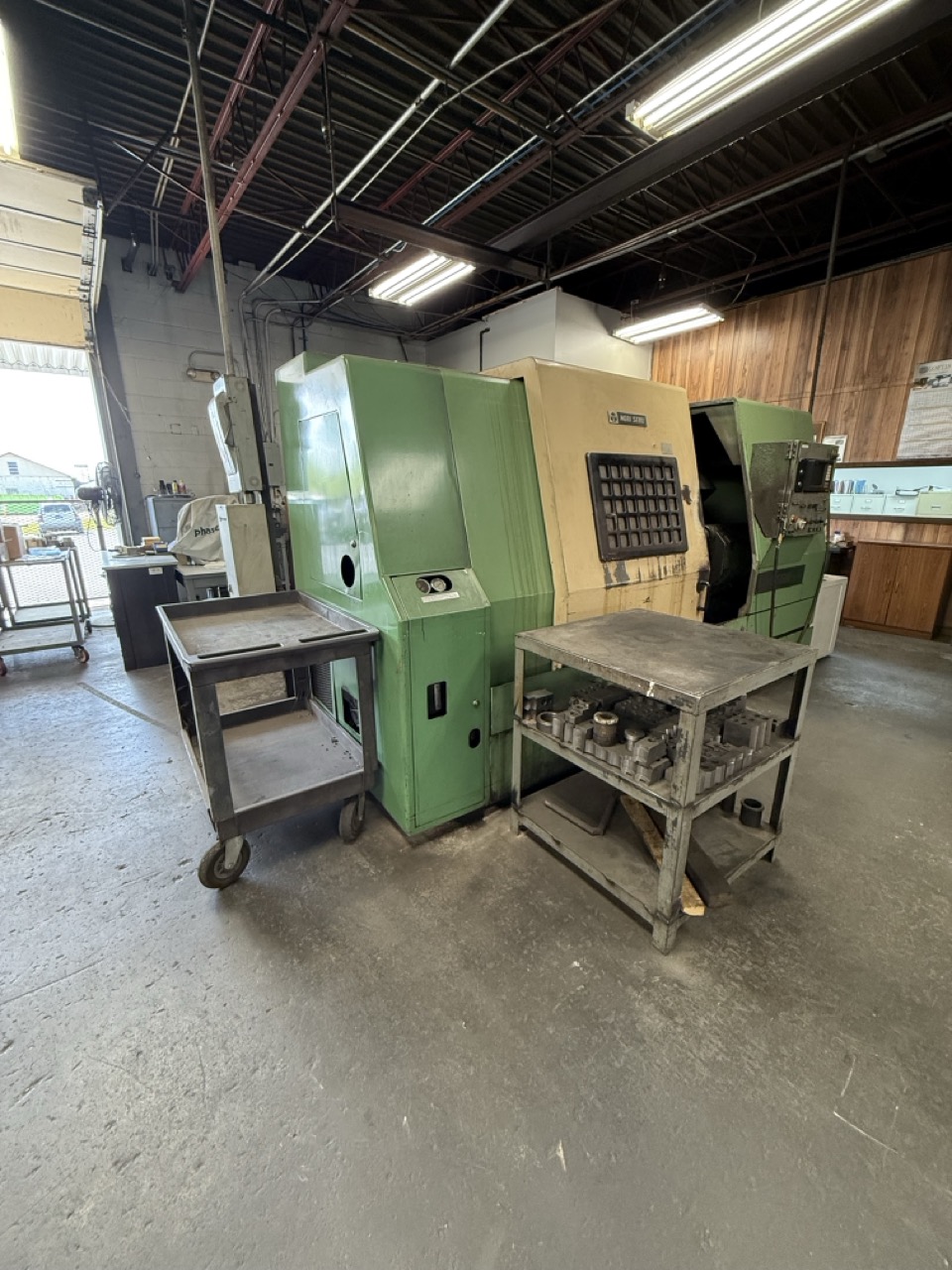

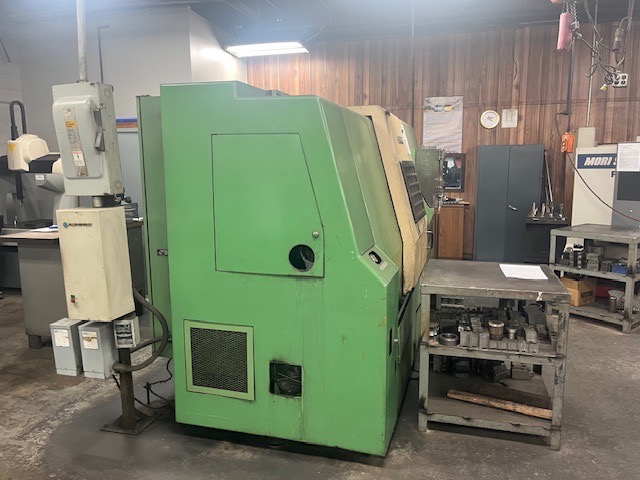

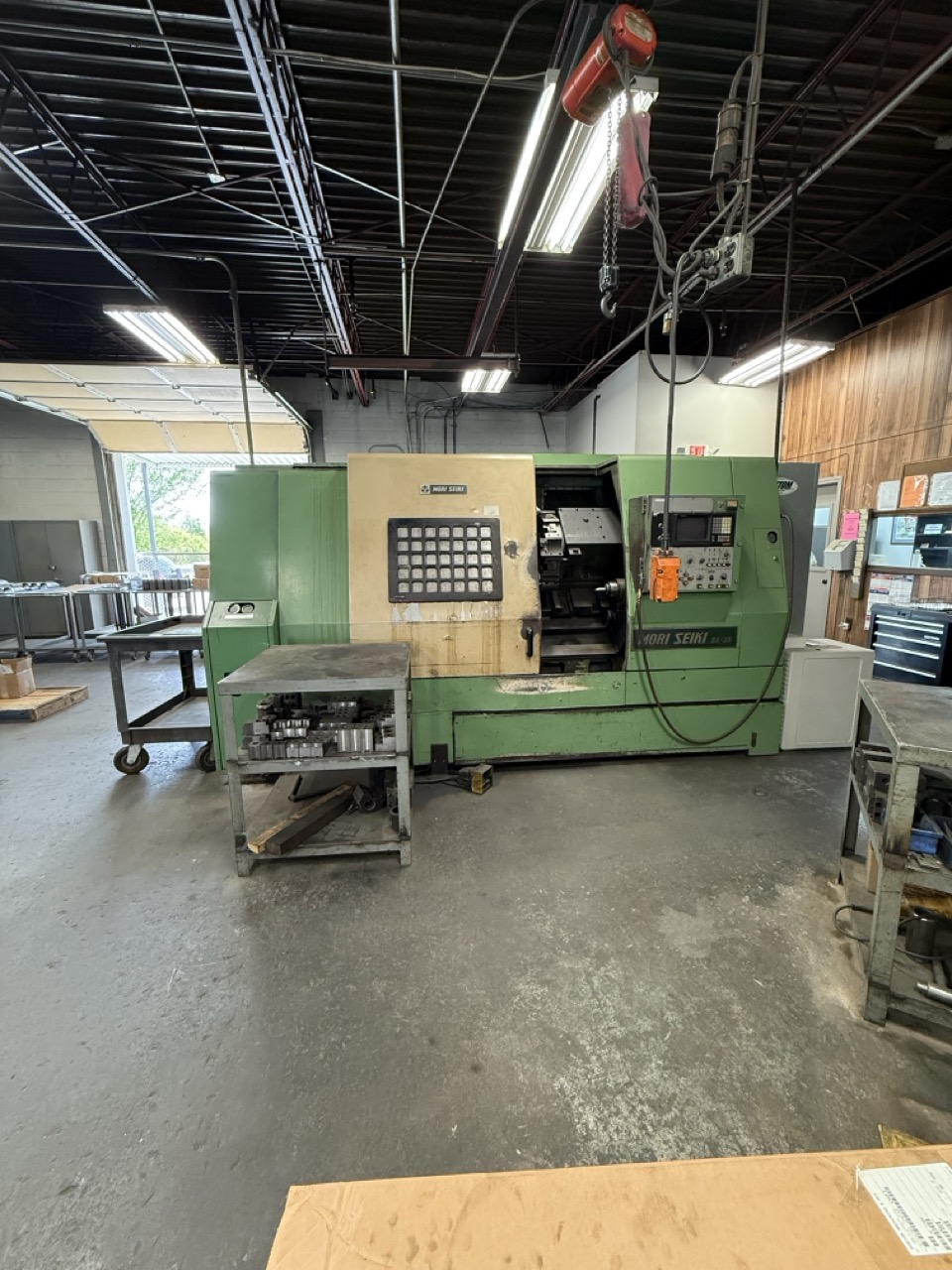

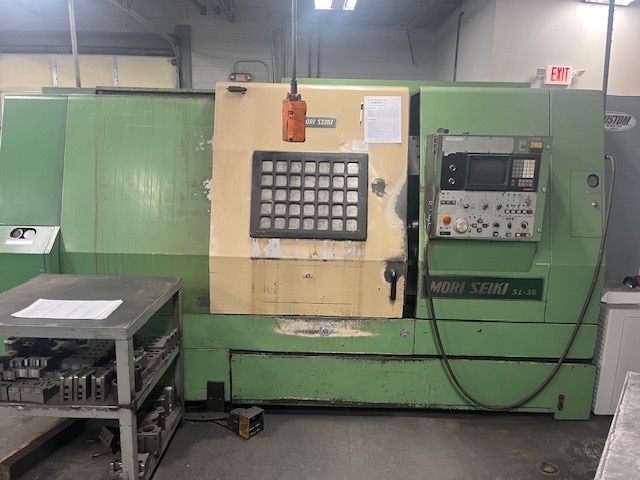

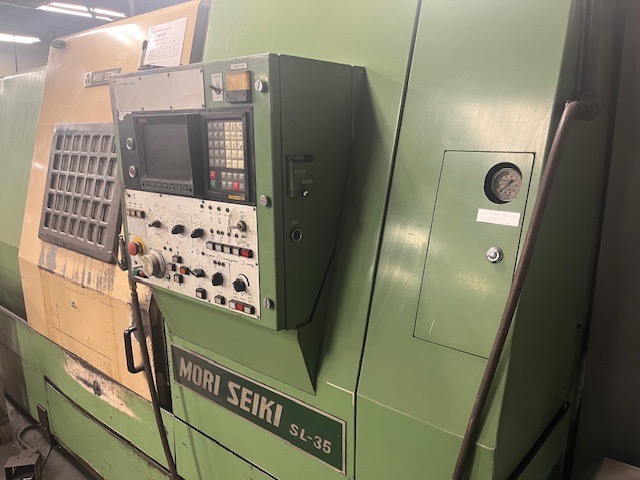

Mori Seiki SL-35A CNC Lathe, 1988 – Tailstock, Chip Conveyor
$9,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Bar Capacity: 2.5″
Chuck Size: 10″
Axis: 2-Axis
Max Turning Diameter: 10.2″
Max Turning Length: 20.5″
Swing Over Bed: 20.5″
Swing Over Cross Slide: 13.8″
Distance Between Centers: 24.6″
X-Axis Travels: 7″
Z-Axis Travels: 23″
X-Axis Rapid Traverse: 590 IPM
Z-Axis Rapid Traverse: 945 IPM
Spindle Speed: 3,500 PRM
Spindle Motor: 20 HP
Spindle Nose: A2-6
Spindle Bore: 3.1″
Approximate Machine Weight: 12,000 lbs
Approximate Machine Dimensions: 110″ x 68″ x 80″
Electrical: 220V, 3-Phase
Equipped With
Tailstock
Chip Conveyor
