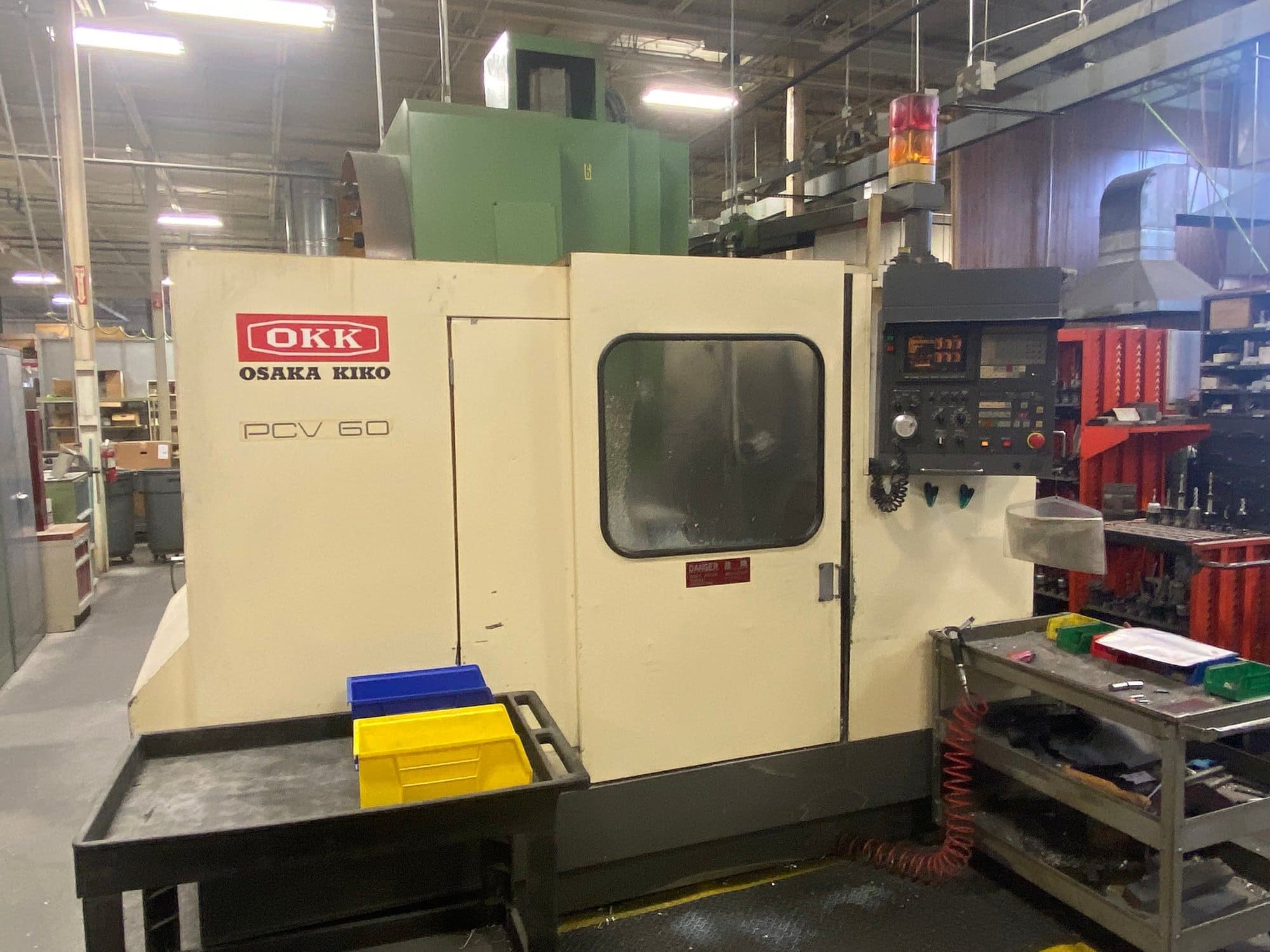

OKK PCV-60 CNC VMC, 1991

Table Dimensions: 48.03″ X 25.20″
Maximum Load on Table: 1,760 lbs.
Travel: (X) 40.16″, (Y) 25″, (Z) 20.47″
Table top to spindle nose: 7.87” – 28.35”
Spindle center to column: 33.07”
Spindle Speeds: 100-6000 RPM
Spindle Taper: CAT-50
Spindle Motor: 15/10 HP
Rapid Traverse: (X, Y) 630 IPM, (Z) 472 IPM
Feed Rate: 157 IPM
Tool Capacity: 20 ATC, double swing arm system
Tool Change Time: 3 Seconds
Tool Selection is Memory Random, Bi-Directional
Integral, Hardened and Ground, Box Type Ways
Coolant Oil unit
Fully Enclosed Large Splash Guard
Machine Weight: 13,640 lbs.
