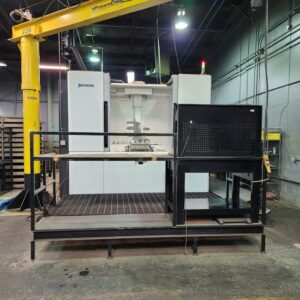

Okuma MCR-A5CII 35 x 65 Double Column Machining Center, 2015 – OPEN TO OFFERS

$1,150,000.00

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Gantry/Bridge Mills
Make: Okuma
Model: MCR-A5CII
Year: 2015
Machine Location: Upon Request
Stock #: 220525

*Additional Specifications Available Upon Request*

Nominal Size:
35 x 65

Travels:
X: 263.78″ (Table Front/Back)
Y: 161.42″ (Spindlehead Horizontal)
Z: 31.50″ (Ram Vertical)
W: 47.24″ (Crossrail Vertical)
Effective Width Between Columns: 143.70″
Table to Spindle Nose: 0″ to 70.87″

Table:
118.1″ x 255.9″ (3000 mm x 6500 mm)
Max. Load:
81,400lbs
T-Slots:
24H7 Width x 15#

Spindle:
30 to 6,000
30 to 10,000
7/24 Taper No. 50
ATC

Equipped With Accessories:
-Main motor and standard electricals: 30 to 4,000 min-1
-Spindle cooler: Oil controller
-Thermo-Friendly specs: TAS-S, TAS-T
-Synchronized W axis NC (NC crossrail): Absoscale detection (W axis)
-Auto Tool changer: 50 tools
-ATC air blower and spindle air curtain: Air blower (blast)
-Seesaw pendant operation panel: Vertical travel: 600 mm
-Overall length gutter: Front discharge
-Work lamp: LED
-Table shape: T slot specifications 24H7

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
