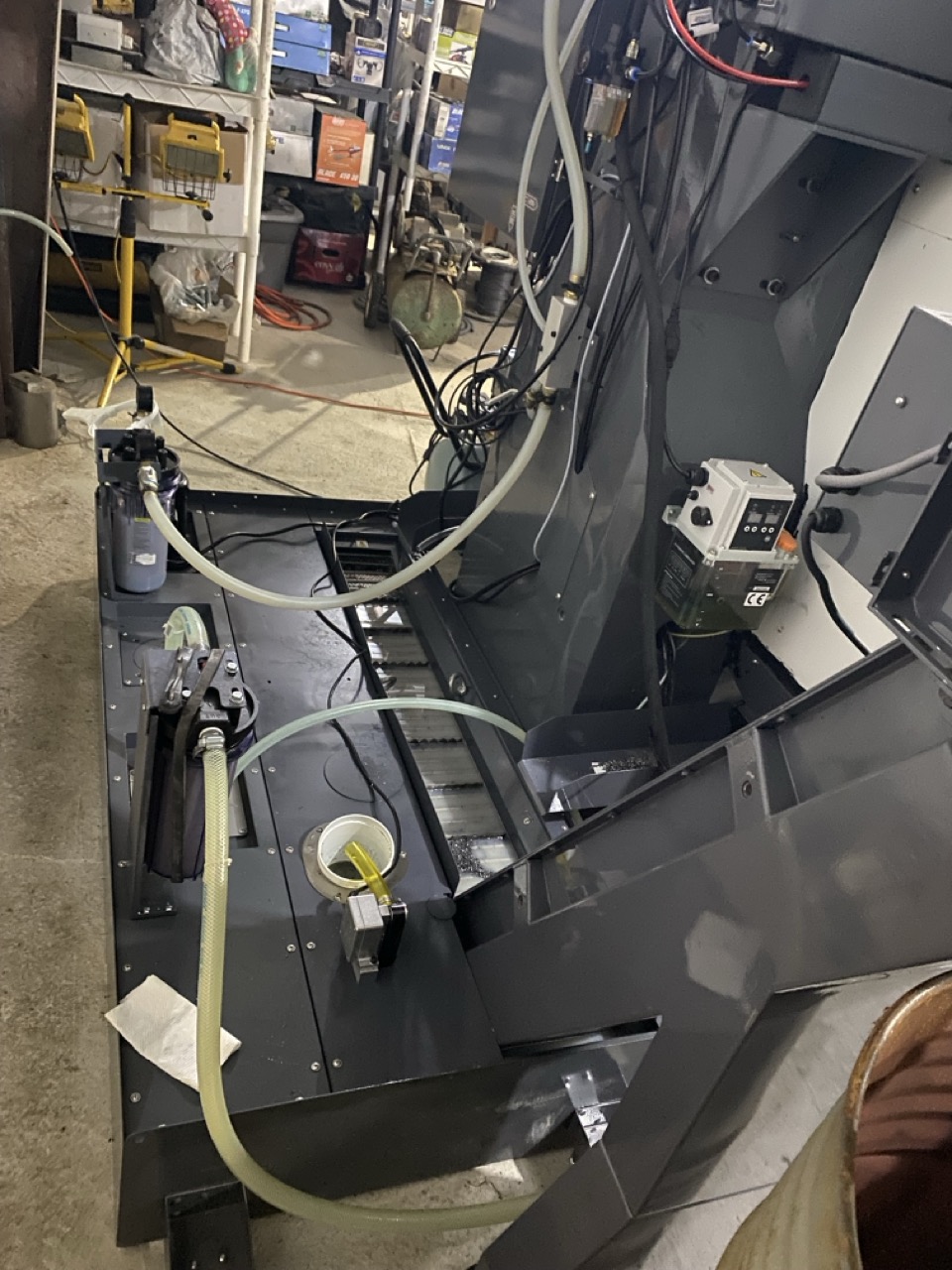

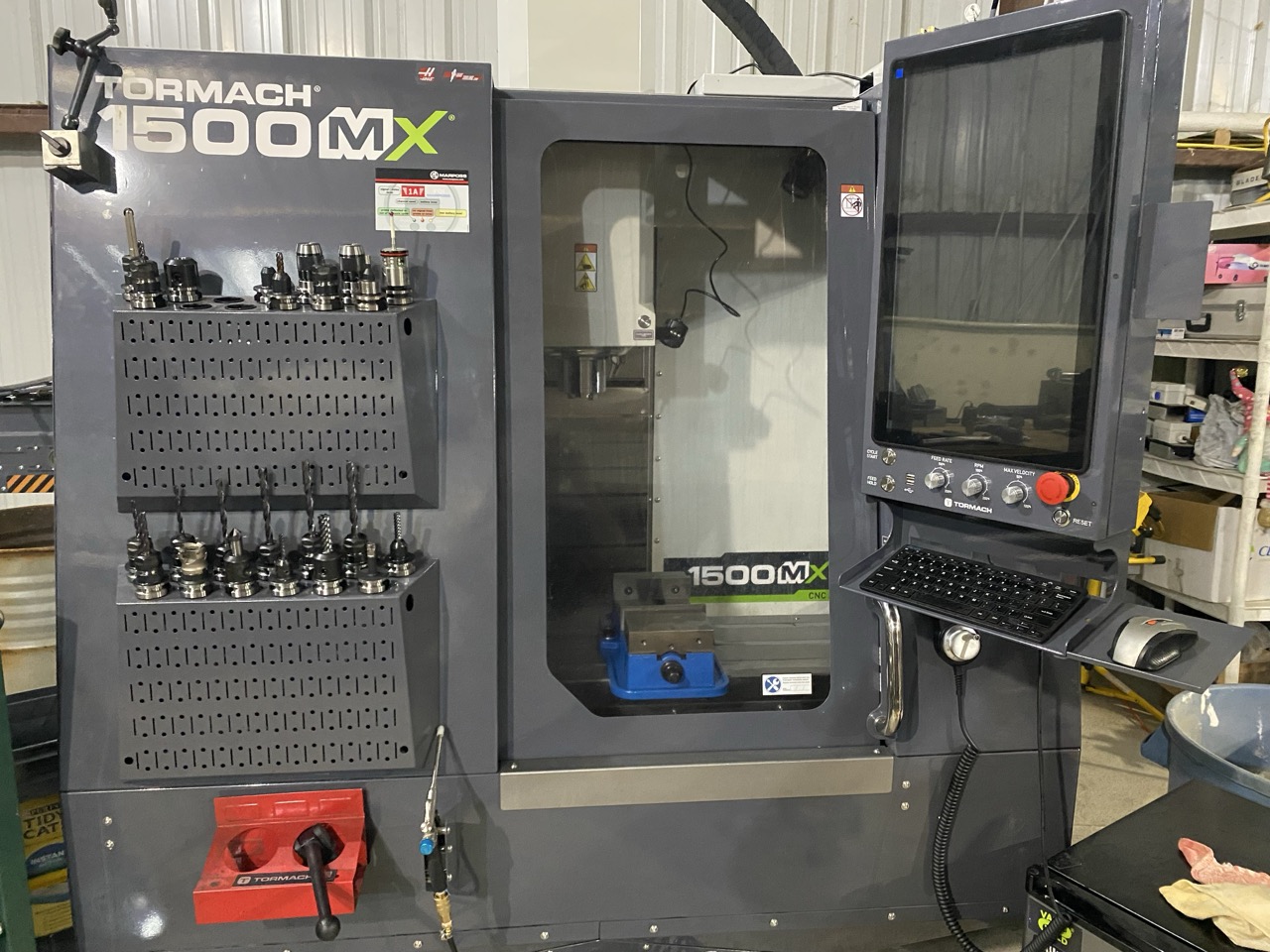

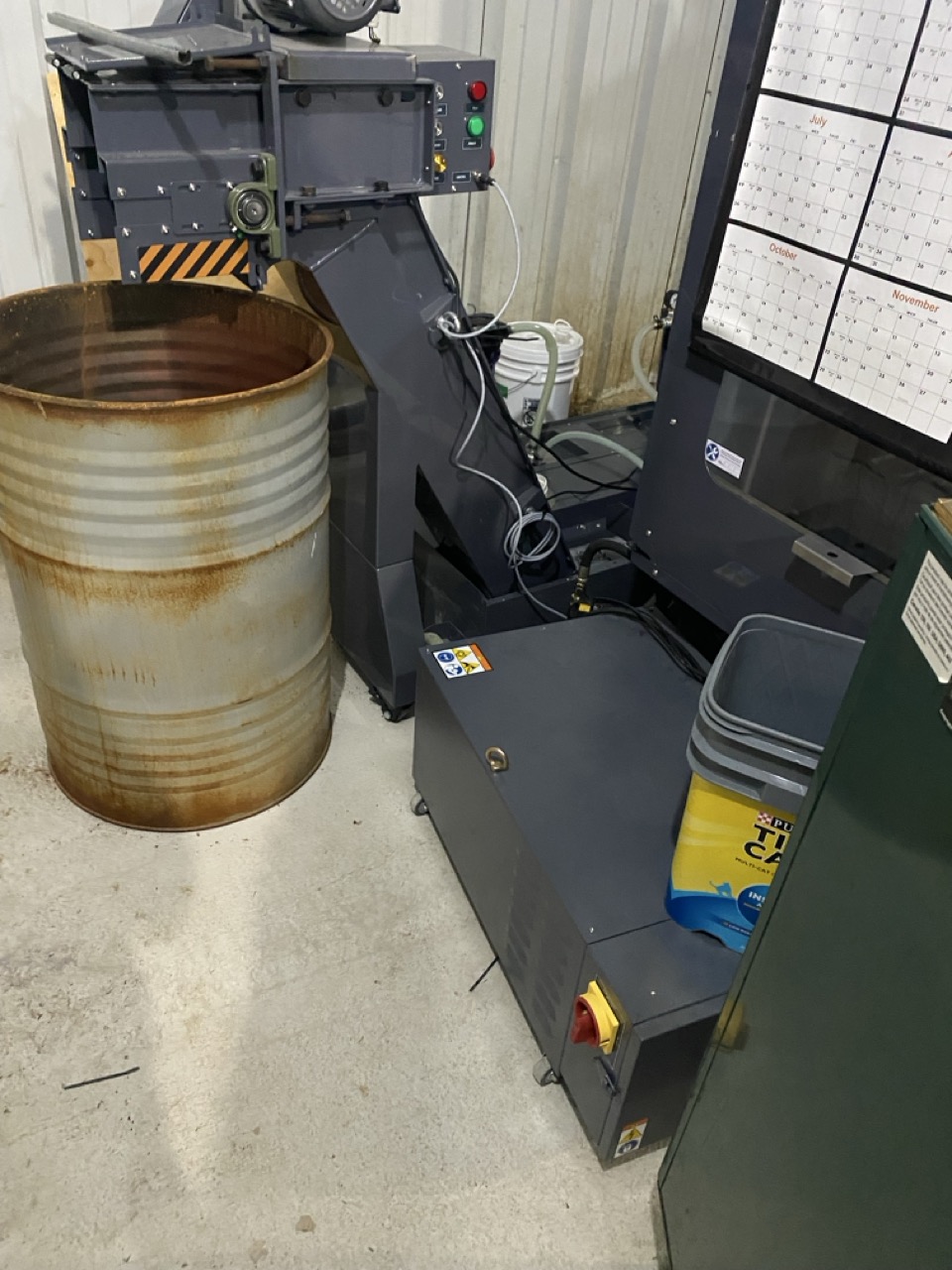

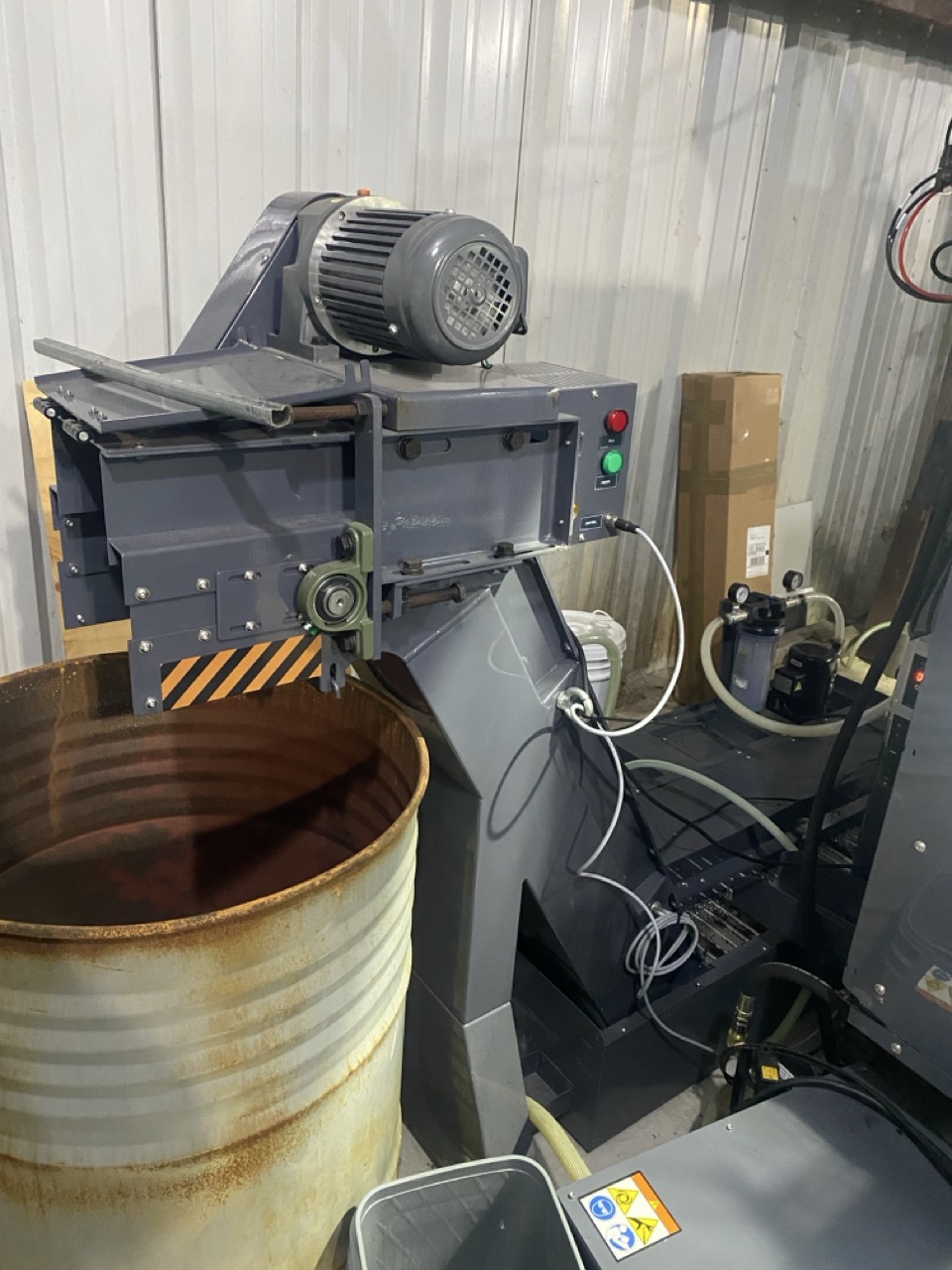

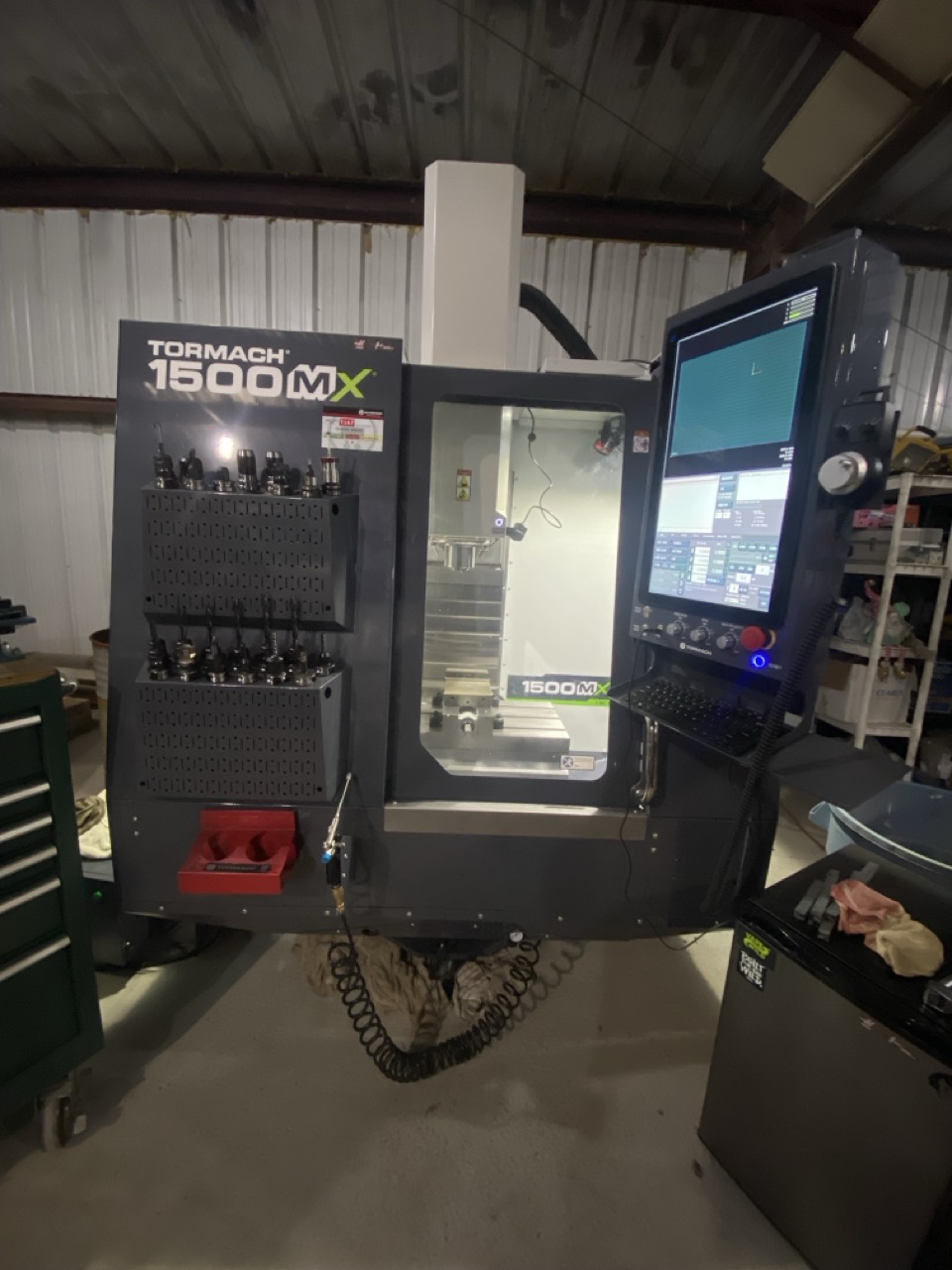

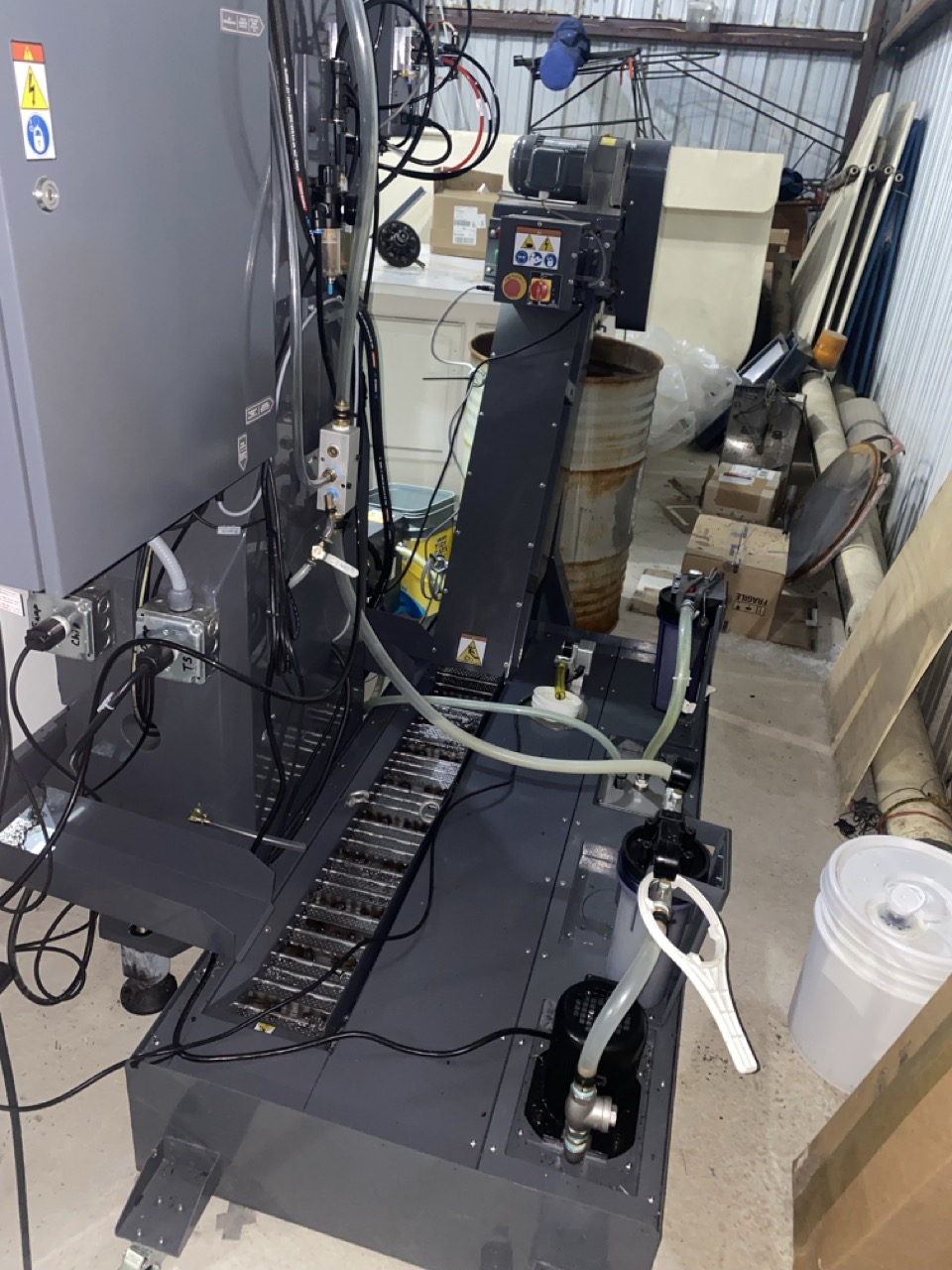

Tormach 1500MX VMC, 2025 – Chip Conveyor

The 2025 Tormach 1500MX is a compact, high-performance CNC machining center designed for precision milling, prototyping, and production applications. The machine features servo-driven axes, a BT30 spindle capable of speeds up to 10,000 RPM, and PathPilot CNC control, with BobCAD-CAM software included for CAD/CAM programming.

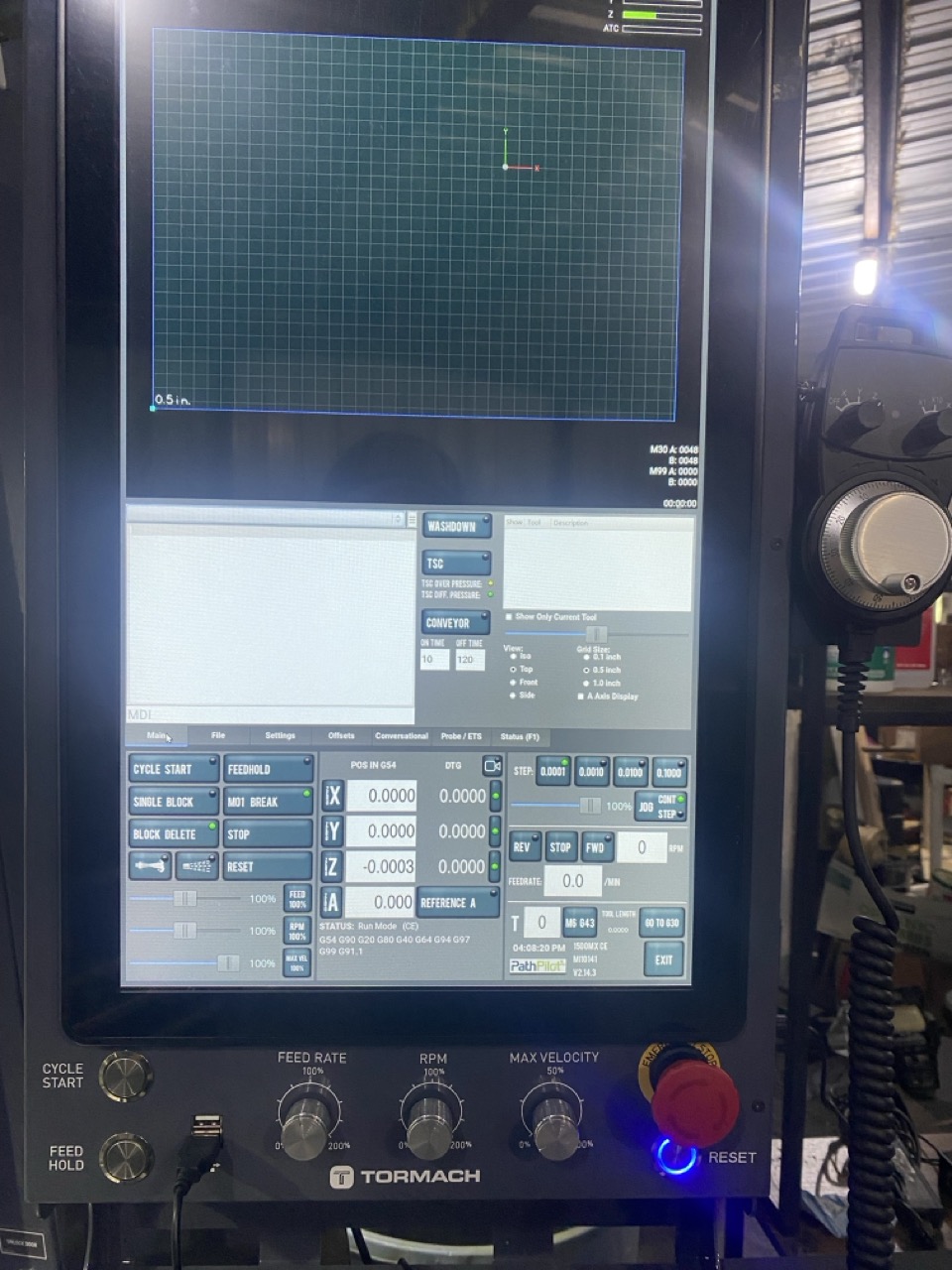

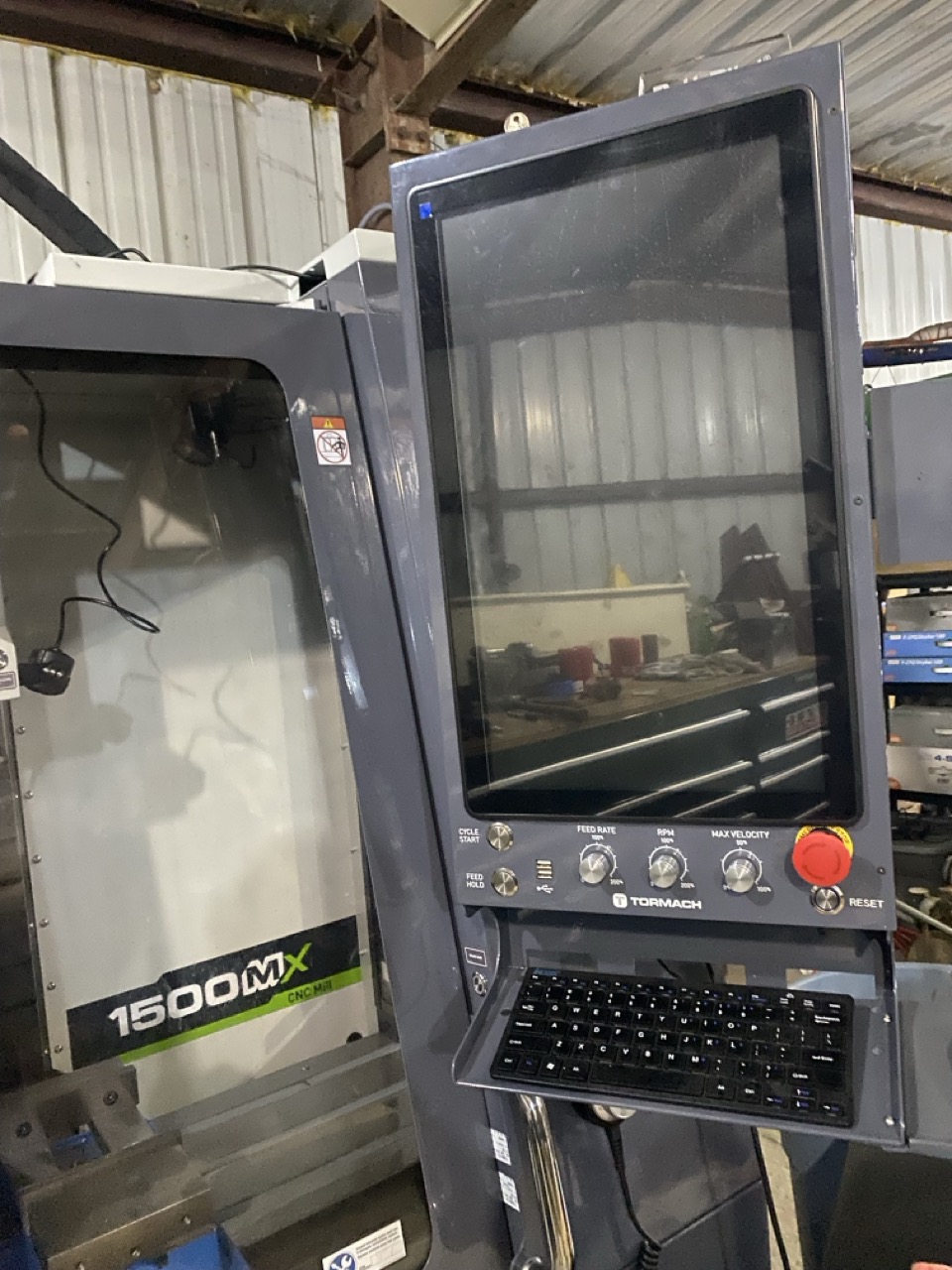

Control: PathPilot CNC
CAD/CAM Software: BobCAD-CAM
Spindle Power: 4 HP Continuous / 6 HP 4-Minute Overload
Spindle Speed: 250–10,000 RPM
Spindle Taper: BT30
Transmission: 5M Toothed Belt
X-Axis Travel: 19.7″
Y-Axis Travel: 13.8″
Z-Axis Travel: 14″
Spindle-to-Table Clearance: 3.7″–17.7″
Maximum Feed Rate X/Y: 1,200 IPM
Maximum Feed Rate Z: 600 IPM
Axis Drive: Servo
Table Size: 35″ x 12.75″
T-Slot Size: 5/8″
Number of T-Slots: 3
T-Slot Spacing: 3.9″
Maximum Table Load: 300 LBS.
Primary Power: 230 VAC, Single Phase, 50/60 Hz
Recommended Circuit: 30 AMP
Plug Type: NEMA L6-30P
Air Requirement: 90–120 PSI
Machine Dimensions: Approx. 86″ L x 104″ W
Overall System Height: Approx. 94″
Typical System Weight: Approx. 2,800 LBS.
