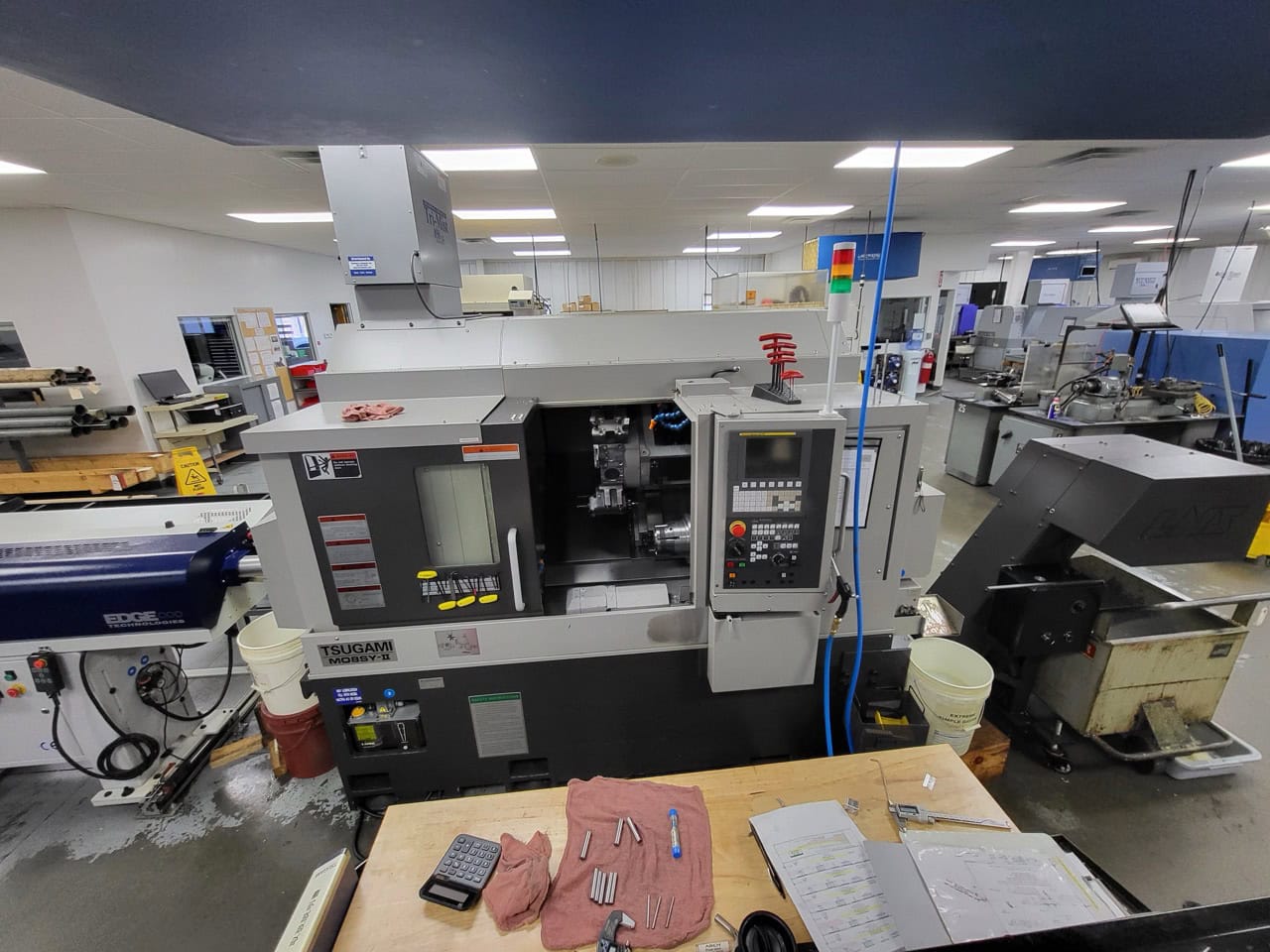

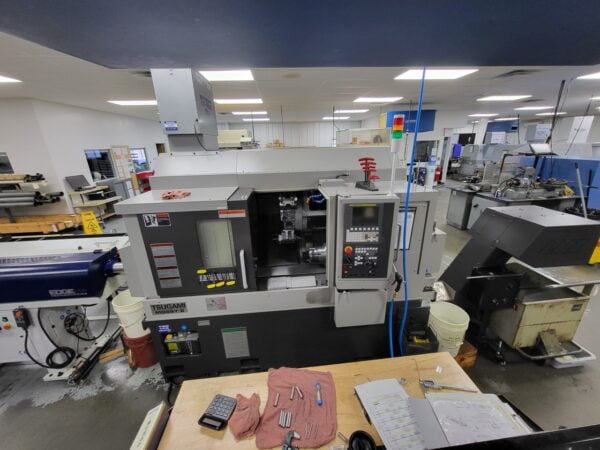

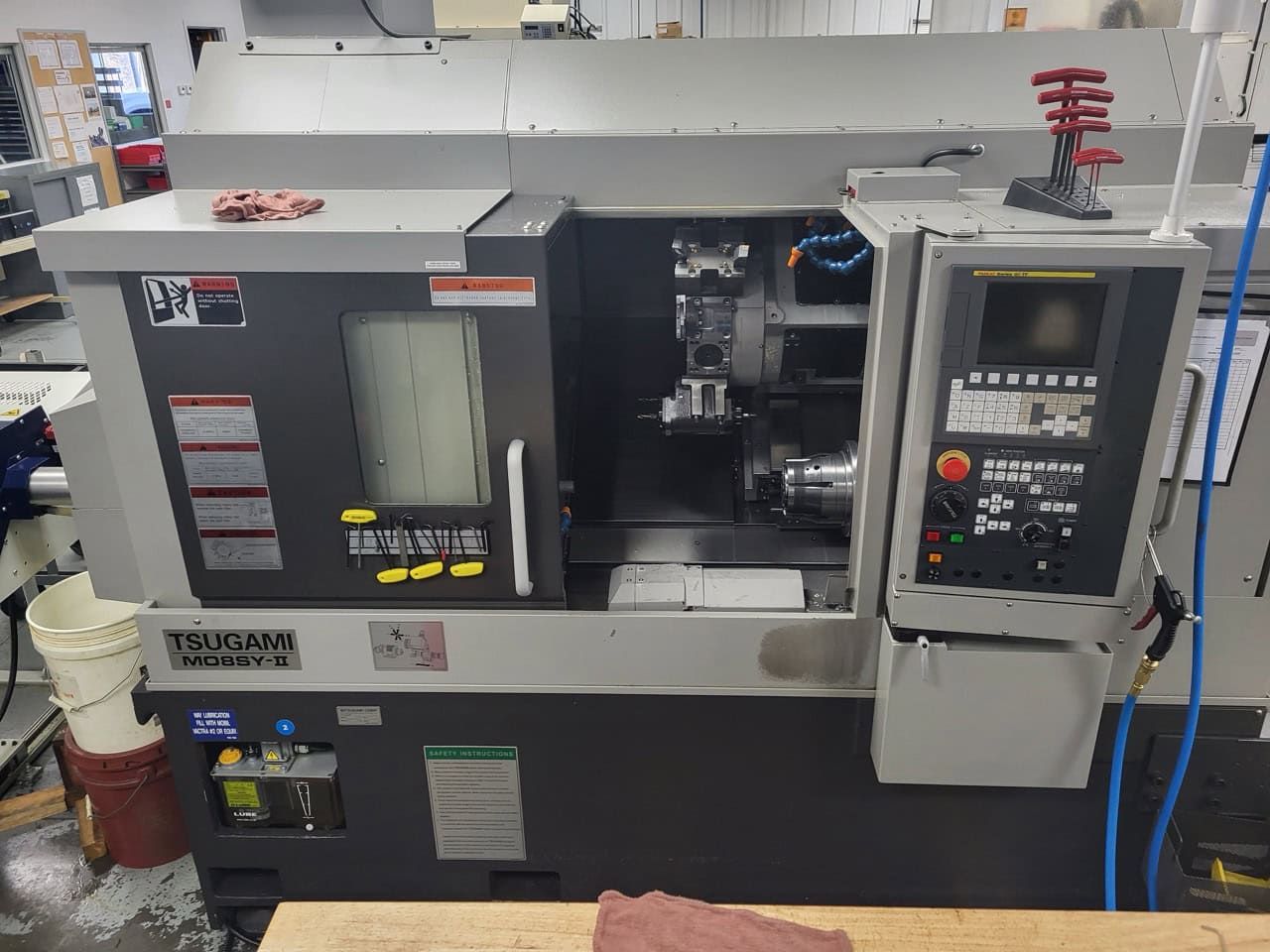

Tsugami M08SY-II Multi-Axis Lathe, 2018 – Edge Rebel Bar Feed, TriMist 850 Mist Collector

Bar Capacity: 2″
Chuck Size: 8″
Sub Spindle: 6″
Spindle Speed: 4,500 RPM
Live Tooling: 5,000RPM
Spindle Motor: 14.8 HP
X Axis Travel: 8.7″
Z Axis Travel: 15.75″
Y Axis Travel: 3.94″
C Axis Travel: .001Deg
W Axis Travel: 19.92″
Rapid Rate Z Axis: 1,062 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 11″
Max Turning Length: 14.96″
Dimensions: 97.24″ x 72.83″ x 75.98″
Weight: 13,000 LBS

Equipped With:

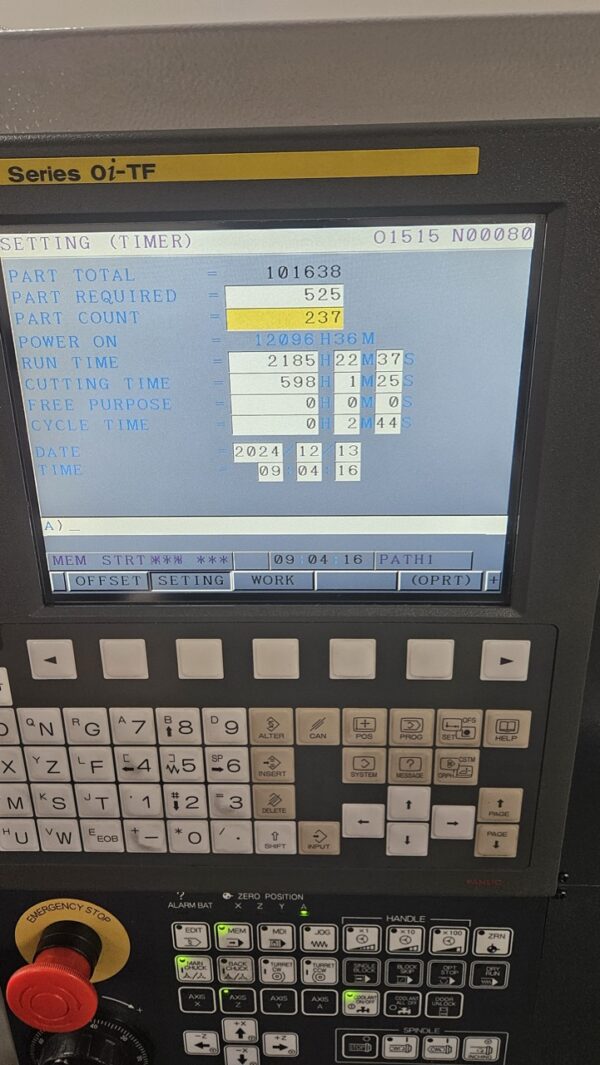

Fanuc Series Oi-TF Control

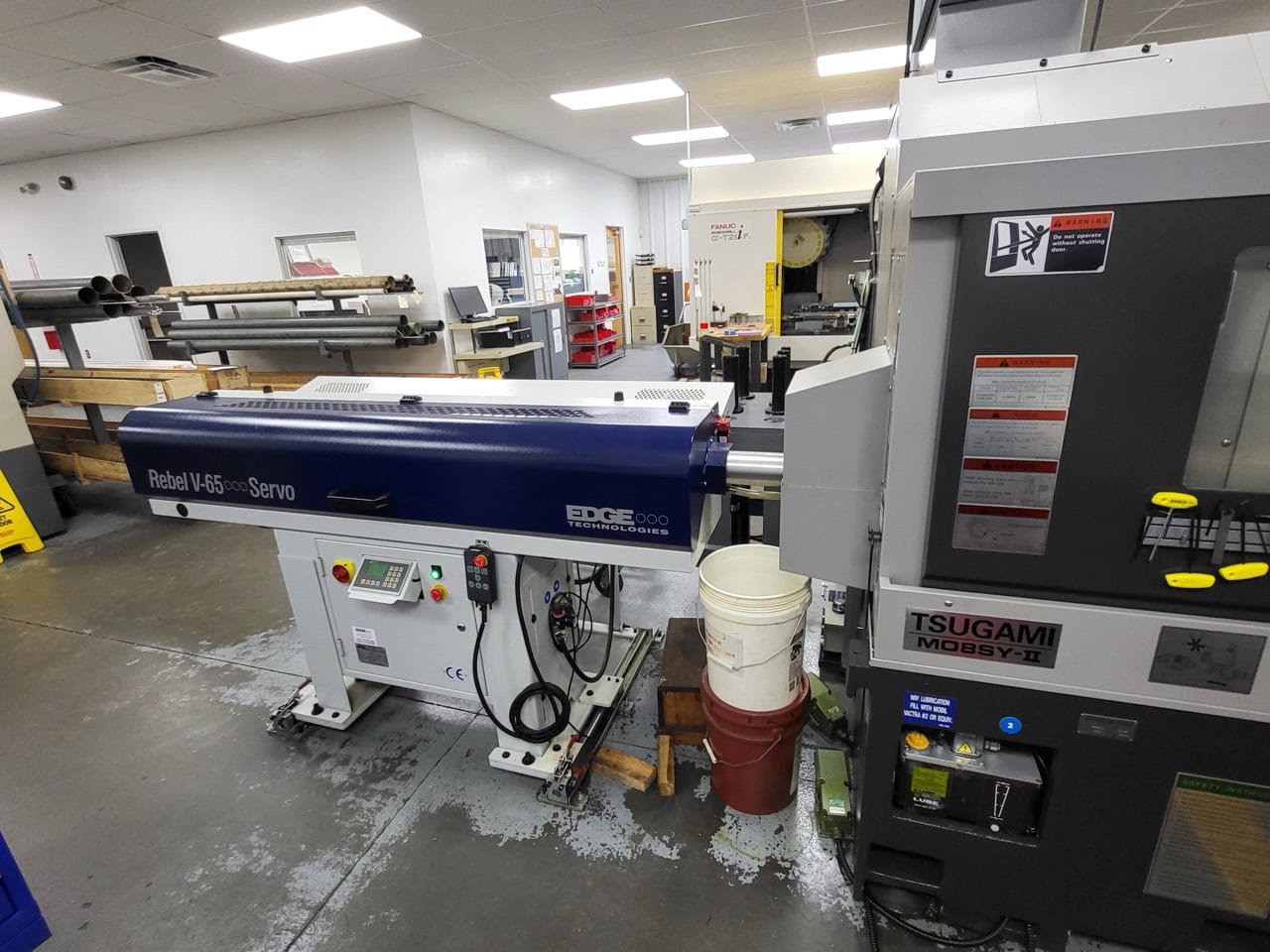

Edge Rebel V-65LE-CE Bar Feeder

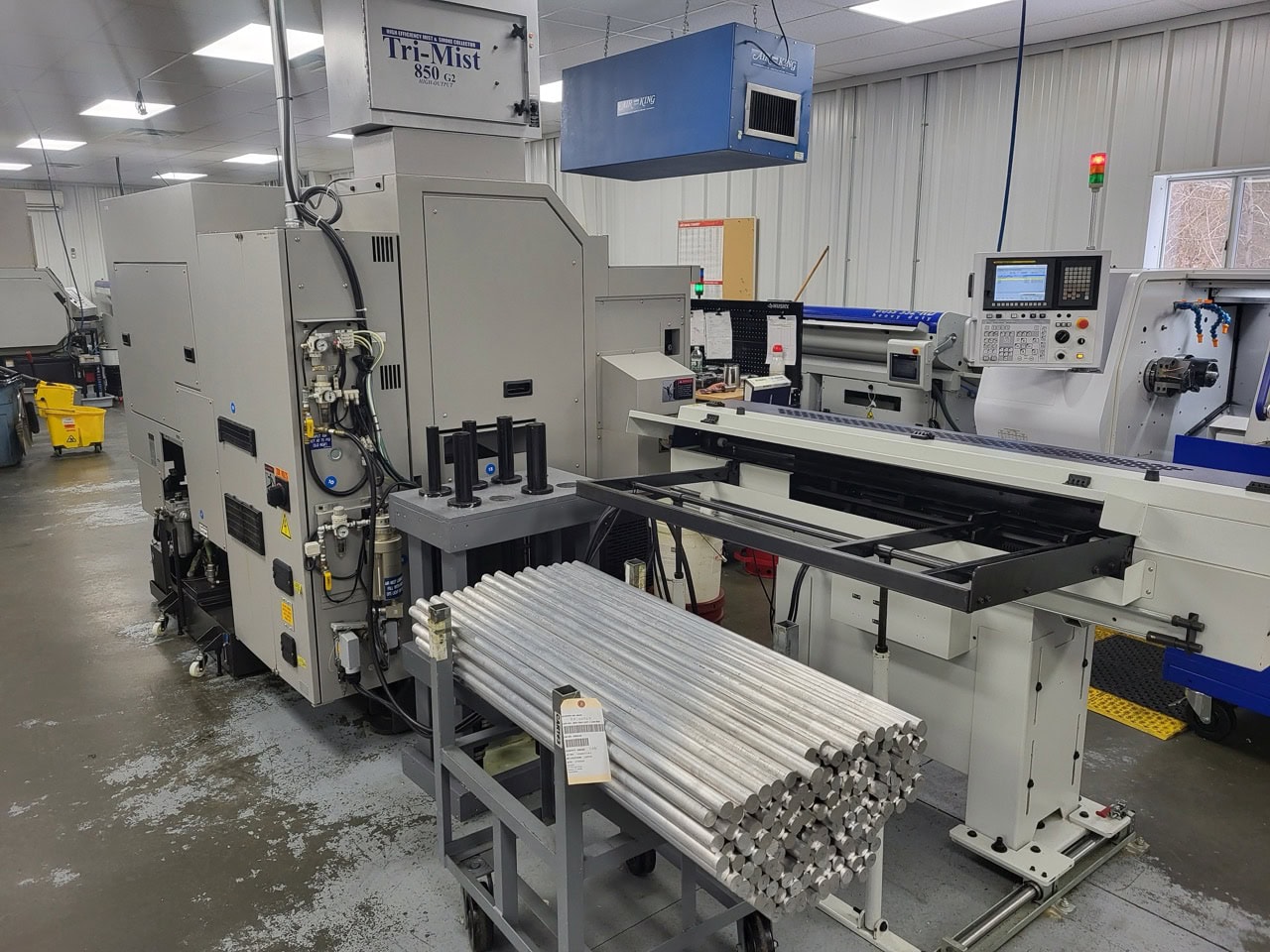

TriMist 850 Mist Collector
LNS MH500 Chip Conveyor
Edge barfeed accessory for up to 51mm
Cut-off Tool Holder
Double Turning Tool Holder
Double Drill Holder
Live Cross Drilling Head
Live Face Drilling Head (Main Spindle)
Live Face Drilling Head (Sub Spindle)
