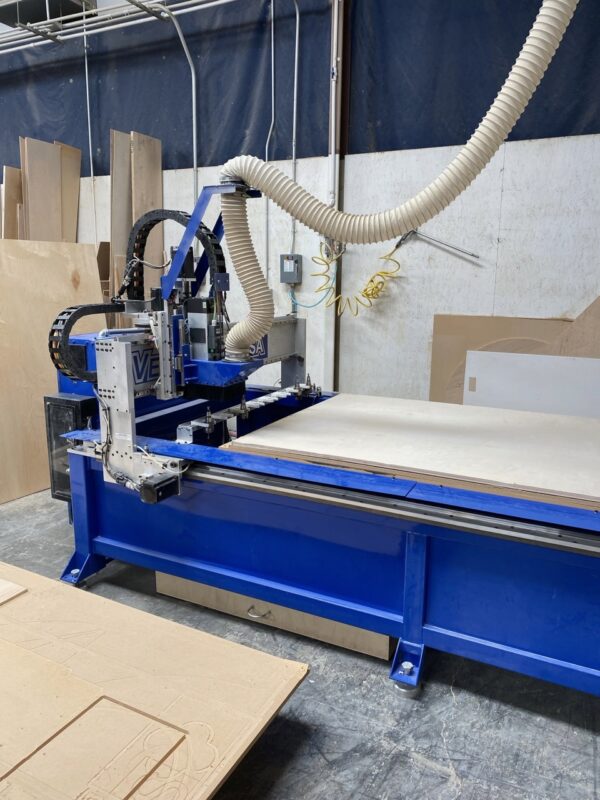

Velox VR-8-ATC CNC Woodworking Router, 2020
$12,800.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Table Size: 4′ x 8′
X Axis: 53″
Y Axis: 98″
Z Axis: 8″
Part Clearance: 60″x6″
Overall Foot Print: 69″x125″x33″
Rapid Speeds:
X Axis: 900 ipm
Y Axis: 900 ipm
Z Axis: 200 ipm
Cut Speeds Foam 2″ deep, 1/2 Bit:
X Axis: 600 ipm
Y Axis: 600 ipm
Z Axis: 100 ipm
Cut Speeds Wood .500″ deep, 1/2 Bit:
X Axis: 200 ipm
Y Axis: 200 ipm
Z Axis: 100 ipm
Resolution:
X Axis: 0.001″
Y Axis: 0.001″
Z Axis: 0.00035″
Repeatability: 0.003″ +/-
Drive Mechanism: Rack and Pinion X & Y. Ballscrew on Z.
Weight: Est. 2000 lbs
Equipped With:

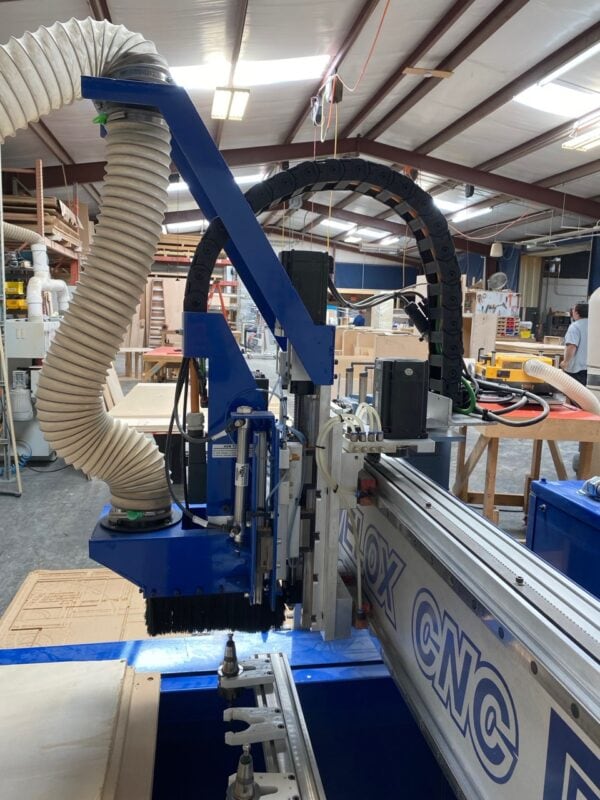

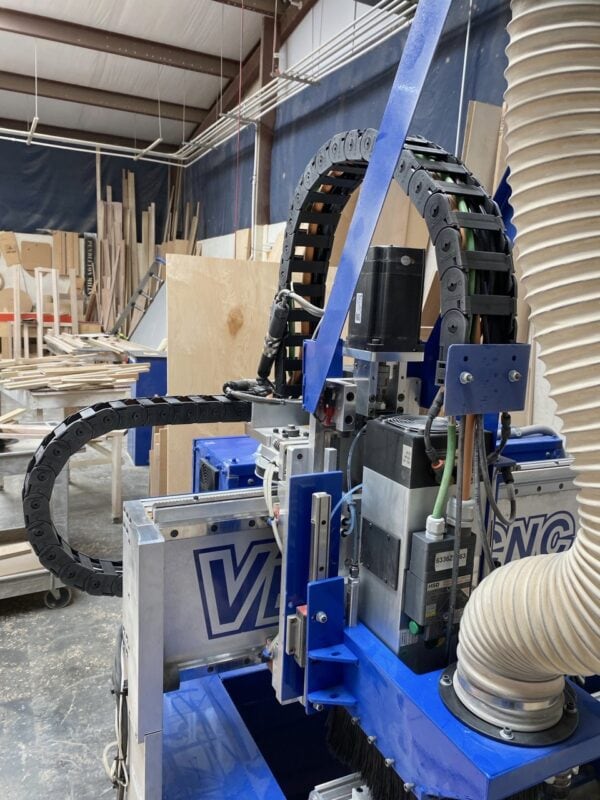

-5Hp HSD Auto tool change spindle, 220V, Single or three Phase, Italian

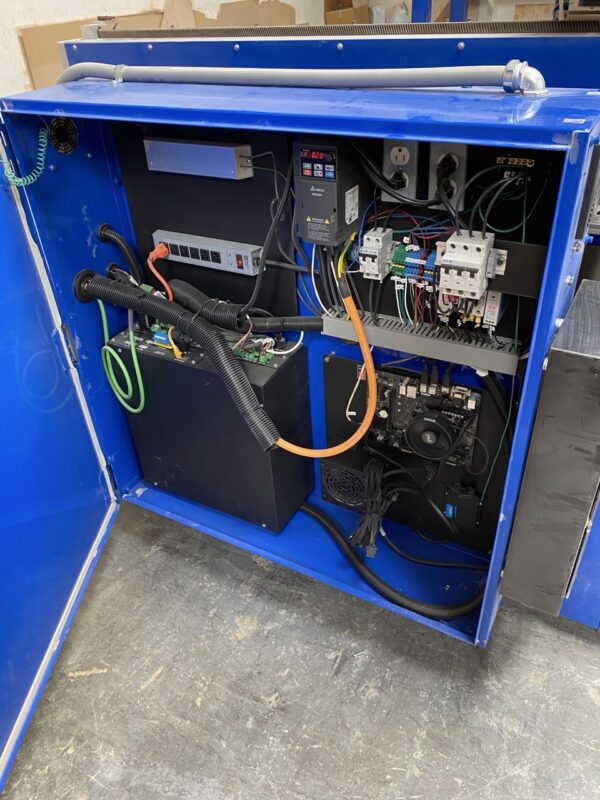

-Delta VFD

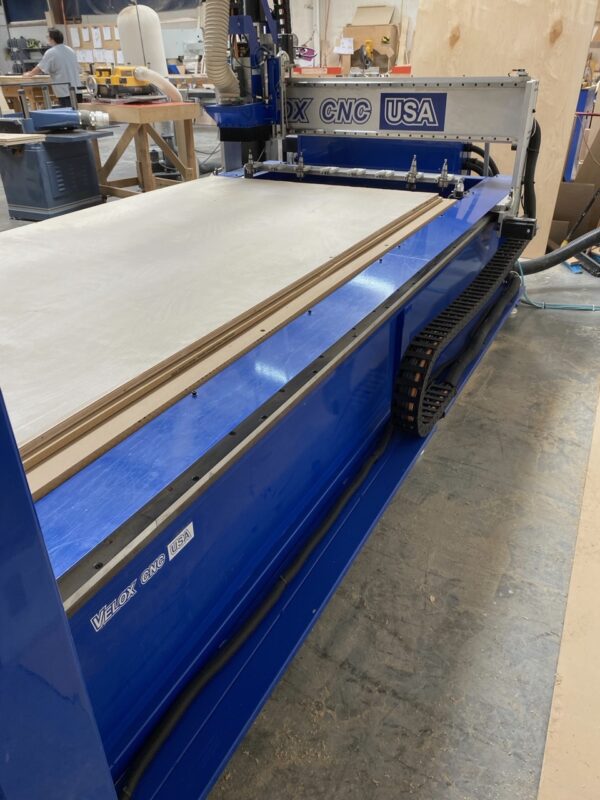

-Vacuum Table
-11HP Vacuum
-Remote vacuum on/off control
