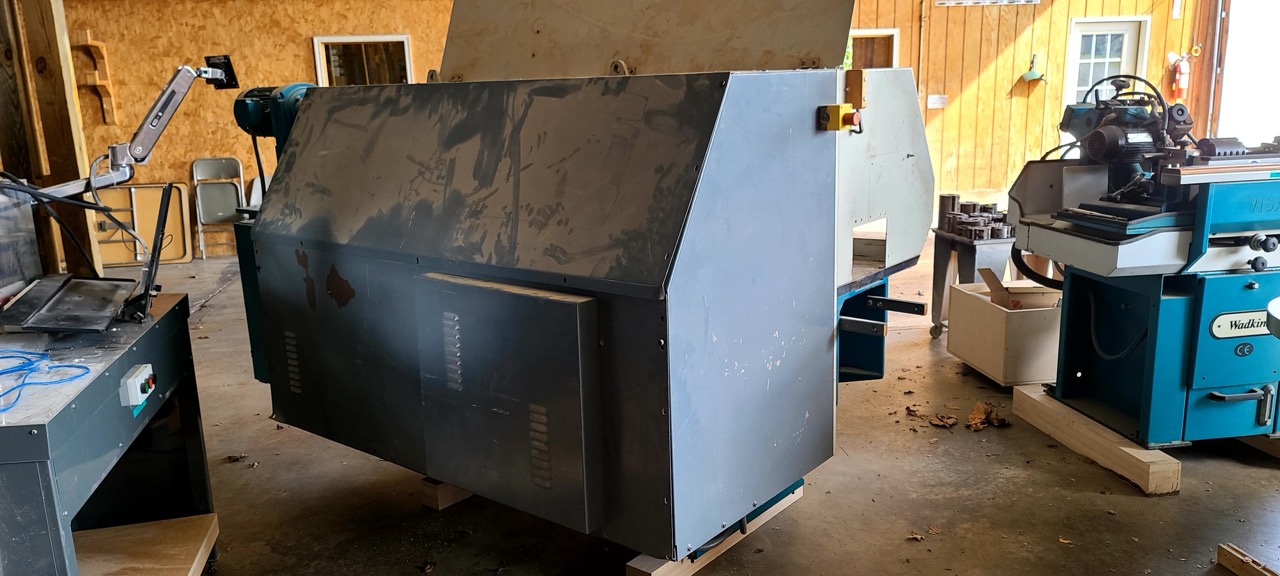

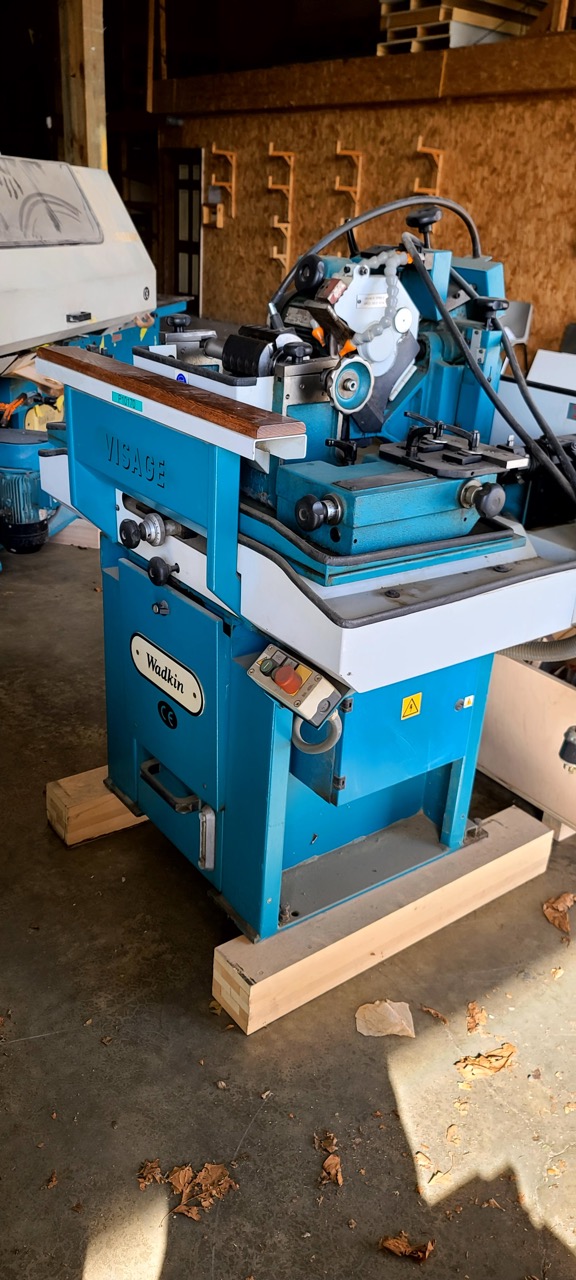

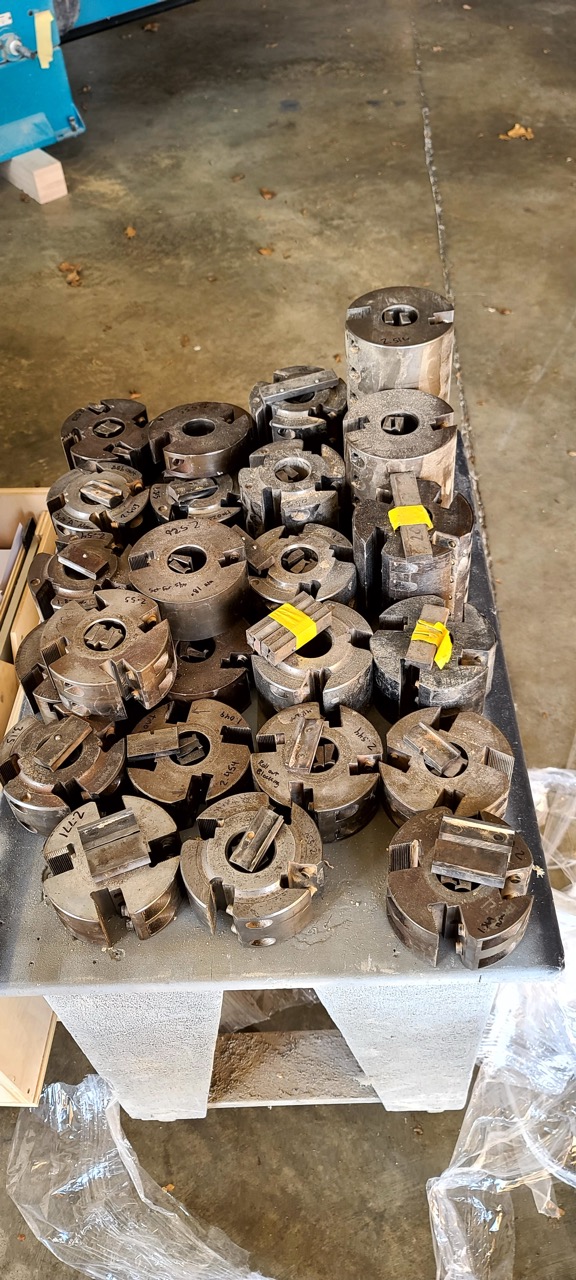

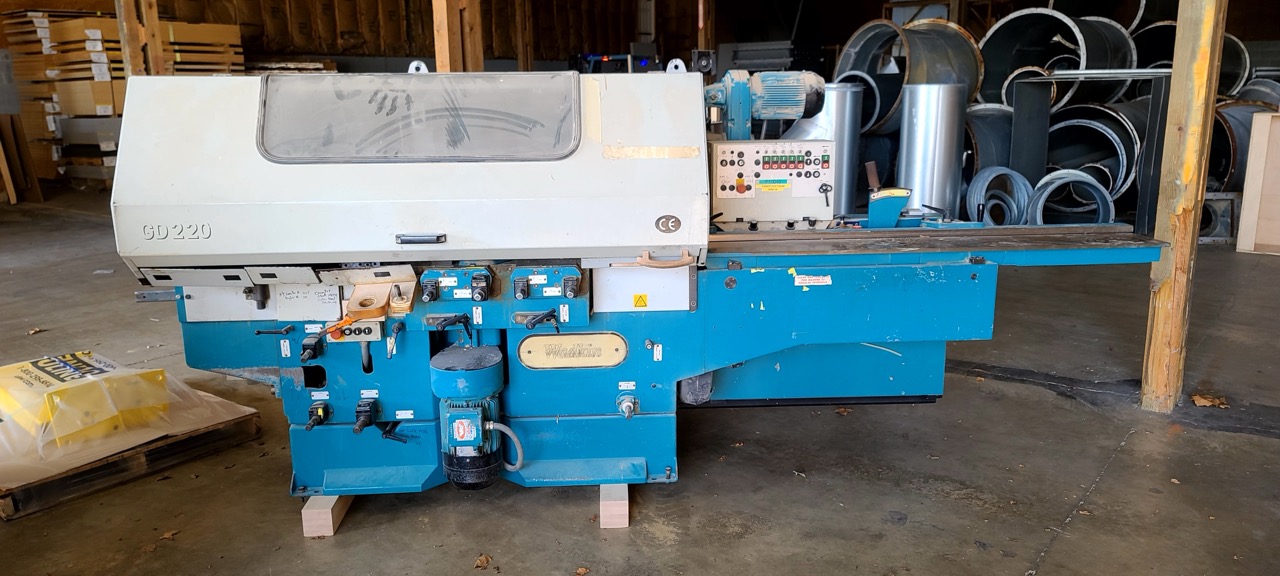

Wadkin GD220 5 Head Moulder, 2000 – Tooling included, Infeed Tables

Model; GD5
Year; 2000
220V 3HP 60Hertz, 132 full load amps

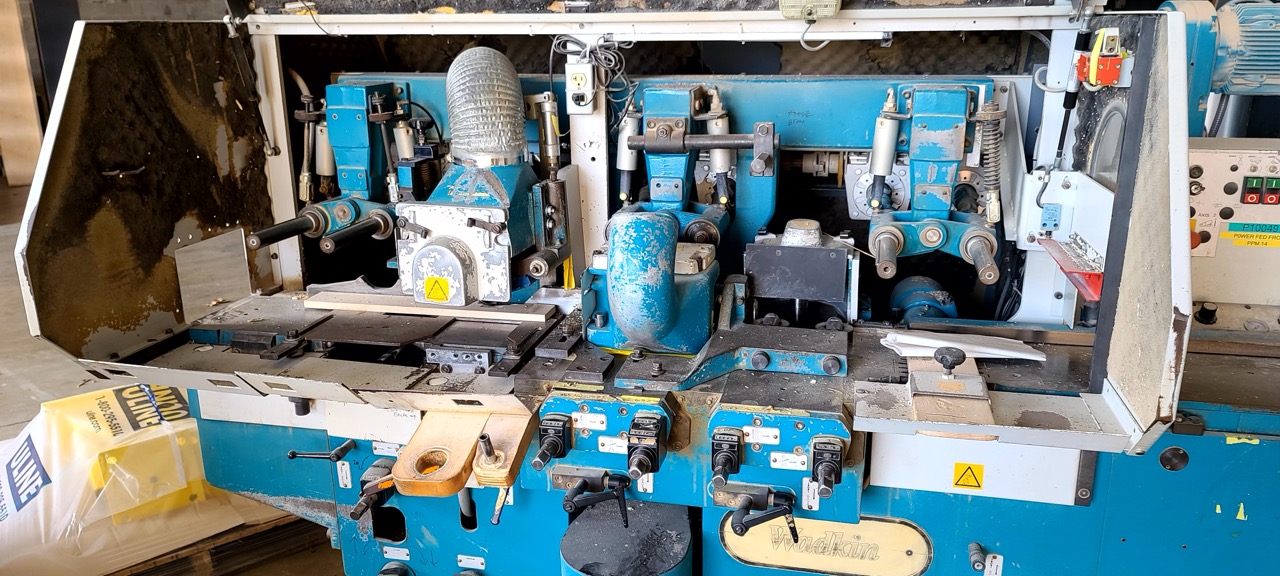

Spindle Configuration: B-R-L-T-B

Working capacity: 8-7/8” x 4-3/4”

Motors: Bottom 7.5 HP, Right / Left 7.5 HP, Top 15 HP and Bottom 10 hp.

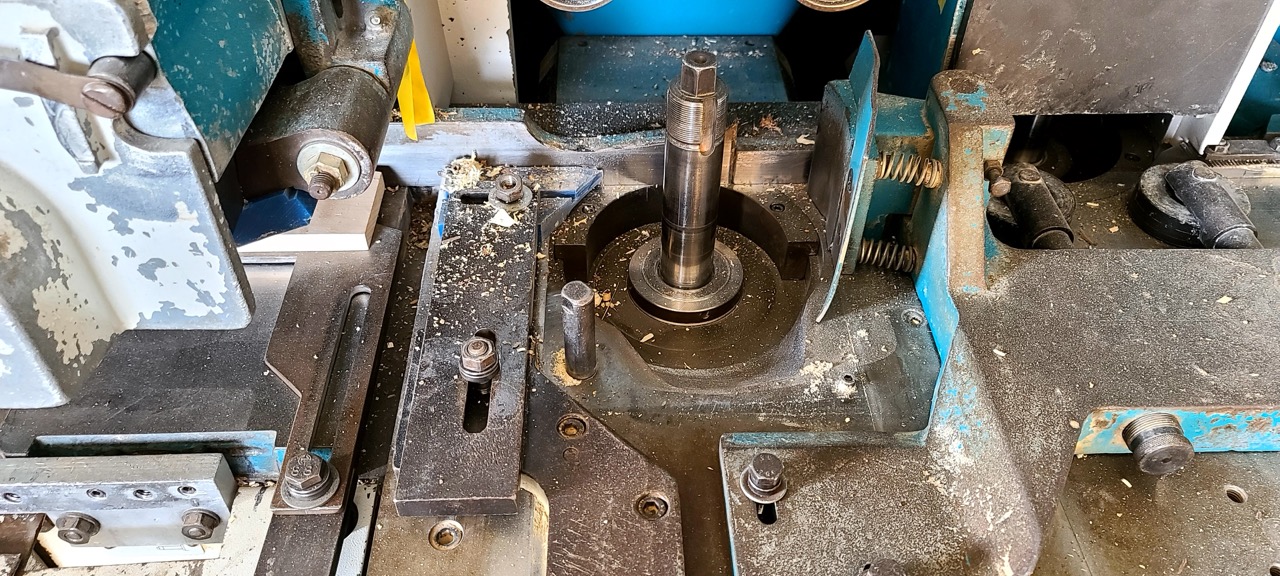

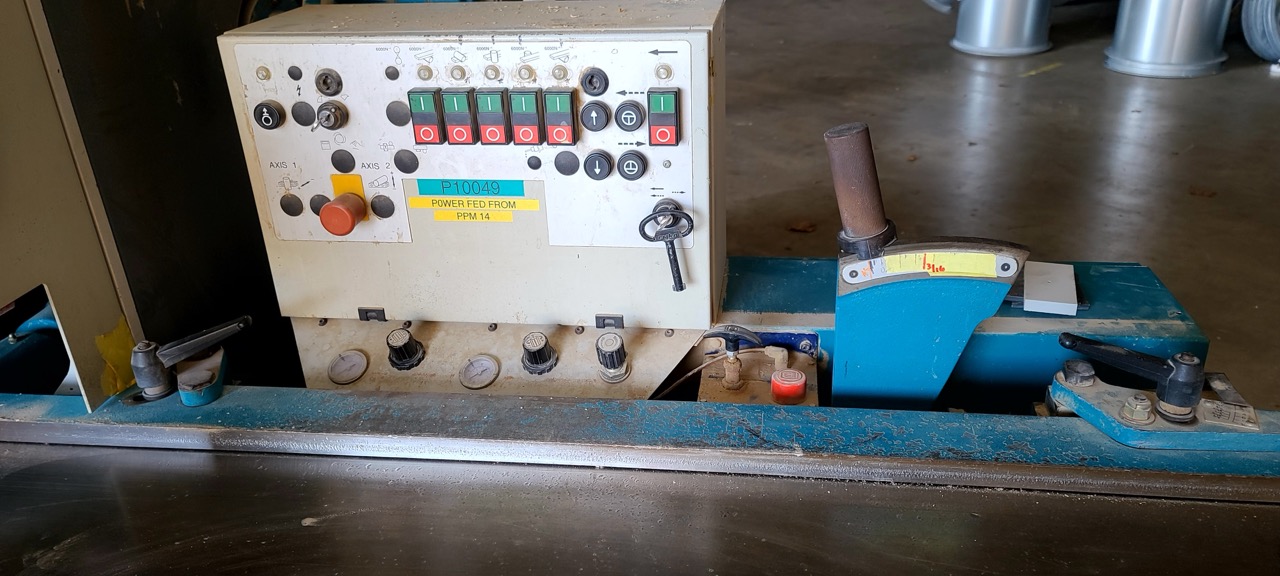

Spindles: Dia. 40 MM with rotation at 6,000 RPM. Digi-set readouts for left and top spindles. Readouts on chipbreaker and hold down.

Feed: Variable speed 3.0 HP with feed speeds from 18-85 FPM. Powered roller at outfeed.

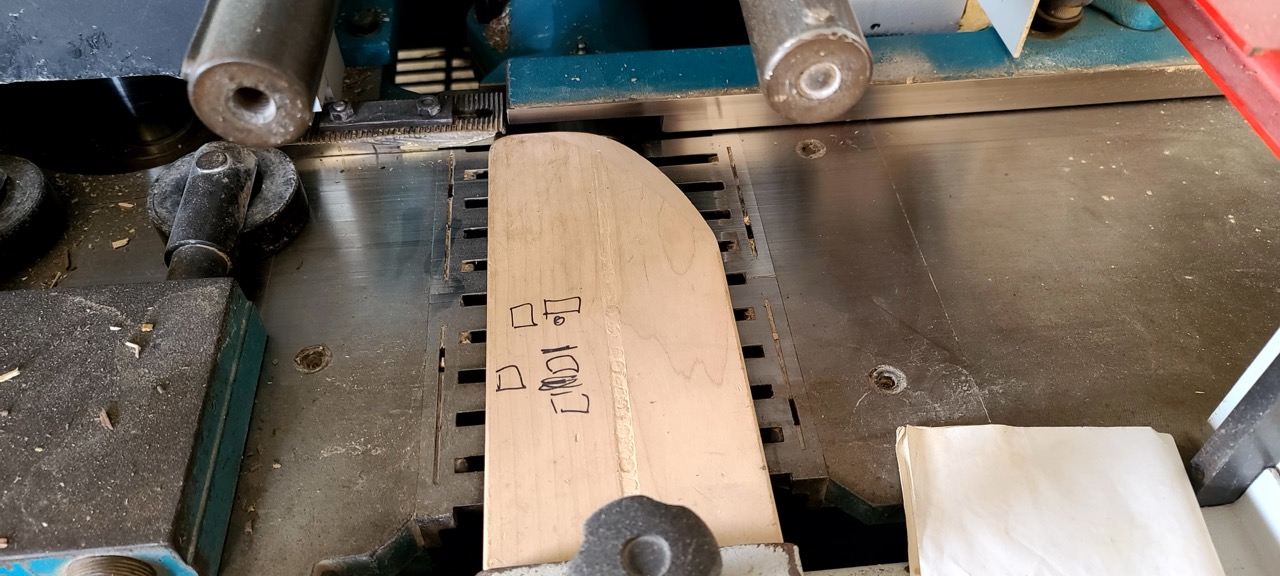

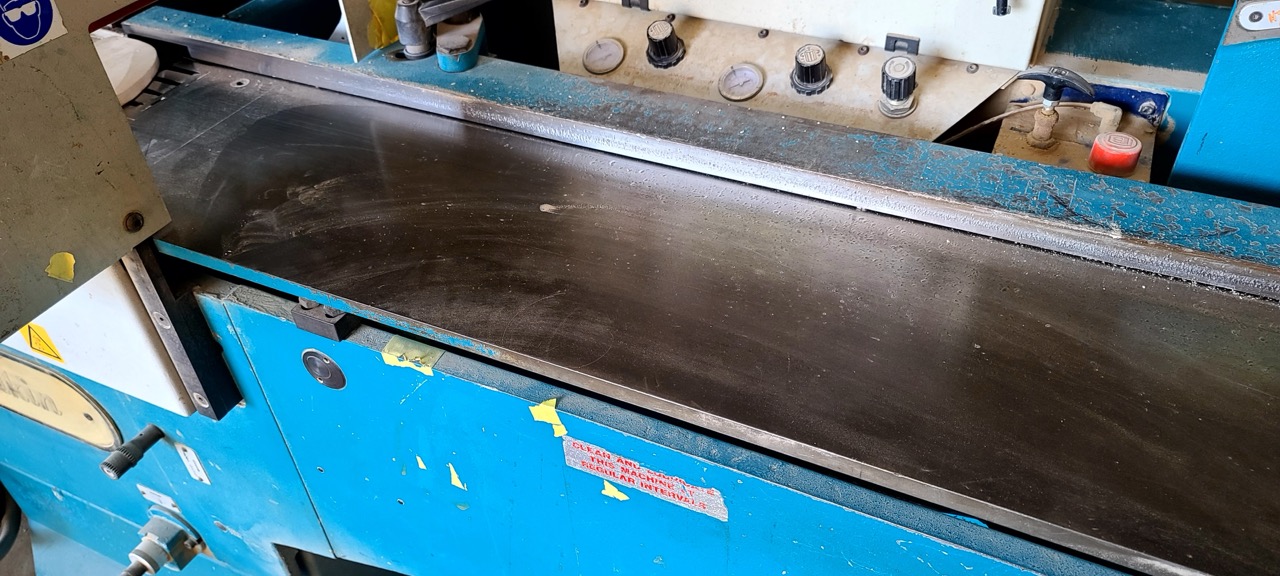

Infeed/Tables: 2 M (6’6’) infeed with side pressure roller. Manual table lubrication pump. Side pressure roller at infeed

Shipping Footprint: 12 (length) x 7 (width) x 7 (height)
Weight: 5500 lbs
