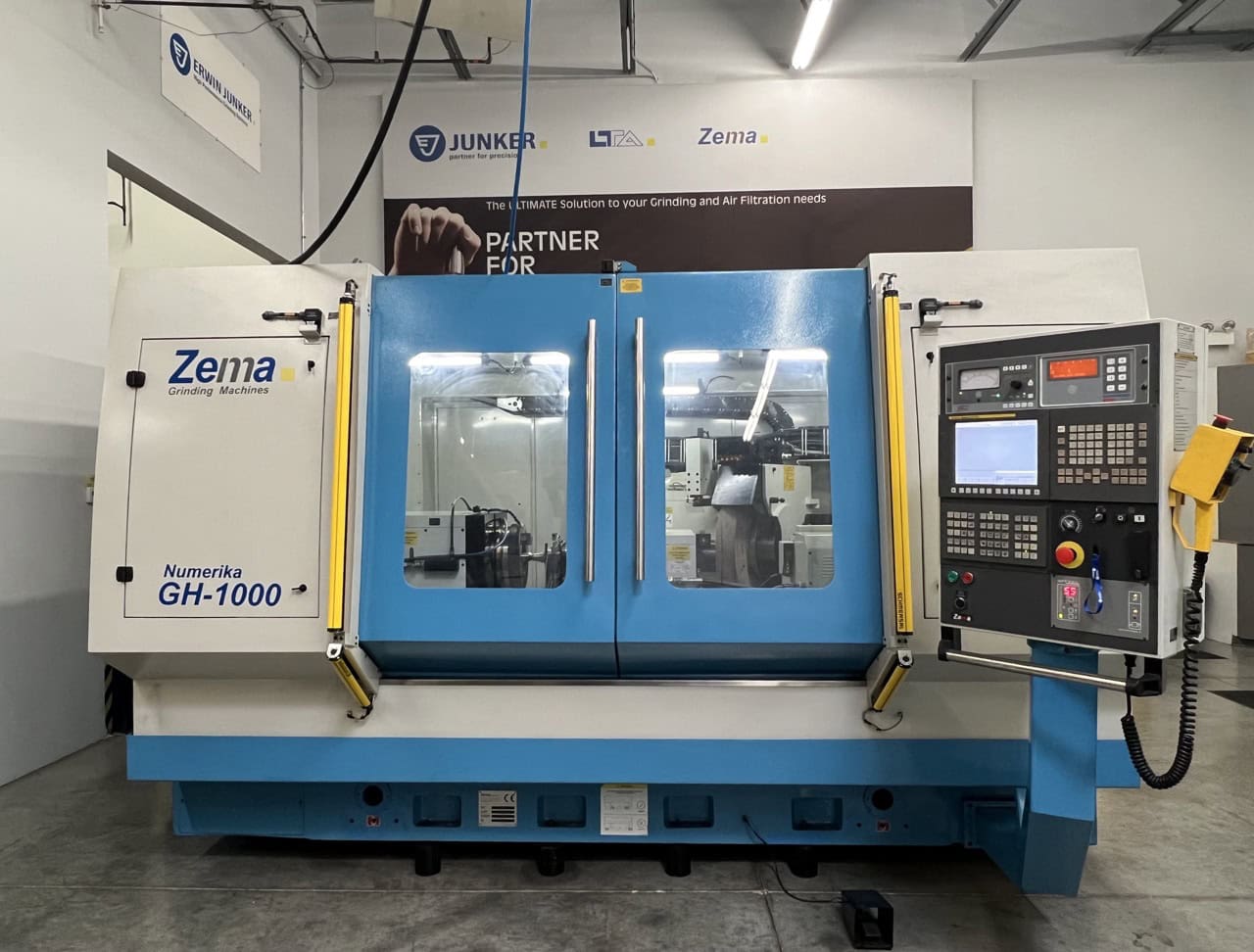

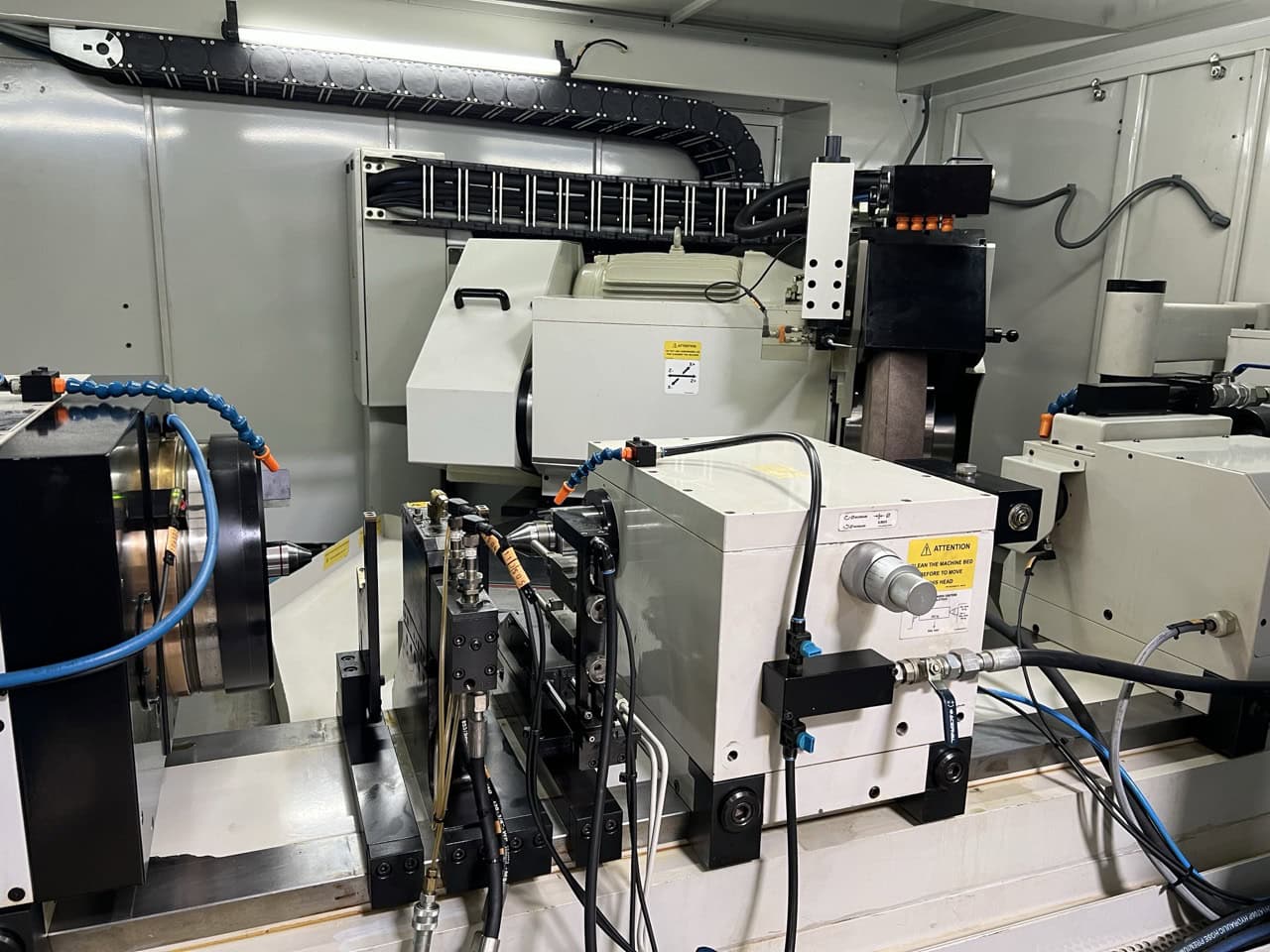

Zema Numerika GH-1000 CNC Cylindrical Grinding Machine, 2018 – Tailstock, Fanuc 0i TD, Dressing Spindle
$349,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Grinding length: 31.49”
Distance between centers: 39.37″
Center height: 9.05”
Swing diameter: 17.71”
Workpiece weight: Max. 551.15 lbs
Grinding Wheel Width: 5.90″
Weight:
Basic machine: 29,000 LBS

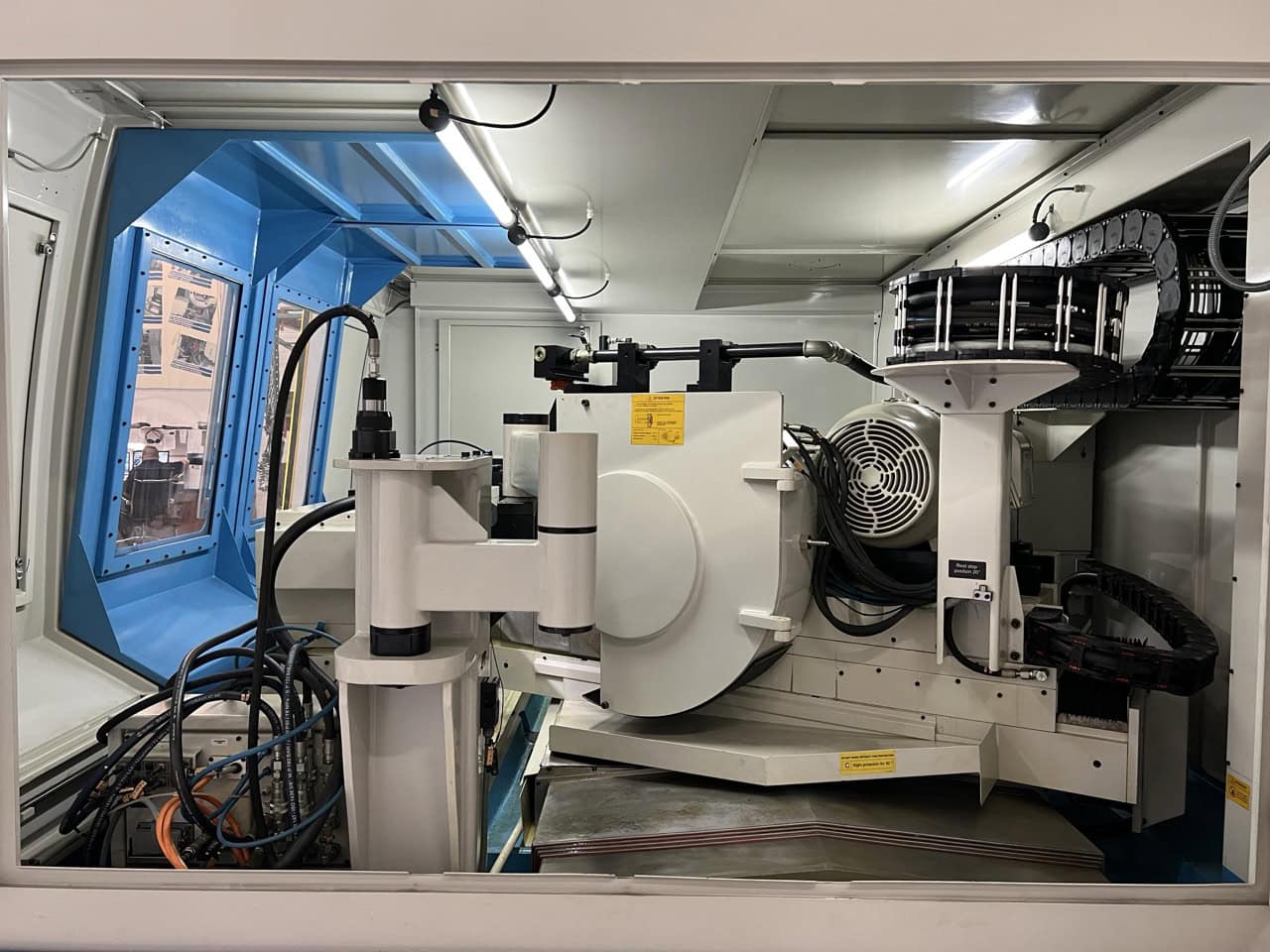

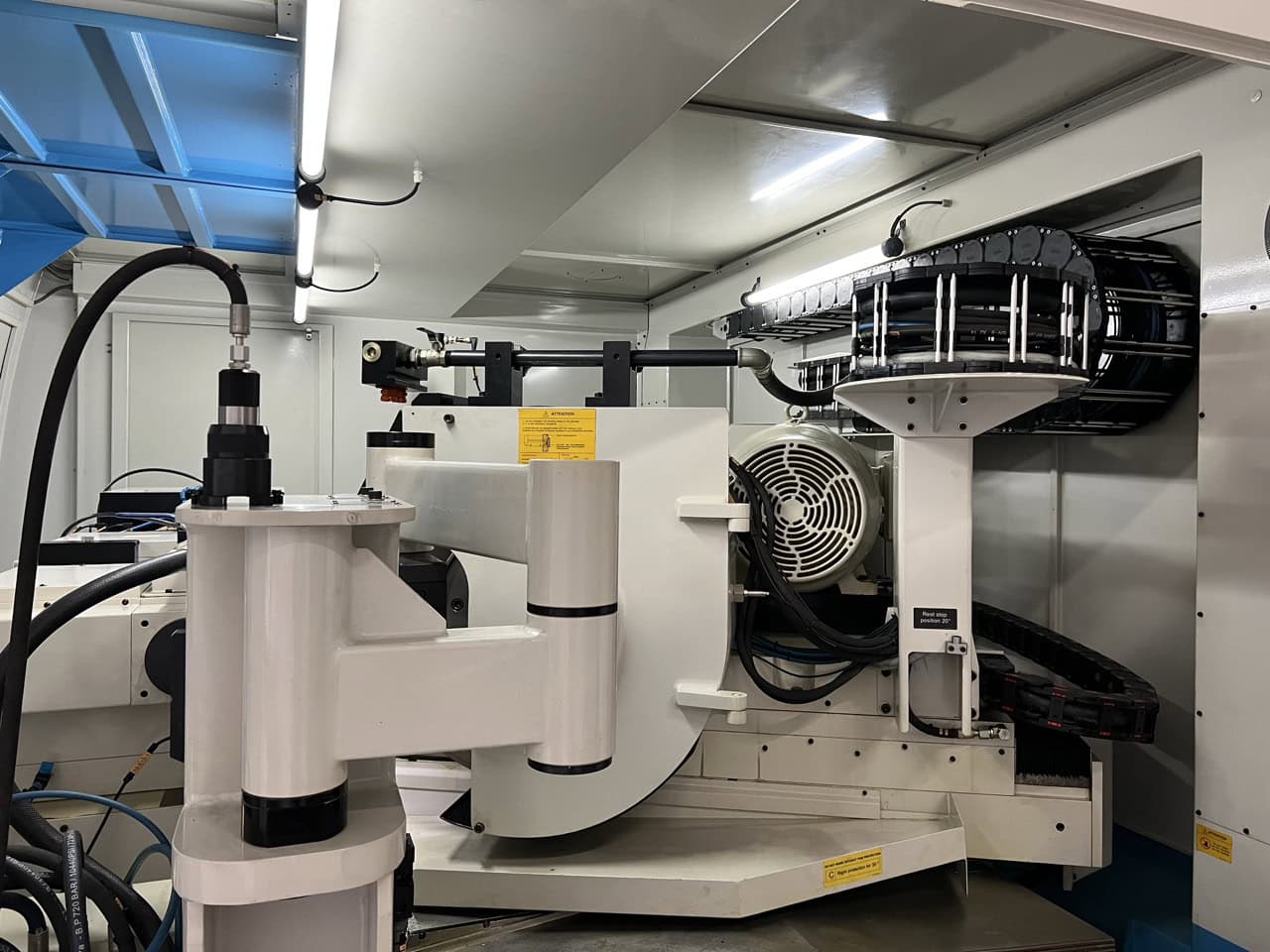

Wheelhead:
X axes (infeed):
Travel: max. 17.71”
speed: max. 6m/min
Z axes:
Travel: max. 47.24”
Speed: max. 12 m/min
Spindle power: 40.78 hp
Workhead rotational speed: 20-500 rpm
Internal taper: MT 5

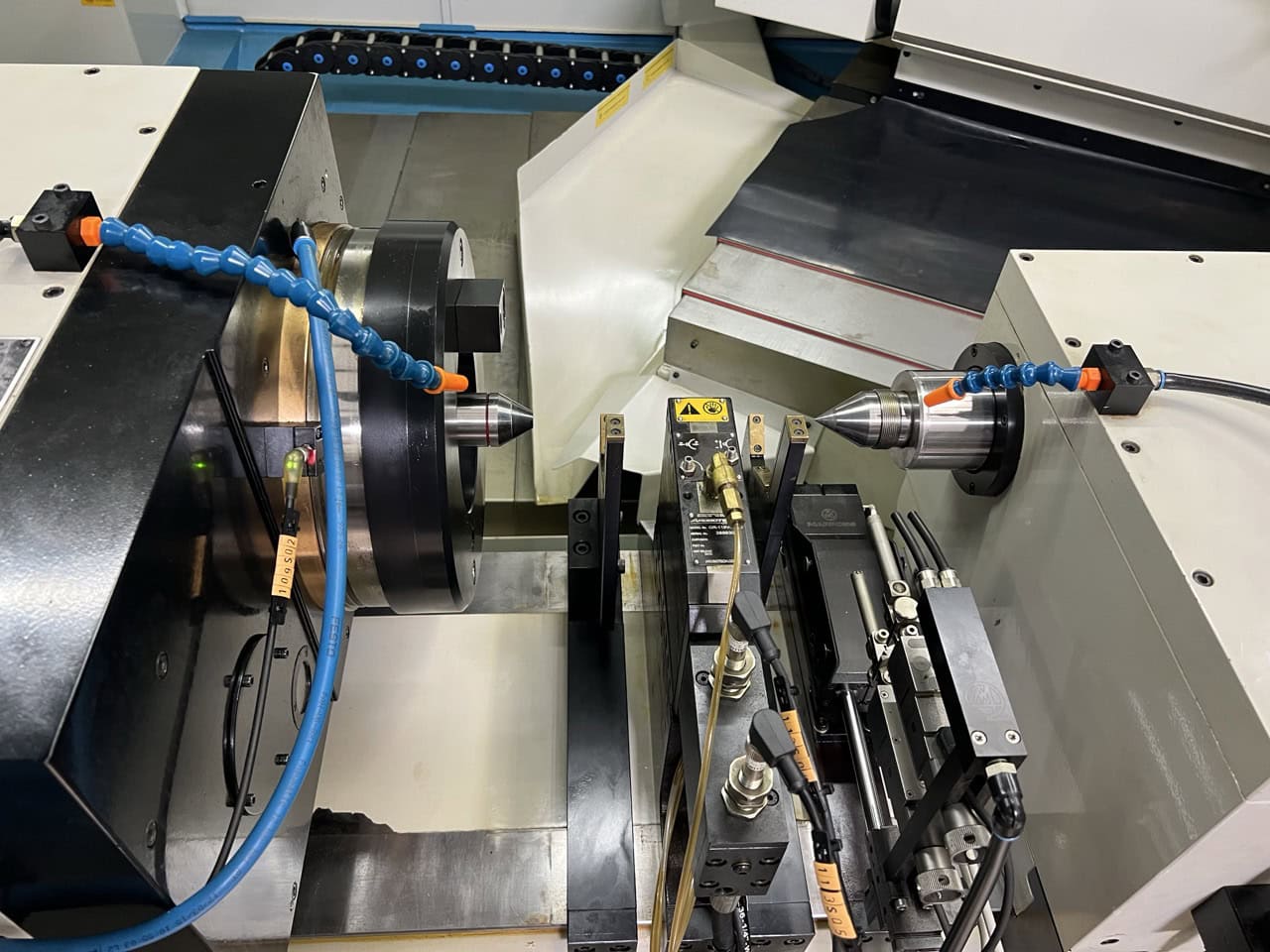

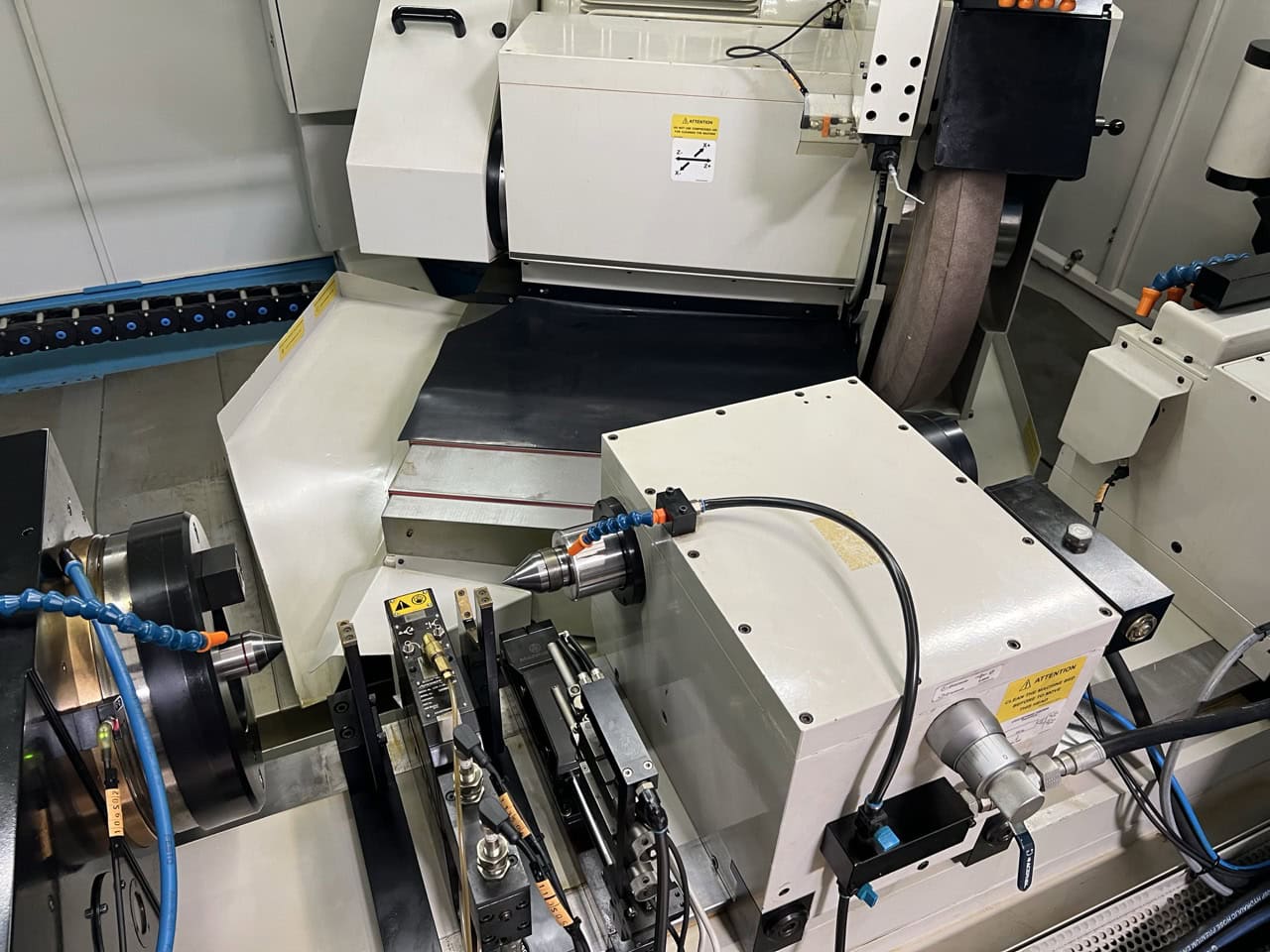

Tailstock
Stroke of the tailstock sleeve: 2.36”
Internal taper: MT5
Taper correction: 0,15 mm
Equipped With:

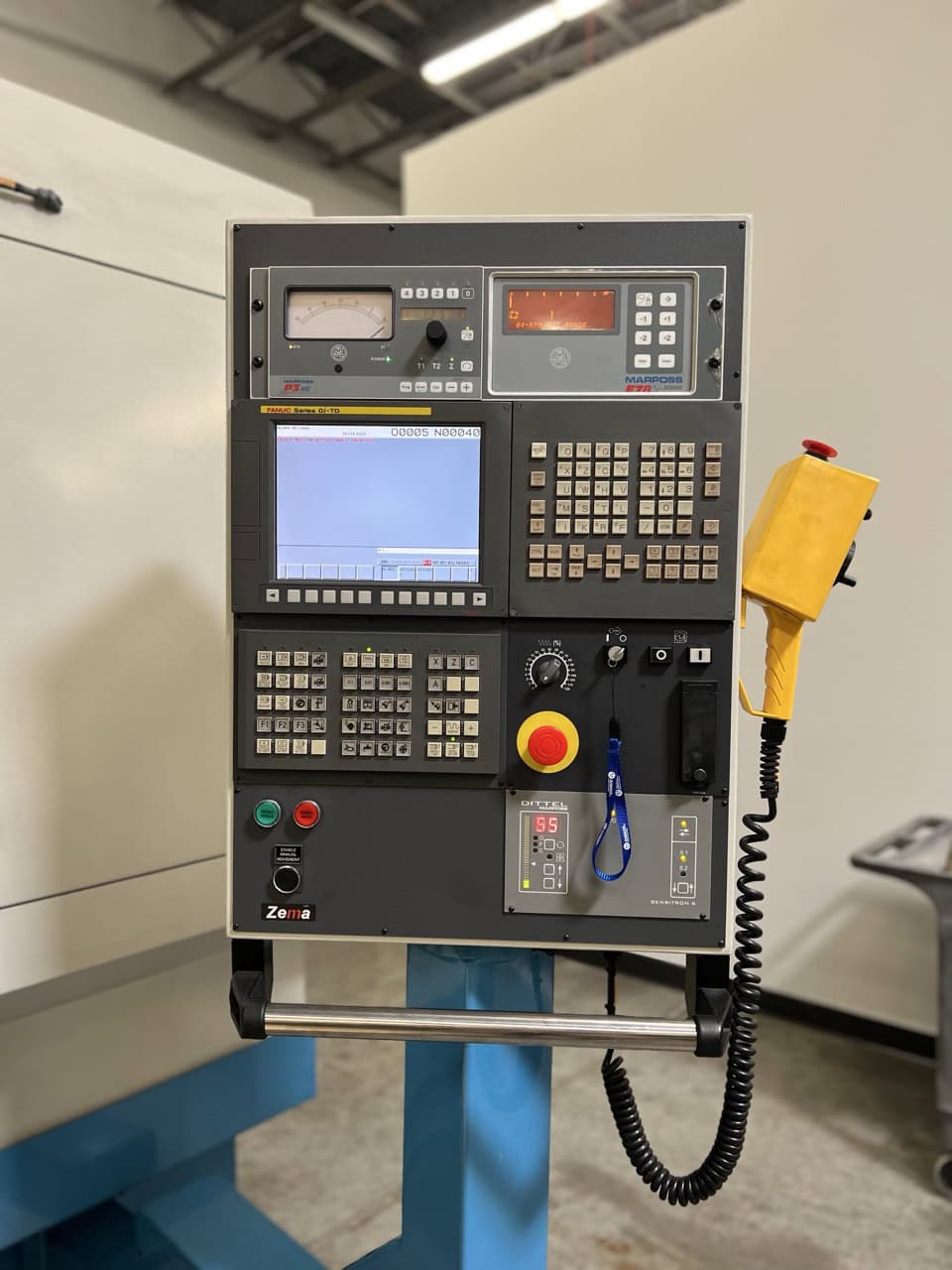

Fanuc 0i TD Control
High Frequency Dressing Spindle

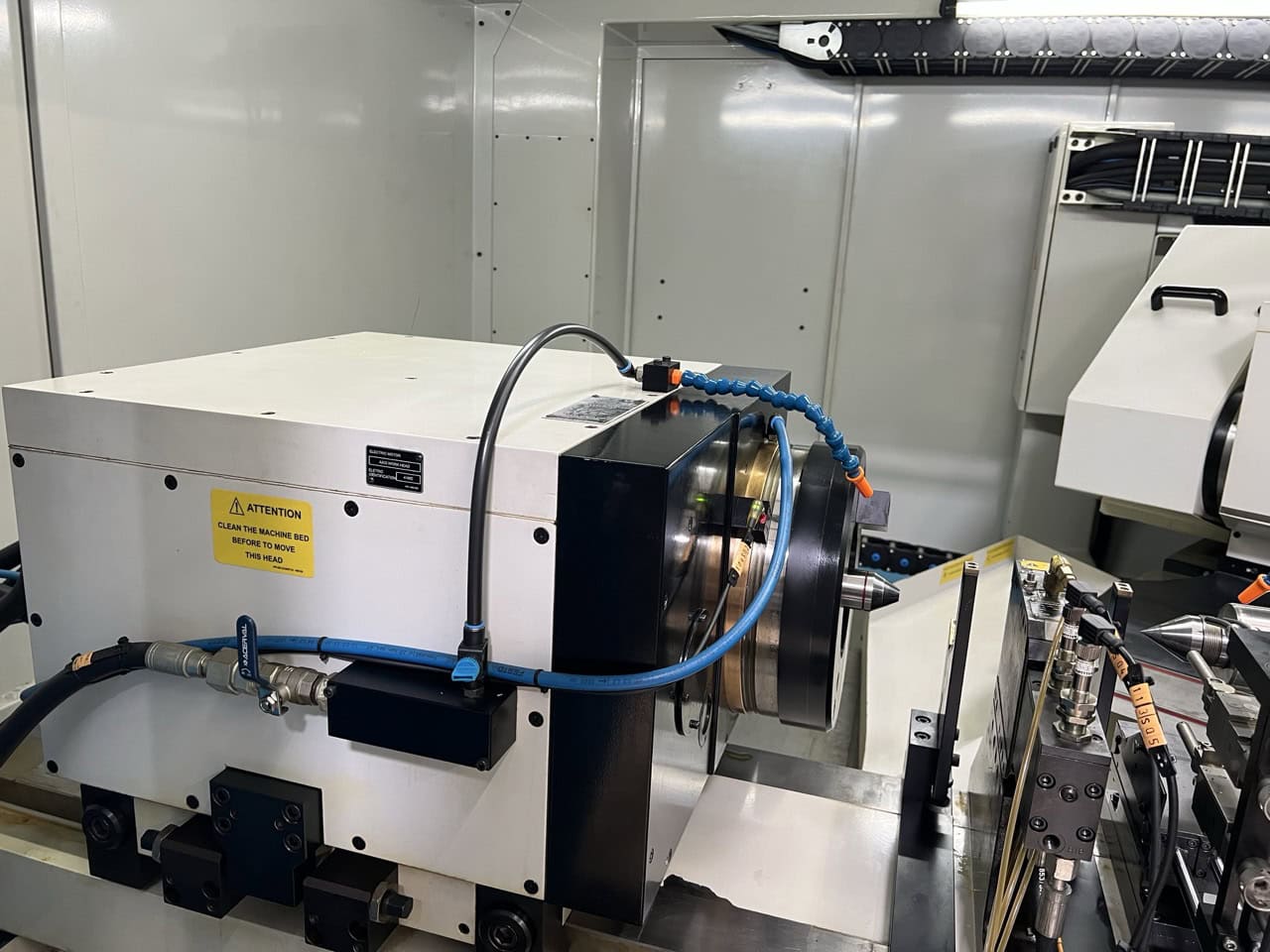

Workhead with Hydraulic Cylinder
Tailstock
Tailstock Actuation
Diamond Dressing Wheel
Steady
Jaw Insert for Steady
