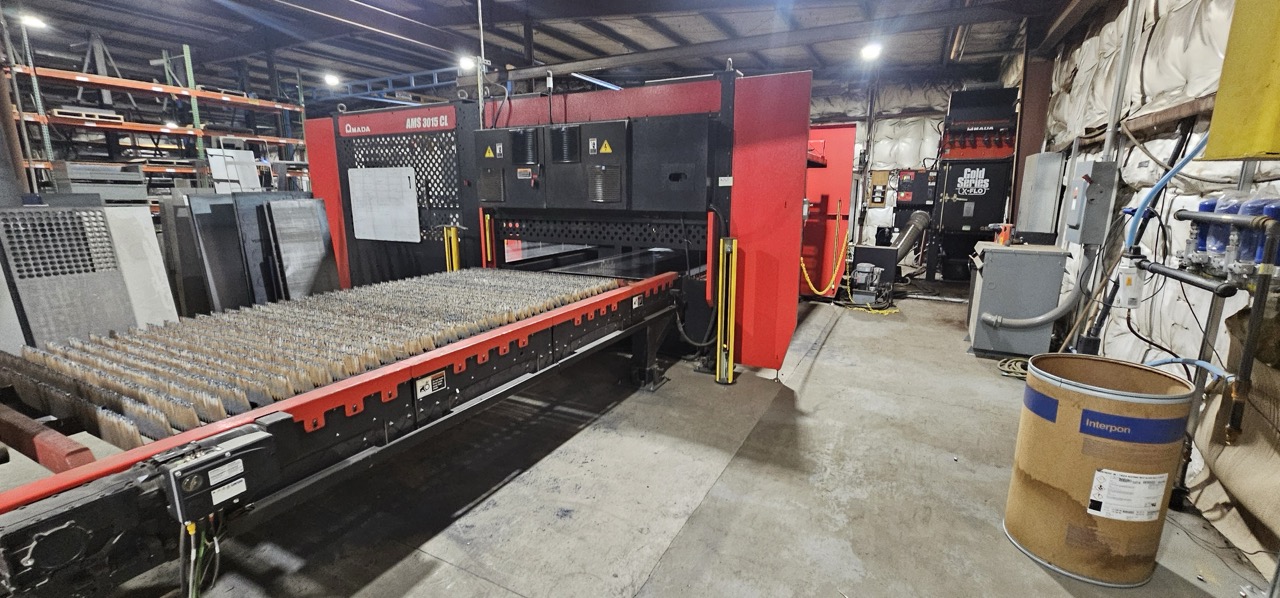

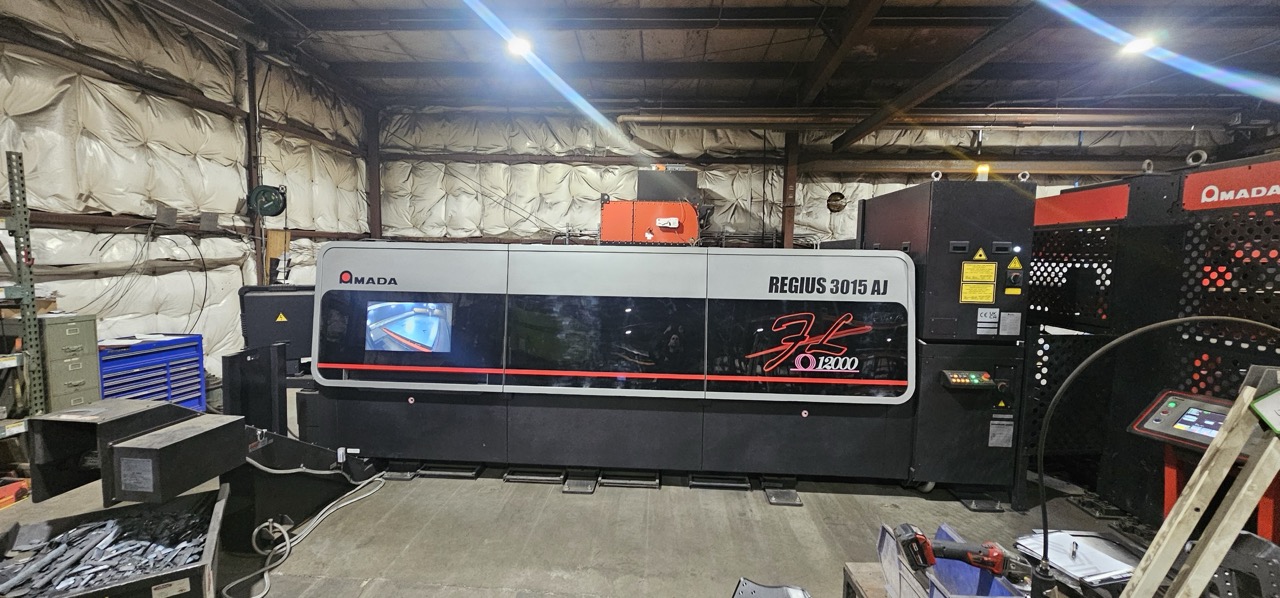

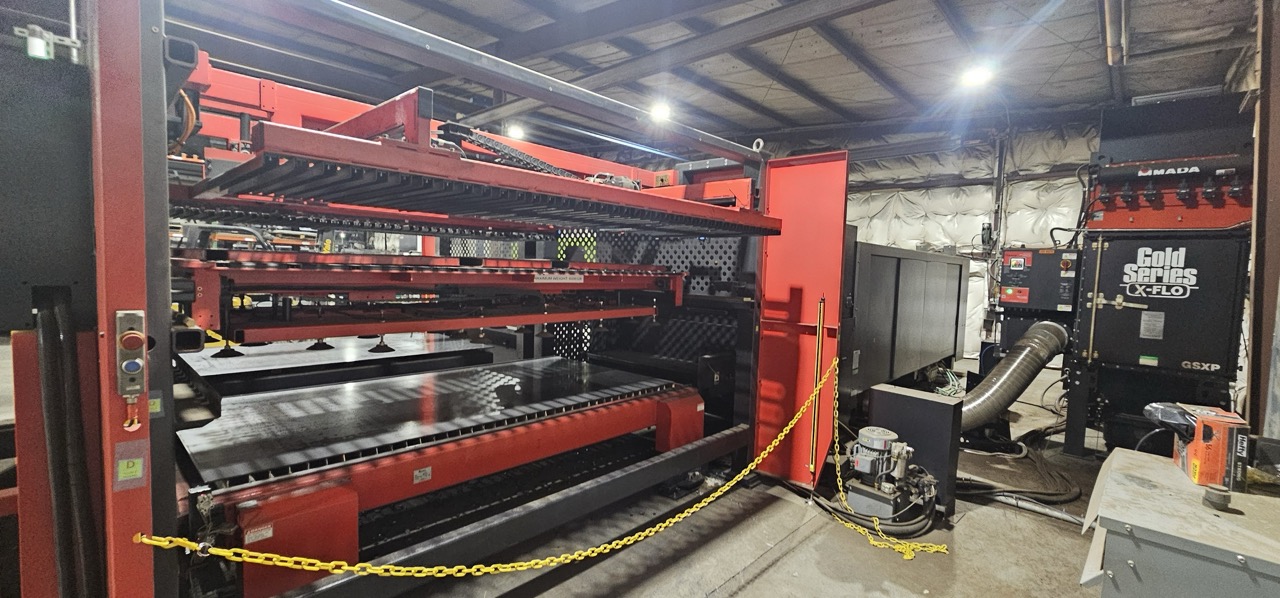

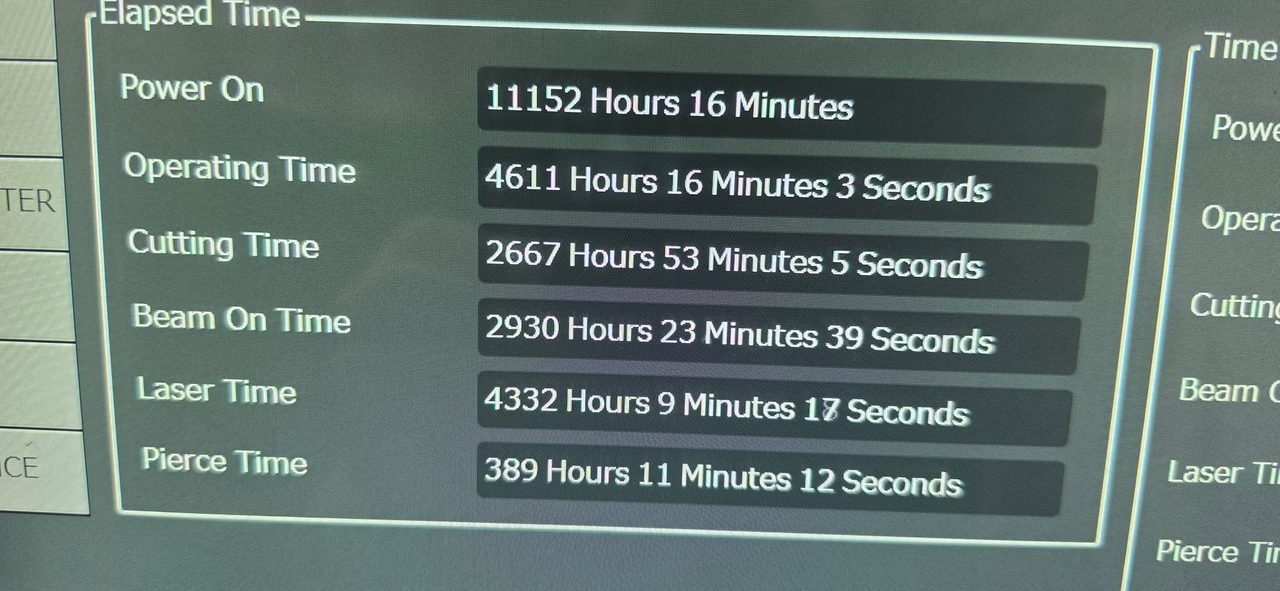

12,000 Watt Amada Regius 3015AJ Fiber Laser, 2023 – 5’x10′, Low Hours, W/ AMS3015CL Single Pallet Automation

Power Output: 12,000 Watts (12 kW) fiber laser via high-stability LD excited YB fiber modules
Axis Travel & Work Area: X x Y x Z axes accommodate standard 5′ x 10′ sheets (approx. 3000mm x 1500mm)
Max Acceleration: 5g across the 3-axis linear drive system
Traverse Speed: Up to 13,300 inches per minute (340 m/min)
Max Material Weight: 2,000 lbs
Repeatability: ±0.00002″

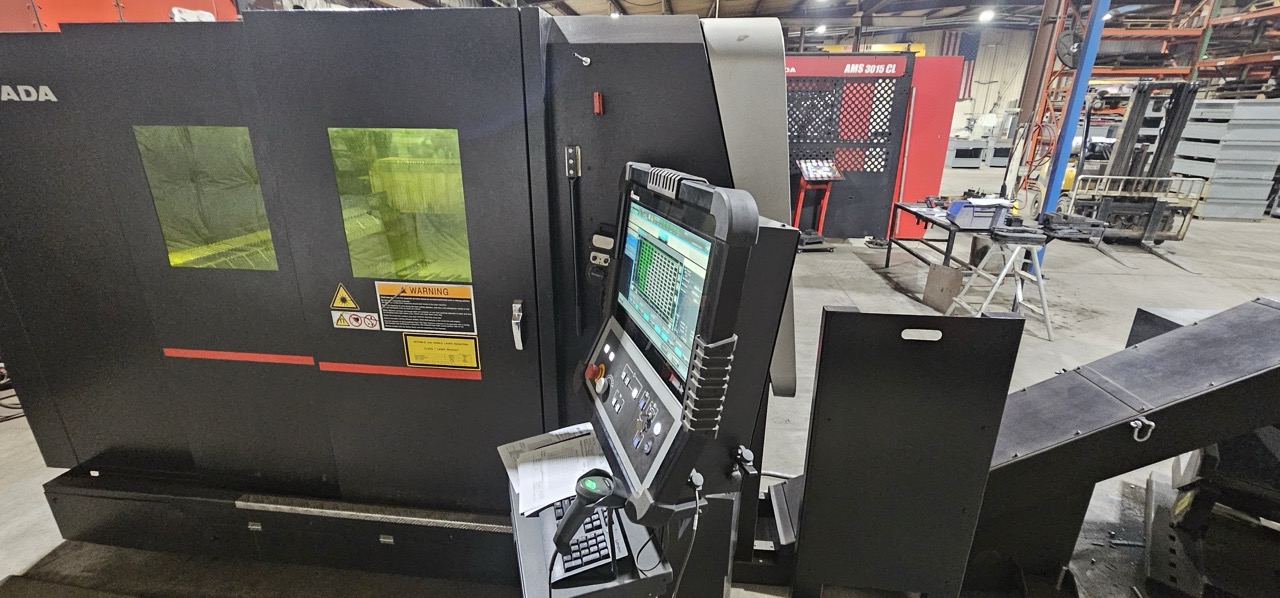

CNC Control: AMNC 4E / AMNC 4ie touchscreen interface
Electrical Requirements: 208V, 3-phase, 60Hz (approx. 79 kVA max)

AJ1200 Amada Fiber Engine
Variable Beam Control Unit
AMNC 3i Control
ADSS Remote Diagnostics
3 Axis Linear Drive
Automatic Nozzle Changer
i-Process Monitoring System
i-Nozzle Checker
i-Optics Sensor i-Camera System
Water Assist Cutting
Automatic Collision Recovery
Dust Collector & Chiller
Bar-Code Reader
Spatter Free Pierce (Oil Shot)
