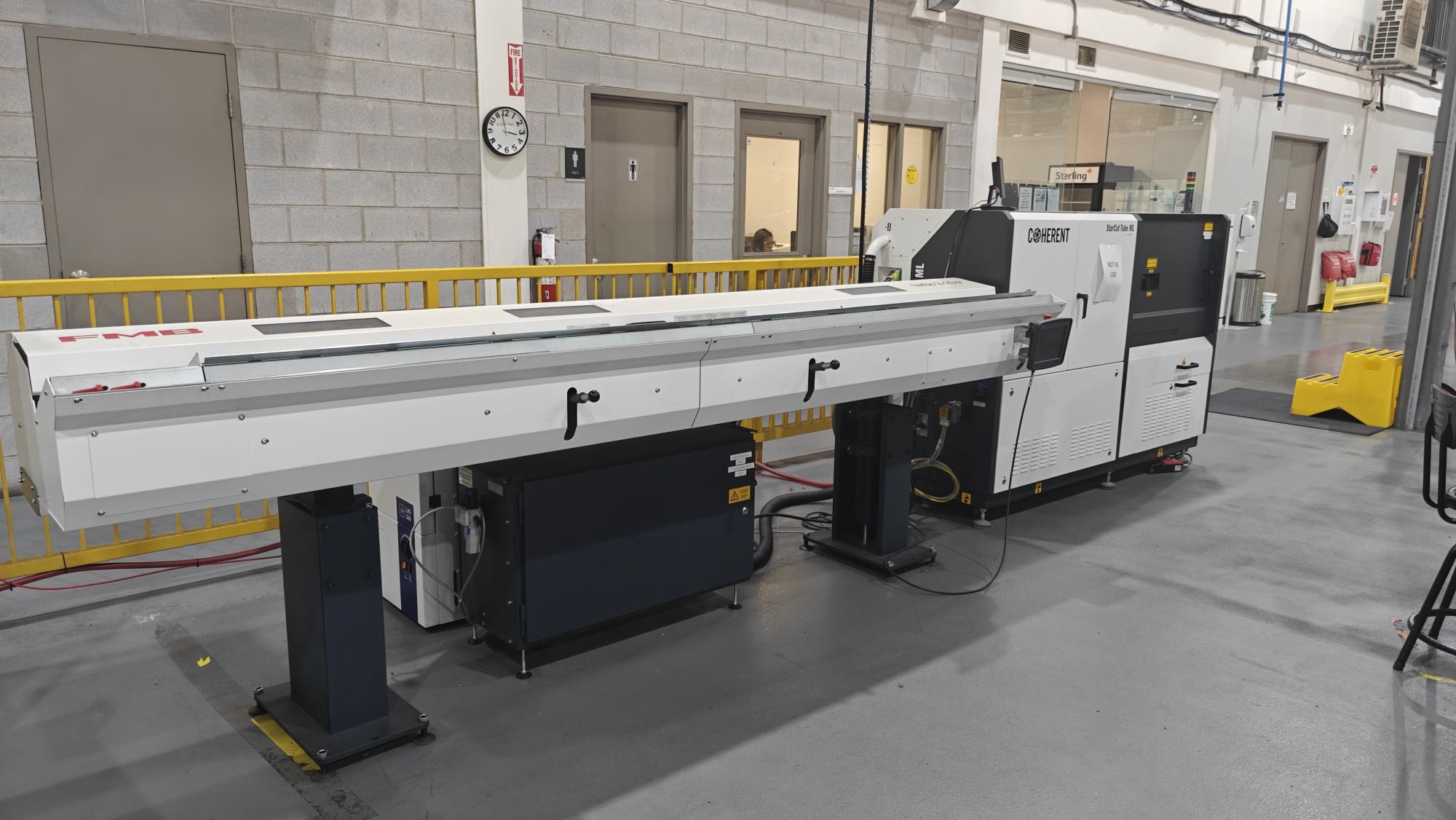

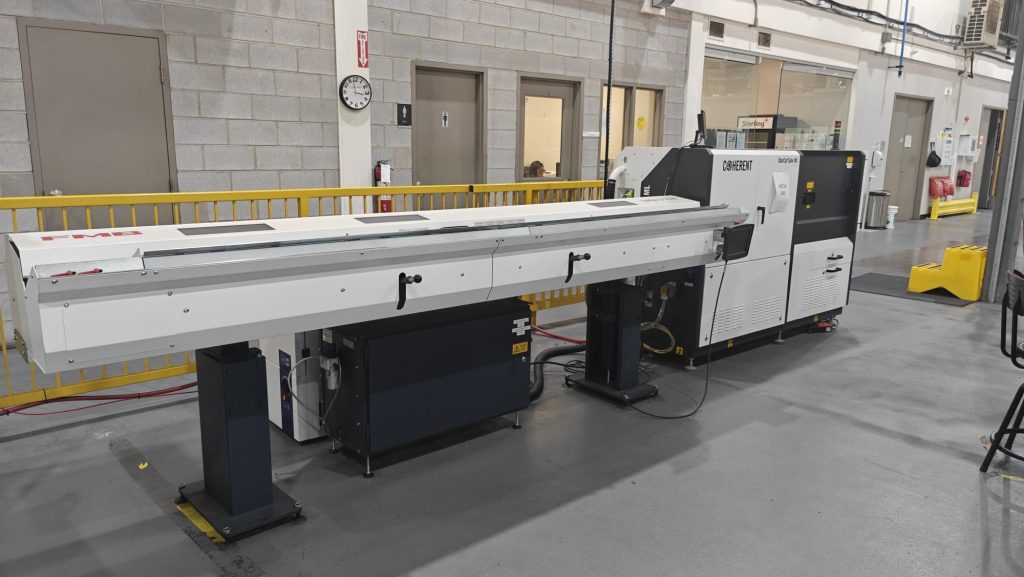

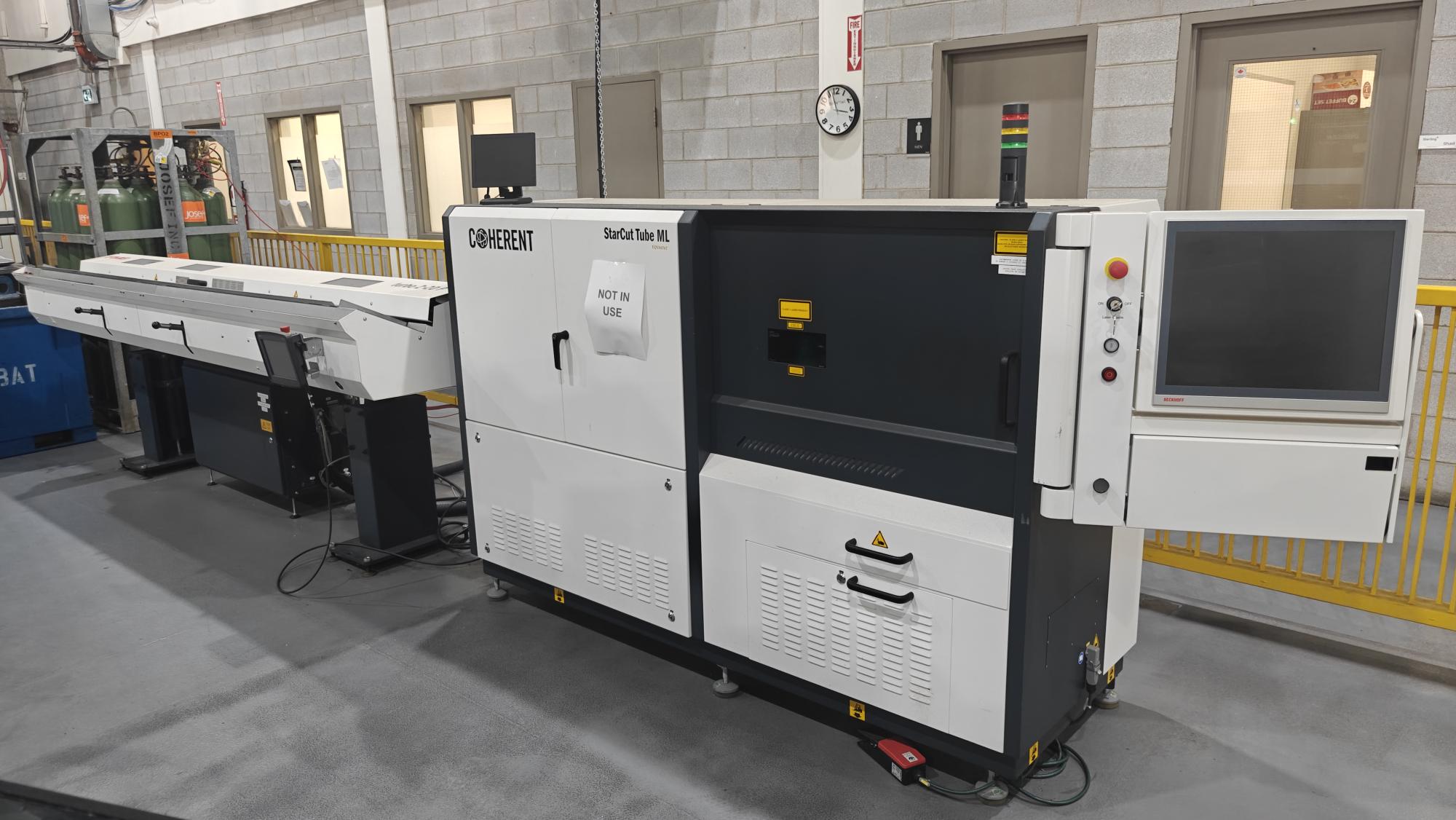

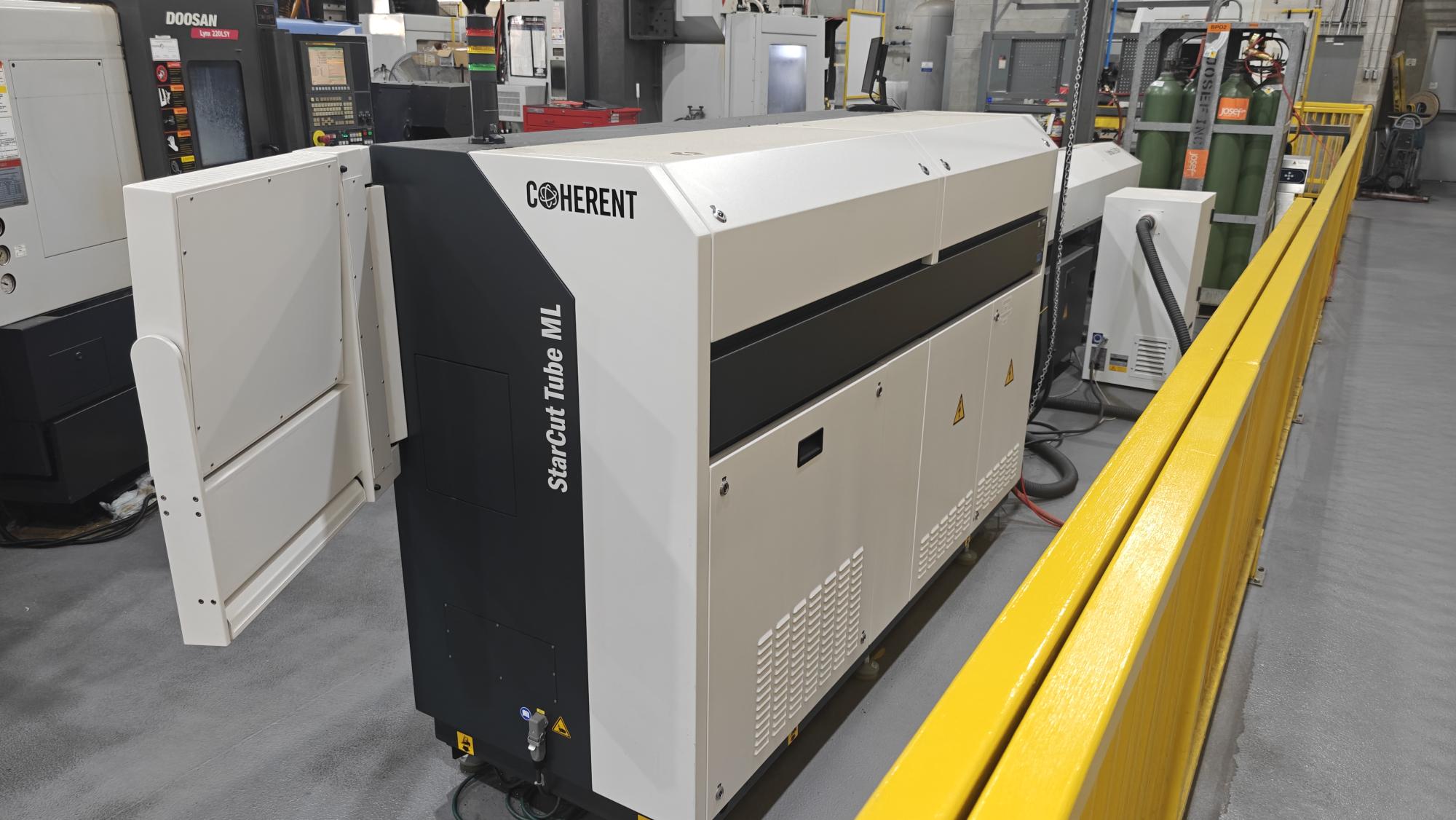

150 Watt Coherent StarCut Tube ML Precision Fiber Laser Tube Cutting System, 2024 – 150W StarFiber 150P, FMB Turbo 2-20 P Bar Loader, Fume Extraction

Minimum Tube Diameter: 0.012″ (0.3 mm)
Maximum Tube Diameter: 1.18″ (30 mm)
Maximum Pulsed Output Power: 150W
Maximum Continuous Wave Output Power: 250W
Peak Pulse Power: 1,500W
Laser Wavelength: 1,070 nm
Pulse Duration: 0.02–50 ms
Maximum Pulse Energy: 15 J
Pulse Repetition Rate: Single Pulse To 50 kHz
Maximum Tube Diameter: 1.18″ (30 mm)
Y Axis Travel: 2.95″ (75 mm)
Z Axis Travel: 1.57″ (40 mm)
Laser Cooling: Air Cooled
Machine Base: Granite
Laser Safety Classification: Class 1
Voltage: 208V ±10%
Phase: 3
Frequency: 50/60 Hz
Electrical Power Rating: 3.0 kVA
Maximum Line Fuse Rating: 16A Per Phase
Enclosure Protection Rating: IP21

Equipped With:
– StarFiber 150P Laser Source

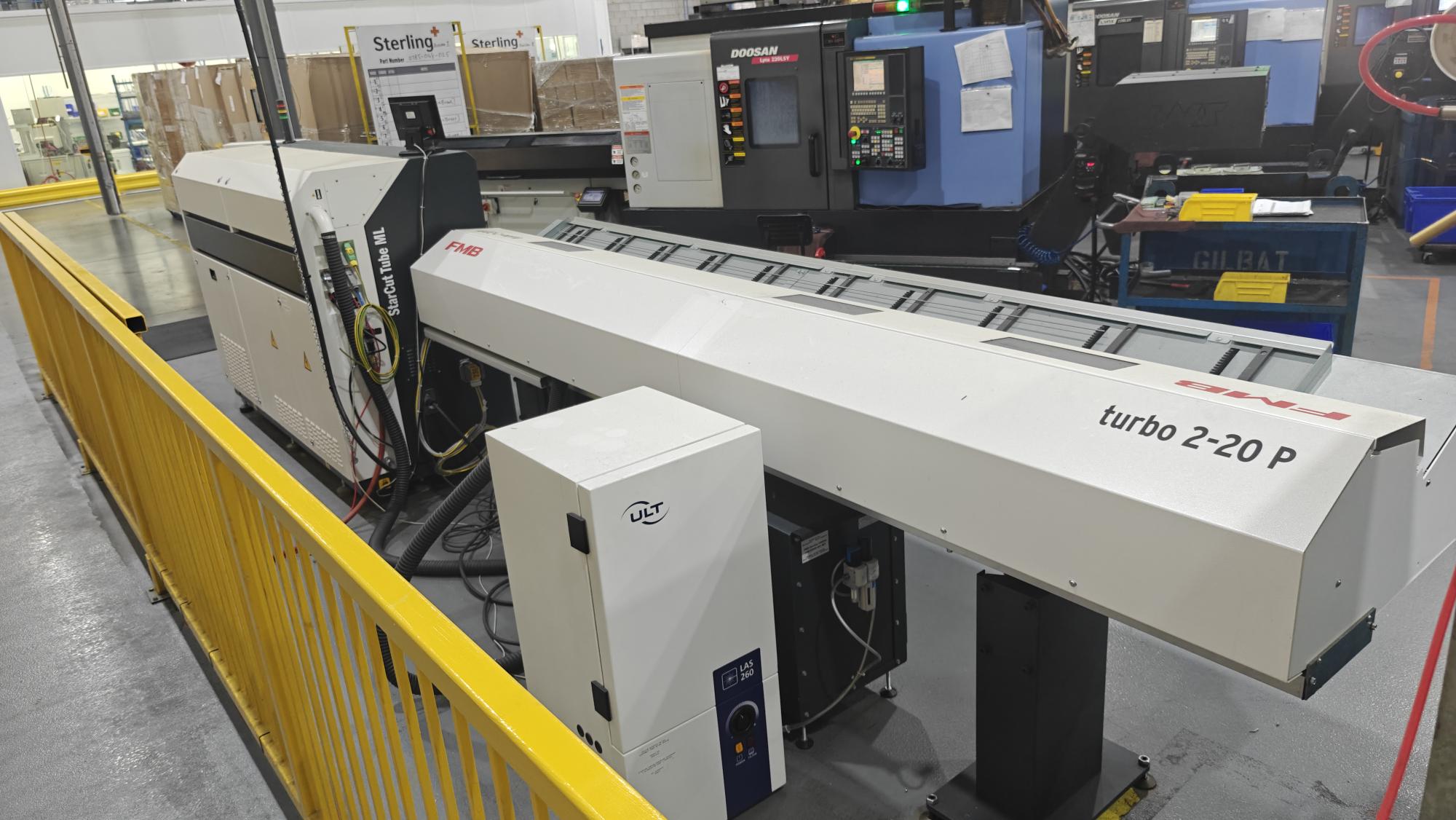

– FMB Turbo 2-20 P Automatic Bar Loader
– Beckhoff Operator Panel
– ULT LAS 260 Fume Extraction Unit
– Process Viewing Monitor

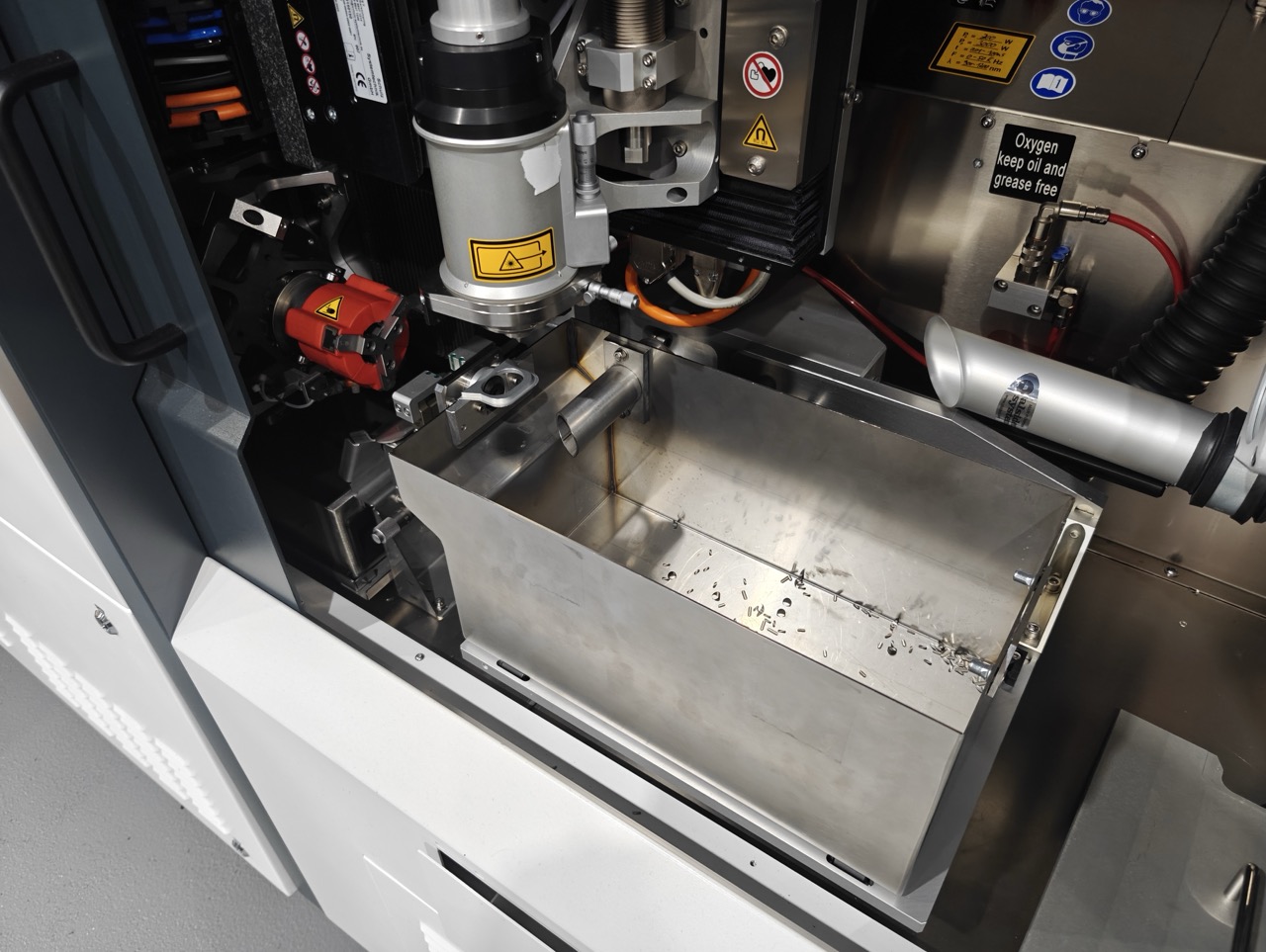

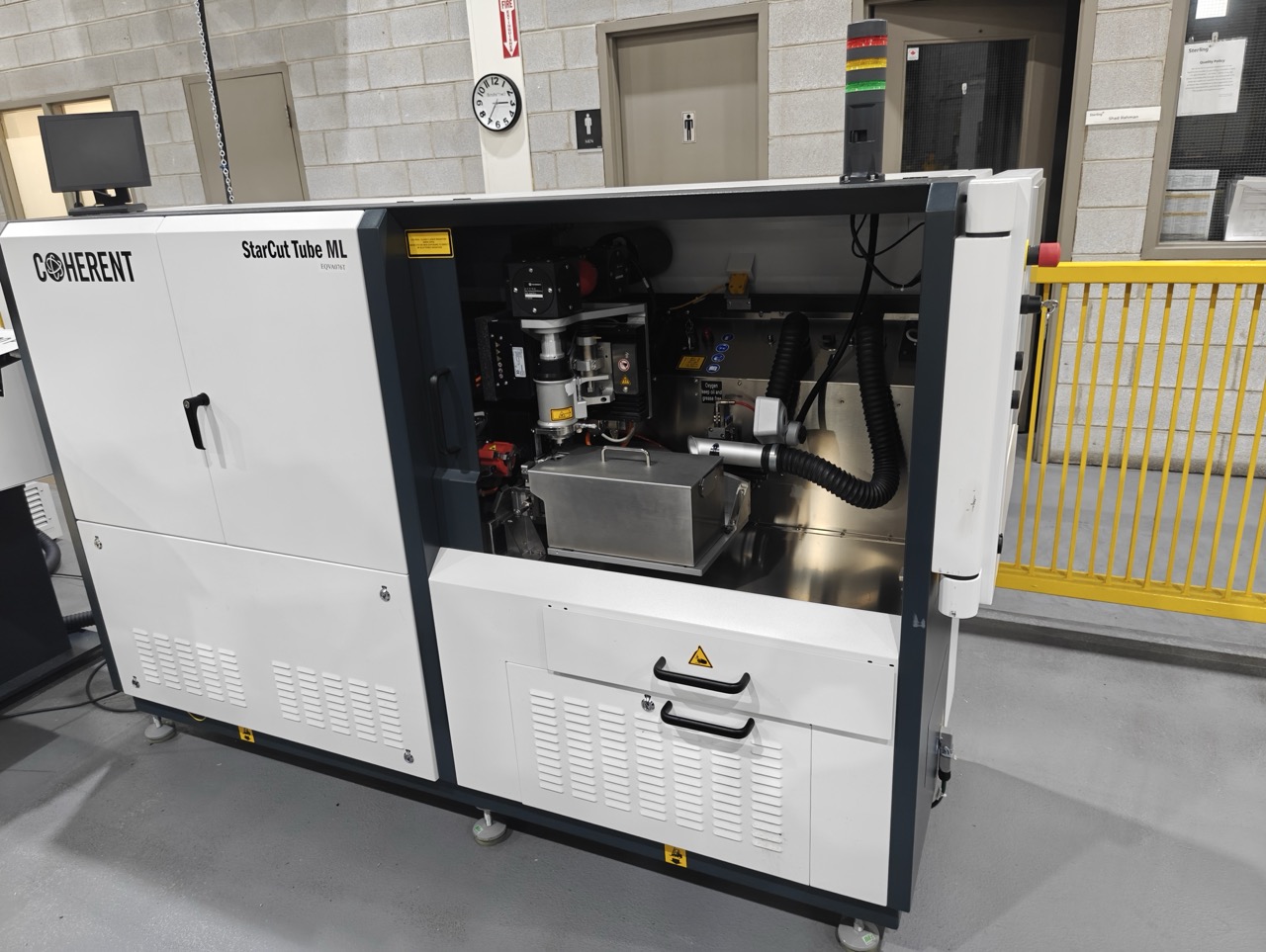

– Enclosed Cutting Chamber
– Foot Pedal
– Stack Light
