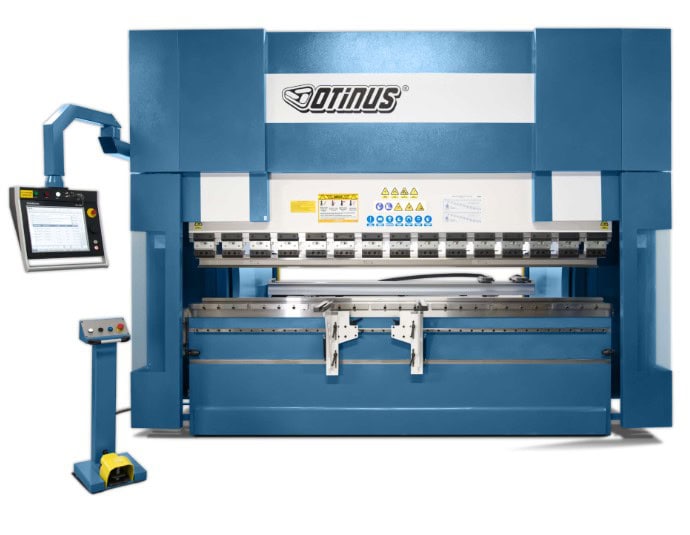

175 Ton x 12′ Otinus 193 t x 145′ – 3717 Delem DA-66T Hydraulic Press Brake, 2024 – Brand New, Available Now, Ready to Ship!

$119,350.00

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Hydraulic Press Brakes
Make: Otinus
Model: 193 t x 145' - 3717 Delem DA-66T
Year: 2024
Capacity: 175 Ton x 12‘
Machine Location: Upon Request
Stock #: 489481

Max thickness of full bending length – up to 0,1968 (mild steel)
Bending capacity 175 ton
Max working length 145 in
Throat depth 16 in
Maximum ram stroke 10 in
Daylight 18 in
Distance between side frames 126 in
Backgauge retract distance 29 in
Nominal motor power 15 kW
Length 208 in
Width: 95 in
Height 117 in
Weight 23148 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
