20,000 CFM S.P. Hastings Dust Collector, 2023 – Never Installed 125Hp Motor

**More Information Upon Request**

Dust Level Sensors (capacitive) to ensure explosion isolation flaps are not compromised by a layer of dust accumulation on both dirty air inlets.

Explosion Isolation – 20″ Ø EXPLOSION ISOLATION FLAP VALVE(EV-VF) W/ LOCKING MECHANISM – DIRTY AIR TO COLLECTOR

Explosion Isolation – 34″ Ø EXPLOSION ISOLATION FLAP VALVE(EV-VF) W/ LOCKING MECHANISM – CLEAN AIR DISCHARGE TO FAN

Explosion Isolation Valve Control Panel. CP04 Standard panel includes status lights, intrinsic circuit with barrier and physical separation (1 per zone), monitored inputs, (3 total/2 programmable), ability to add a seconda(more…)

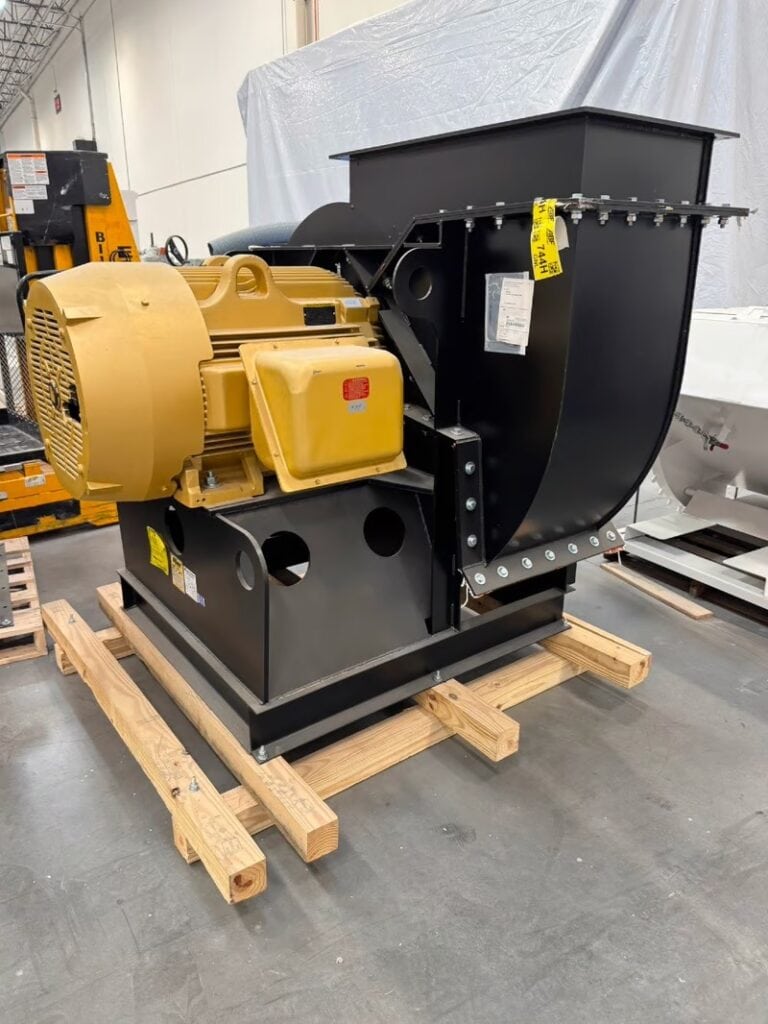

Fan – 125HP Chicago Blower Fan with 20,000 CFM @ 30″ S.P. Exhaust to outside. 4,000 for primary CNC source collection x 2 and 6,000 CFM per enclosure secondary ventilation x2, or 20,000 CFM total.

Fire Suppression System – Mounted on dust collector, CO2 Type Detection System with three 35lb. CO2 Suppressant Tanks, Smoke detection, firebreak in-duct panels, and alarm switch. Pricing includes installation of syst(more…)

In-Duct Spark Detection System – Includes Infra-Red Spark Detectors in dirty air ductwork and automated extinguishing system. Requires connection to plant water supply. Pricing includes installation of detectors, contr(more…)

IVEC – 3 Hopper Access Doors. Allows for access into hoper and underside of filtration section without having to remove rotary airlocks.

IVEC – Adder for 80 each, aluminized abrasion resistant spun-bond polyester cartridge filters with grounding straps

IVEC – ATV-80 Clean Air Plenum (CAP) with outlet flange

IVEC – ATV-80 Dirty Air Plenum (DAP) with flange

IVEC – Dust Collector – Down-flow Vertical Collector: Model
IVCDC-80, Complete with 80 each, Self-Cleaning Cartridge Filters, Tri-Hopper with 14″ Collars, Legs, Double valve reverse jet pulse cleaning. Includes E2T Turbo D(more…)

IVEC – Explosion Rupture Panel Rated for < 200 Kst, 8 Bar Pmax pre-installed in dust collector sidewalls.

IVEC Motor Controller – Model IPS2, 460V-125HP, NEMA 4X, Velocity sensor, programmed, fused disconnect, motor starter, variable frequency drive. Requires 3 phase connection and 3 phase back to motor. Wiring and mountin(more…)

IVEC No Loss Air Discharge Stack – Prevents rain from entering silencer and fan as clean air is exhausted to the atmosphere.
IVEC Remote Activation & Interface HMI Panel – Requires 115V connection and mount by others. To be mounted on/near CNC enclosures.

Noise Silencer for Fan – 85dBA, 77dBA radiated noise. Requires external support – not included.

Over Pressure Kit – OPK Safety System to prevent duct damage in event of an overpressure condition. Requires mounting by others.

Rotary Airlock Motor Starters – 1HP – Electrical wiring not included.

Boss Rotary Airlock

Ductwork Package – Clamp together ductwork package per specifications.

Dust collector service catwalk and access ladder – OSHA approved

Dust discharge hose for rotary discharge airlocks and clamps.
EZ Dump Dust Hopper – 1 cubic yard size hopper with fork truck lugs – design makes dust disposal easier. Equivalent of 12ea. 55 gallon drum capacity.

Heavy Gauge Duct Package – Post explosion isolation requirement – 6 ea. 5′ long flanged duct sections 20″ diameter for dual inlets. Three 34″ diameter flanged duct section post CAP to fan. Meets NFPA requirements.

Hopper Bin Full Assembly – Provides warning if dust collector hoppers get full and aren’t emptying correctly.

Interconnect Diagram
IVEC – ATV Increase collector leg height to accommodate rotary airlocks and EZ dump dust hoppers.

IVEC – Custom Paint Color for Collector

IVEC – Prewire solenoid to junction box on dust collector

Junior Control Panel to allow the three rotary air locks to be automatically controlled with the IPS-2 VFD. Ensures rotary airlocks are on when collector is on. Requires mounting and 115V connection by others.
